Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

25 part groups · 14 illustrations

Illustrations

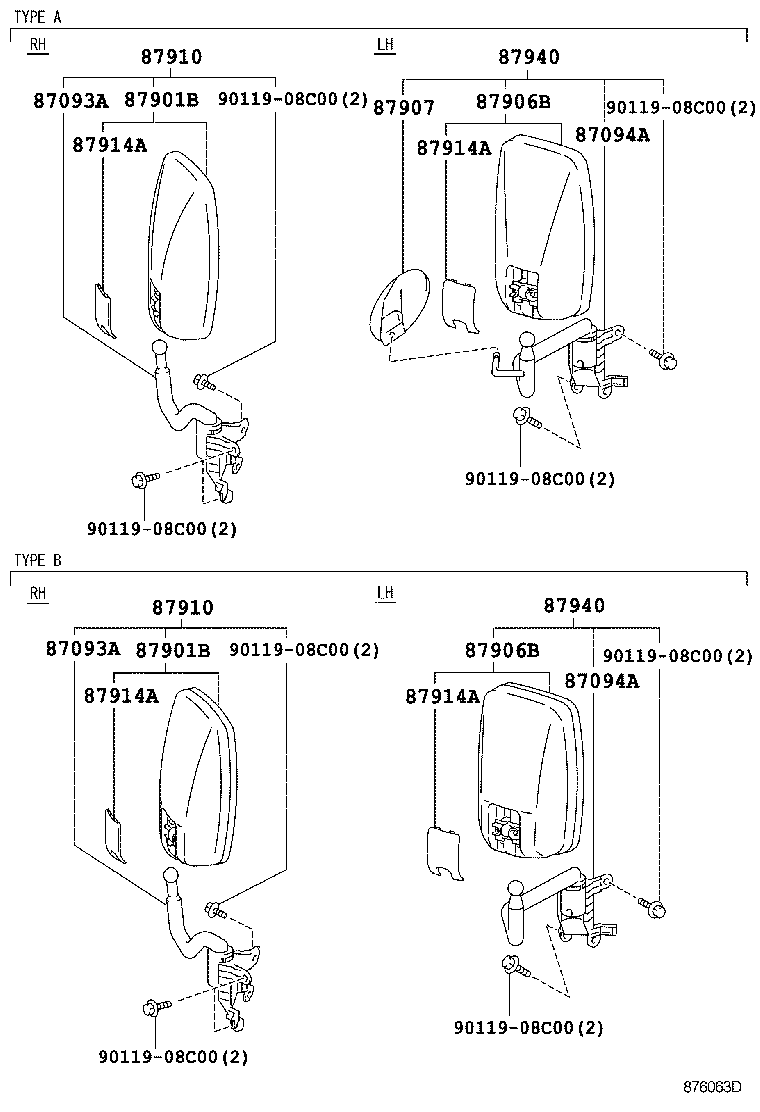

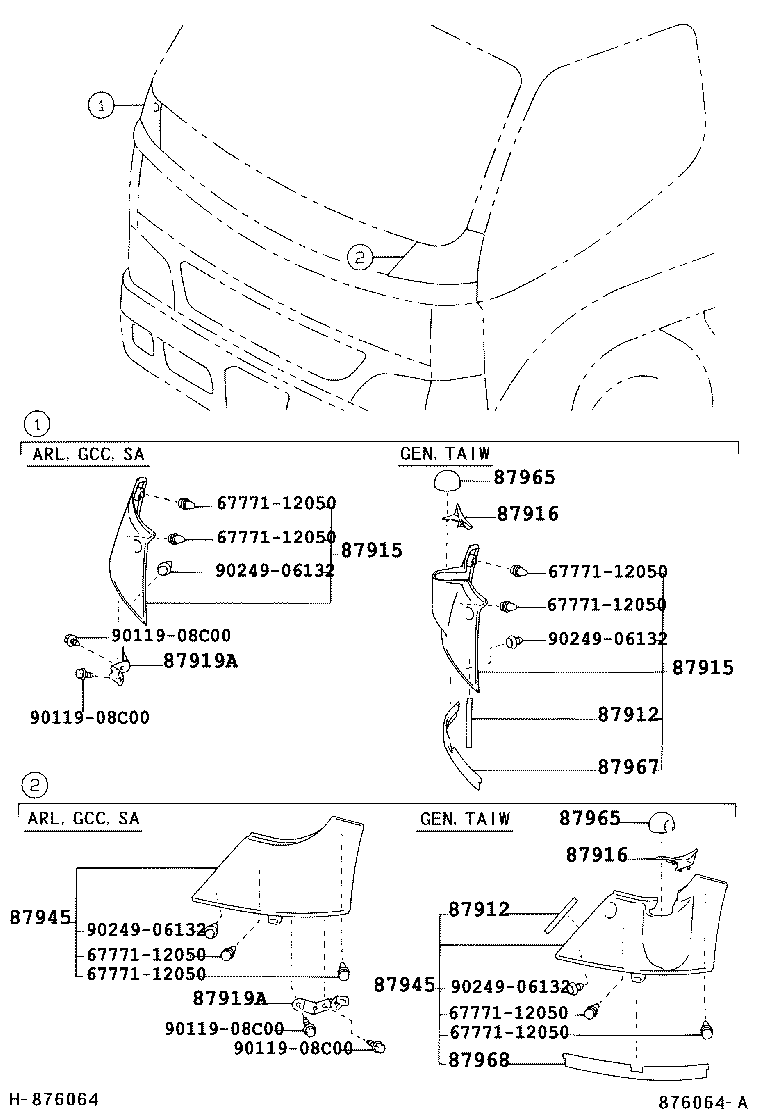

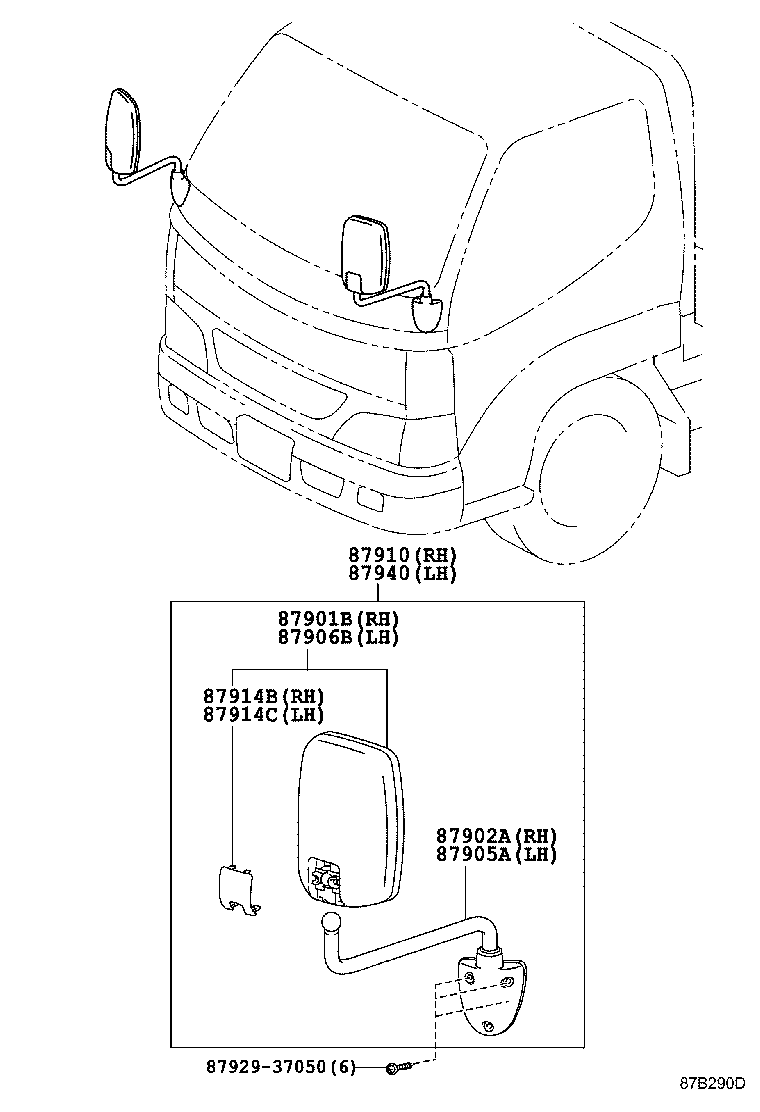

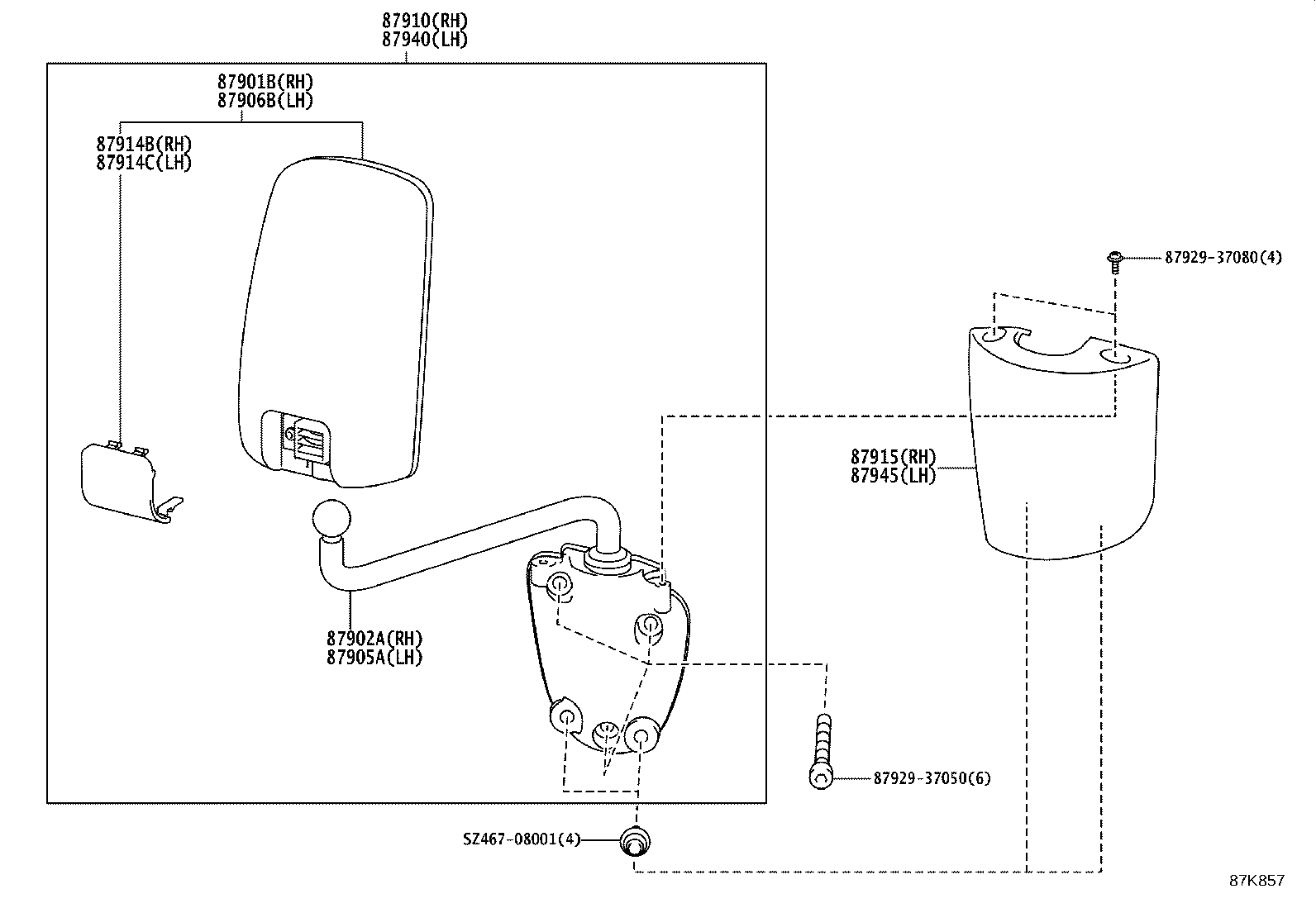

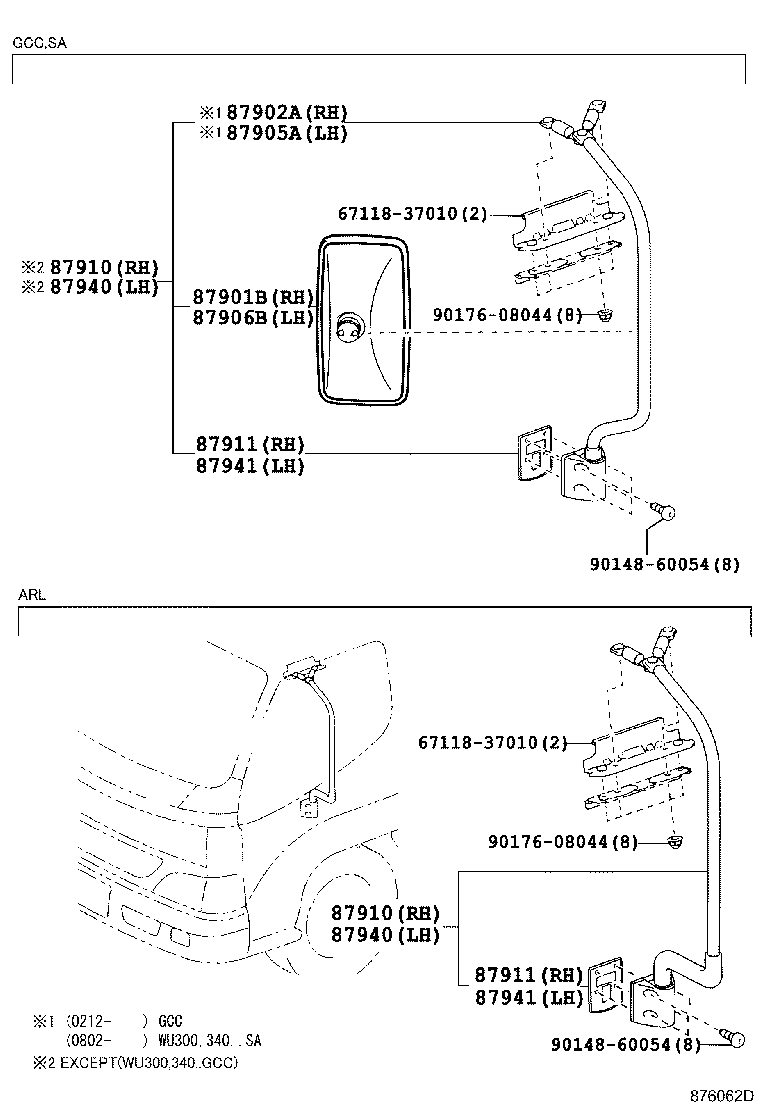

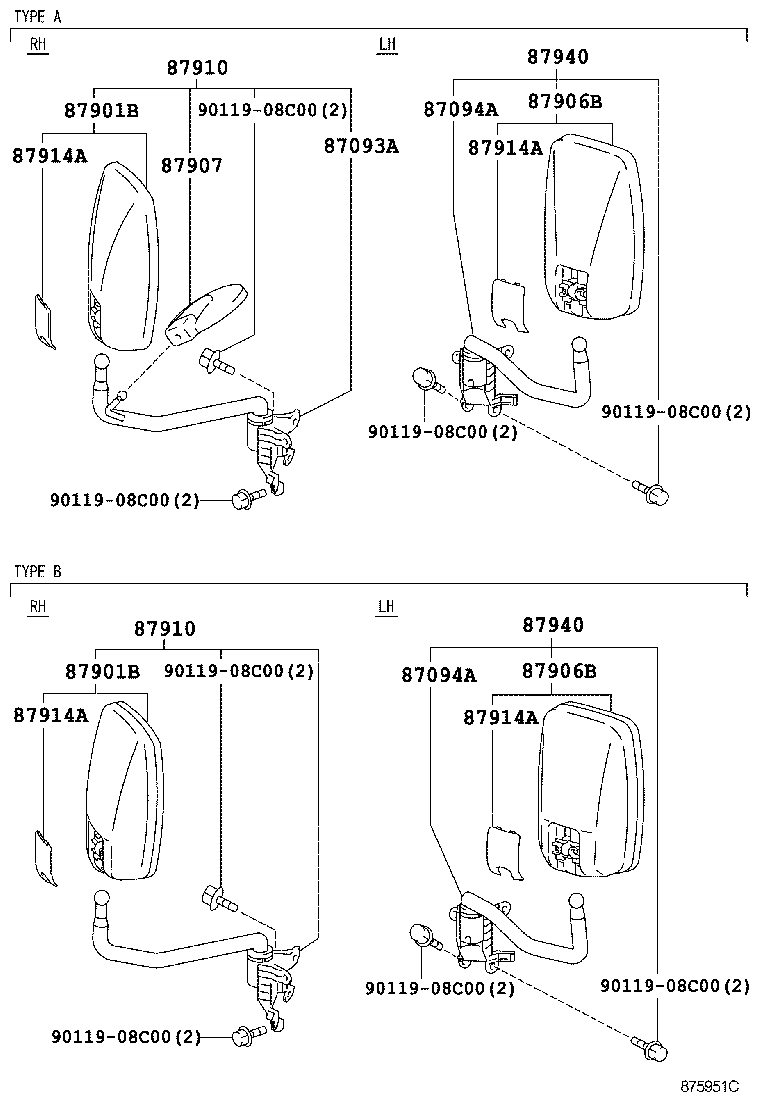

Figure 875613B 875613B 2002-09 → 2010-05 Figure 876062D 876062D 2002-12 → 2006-10 Figure 876062D 876062D 2006-10 → 2011-06 Figure 876062D 876062D 2007-12 → 2008-12 Figure 875951C 875951C 2002-12 → 2006-10 Figure 875951C 875951C 2006-10 → 2011-06 Figure 875951C 875951C 2006-10 → — Figure 876063D 876063D 2002-12 → 2006-10 Figure 876063D 876063D 2006-10 → 2011-06 Figure 876063D 876063D 2006-12 → 2010-05 Figure 87B290D 87B290D 2009-12 → — Figure 87K857 87K857 2022-03 → — Figure 876064A 876064A 2002-12 → 2011-06 Figure 875195B 875195B 2002-09 → —

Part groups

PNCDescription
87093A Stay Sub-assy, Outer Rear View Mirror, RH
87094A Stay Sub-assy, Outer Rear View Mirror, LH
87810 Mirror Assy, Inner Rear View
87810B Bulb, Inner Rear View Mirror Lamp
87819 Lens, Inner RR View Mirror Room Lamp
87901B Mirror Sub-assy, Outer Rear View, RH
87902A Arm Sub-assy, Outer Rear View Mirror, RH
87905A Arm Sub-assy, Outer Rear View Mirror, LH
87906B Mirror Sub-assy, Outer Rear View, LH
87907 Mirror Sub-assy, Outer Under View
87910 Mirror Assy, Outer Rear View, RH
87911 Gasket, Outer Rear View Mirror, RH
87912 Protector, Outer Mirror
87914A Cover, Outer Mirror Knob
87914B Cover, Outer Mirror Knob, RH
87914C Cover, Outer Mirror Knob, LH
87915 Cover, Outer Mirror, RH
87916 Bezel, Outer Mirror
87919A Bracket, Outer Mirror
87940 Mirror Assy, Outer Rear View, LH
87941 Gasket, Outer Rear View Mirror, LH
87945 Cover, Outer Mirror, LH
87965 Grommet, Outer Mirror
87967 Holder, Mirror, Outer RH
87968 Holder, Mirror, Outer LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
