Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

14 part groups · 3 illustrations

Illustrations

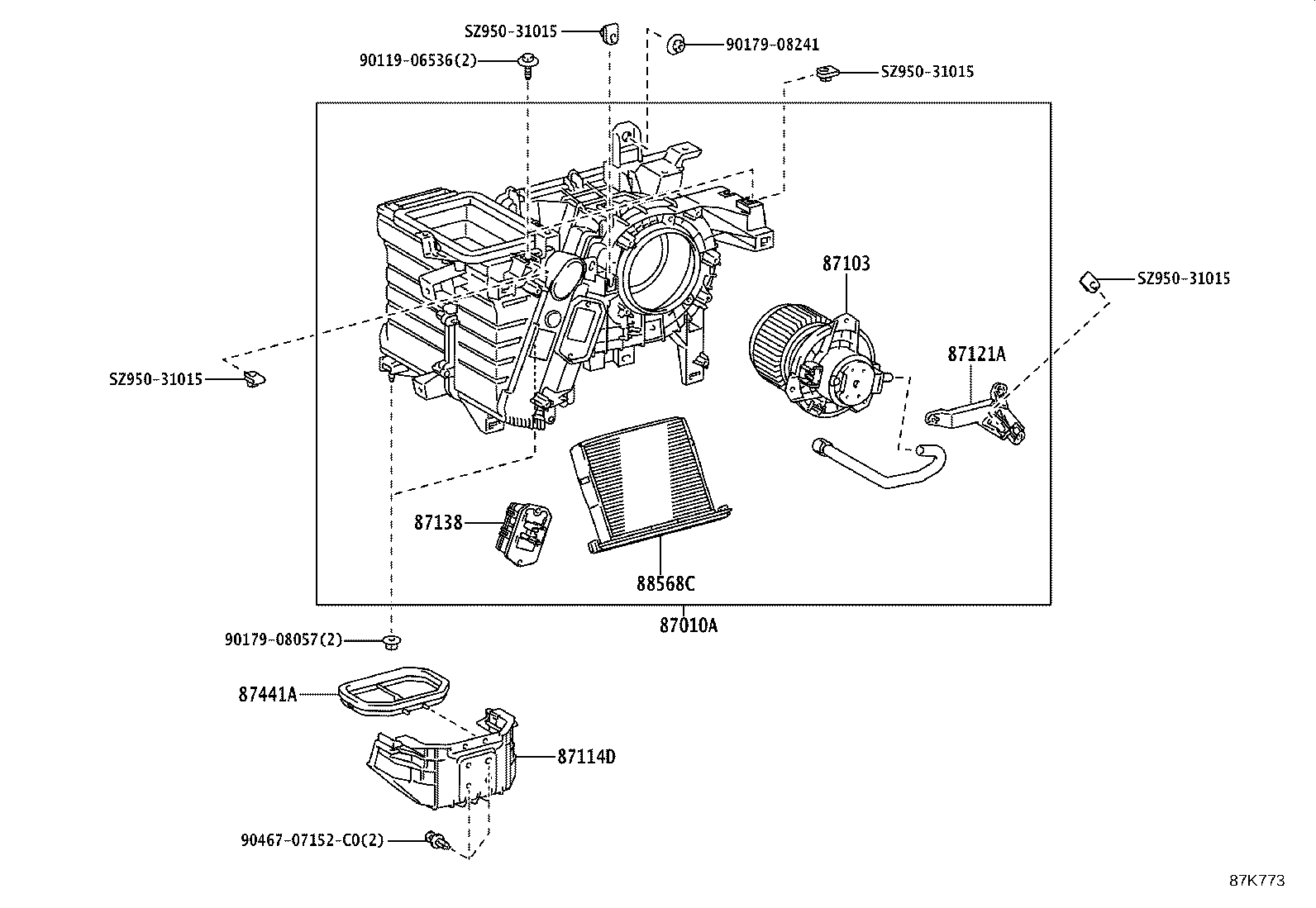

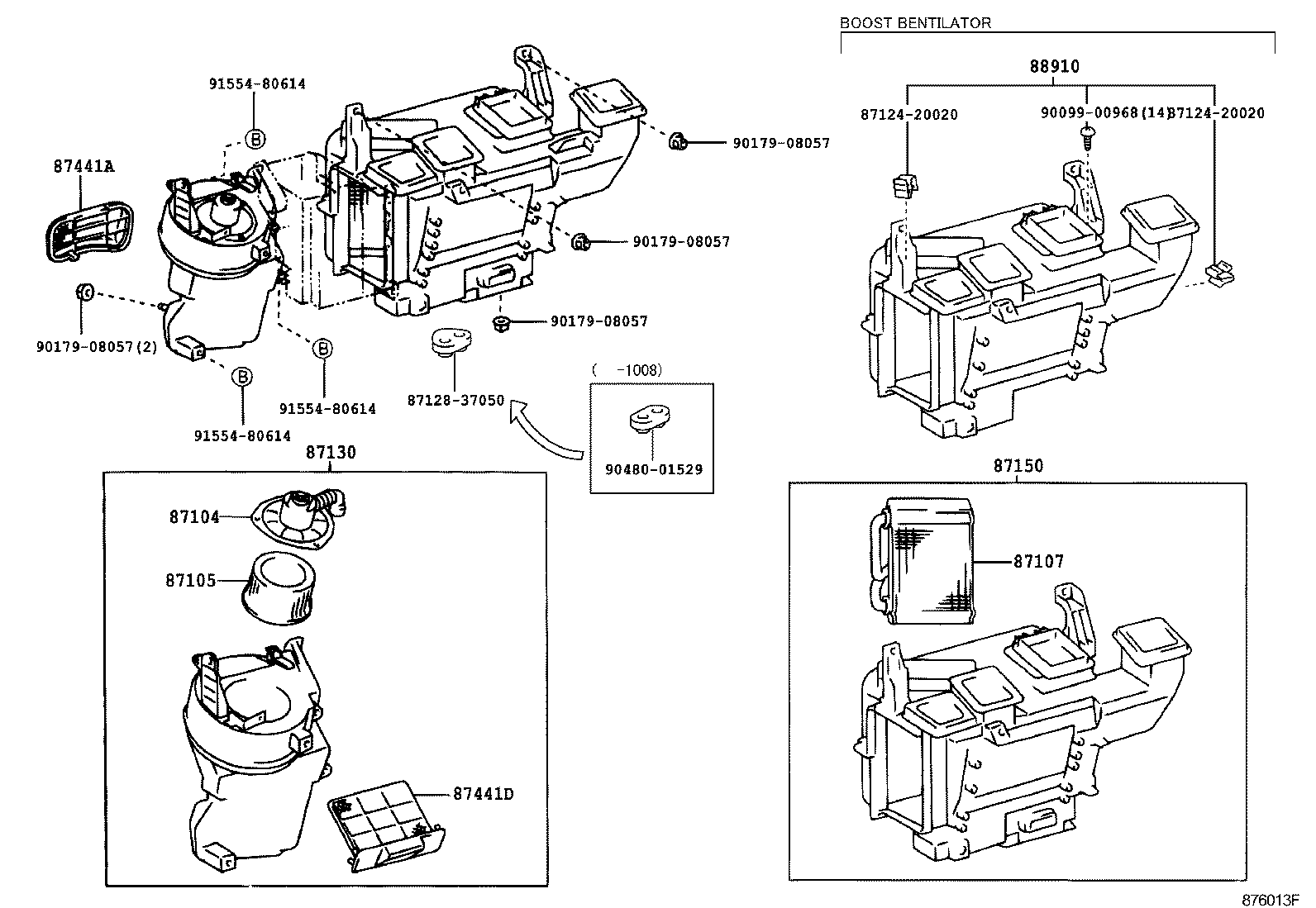

Figure 878850D 878850D 2002-12 → — Figure 876013F 876013F 2002-12 → — Figure 87K773 87K773 2022-03 → —

Part groups

PNCDescription
87010A Unit Assy,Air Conditioner
87103 Motor Sub-assy, Heater Blower, W/Fan
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87114D Cover, Boost Ventilator
87121A Bracket, Heater
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87441A Filter, Heater Air
87441D Filter, Heater Air, NO.2
88568C Filter, Air
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
