Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

19 part groups · 10 illustrations

Illustrations

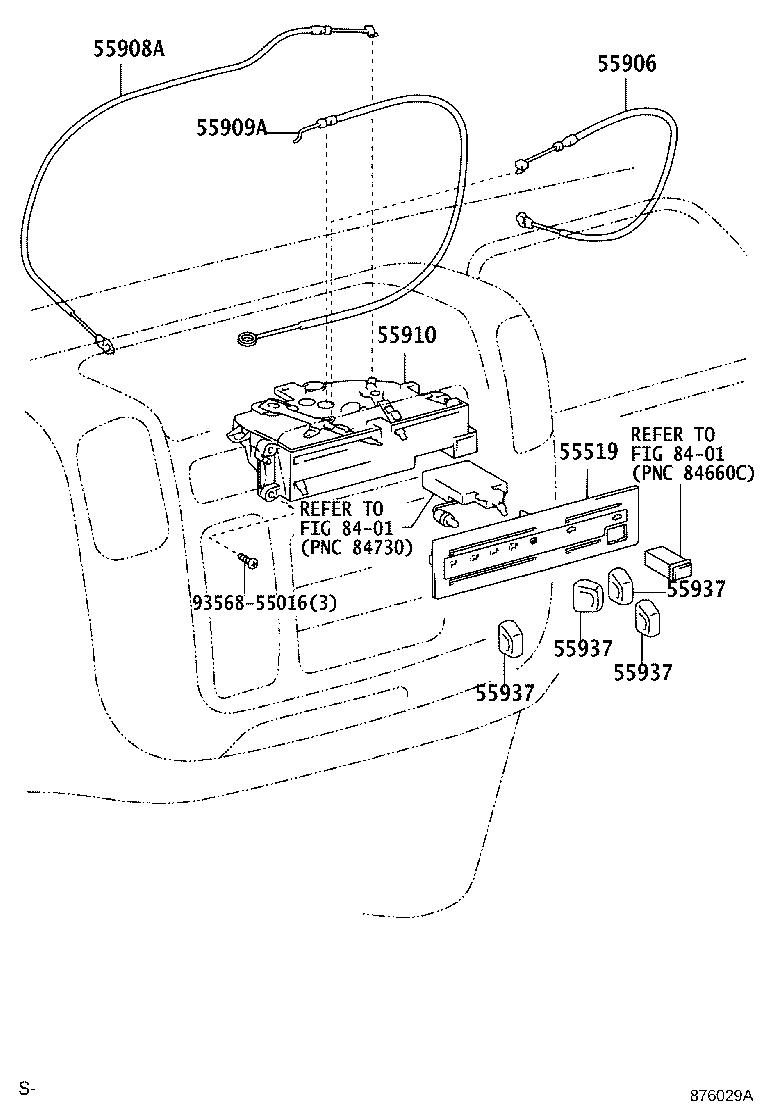

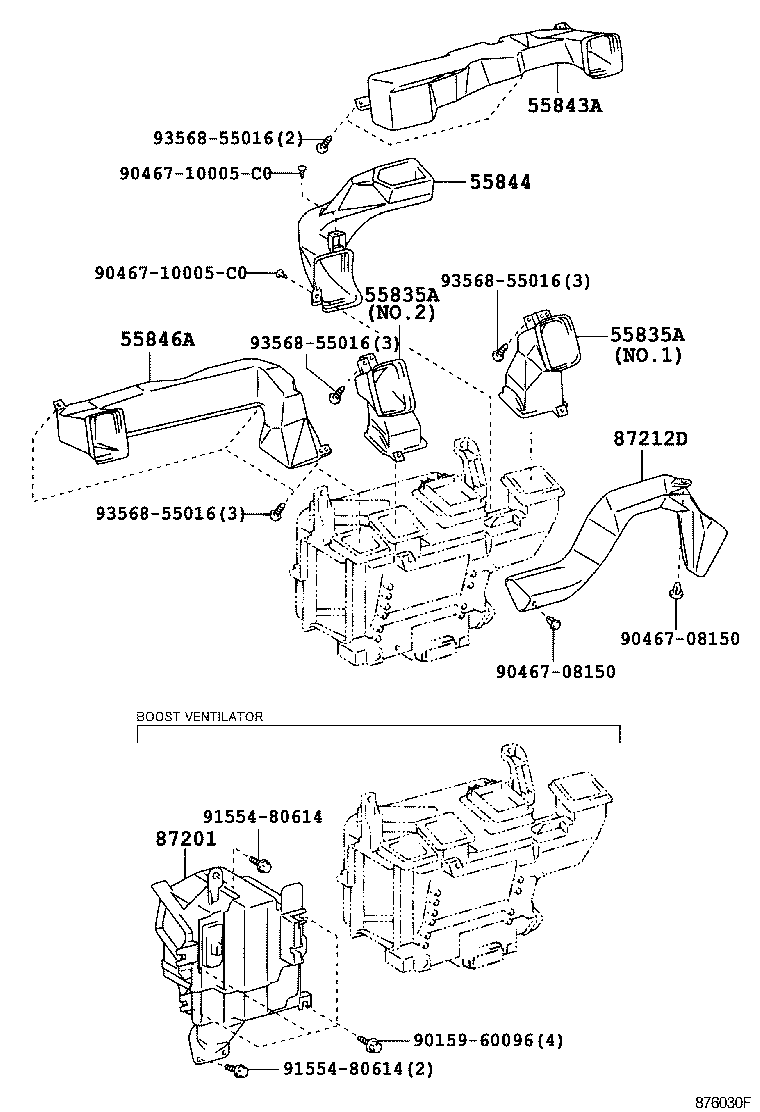

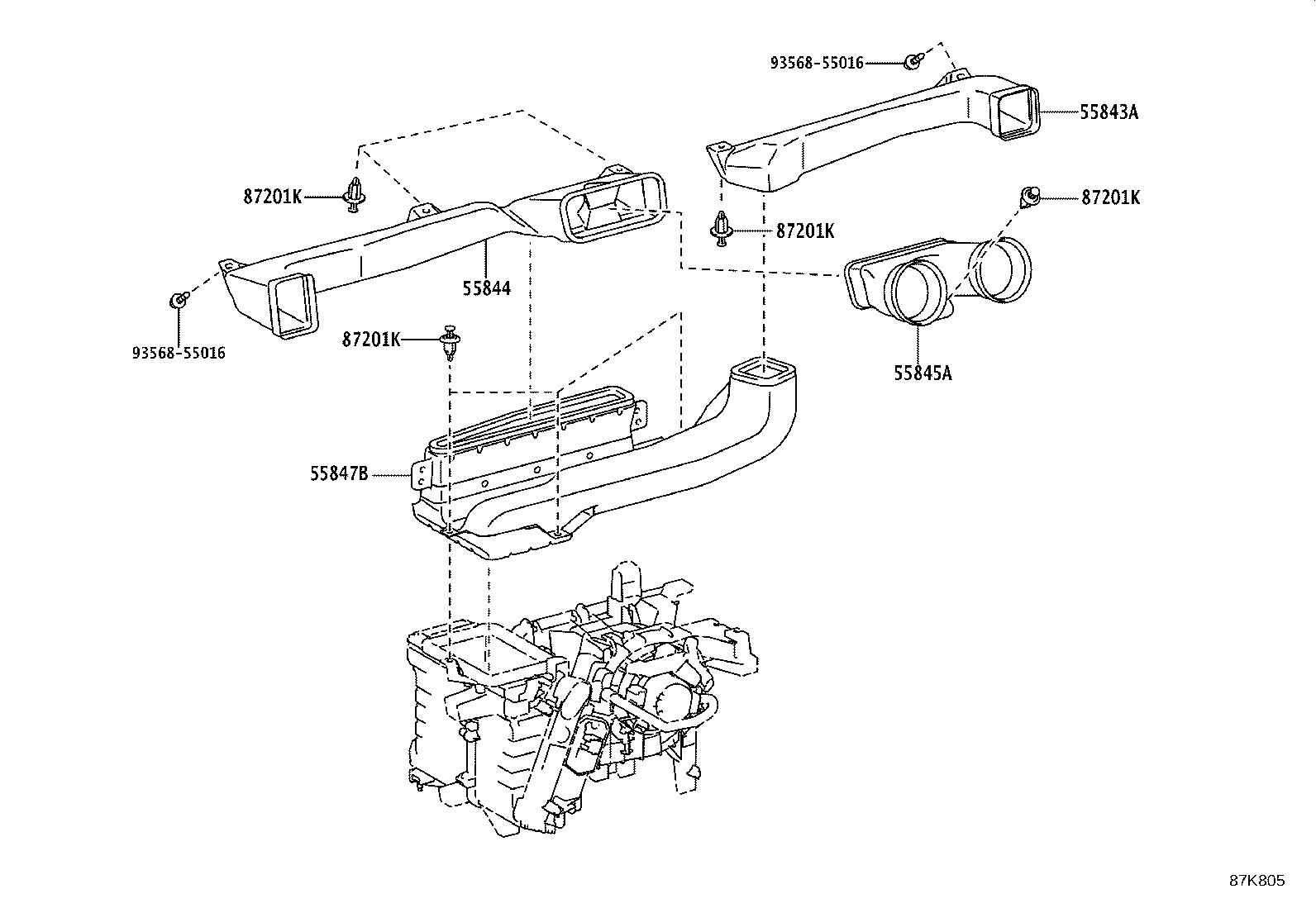

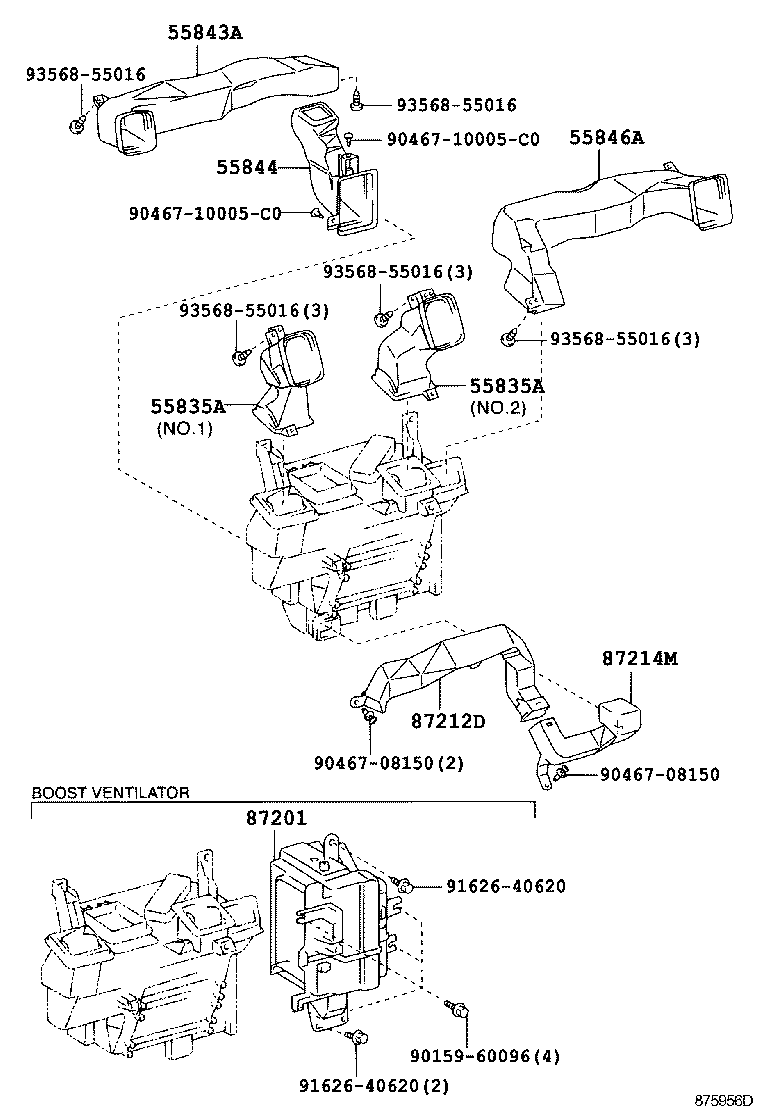

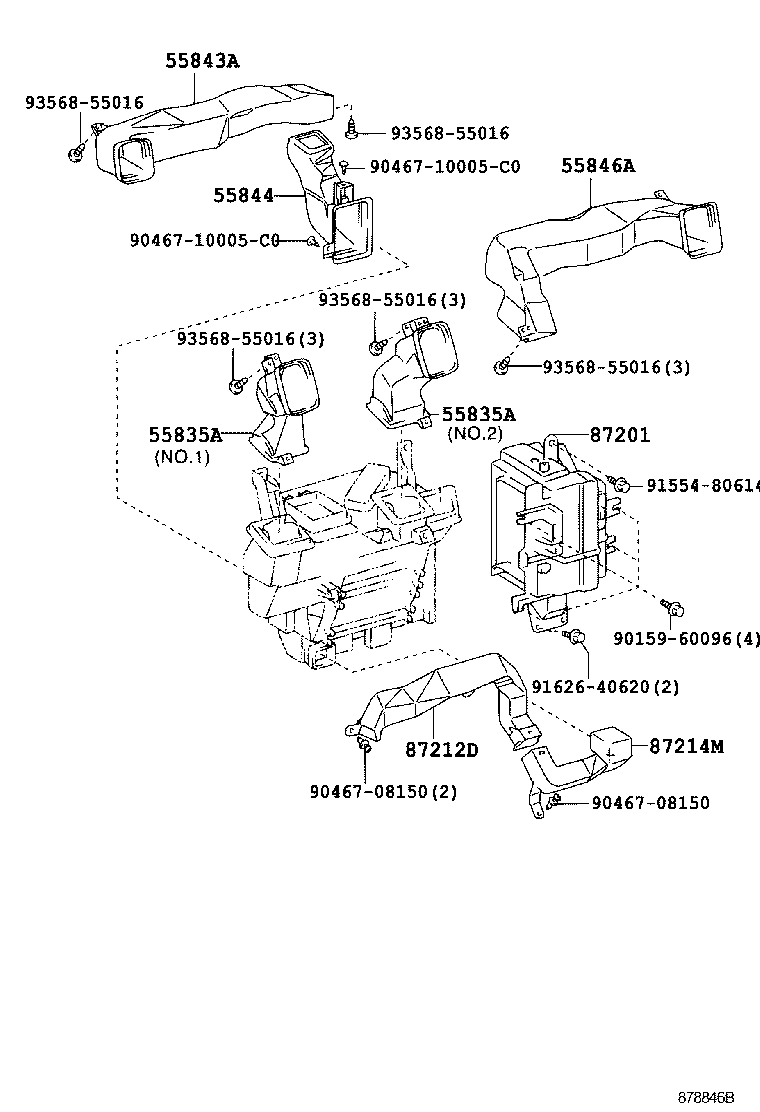

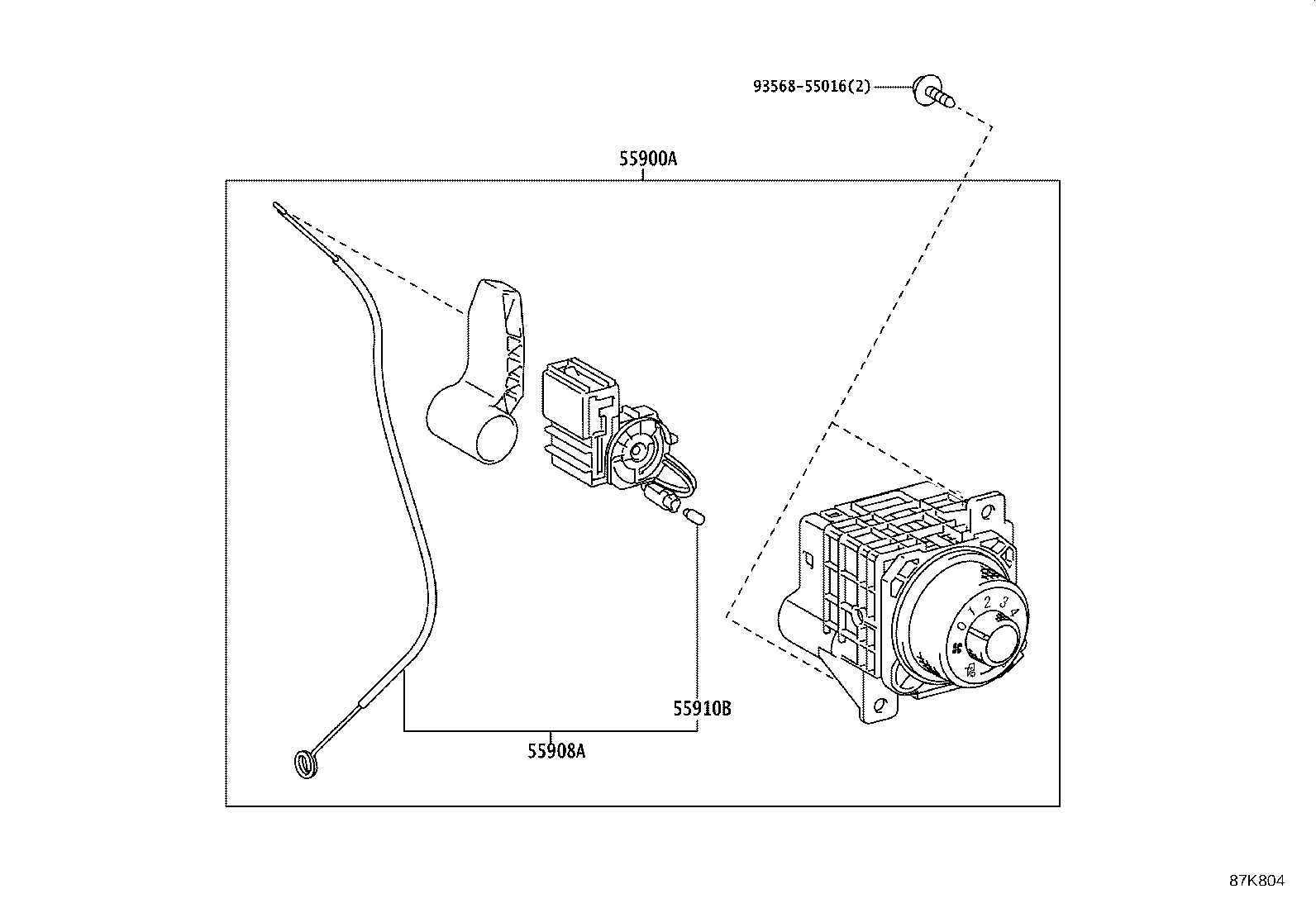

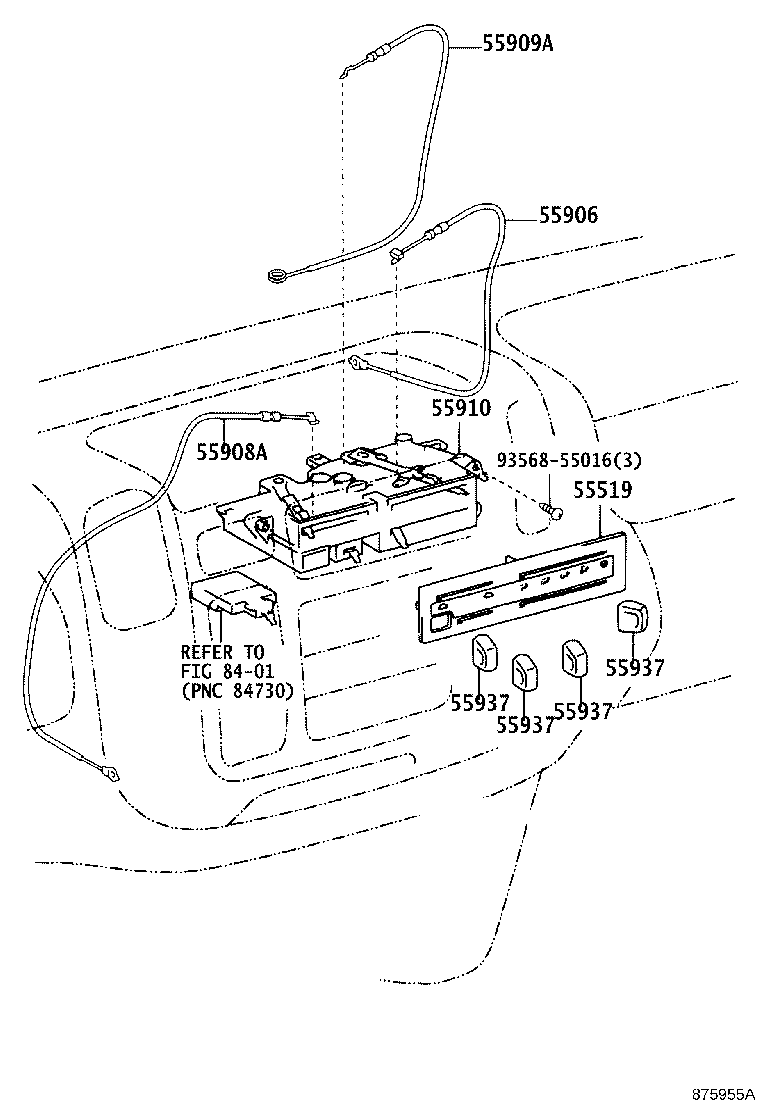

Figure 875614 875614 2002-09 → — Figure 875614 875614 2009-12 → — Figure 875955A 875955A 2002-12 → — Figure 876029A 876029A 2002-12 → 2006-10 Figure 876029A 876029A 2006-10 → — Figure 87K804 87K804 2022-03 → — Figure 875956D 875956D 2002-12 → 2006-10 Figure 878846B 878846B 2006-10 → — Figure 876030F 876030F 2002-12 → — Figure 87K805 87K805 2022-03 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55835A Duct, Heater TO Register, Center
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846A Duct, Heater TO Register, NO.4
55847B Duct, Heater TO Register, NO.5
55849D Duct, Heater TO Register, NO.7
55900A Control & Accessory Assy, Heater
55906 Cable Sub-assy, Heater Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910B Bulb, Heater Control
55937 Knob, Heater Control Lever
87201 Duct Sub-assy, Air, NO.1
87201K Clip (FOR AIR DUCT)
87212D Duct, Heater TO Foot, NO.1
87214M Duct, Heater TO Foot, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
