Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

9 part groups · 8 illustrations

Illustrations

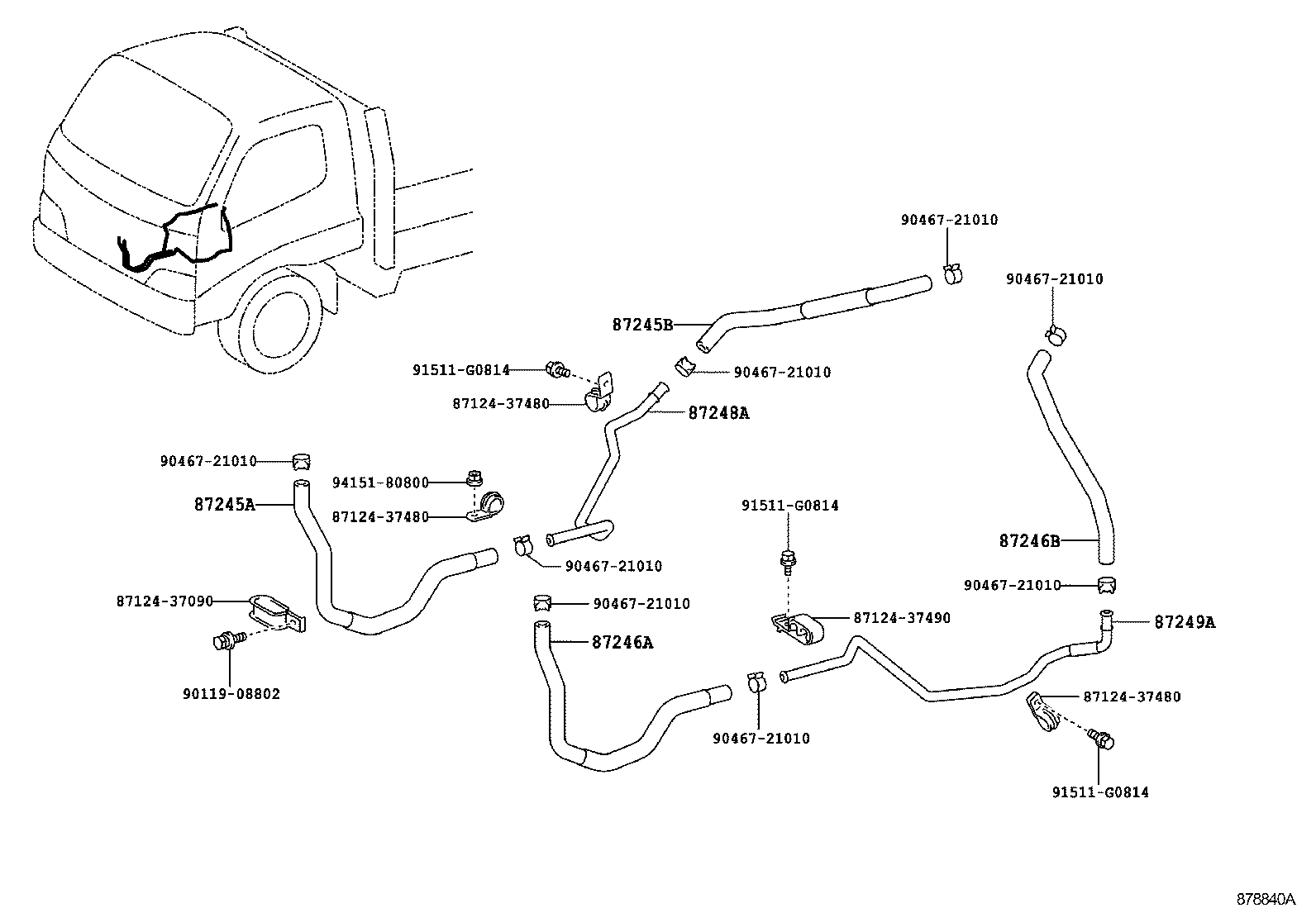

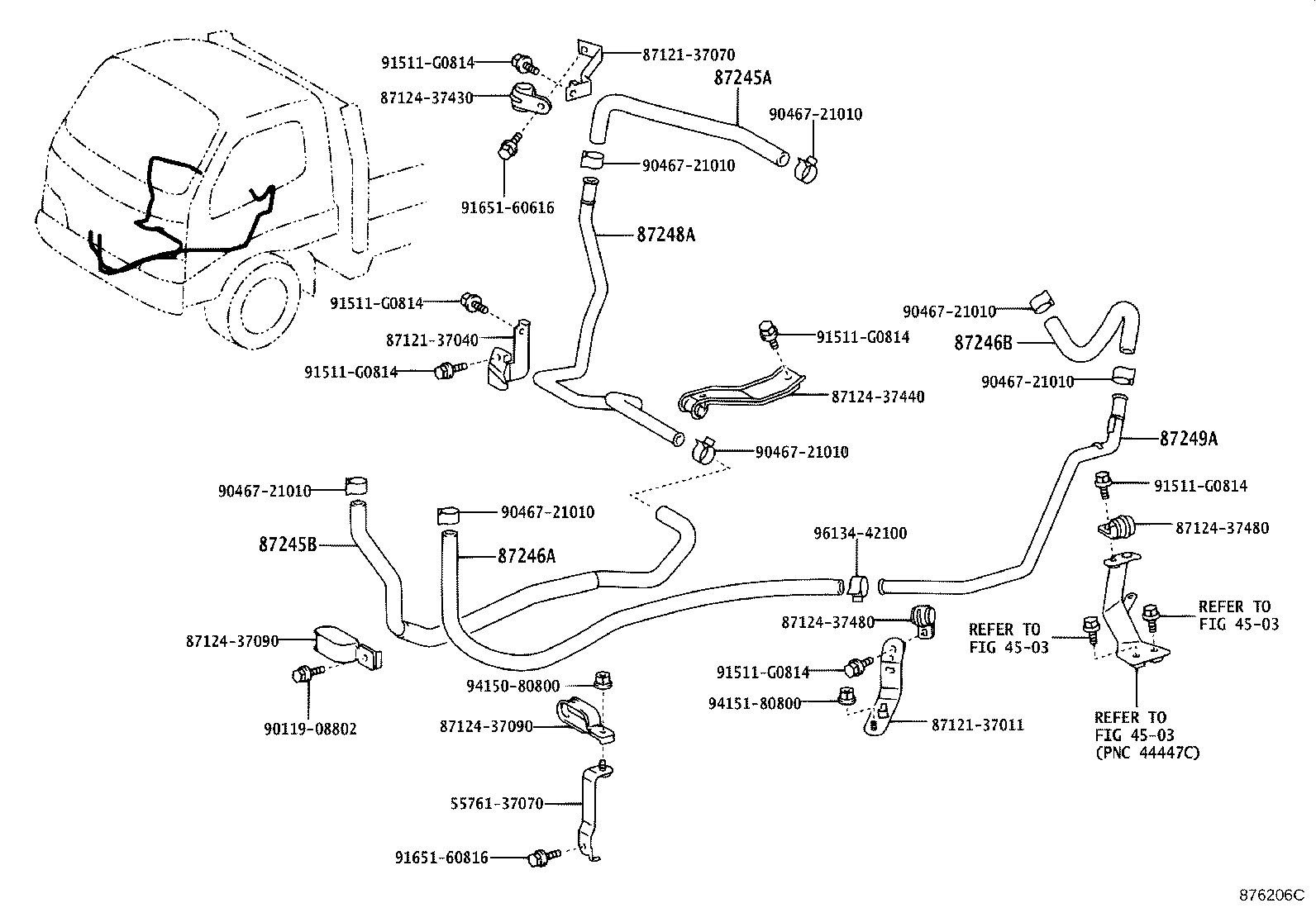

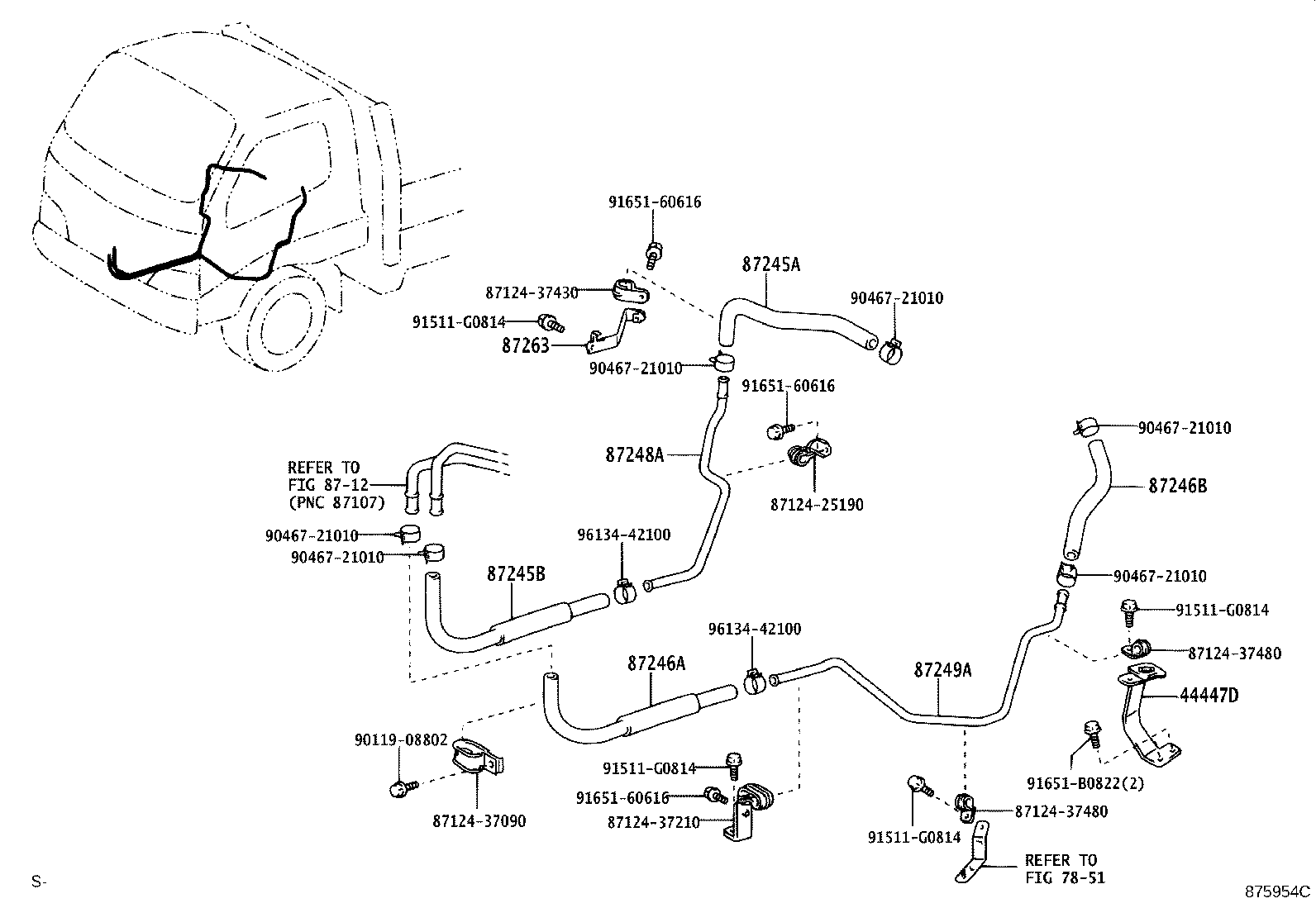

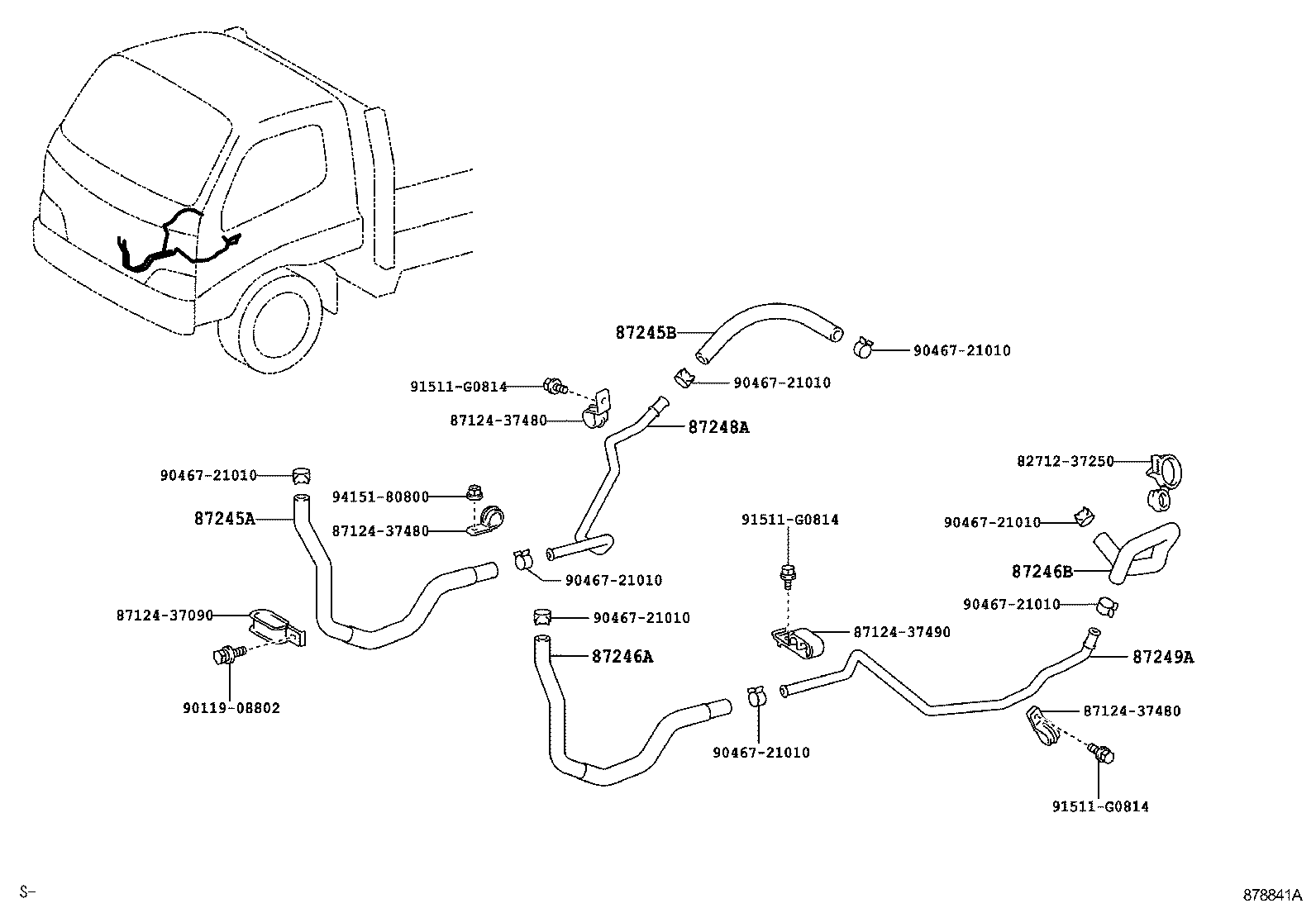

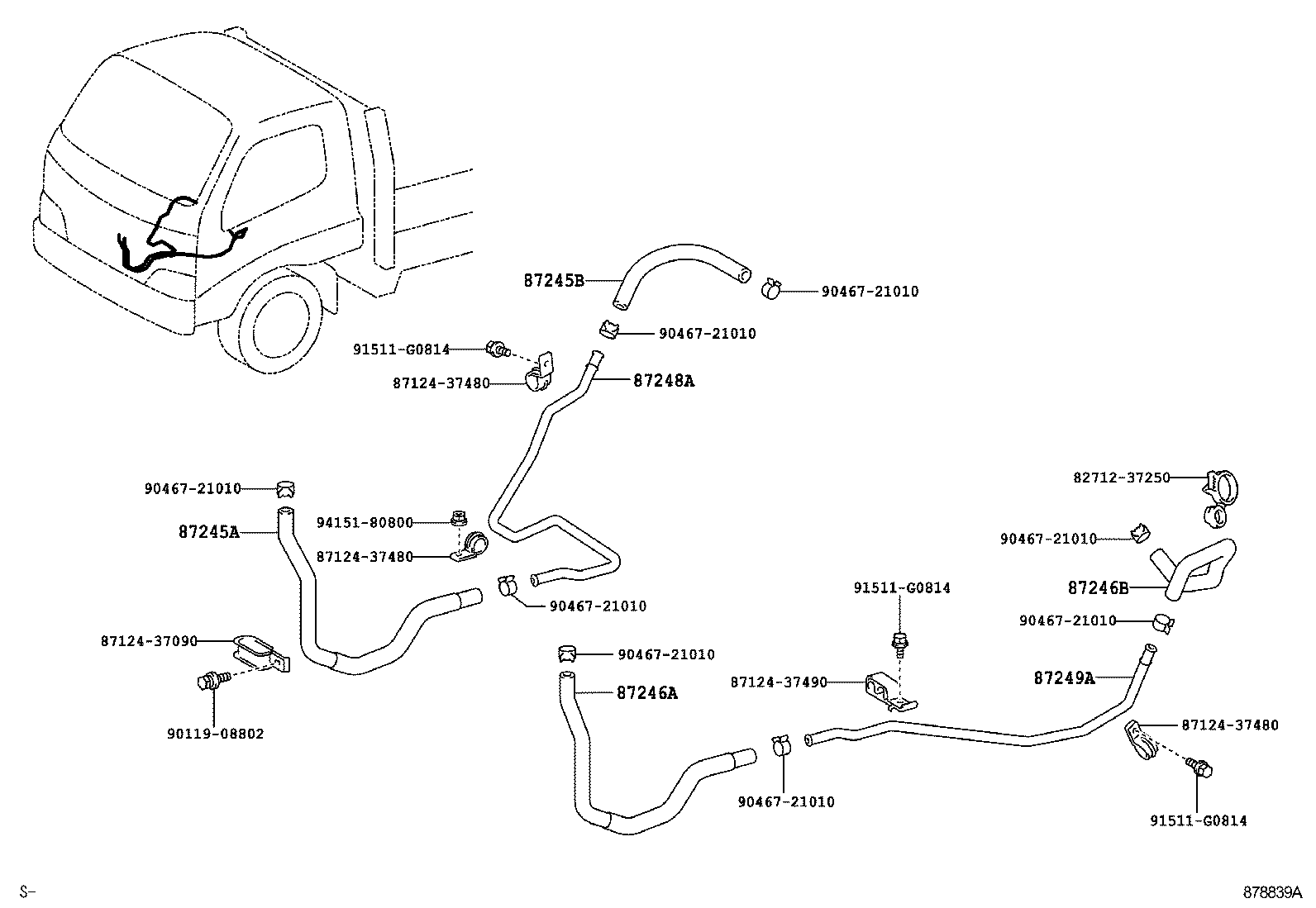

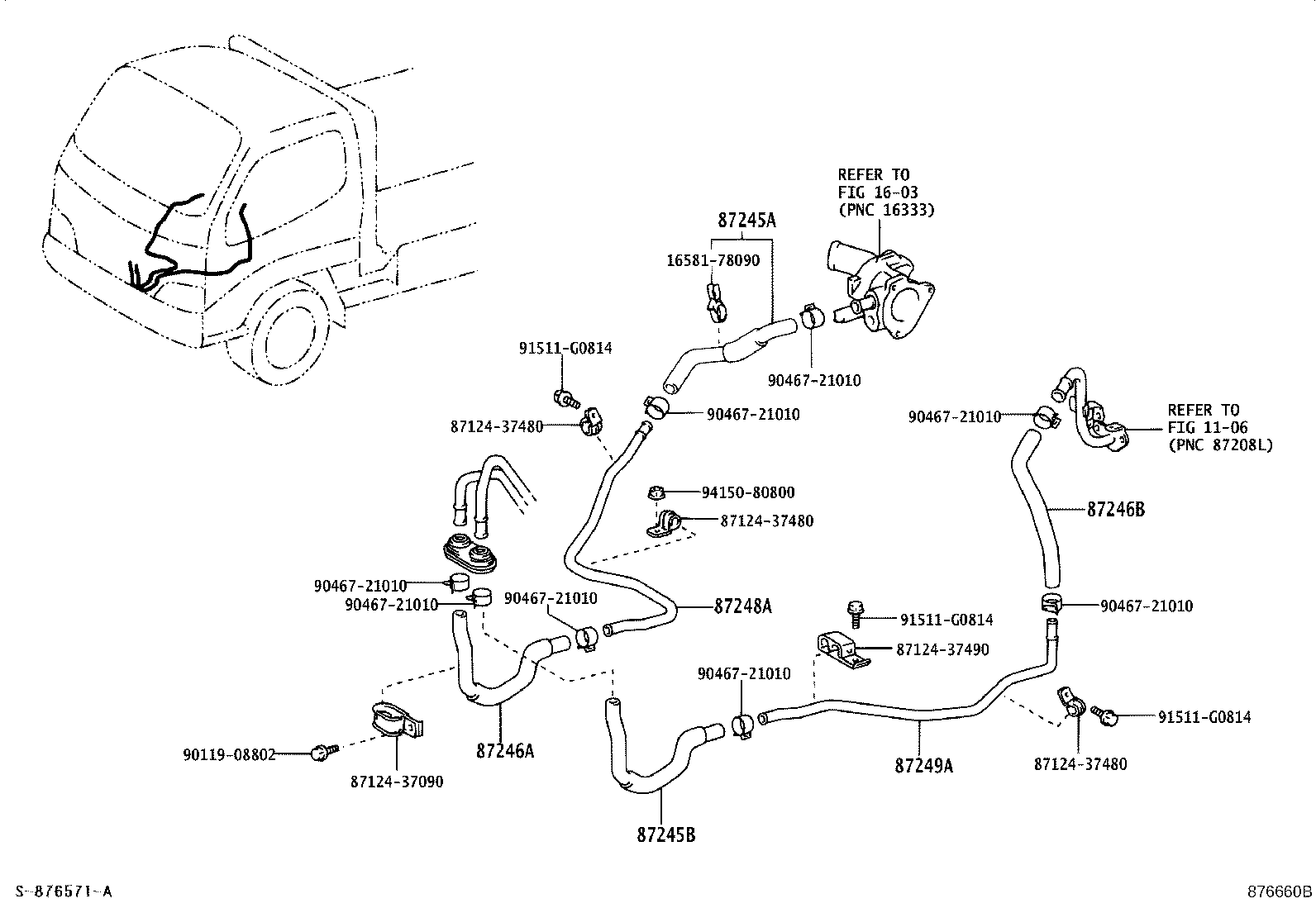

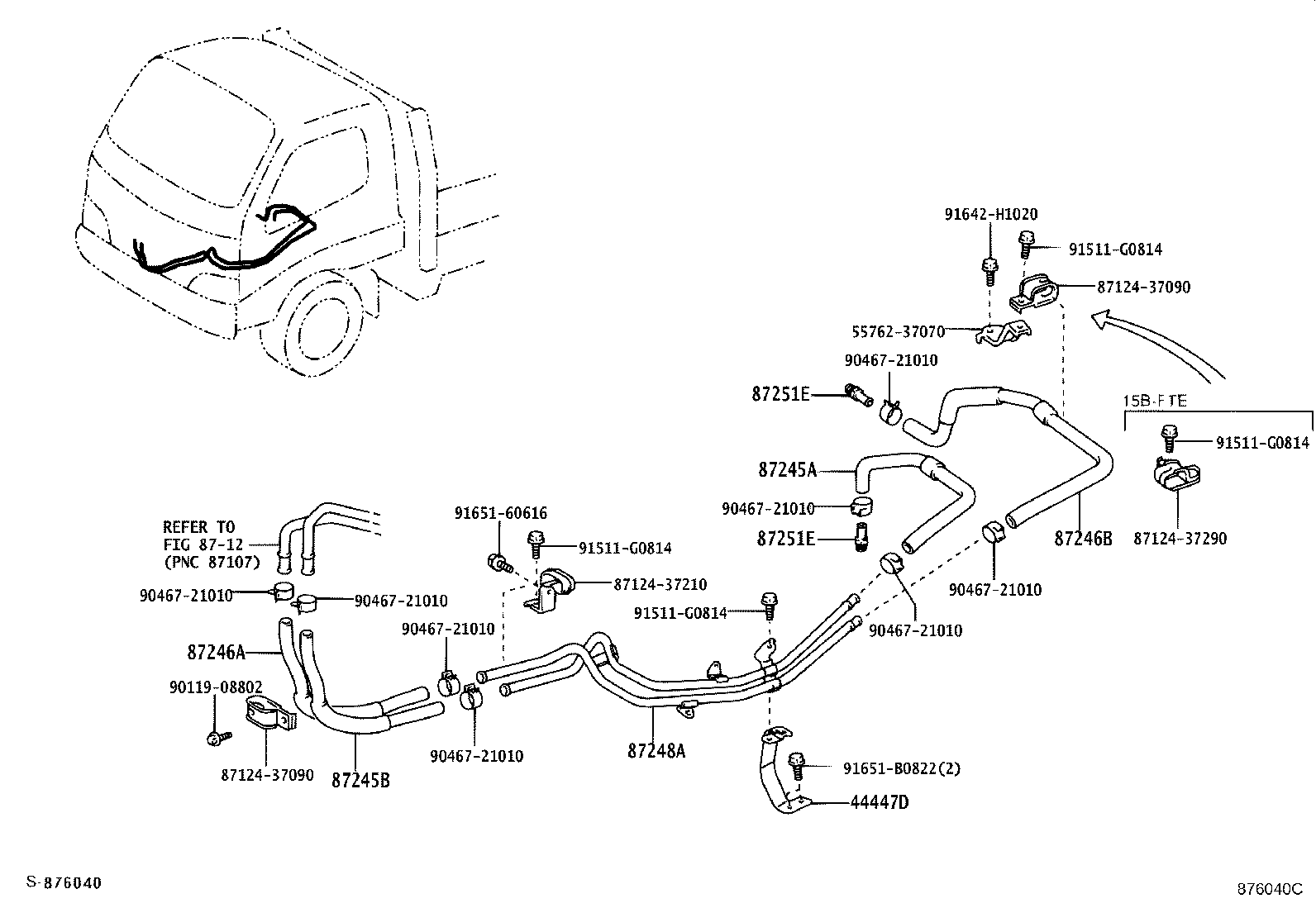

Figure 876039B 876039B 2002-12 → 2006-10 Figure 876040C 876040C 2002-12 → 2006-10 Figure 875954C 875954C 2002-12 → 2006-10 Figure 876206C 876206C 2003-04 → — Figure 876660B 876660B 2003-12 → 2006-10 Figure 878839A 878839A 2006-10 → — Figure 878840A 878840A 2006-10 → — Figure 878841A 878841A 2006-10 → —

Part groups

PNCDescription
44447D Bracket, Hose Support, NO.1
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
87251E Joint, Water, NO.2
87263 Bracket, Heater Water Pipe, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
