Heating & Air Conditioning - Compressor

12 part groups · 3 illustrations

Illustrations

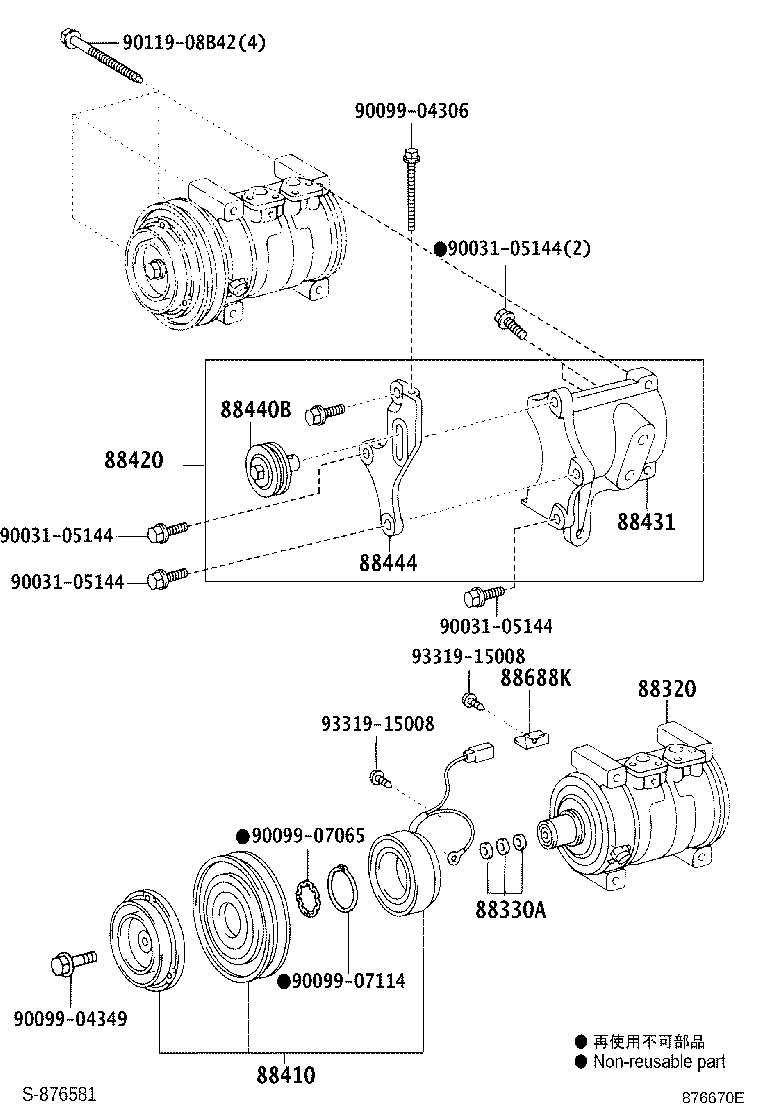

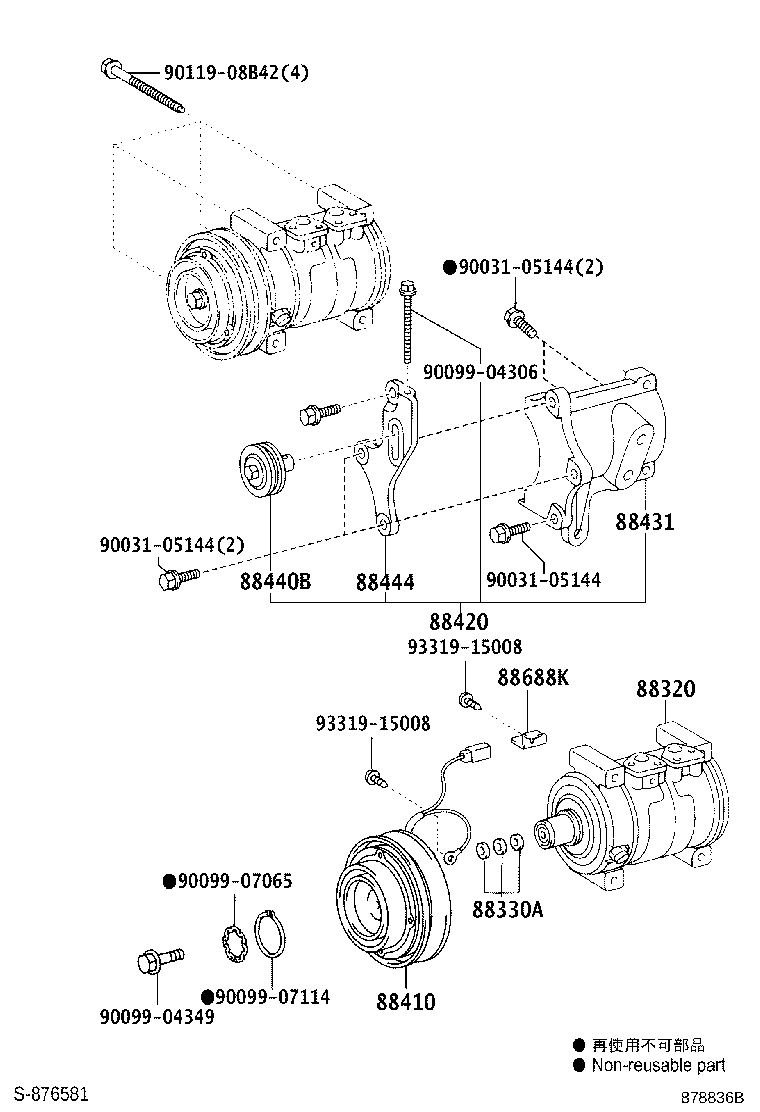

Figure 876046B 876046B 2002-12 → 2006-10 Figure 876670E 876670E 2003-12 → 2006-10 Figure 878836B 878836B 2006-10 → 2012-08

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88420 Pulley Assy, Idle, W/Bracket
88431 Bracket, Compressor Mounting, NO.1
88440B Pulley Assy, Idle
88444 Bracket, Idle Pulley
88595D Pulley Assy, Idle
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
