Toyota Dyna
2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General
Supported model
Data version 2020-01

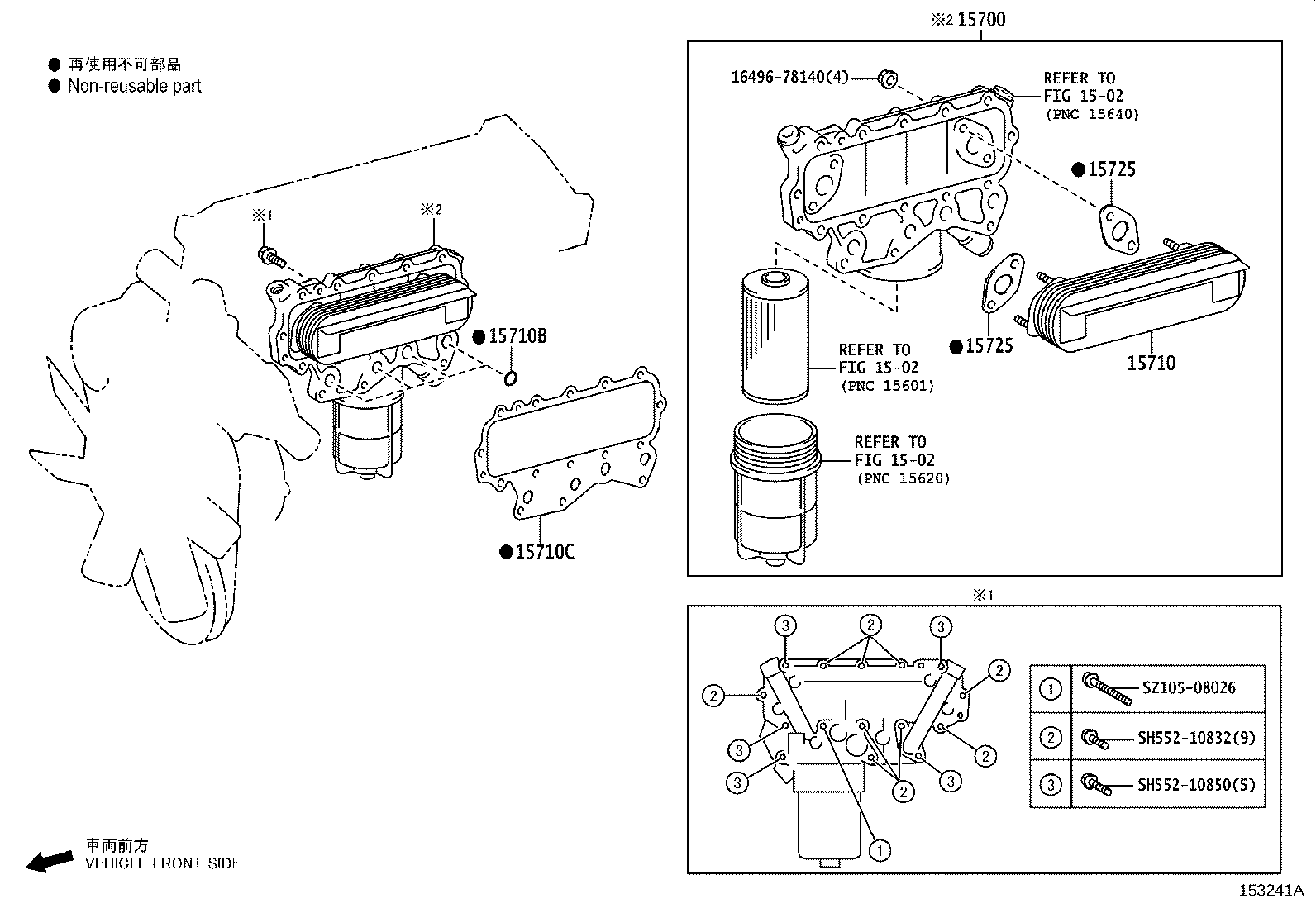

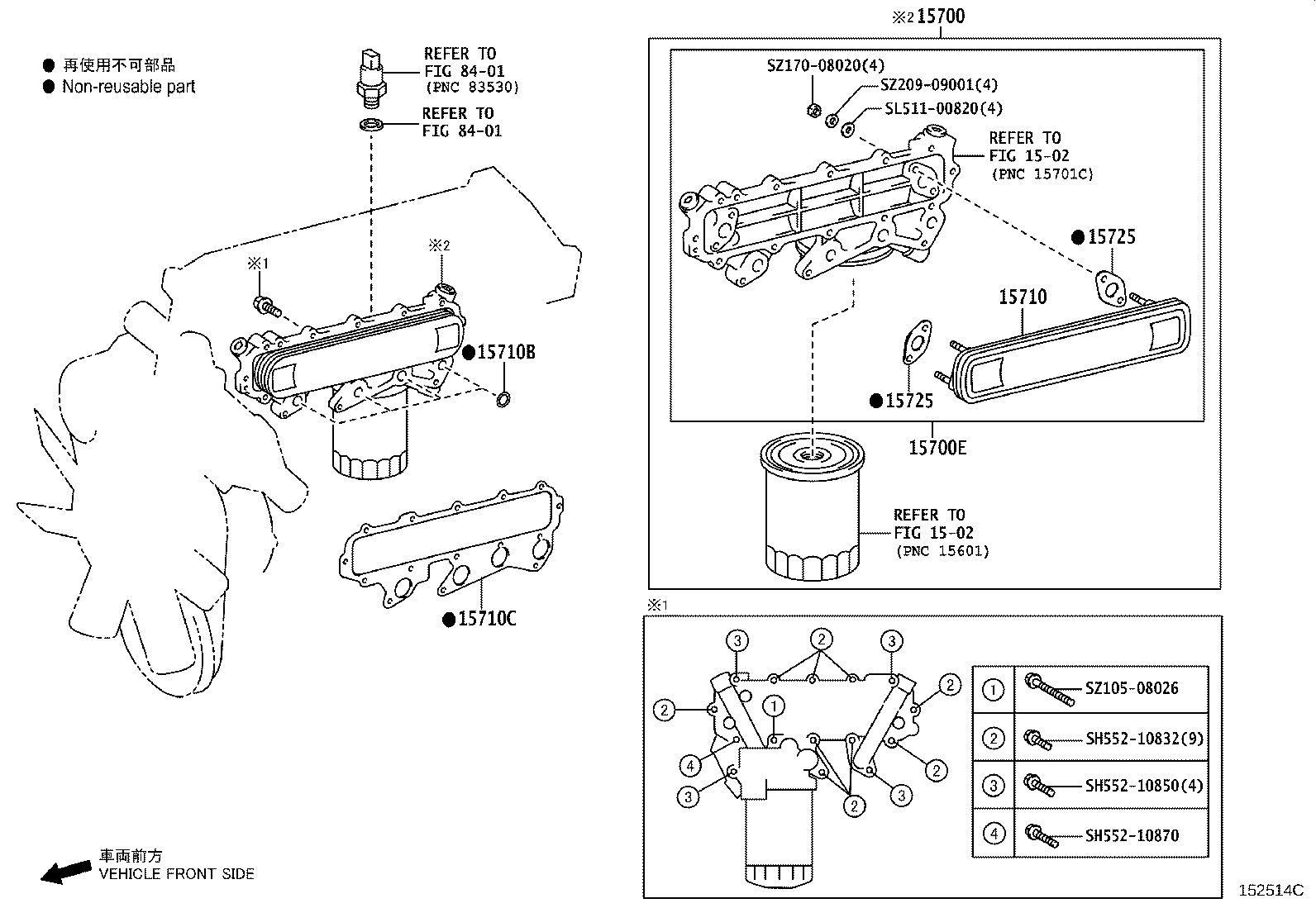

Engine Oil Cooler
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 15700 | Cooler Assy, Oil W/Bracket |
| 15700E | Cooler Sub-assy, Oil, W/O Oil Filter |
| 15710 | Cooler Assy, Oil |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15710C | Gasket(FOR OIL COOLER) |
| 15725 | Gasket, Oil Cooler Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
