Toyota Dyna
2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General
Supported model
Data version 2020-01

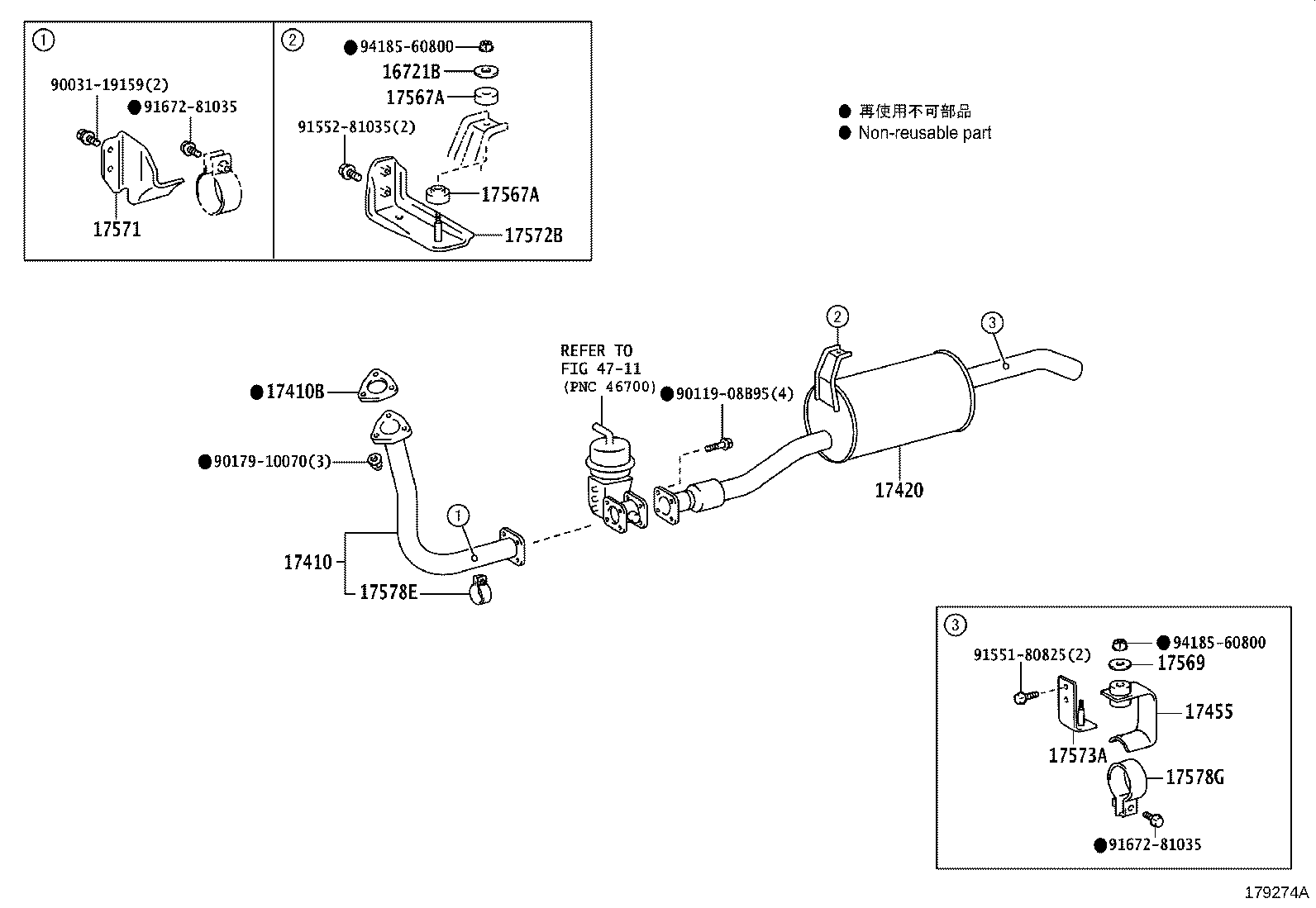

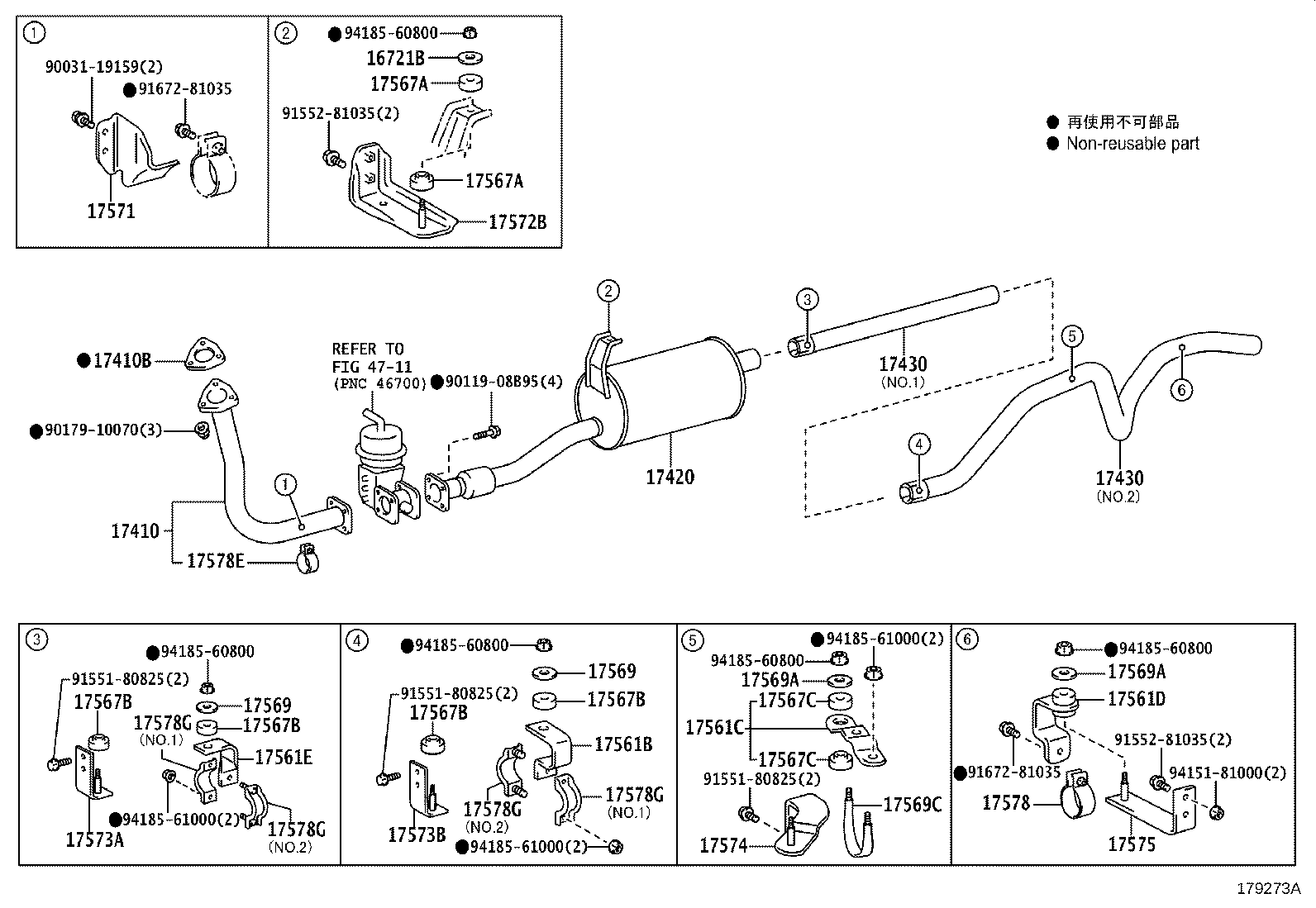

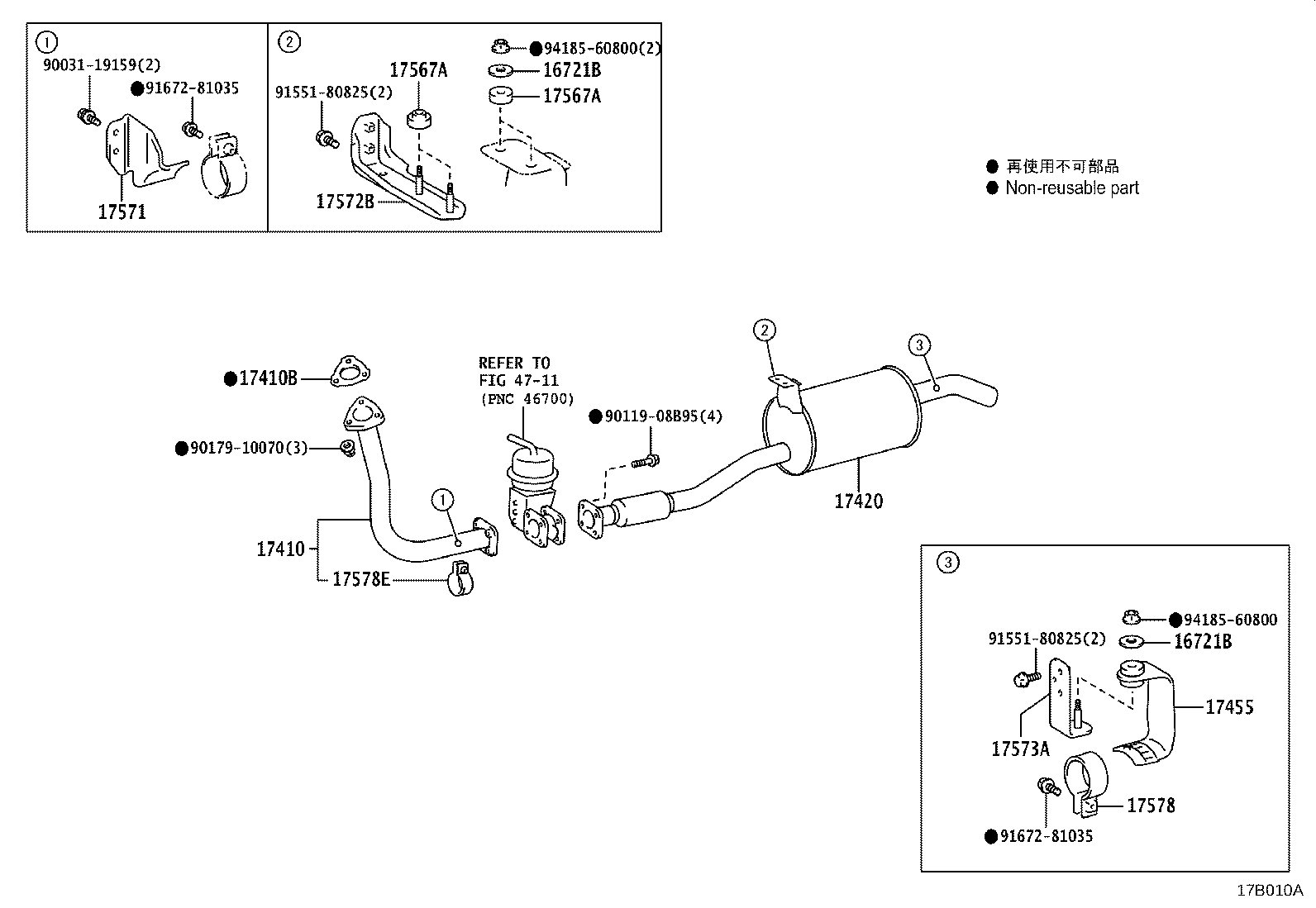

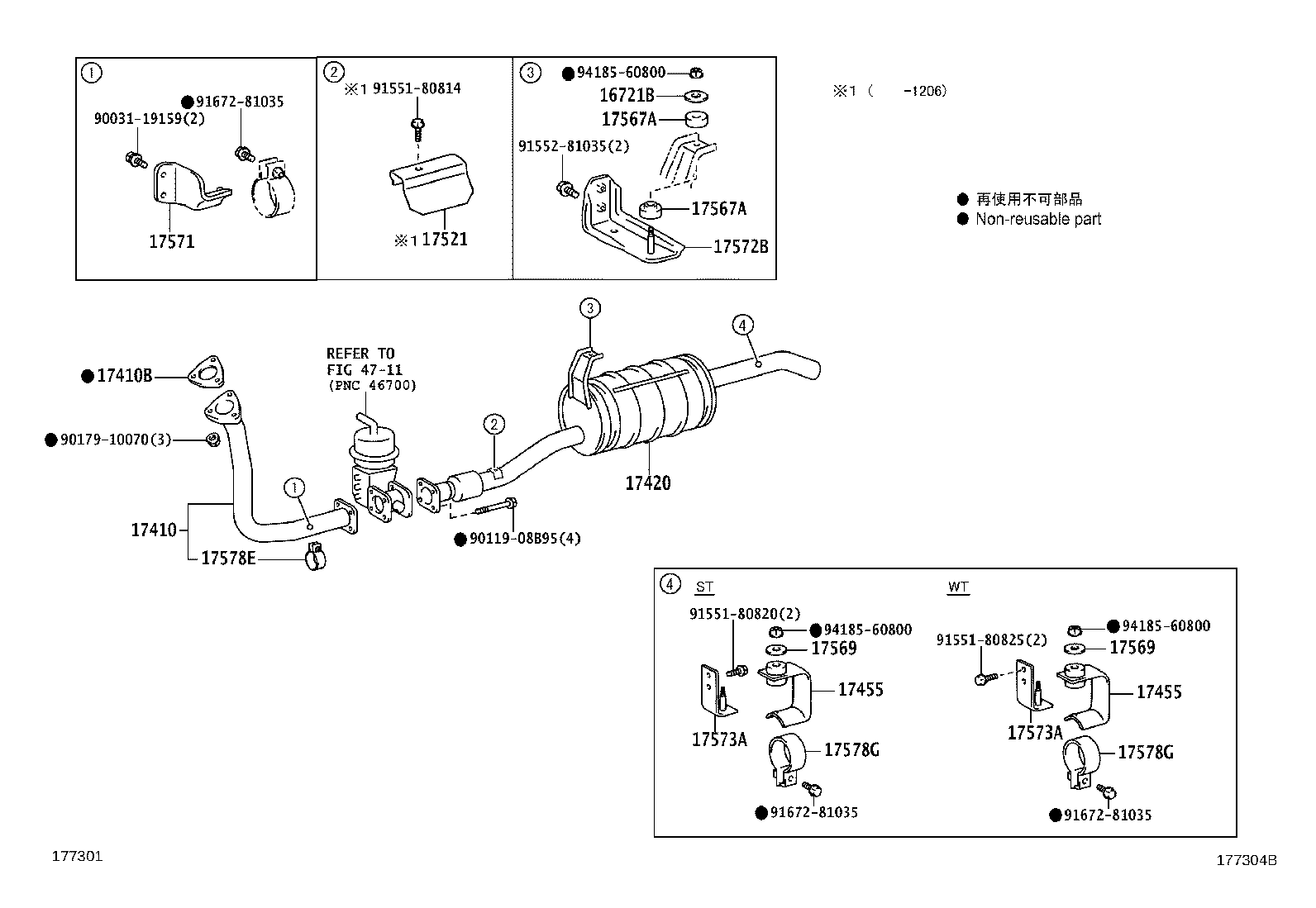

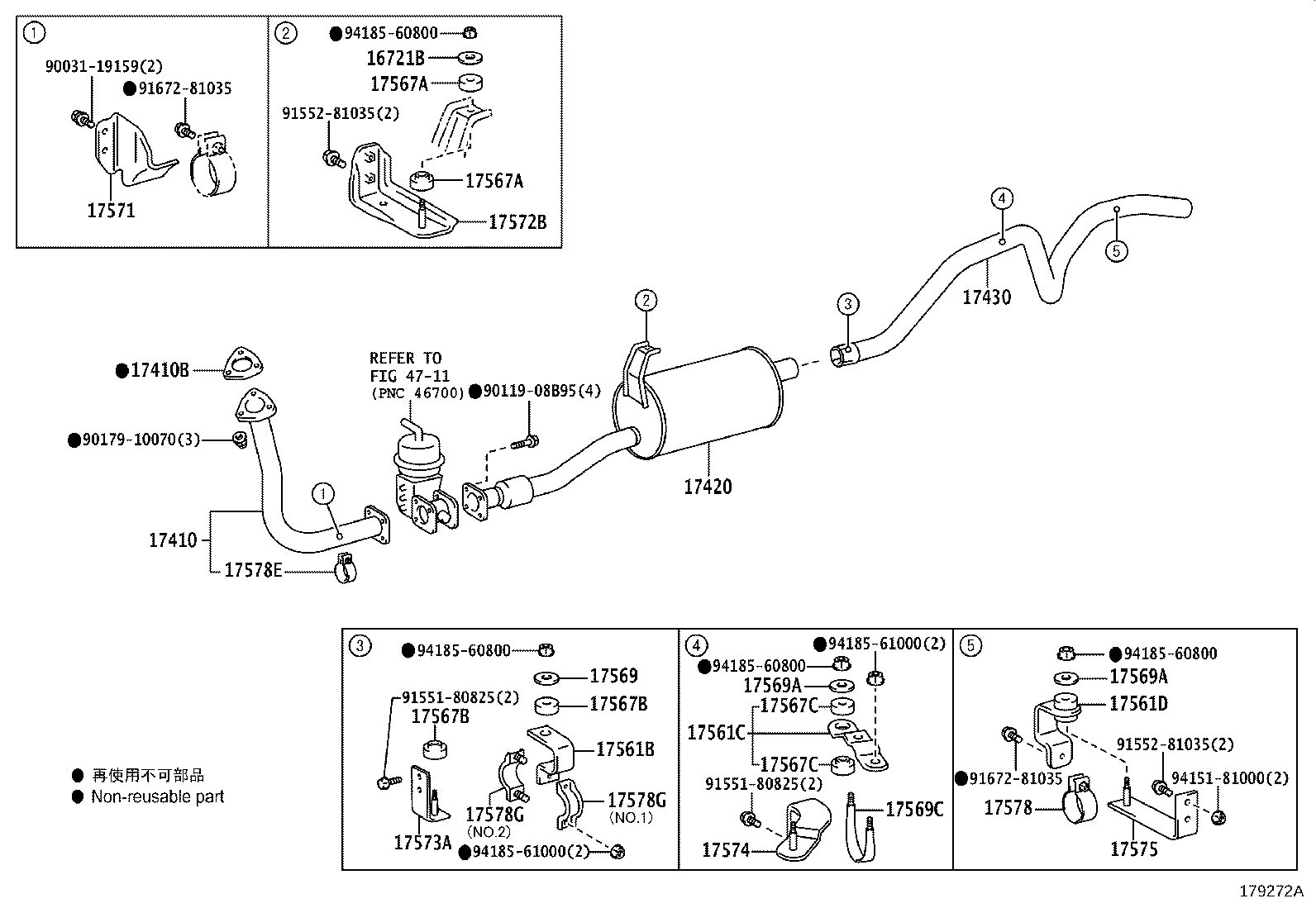

Exhaust Pipe
26 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 16721B | Plate, Holder |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17455 | Bracket, Exhaust Pipe |
| 17521 | Protector, Exhaust Pipe, Front NO.1 |
| 17561B | Support, Exhaust Pipe, NO.1 |
| 17561C | Support, Exhaust Pipe, NO.1 |
| 17561D | Support, Exhaust Pipe, NO.1 |
| 17561E | Support, Exhaust Pipe, NO.1 |
| 17567A | Cushion, Exhaust Pipe Support, NO.2 |
| 17567B | Cushion, Exhaust Pipe Support, NO.3 |
| 17567C | Cushion, Exhaust Pipe Support, NO.4 |
| 17569 | Plate, Exhaust Pipe Support |
| 17569A | Plate, Exhaust Pipe Support |
| 17569C | Bolt, Exhaust Pipe Support |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17572B | Bracket, Exhaust Pipe Support, NO.2 |
| 17573A | Bracket, Exhaust Pipe Support, NO.3 |
| 17573B | Bracket, Exhaust Pipe Support, NO.5 |
| 17574 | Bracket, Exhaust Pipe Support, NO.4 |
| 17575 | Bracket, Exhaust Pipe Support, NO.5 |
| 17578 | Clamp, Pipe |
| 17578E | Clamp, Pipe(FOR FRONT EXHAUST PIPE) |
| 17578G | Clamp, Pipe(FOR TAILPIPE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
