Toyota Dyna
2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General
Supported model
Data version 2020-01

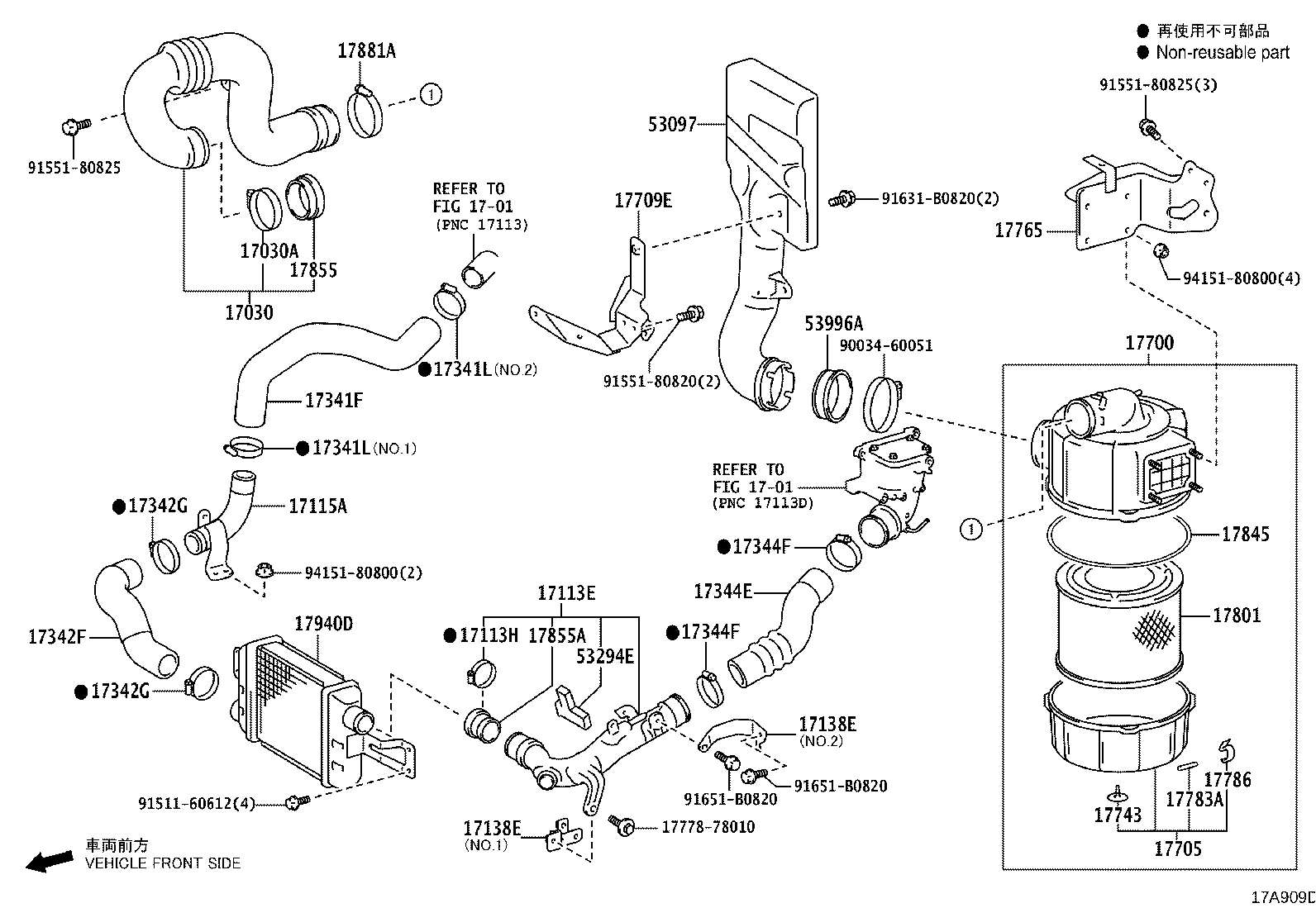

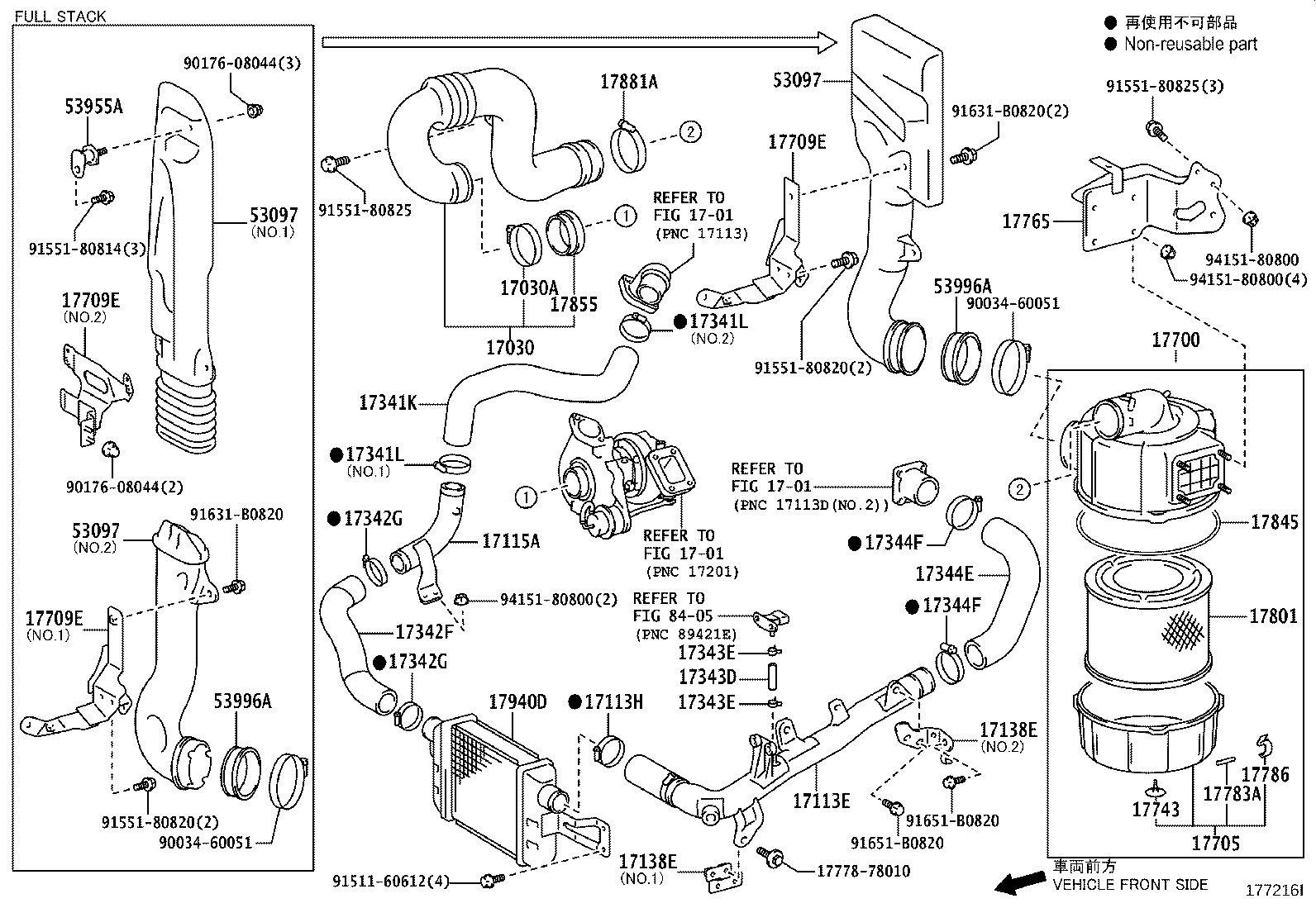

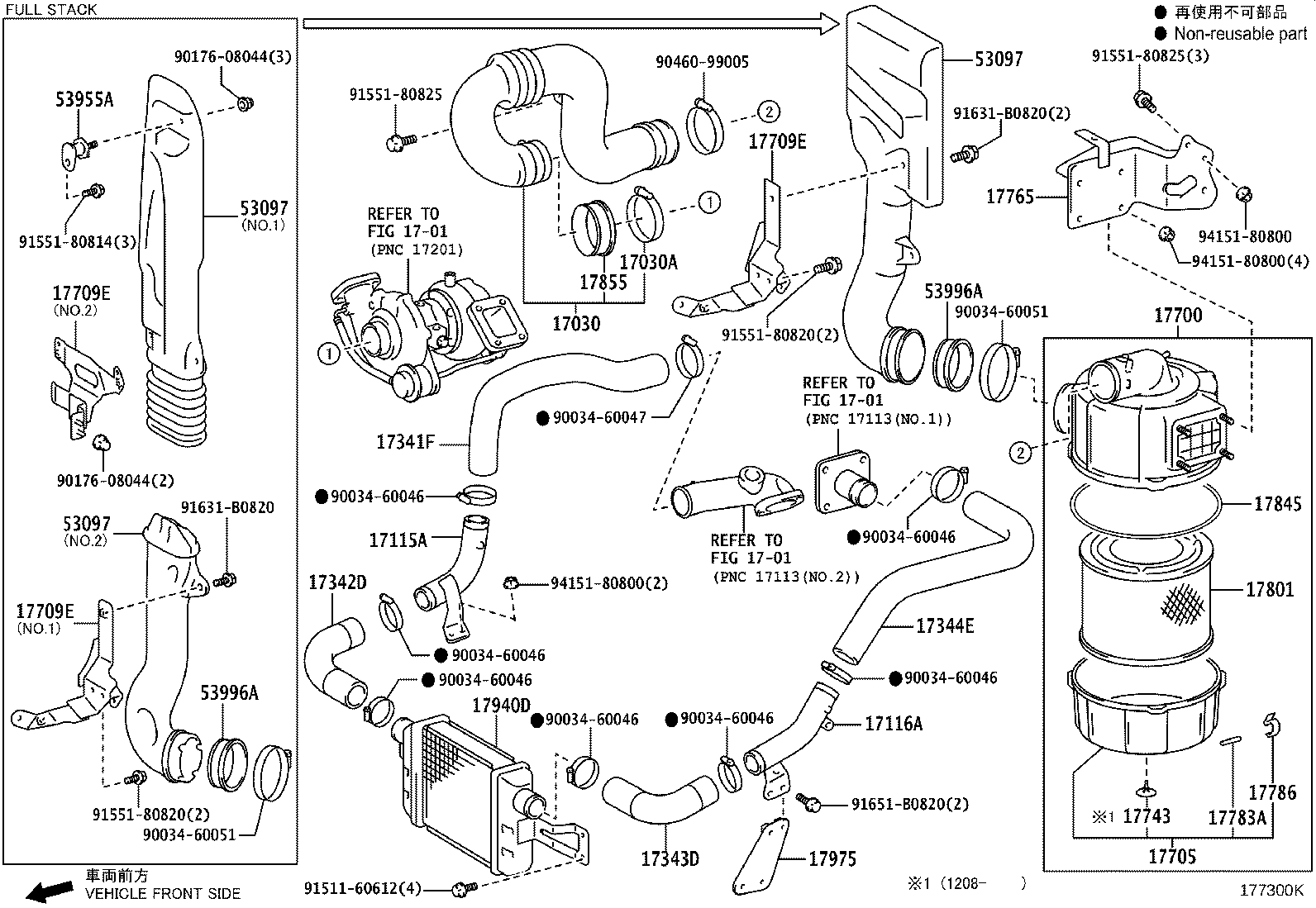

Air Cleaner
38 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17030 | Hose Assy, Air |
| 17030A | Clamp, Hose |
| 17113E | Pipe, Intake, NO.1 |
| 17113H | Clamp, Intake Pipe |
| 17115A | Pipe, Intake, NO.2 |
| 17116A | Pipe, Intake, NO.3 |
| 17138E | Stay, Intake Pipe |
| 17341F | Hose, Air, NO.1 |
| 17341K | Hose, Air, NO.1(FOR INTERCOOLER) |
| 17341L | Clamp, Hose |
| 17342D | Hose, Air, NO.2 |
| 17342F | Hose, Air, NO.2(FOR INTERCOOLER) |
| 17342G | Clamp, Hose, NO.2(FOR INTERCOOLER) |
| 17343D | Hose, Air, NO.3 |
| 17343E | Clamp, Hose(FOR AIR HOSE, NO.3) |
| 17344E | Hose, Air, NO.4 |
| 17344F | Clamp, Hose(FOR AIR HOSE, NO.4) |
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17709E | Bracket, Air Cleaner Inlet, NO.2 |
| 17743 | Valve, Dust Relief |
| 17765 | Stay, Air Cleaner, NO.1 |
| 17783A | Retainer, Air Cleaner Inlet |
| 17786 | Clamp, Air Cleaner |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17845 | Gasket, Air Cleaner Cap |
| 17855 | Gasket, Air Inlet Duct, NO.1 |
| 17855A | Gasket, Air Inlet Duct, NO.2 |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17885 | Pipe, Air Cleaner |
| 17940D | Intercooler Assy |
| 17975 | Stay, Cool Air, NO.2 |
| 53097 | Inlet Sub-assy |
| 53294E | Seal, Cool Air Intake Pipe |
| 53955A | Cushion, Air Cleaner Inlet NO.1 |
| 53996A | Packing, Air Cleaner Inlet Pipe |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
