Toyota Dyna
2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General
Supported model
Data version 2020-01

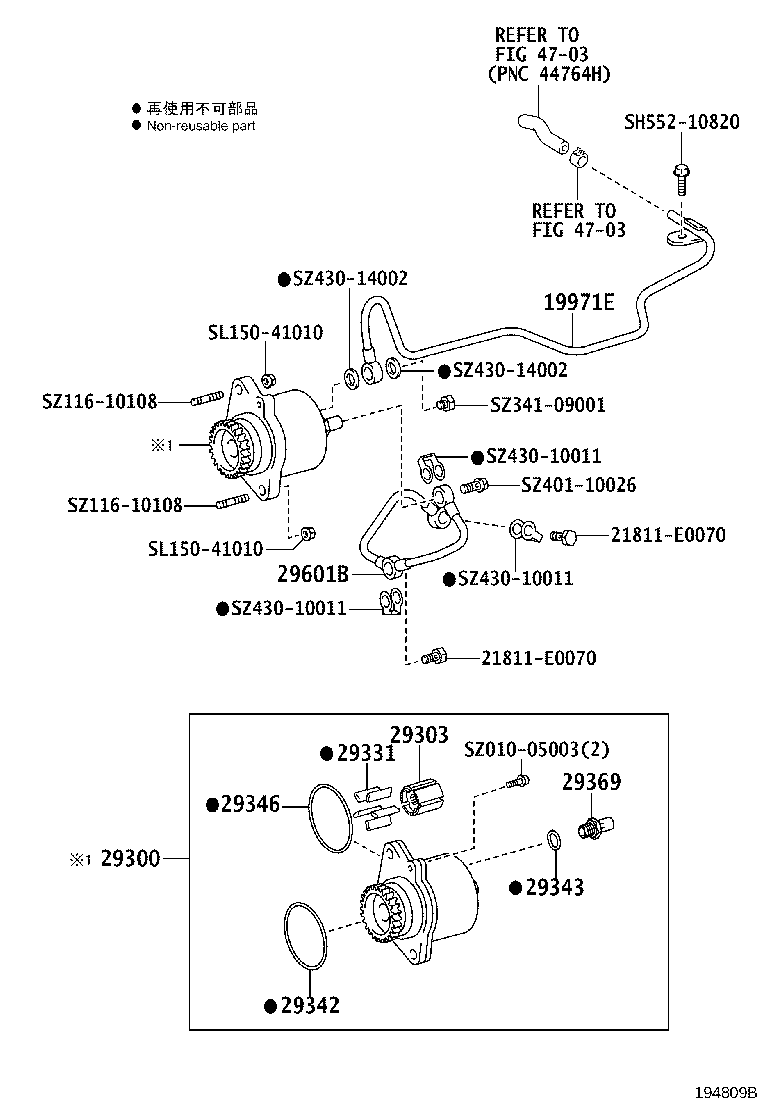

Vacuum Pump
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 19971E | Pipe, Vacuum |
| 29300 | Pump Assy, Vacuum |
| 29300A | Hose, Vacuum Pump Oil Inlet |
| 29300B | Hose, Vacuum Pump Oil Outlet |
| 29300H | Clamp(FOR VACUUM PUMP OIL HOSE) |
| 29303 | Rotor Sub-assy, Vacuum Pump |
| 29314A | Cover, End |
| 29331 | Blade, Vacuum Pump, A |
| 29342 | Packing, Vacuum Pump |
| 29343 | Ring, O Vacuum Pump, NO.1 |
| 29346 | Ring, O Vacuum Pump Cover |
| 29369 | Valve Sub-assy, Check |
| 29601B | Pipe Sub-assy, Oil(FOR VACUUM PUMP) |
| 29603 | Pipe, Vacuum Pump Oil Outlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
