Toyota Dyna

2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 3 illustrations

Illustrations

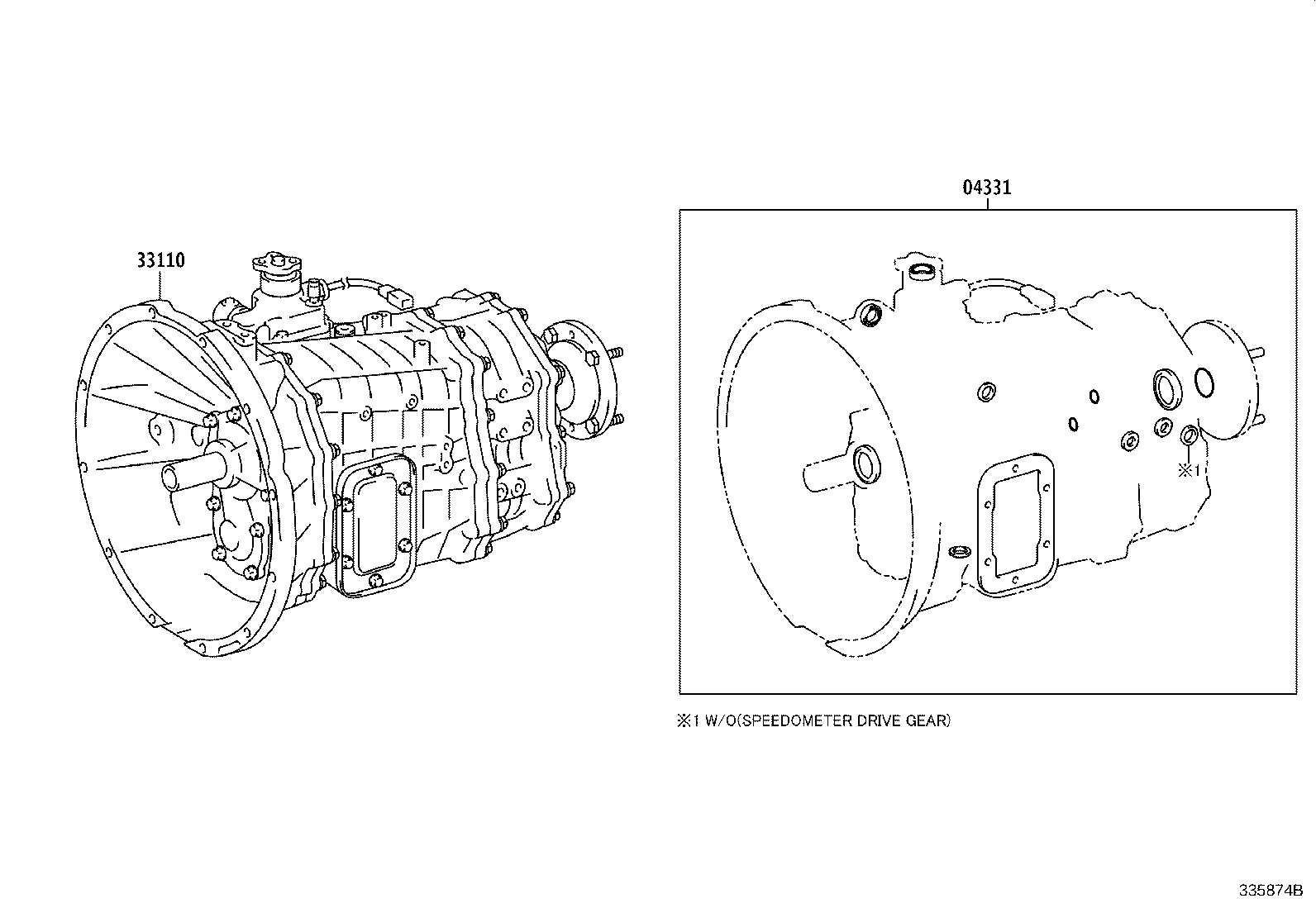

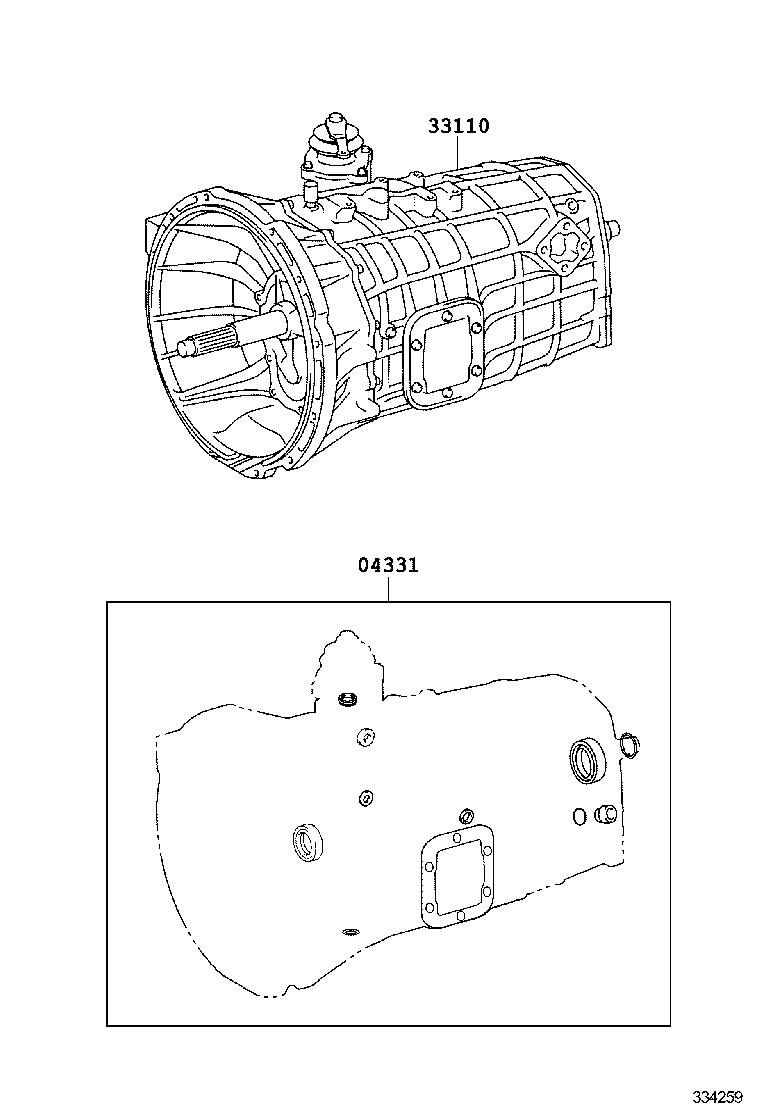

Figure 334260 334260 2011-06 → — Figure 334259 334259 2011-06 → — Figure 335874B 335874B 2019-11 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33110 Transmission Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
