Toyota Dyna

2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speedometer Driven Gear (MTM)

6 part groups · 3 illustrations

Illustrations

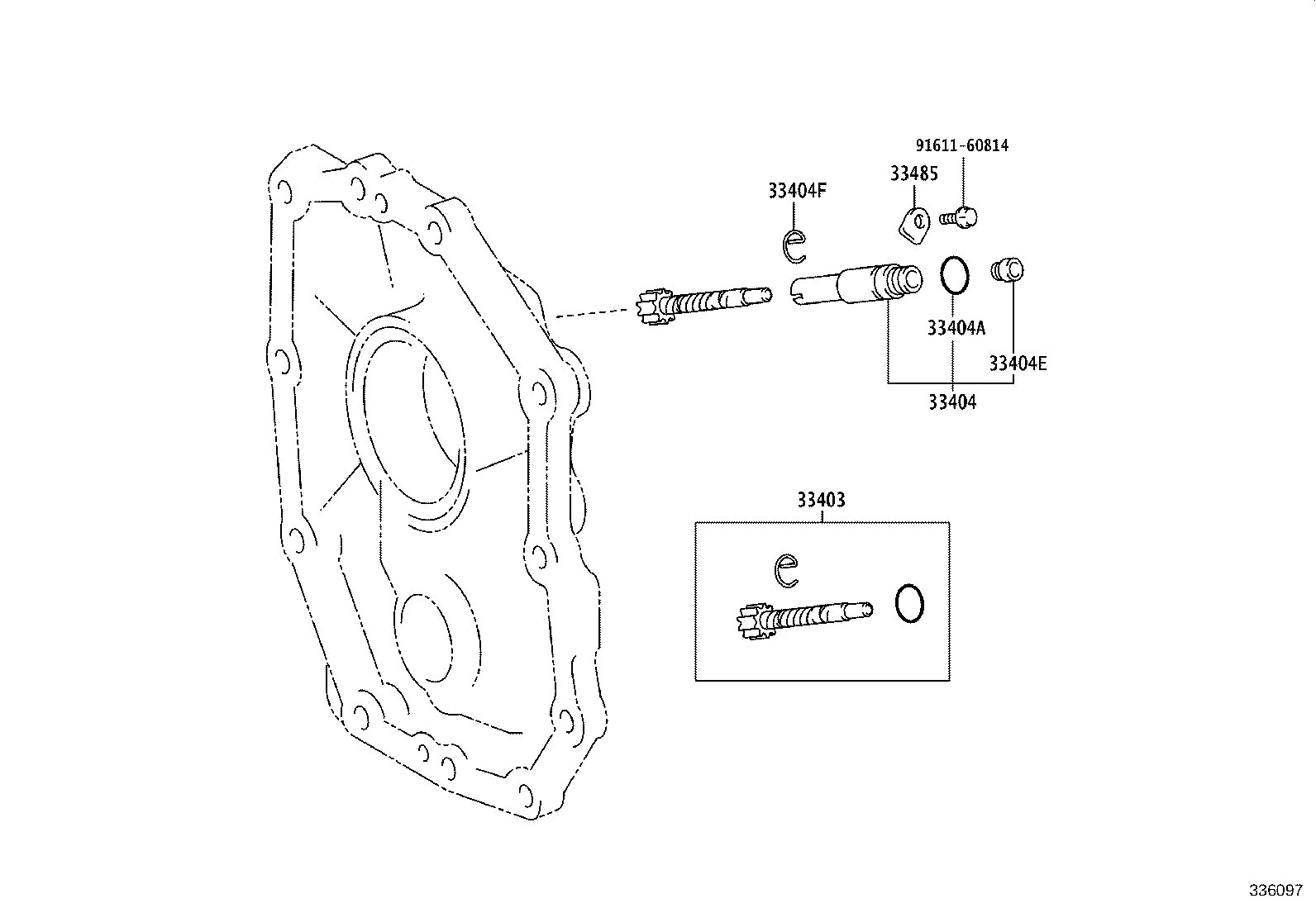

Figure 334262C 334262C 2011-06 → — Figure 334263A 334263A 2011-06 → — Figure 336097 336097 2019-11 → —

Part groups

PNCDescription
33403 Gear Sub-assy, Speedometer Driven (MTM)
33404 Sleeve Sub-assy, Speedometer Shaft (MTM)
33404A Ring, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404E Seal, Oil (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404F Clip (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33485 Plate, Speedometer Sleeve Lock (MTM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
