Toyota Dyna

2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

14 part groups · 3 illustrations

Illustrations

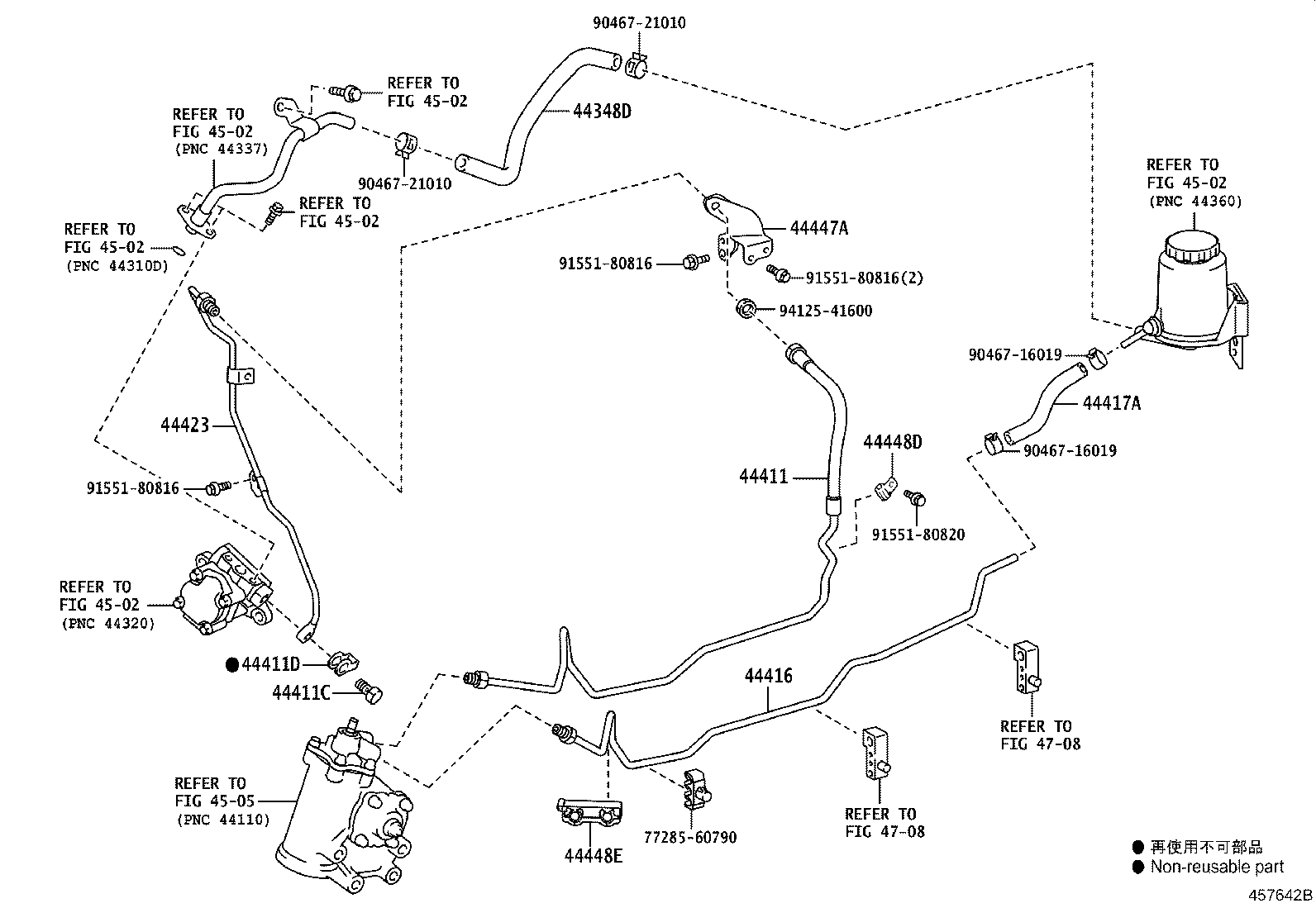

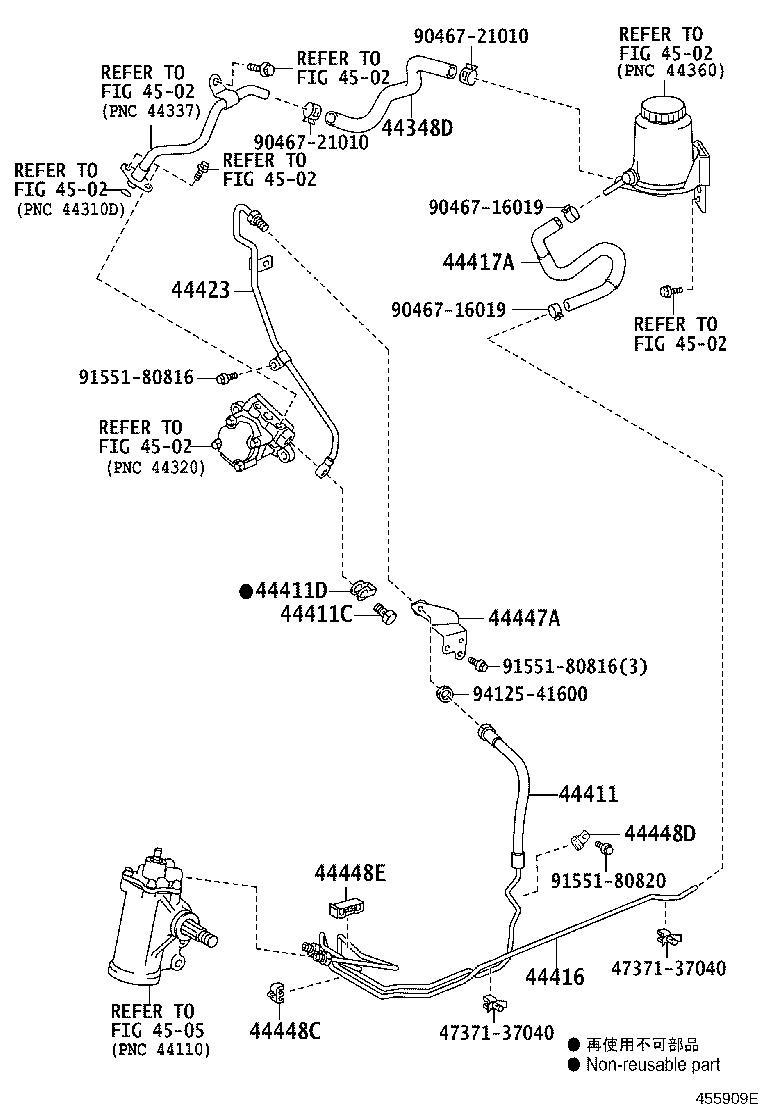

Figure 455907I 455907I 2011-07 → — Figure 455909E 455909E 2016-05 → — Figure 457642B 457642B 2019-11 → —

Part groups

PNCDescription
44348D Hose, Oil Reservoir TO Pump, NO.2
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44413 Tube, Pressure Feed, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44417A Hose, Return Tube (FOR RETURN TUBE TO RETURN TUBE NO.2)
44423 Tube, Oil Pump TO Gear Box
44447A Bracket, Hose Support, NO.1
44447C Bracket, Hose Support NO.2
44448 Bracket, Pressure Feed Hose Support, NO.1
44448C Clamp, Pressure Feed, NO.2
44448D Clamp, Pressure Feed, NO.1
44448E Clamp, Pressure Feed, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
