Toyota Dyna
2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General
Supported model
Data version 2020-01

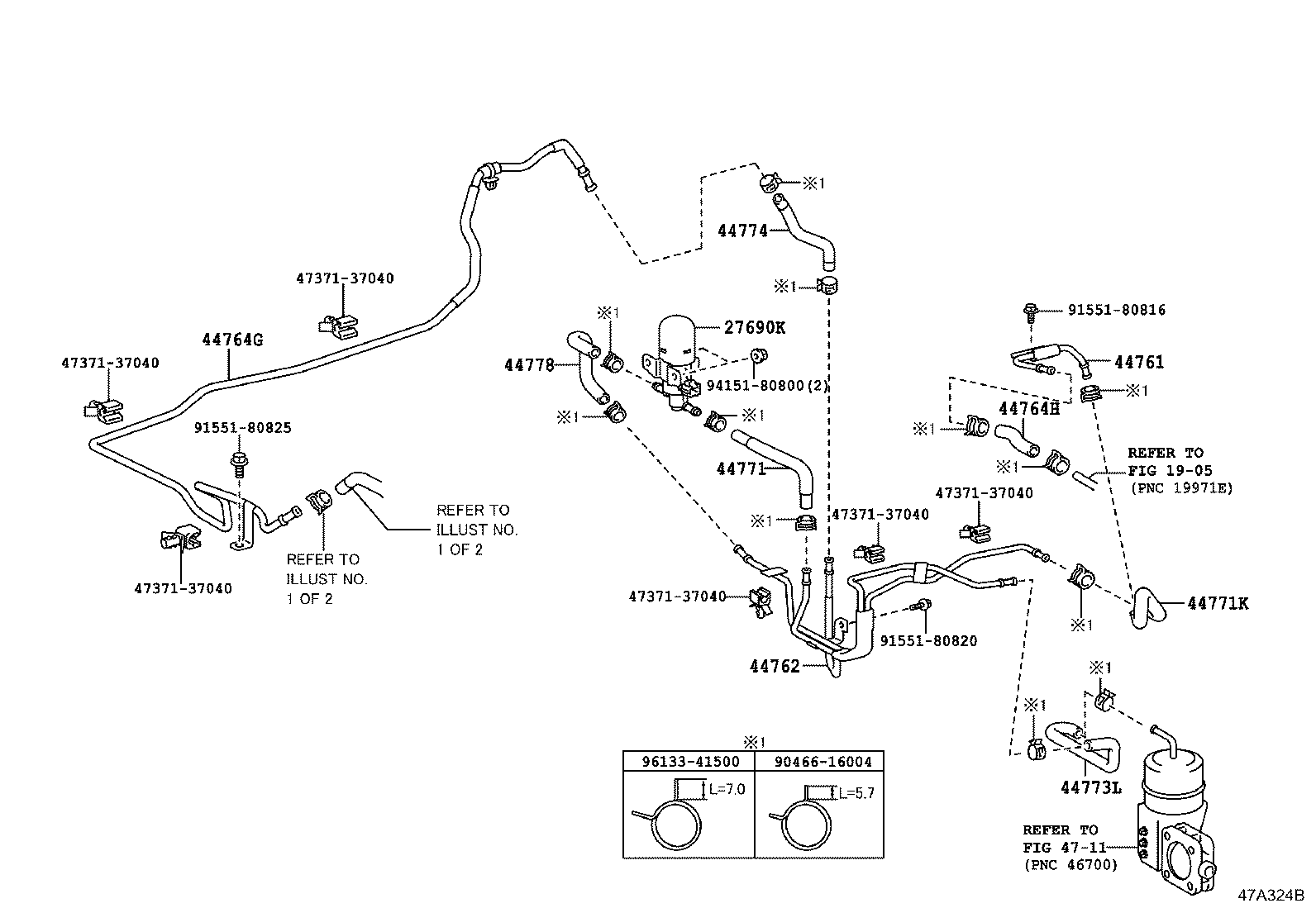

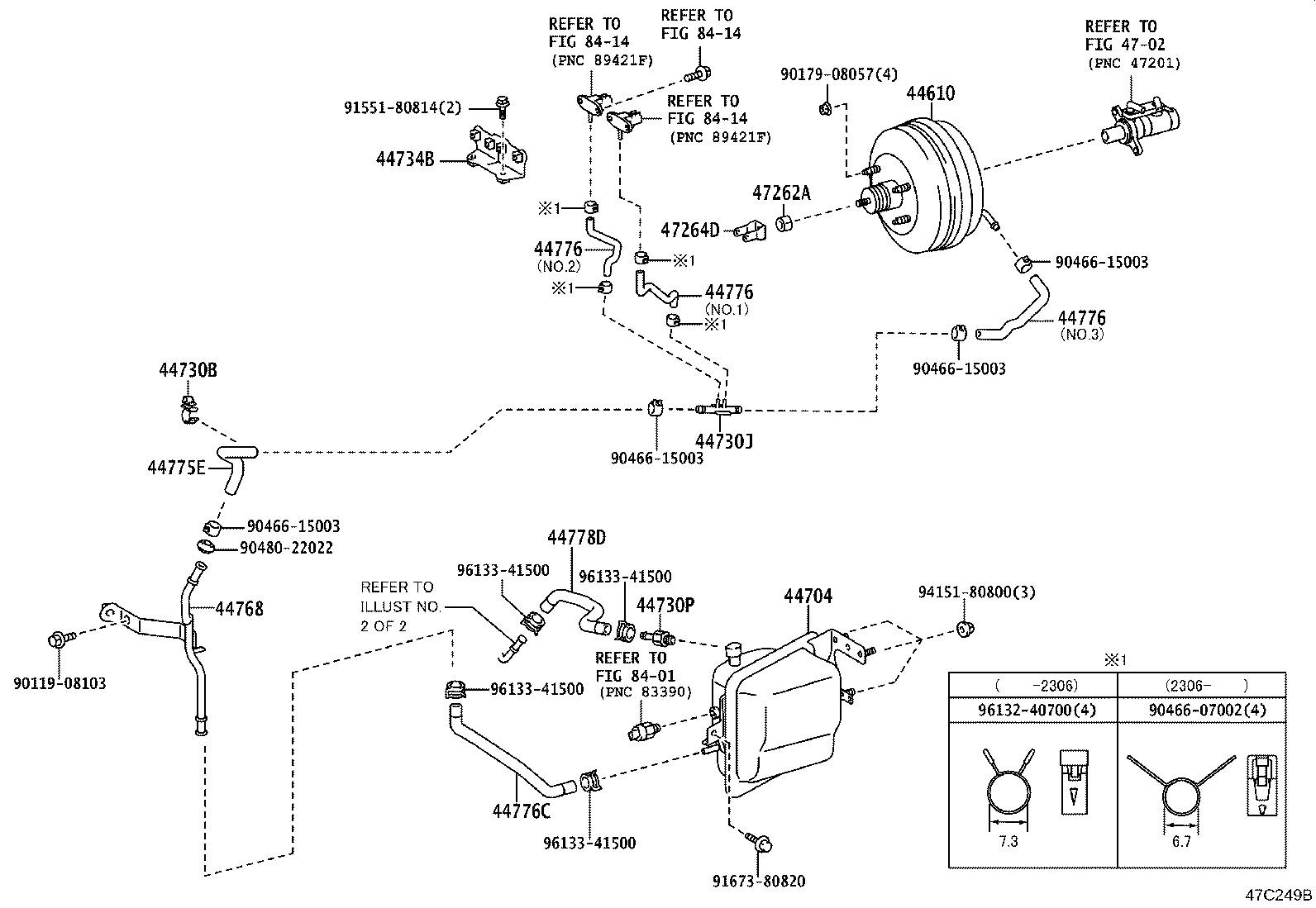

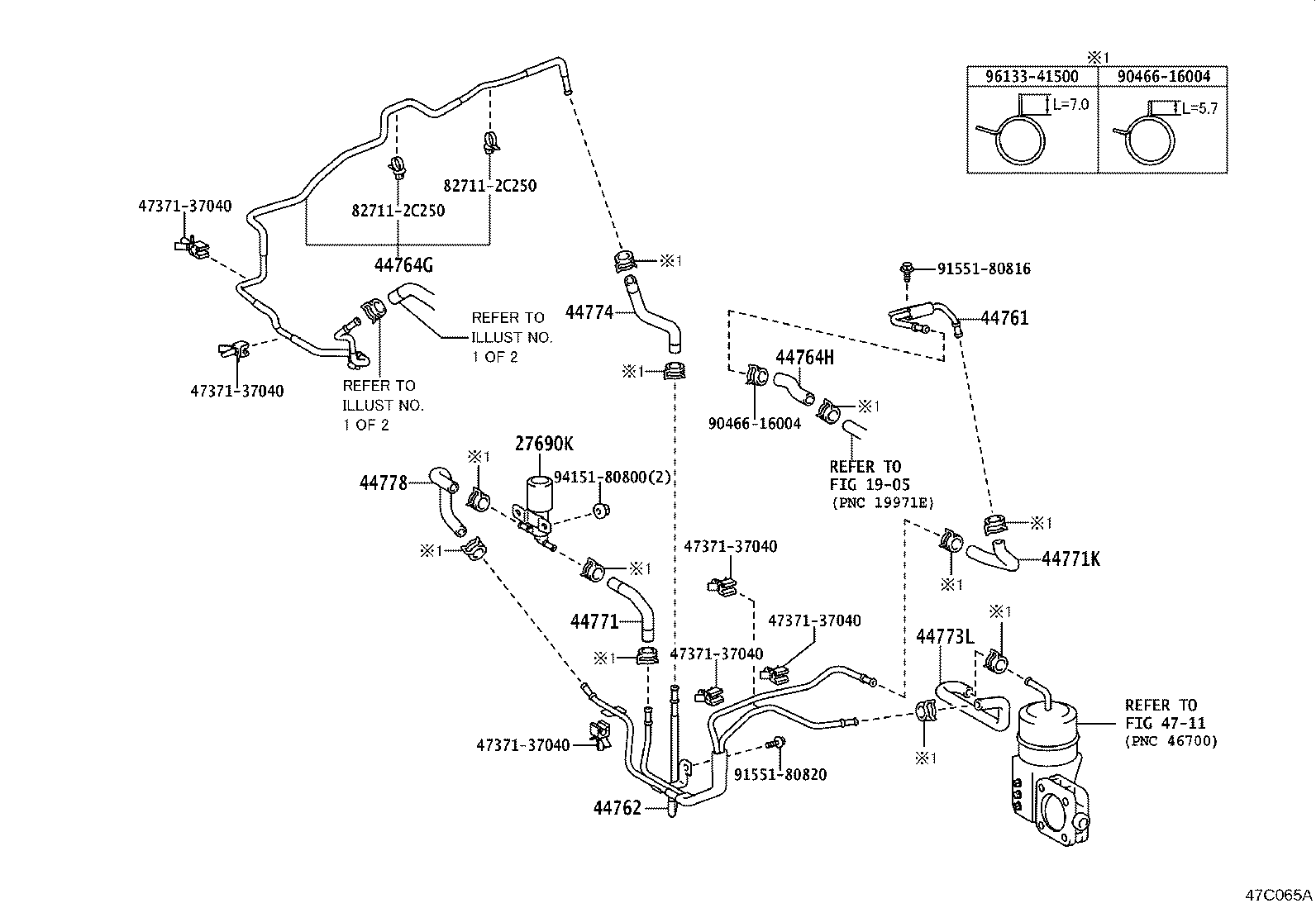

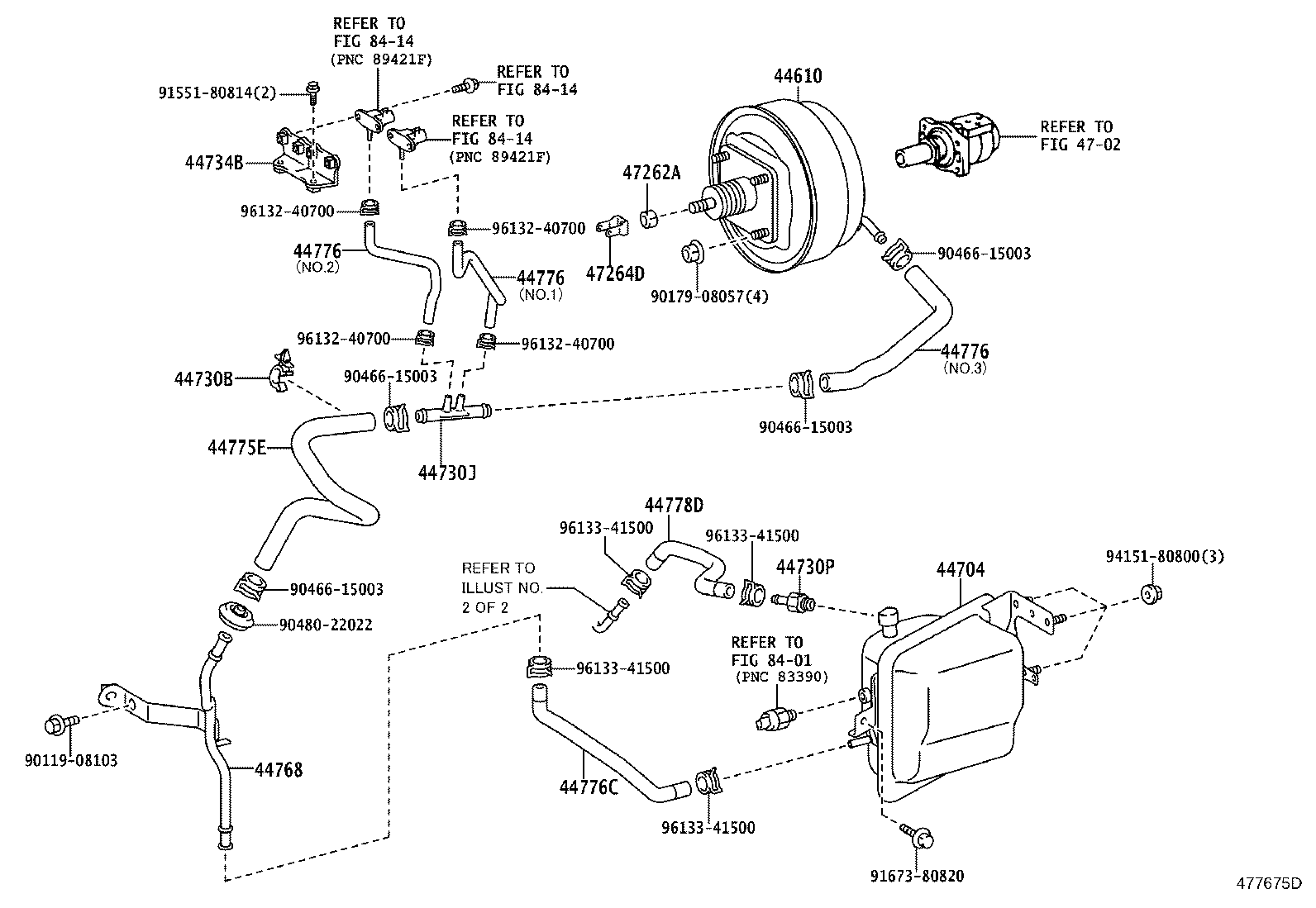

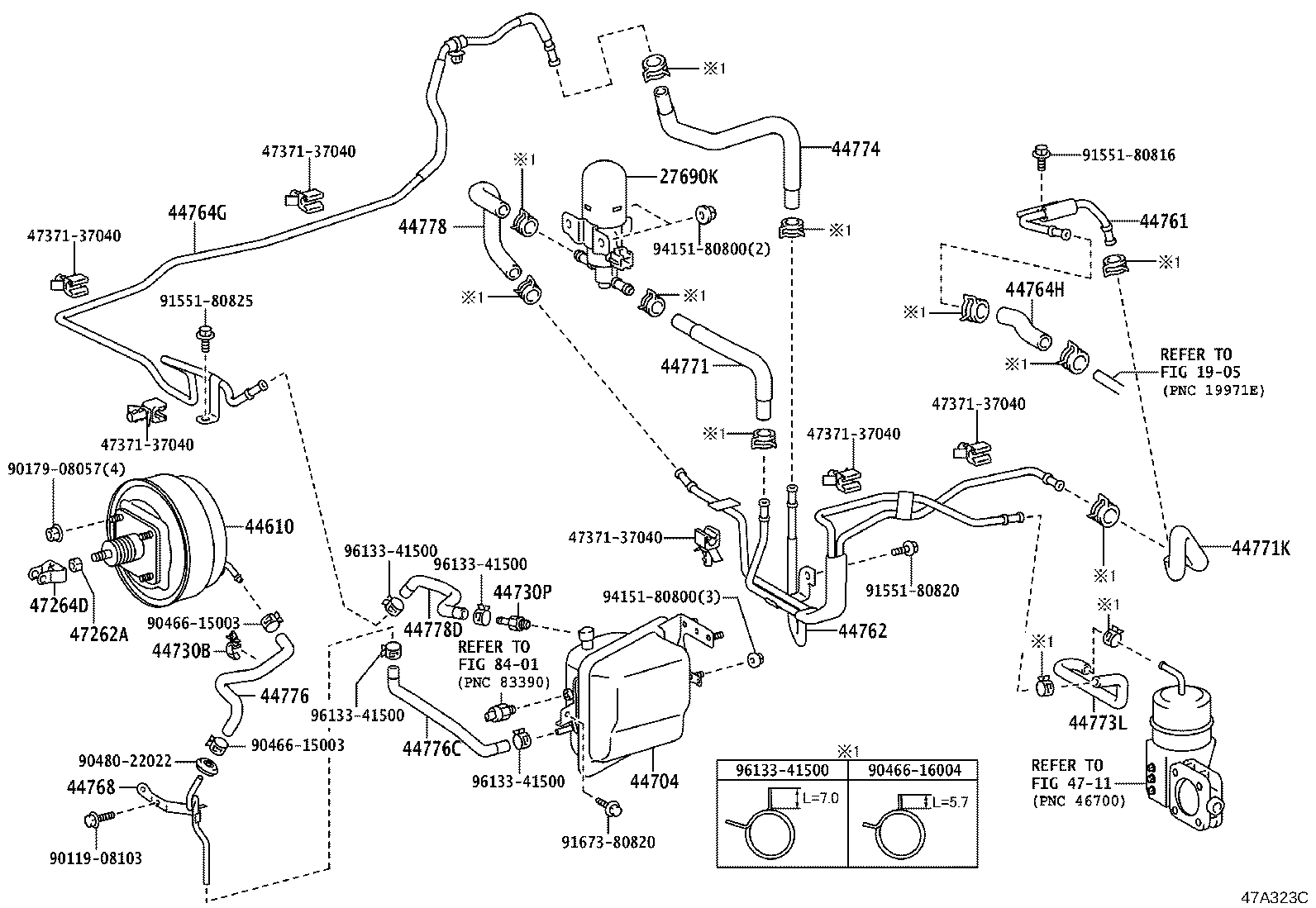

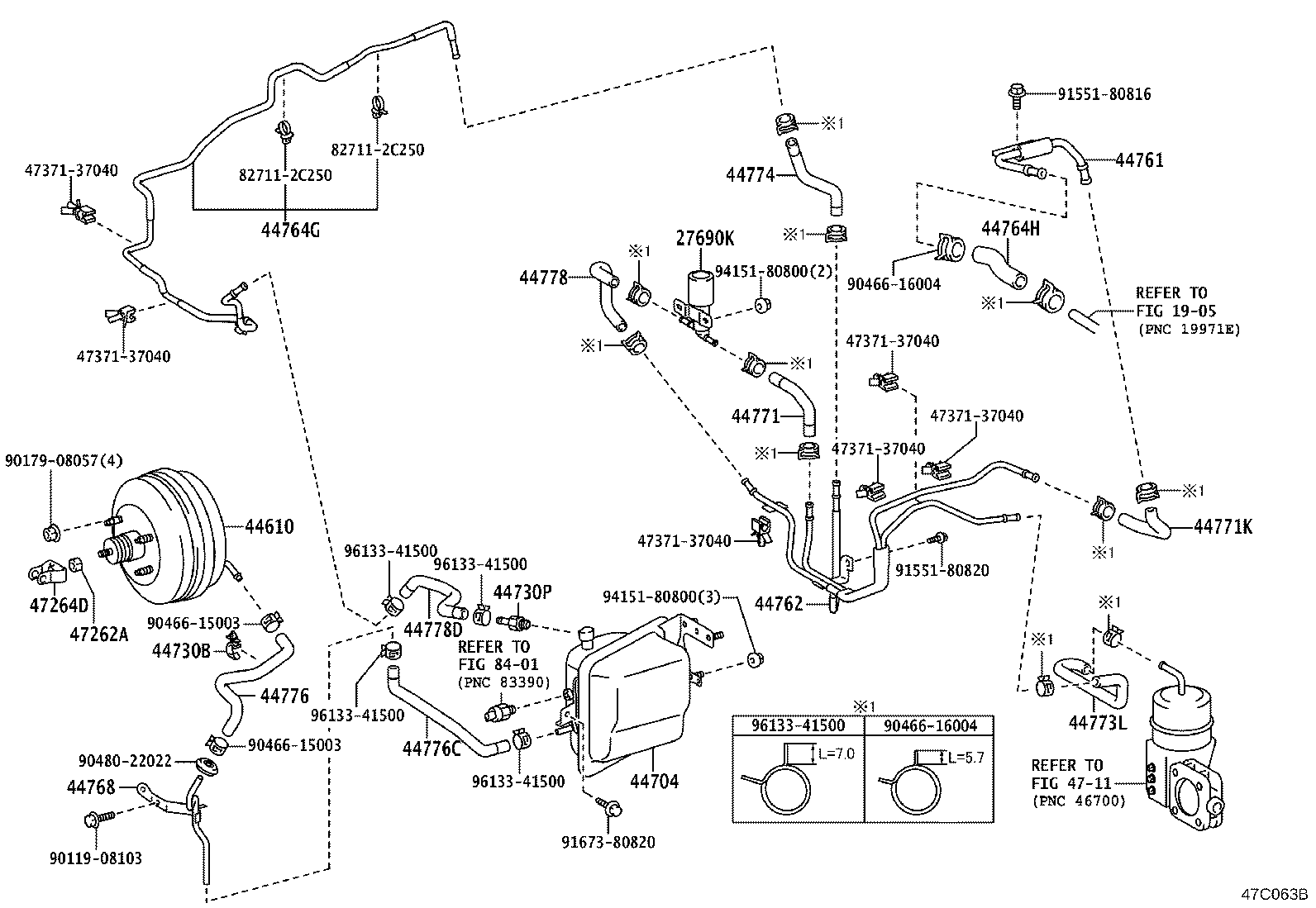

Brake Booster & Vacuum Tube
25 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 27690K | Solenoid Assy, W/Bracket(FOR EXHAUST BRAKE) |
| 44610 | Booster Assy, Brake |
| 44704 | Reservoir Sub-assy, Vacuum |
| 44730B | Clamp, Vacuum Hose |
| 44730J | Way(FOR BOOSTER VACUUM) |
| 44730P | Valve Assy, Vacuum Check, NO.1 |
| 44734B | Bracket, Booster Support |
| 44761 | Tube, Intake Manifold OR Vacuum Pump TO Connector |
| 44762 | Tube, Booster Vacuum |
| 44764G | Tube, Connector TO Brake Booster |
| 44764H | Hose(FOR CONNECTOR TO BRAKE BOOSTER TUBE) |
| 44768 | Tube, Booster Vacuum |
| 44771 | Hose, Vacuum Tube Connector |
| 44771K | Hose, Vacuum Tube TO Vacuum Pump |
| 44773L | Hose, Solenoid TO Exhaust Retarder |
| 44774 | Hose, Union TO Connector Tube |
| 44775E | Hose, Way TO Connector |
| 44776 | Hose, Brake Booster |
| 44776C | Hose, Vacuum Reservoir TO Connector |
| 44778 | Hose, Connector TO Check Valve |
| 44778D | Hose, Vacuum Tube TO Connector Tube |
| 44781 | Bracket, Hose |
| 44912G | Tube, 3 Way TO Magnetic Valve |
| 47262A | Nut, Master Cylinder Push Rod Clevis Lock |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
