Toyota Dyna

2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General

Supported model Data version 2020-01

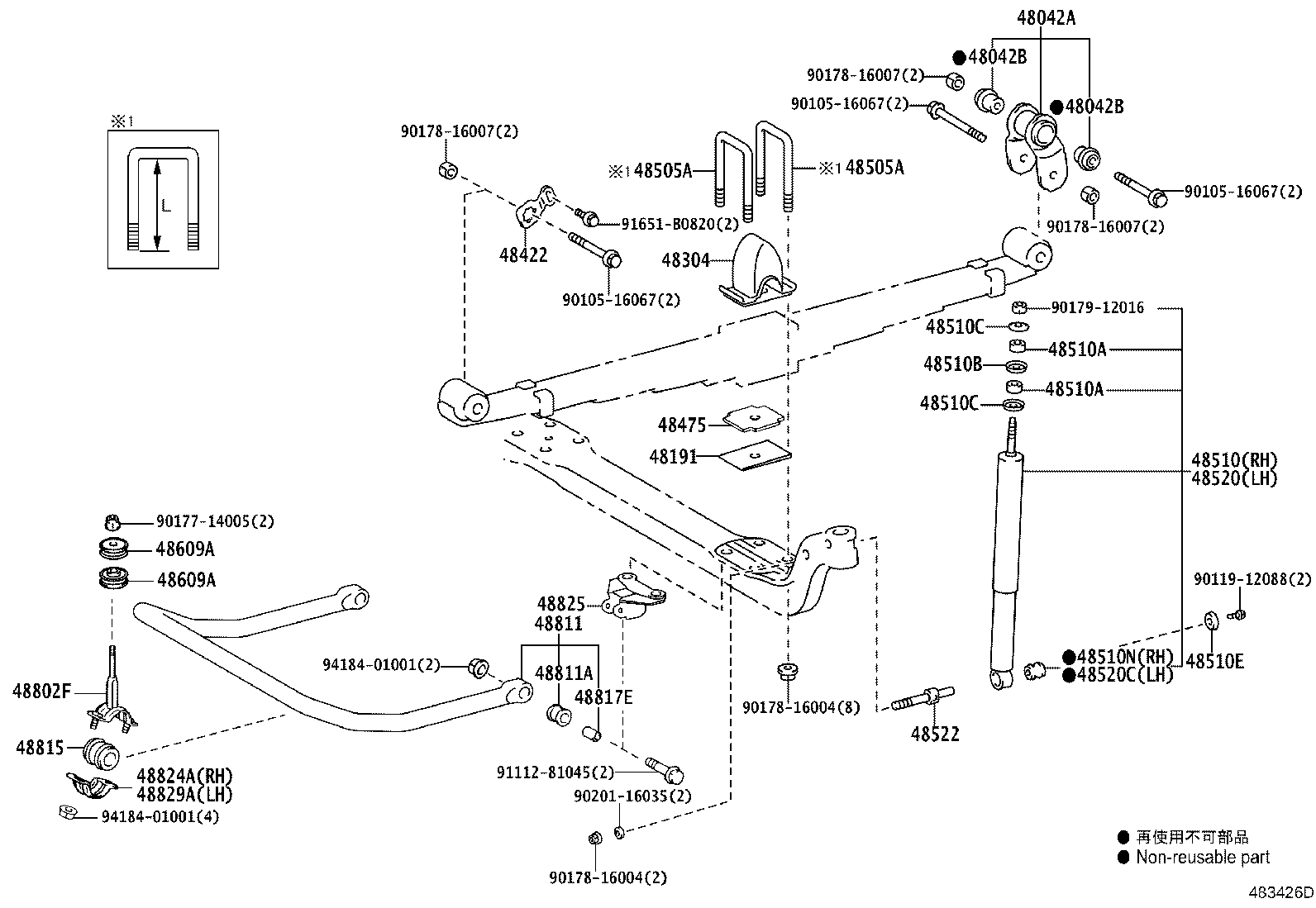

Front Spring & Shock Absorber

41 part groups · 5 illustrations

PNC	Description
48042A	Shackle Sub-assy, Front Spring, NO.2
48042B	Bush, Front Spring NO.2 Shackle
48110	Spring Assy, Front, RH
48110F	Bimetal Formed Bush(FOR FRONT SPRING)
48111	Leaf, Front Spring, NO.1
48112	Leaf, Front Spring, NO.2
48113	Leaf, Front Spring, NO.3
48114	Leaf, Front Spring, NO.4
48115	Leaf, Front Spring, NO.5
48116	Leaf, Front Spring, NO.6
48120	Spring Assy, Front, LH
48147	Bolt, Front Spring, Center
48147A	Nut, Front Spring Center Bolt
48153	Spacer, Front Leaf Spring, NO.1
48191	Wedge, Caster(FOR FRONT LEAF SPRING)
48251B	Spacer(FOR FRONT SPRING)
48252D	Silencer
48253C	Spacer, Front Leaf Spring, NO.2
48253E	Spacer, Front Spring, NO.3
48304	Bumper Sub-assy, Front Spring, NO.1
48422	Support, Front Spring Pin
48475	Plate, Distance(FOR FRONT)
48505A	Bolt, U(FOR FRONT SPRING)
48510	Absorber Assy, Shock, Front RH
48510A	Cushion, Front Shock Absorber
48510B	Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C	Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48510E	Washer, Front Shock Absorber Cushion, NO.2
48510N	Bush(FOR FRONT SHOCK ABSORBER RH)
48520	Absorber Assy, Shock, Front LH
48520C	Bush(FOR FRONT SHOCK ABSORBER LH)
48522	Pin, Front Shock Absorber Lower Pivot
48609A	Support Sub-assy, Front Suspension
48802F	Link Sub-assy, Front Stabilizer
48811	Bar, Stabilizer, Front
48811A	Bush(FOR FRONT STABILIZER BAR)
48815	Bush, Front Stabilizer Bar, NO.1
48817E	Spacer(FOR STABILIZER BAR)
48824A	Bracket, Front Stabilizer, NO.1 RH
48825	Bracket, Stabilizer, NO.2
48829A	Bracket, Front Stabilizer, NO.1 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
