Toyota Dyna
2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General
Supported model
Data version 2020-01

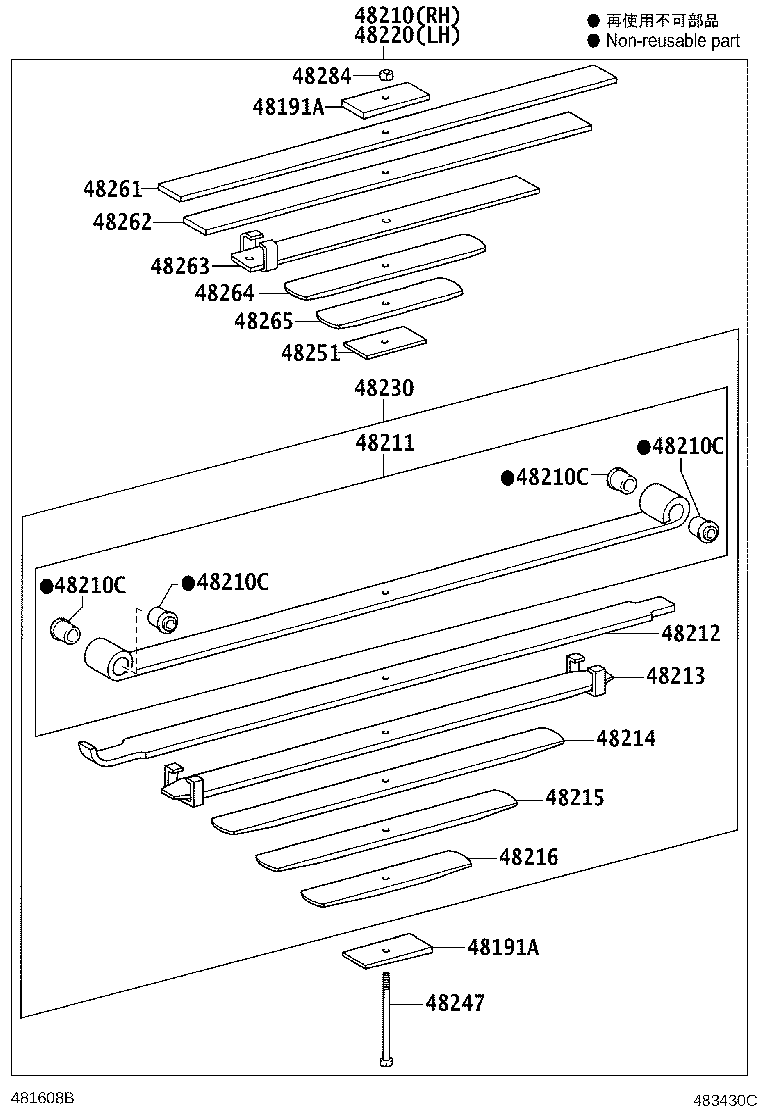

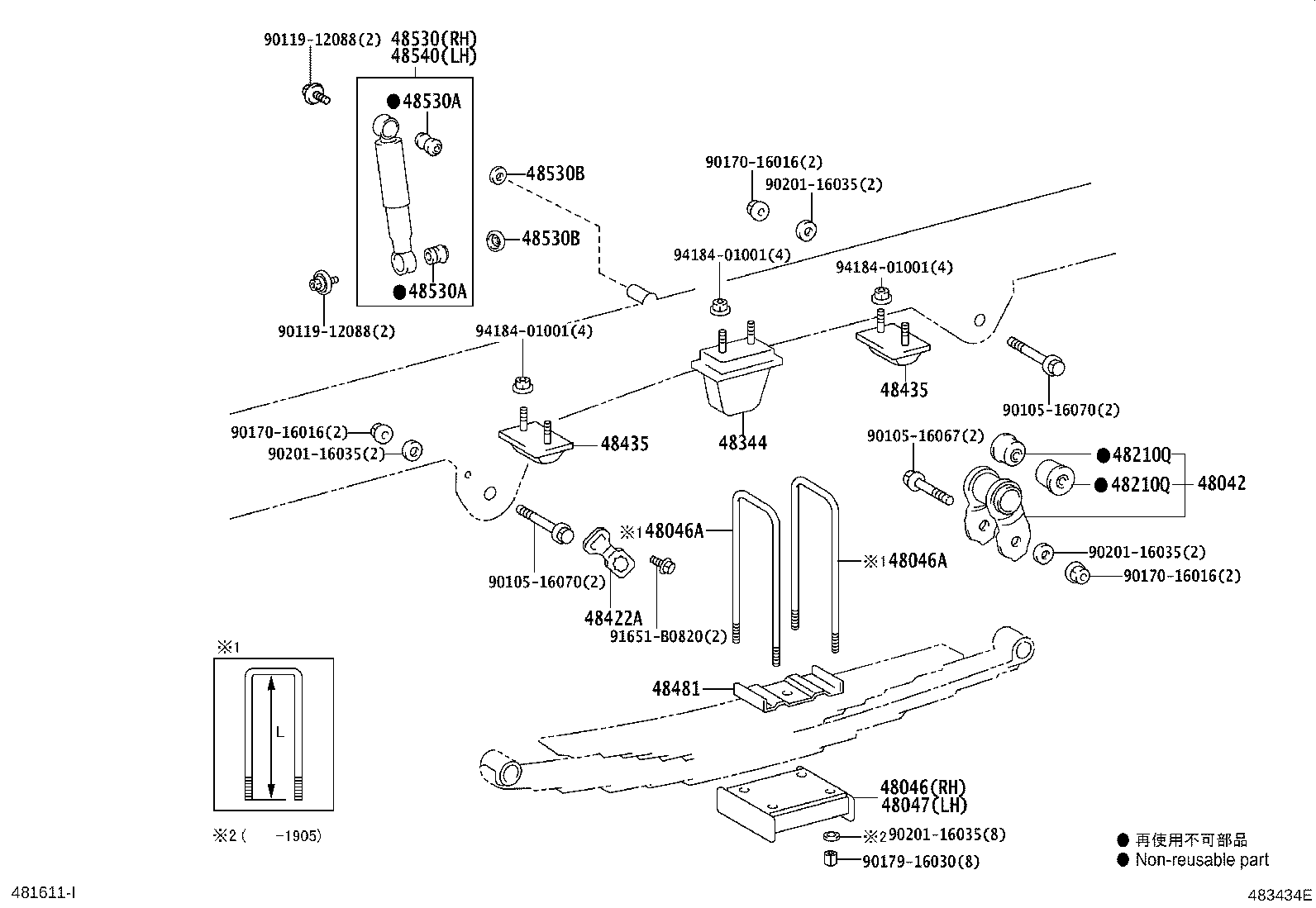

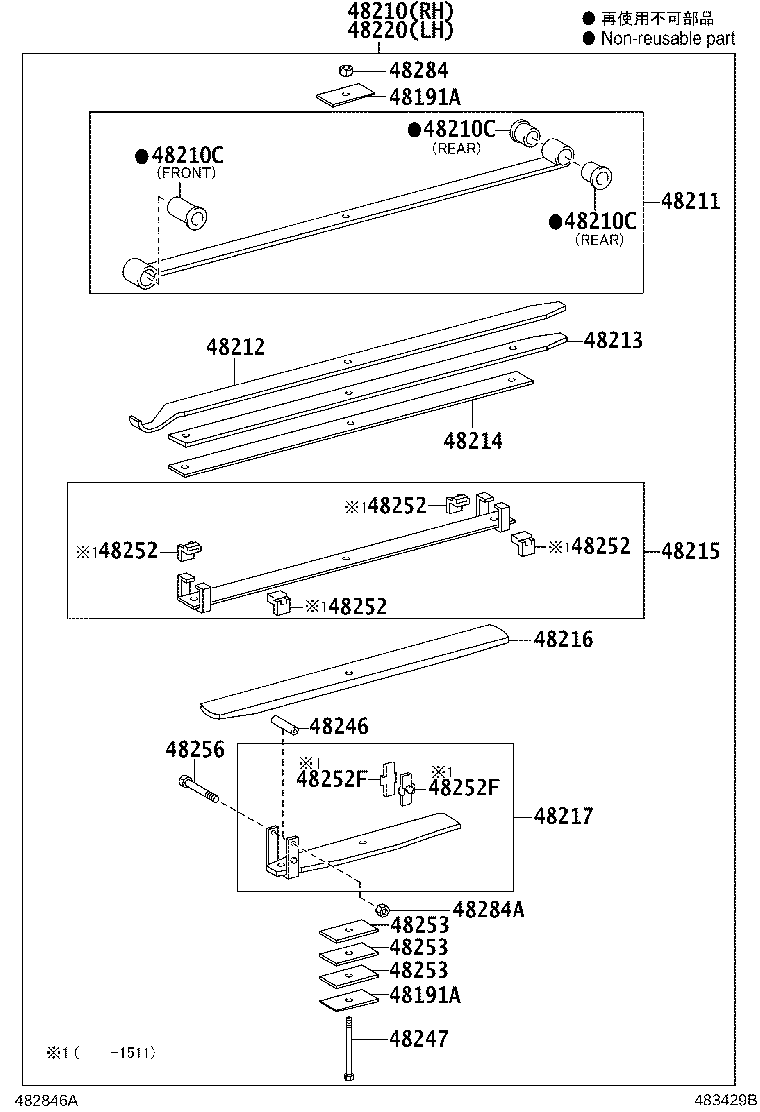

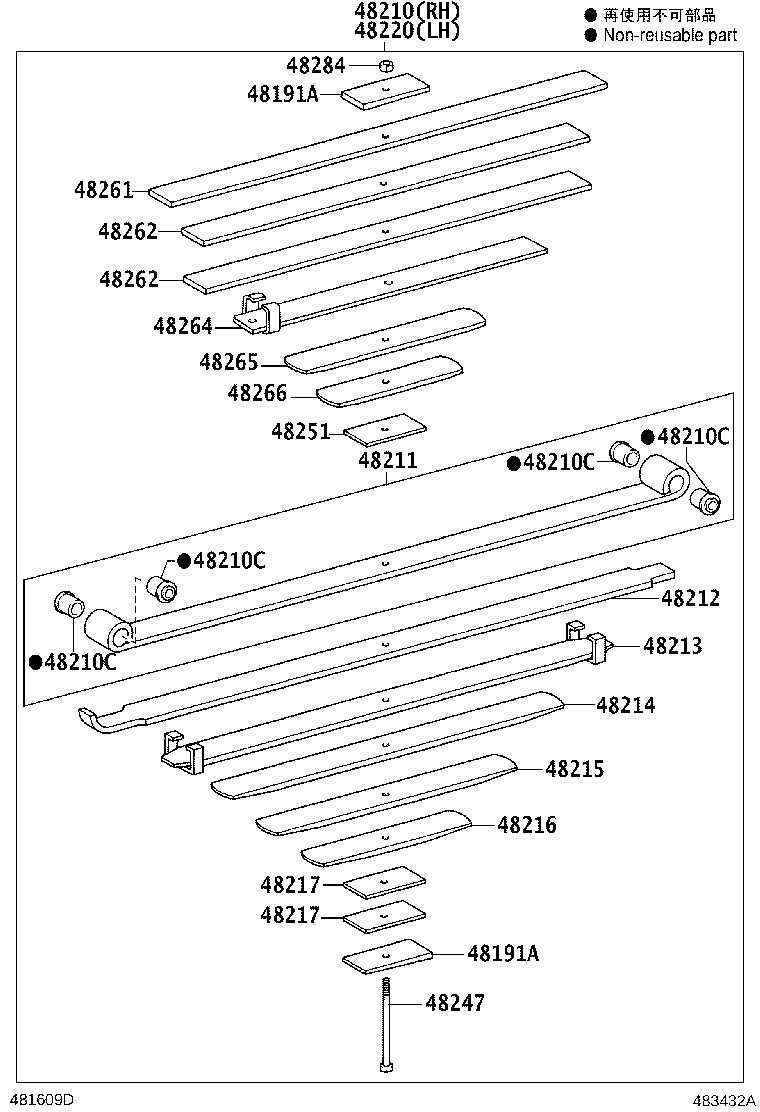

Rear Spring & Shock Absorber
43 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 48042 | Shackle Sub-assy, Rear Spring, NO.2 |
| 48046 | Seat Sub-assy, Spring U Bolt, RH |
| 48046A | Bolt, U(FOR REAR SPRING) |
| 48047 | Seat Sub-assy, Spring U Bolt, LH |
| 48191A | Wedge, Caster(FOR REAR LEAF SPRING) |
| 48210 | Spring Assy, Rear RH |
| 48210C | Bush(FOR REAR SPRING LEAF) |
| 48210Q | Bush(FOR REAR SPRING SHACKLE) |
| 48211 | Leaf, Rear Spring, NO.1 |
| 48212 | Leaf, Rear Spring, NO.2 |
| 48213 | Leaf, Rear Spring, NO.3 |
| 48214 | Leaf, Rear Spring, NO.4 |
| 48215 | Leaf, Rear Spring, NO.5 |
| 48216 | Leaf, Rear Spring, NO.6 |
| 48217 | Leaf, Rear Spring, NO.7 |
| 48220 | Spring Assy, Rear LH |
| 48230 | Spring Assy, Rear Main, RH |
| 48246 | Case, Rear Spring Clip Bolt |
| 48247 | Bolt, Rear Spring, Center |
| 48251 | Spacer, Rear Spring Leaf |
| 48252 | Silencer, Rear Spring |
| 48252F | Silencer, Rear Spring, NO.3 |
| 48253 | Spacer, Rear Spring, NO.1 |
| 48256 | Bolt, Hexagon(FOR REAR SPRING CLIP SET) |
| 48261 | Leaf, Rear Helper Spring, NO.1 |
| 48262 | Leaf, Rear Helper Spring, NO.2 |
| 48263 | Leaf, Rear Helper Spring, NO.3 |
| 48264 | Leaf, Rear Helper Spring, NO.4 |
| 48265 | Leaf, Rear Helper Spring, NO.5 |
| 48266 | Leaf, Rear Helper Spring, NO.6 |
| 48284 | Nut, Rear Spring Center Bolt |
| 48284A | Nut, Rear Spring Clip |
| 48344 | Stopper, Bumper, Rear |
| 48422A | Support, Rear Spring Pin |
| 48435 | Attachment, Helper Spring Bracket, NO.1 |
| 48481 | Seat, Rear Spring, Upper |
| 48530 | Absorber Assy, Shock, Rear RH |
| 48530A | Bush(FOR REAR SHOCK ABSORBER) |
| 48530B | Washer, Rear Shock Absorber Cushion, NO.1 |
| 48533 | Pin, Rear Shock Absorber Lower Pivot, RH |
| 48533A | Pin, Rear Shock Absorber Lower Pivot, LH |
| 48540 | Absorber Assy, Shock, Rear LH |
| 48542 | Pin, Shock Absorber Upper Pivot, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
