Toyota Dyna

2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

4 part groups · 2 illustrations

Illustrations

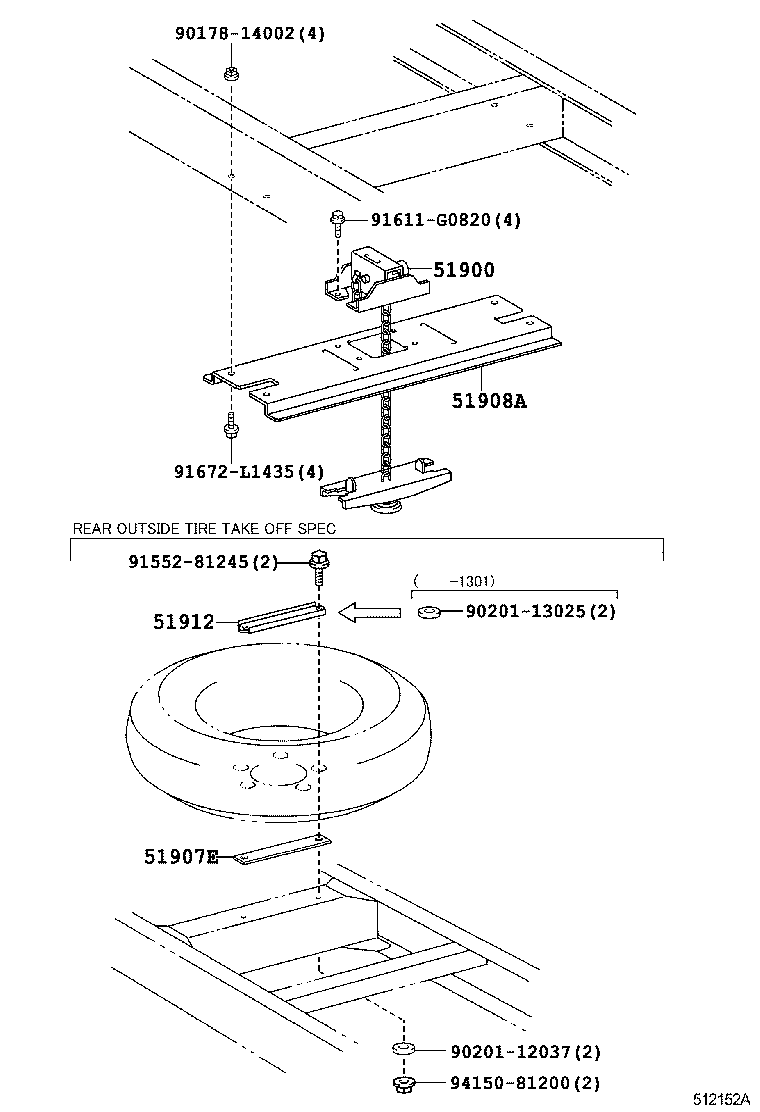

Figure 512151 512151 2011-07 → — Figure 512152A 512152A 2011-07 → —

Part groups

PNCDescription
51900 Carrier Assy, Spare Wheel
51907E Retainer Sub-assy, Spare Tire Carrier
51908A Bracket Sub-assy, Spare Wheel Mounting
51912 Bracket, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
