Toyota Dyna
2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General
Supported model
Data version 2020-01

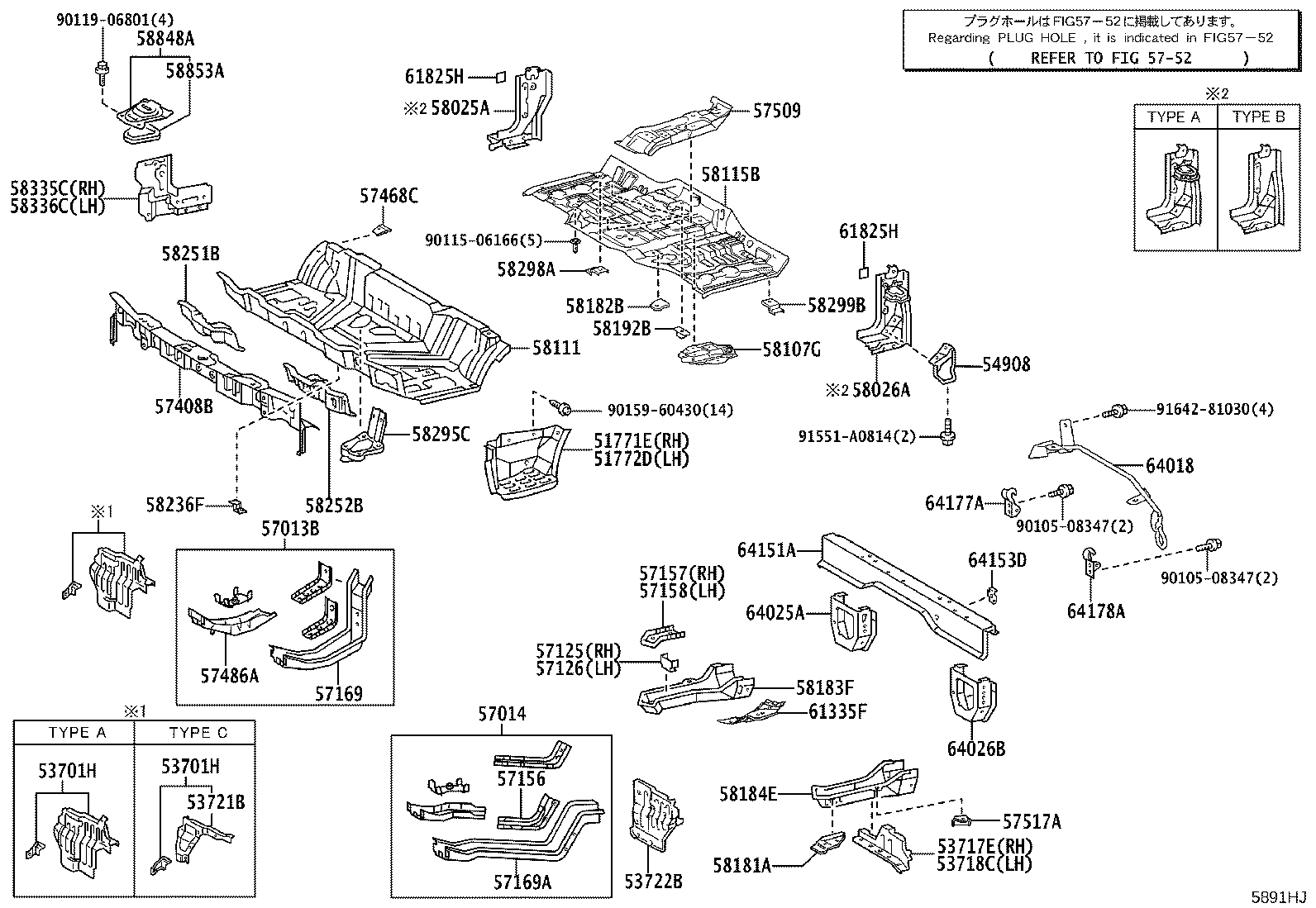

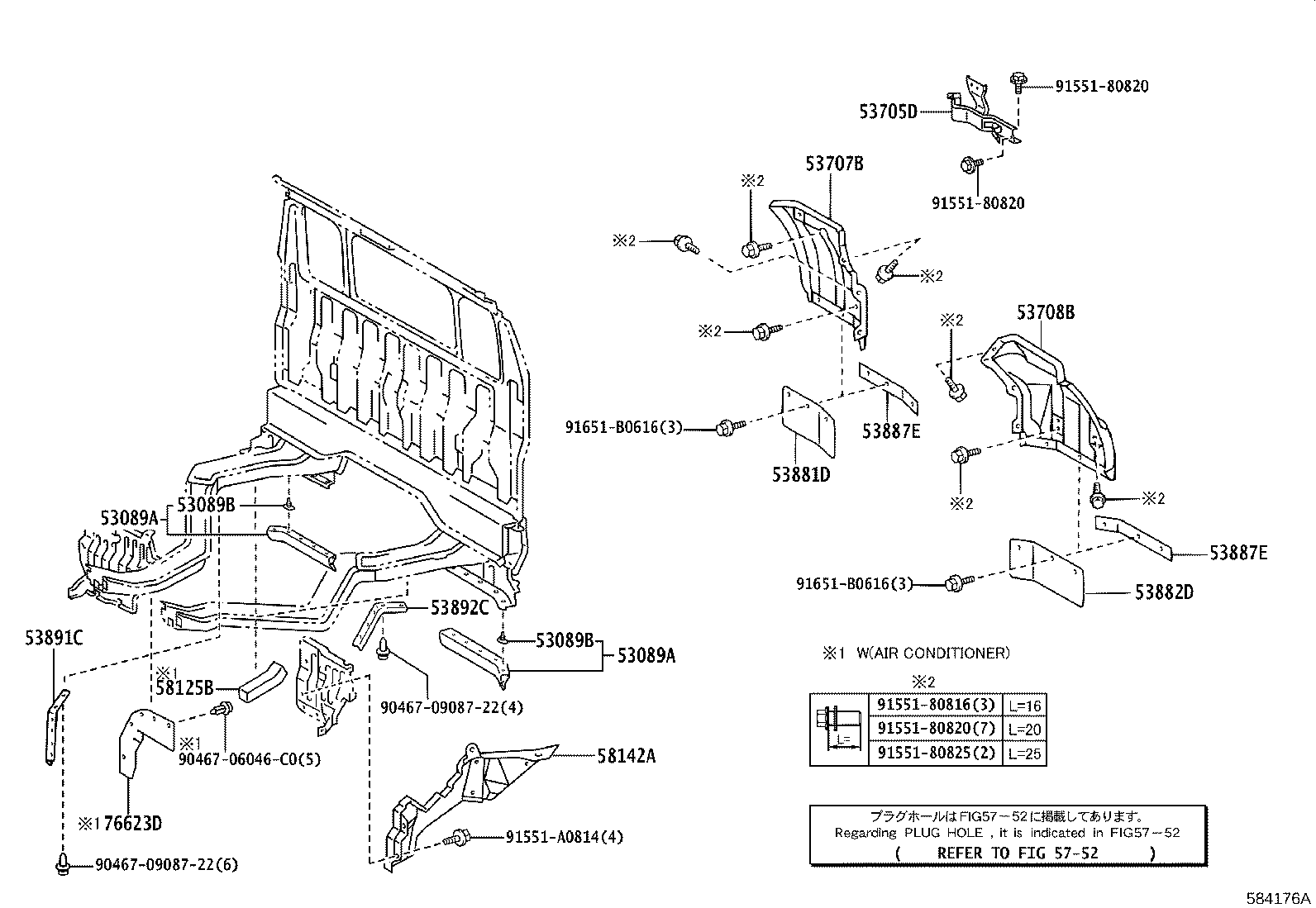

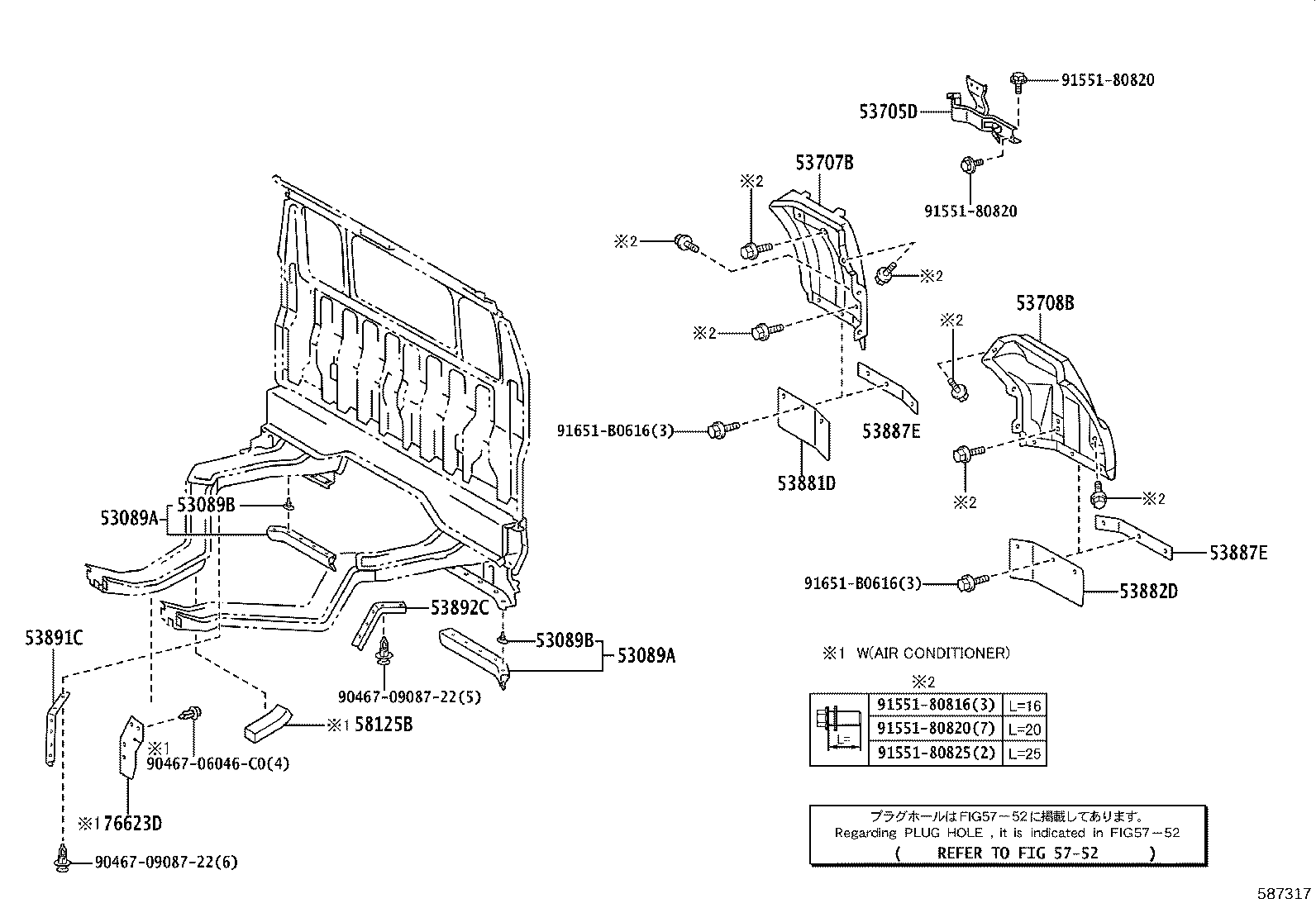

Front Floor Panel & Front Floor Member
79 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 51771E | Plate, Step, RH |
| 51772D | Plate, Step, LH |
| 53089A | Mudguard Sub-assy, Front |
| 53089B | Clip, Front Mudguard |
| 53701H | Apron Sub-assy, Front Fender, RH |
| 53705D | Brace Sub-assy, Fender Apron, RH |
| 53707B | Apron Sub-assy, Fender Side, RH |
| 53708B | Apron Sub-assy, Fender Side, LH |
| 53717E | Apron, Front Fender, NO.2 RH |
| 53718C | Apron, Front Fender, NO.2 LH |
| 53721B | Apron Sub-assy, Fender Side, RH |
| 53722B | Apron Sub-assy, Fender Side, LH |
| 53881D | Mudguard, Front RH |
| 53882D | Mudguard, Front LH |
| 53887E | Plate, Front Mudguard |
| 53891C | Seal, Front Fender Splash Sheild, Front |
| 53892C | Seal, Front Fender Splash Shield, Front LH |
| 54908 | Bracket Sub-assy, Tilt Cab Grip |
| 57013B | Member Sub-assy, Floor, Front RH |
| 57014 | Member Sub-assy, Floor, Front LH |
| 57125 | Bracket, Front Side Member, RH |
| 57126 | Bracket, Front Side Member, LH |
| 57156 | Reinforcement, Front Side Member, NO.3, LH |
| 57157 | Reinforcement, Front Side Member, NO.4 RH |
| 57158 | Reinforcement, Front Side Member, NO.4 LH |
| 57169 | Member, Front Floor, Front RH |
| 57169A | Member, Front Floor, Front LH |
| 57408B | Member Sub-assy, Front Floor Cross |
| 57468C | Bracket, Front Seat, Outside, RH |
| 57486A | Reinforcement, Floor Side Member, NO.1 RH |
| 57509 | Reinforcement Sub-assy, Front Floor, Center |
| 57517A | Retainer, Front Floor Reinforcement, Rear |
| 58025A | Panel Sub-assy, Floor Side Rail, FR RH |
| 58026A | Panel Sub-assy, Floor Side Rail, FR LH |
| 58107G | Reinforce Sub-assy, Parking Brake Base |
| 58111 | Pan, Front Floor |
| 58115B | Panel, Front Floor, Rear |
| 58125B | Seal, Front Floor TO Frame |
| 58142A | Apron, Front Floor Side, NO.1 LH |
| 58181A | Retainer, Seat Rail, Front |
| 58182B | Retainer, Seat Rail, Front LH |
| 58183F | Reinforcement, Rear Mounting, RH |
| 58184E | Reinforcement, Rear Mounting, LH |
| 58188A | Bracket, Accelerator Pedal Stopper |
| 58192B | Plate, Front Floor, Rear |
| 58194E | Retainer, Engine Cover Hinge |
| 58213A | Panel, Seat Floor, RH |
| 58214A | Panel, Seat Floor, LH |
| 58236F | Bracket, Clutch Tube |
| 58251B | Brace, Floor Panel, Front |
| 58252B | Brace, Floor Panel, Front LH |
| 58295C | Bracket, Floor Shift Lever, NO.1 |
| 58298A | Reinforcement, Seat Belt Anchor Floor, RH |
| 58299B | Reinforcement, Seat Belt Anchor Floor, LH |
| 58319F | Bracket, Rear Floor Side Panel |
| 58335C | Plate, Floor Side, Front RH |
| 58336C | Plate, Floor Side, Front LH |
| 58407A | Cover Sub-assy, Engine Service Hole Sub |
| 58410 | Cover, Engine Service Hole |
| 58410E | Cushion, NO.3 |
| 58424 | Packing, Engine Service Hole Cover, NO.1 |
| 58426B | Protector, Engine Sub Cover |
| 58444B | Packing, Engine Sub Cover |
| 58474A | Packing, Engine Sub Cover, NO.2 |
| 58475C | Packing, Engin Sub Cover, NO.3 |
| 58848A | Cover, Shift Lever Hole |
| 58853A | Packing, Shift Lever Hole |
| 61335F | Retainer, Seat Belt Anchor |
| 61825H | Pad, Noise Shutter, NO.2 |
| 64018 | Bar Sub-assy, Body |
| 64025A | Bracket Sub-assy, Rear Mounting, RH |
| 64026B | Bracket Sub-assy, Rear Mounting, LH |
| 64151 | Frame, Back |
| 64151A | Frame, Back |
| 64153D | Reinforcement, Back Frame |
| 64177A | Stopper, Rear Mounting Bracket, RH |
| 64178A | Stopper, Rear Mounting Bracket, LH |
| 71901A | Catch Sub-assy, Center Seat Cushion, Front |
| 76623D | Mudguard, Front Fender, Front RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
