Toyota Dyna

2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

37 part groups · 3 illustrations

Illustrations

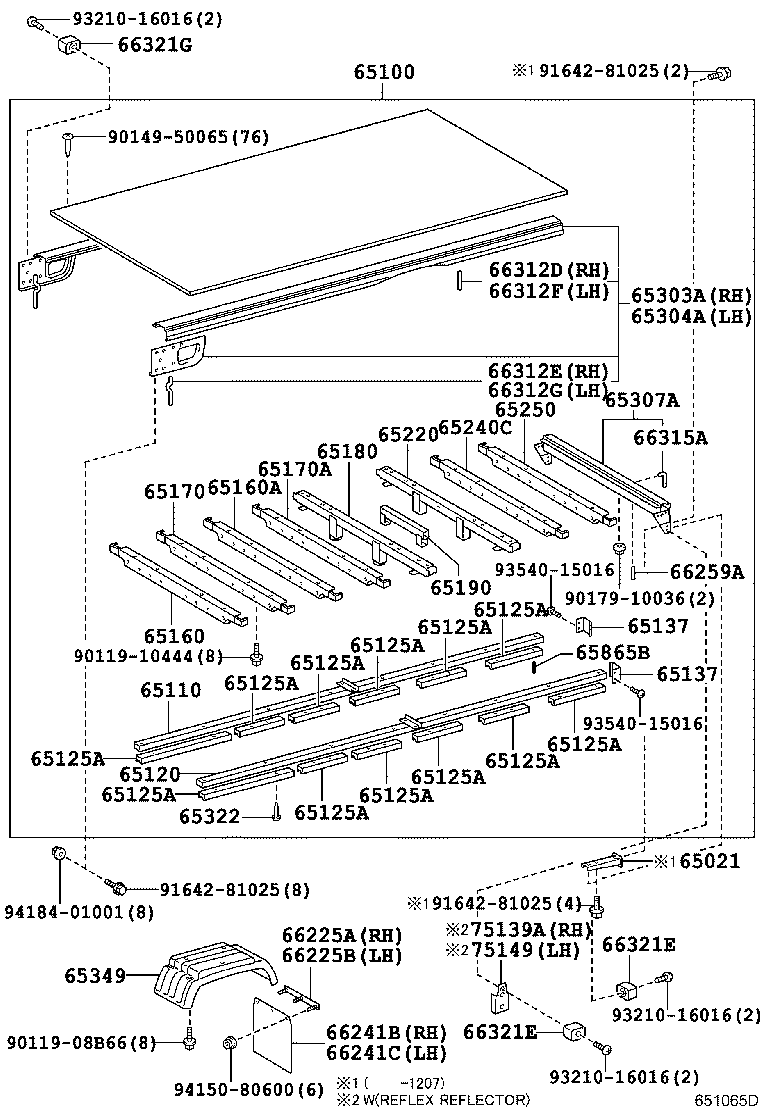

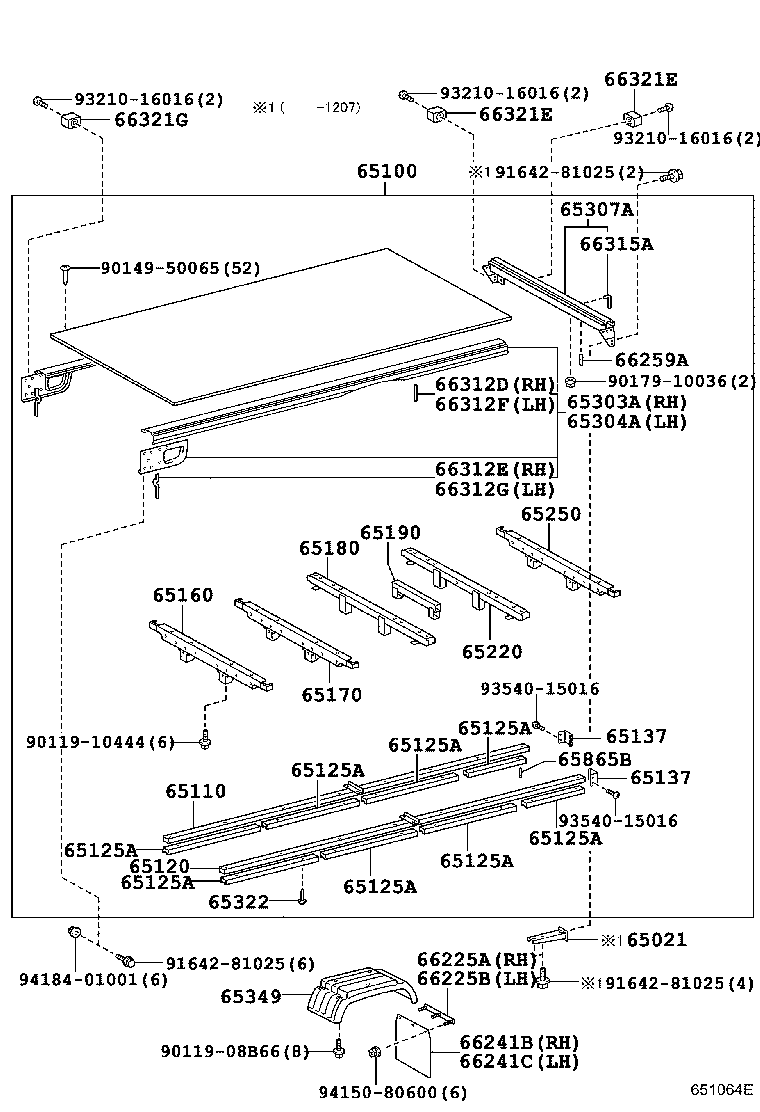

Figure 651067E 651067E 2011-07 → — Figure 651064E 651064E 2011-07 → — Figure 651065D 651065D 2011-07 → —

Part groups

PNCDescription
65021 Bracket Sub-assy, Main Sill, Lower
65100 Floor Assy, Rear Body
65110 Sill Assy, Main, RH
65120 Sill Assy, Main, LH
65125A Shim, Main Sill, Lower NO.1
65137 Cover, Main Sill End
65160 Sill Assy, Cross, NO.2
65160A Sill Assy, Cross, NO.2
65170 Sill Assy, Cross, NO.2
65170A Sill Assy, Cross, NO.3
65180 Sill Assy, Cross, NO.4
65190 Sill Assy, Cross, NO.5
65220 Sill Assy, Cross, NO.4
65240C Sill Assy, Cross, NO.9
65250 Sill Assy, Cross, NO.2
65303A Frame Sub-assy, Floor Side, RH
65304A Frame Sub-assy, Floor Side, LH
65307A Frame Sub-assy, Floor, Rear
65322 Nail
65349 Fender, Floor Side
65865B Pin, Cover Top Guide
66219A Extension, Rear Fender
66219B Extension, Rear Fender
66225A Support, Baffle Rubber
66225B Support, Buffle Rubber
66241B Baffle, Rubber
66241C Buffle, Rubber
66259A Cover, Rear Body Floor, Rear
66312D Hook, Rope, NO.2
66312E Hook, Rope, NO.2
66312F Hook, Rope, NO.2
66312G Hook, Rope, NO.2
66315A Hook, Rope
66321E Bumper, Gate Rubber
66321G Bumper, Gate Rubber
75139A Bracket, Reflex Reflector, RH
75149 Bracket, Reflex Reflector, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
