Toyota Dyna
2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General
Supported model
Data version 2020-01

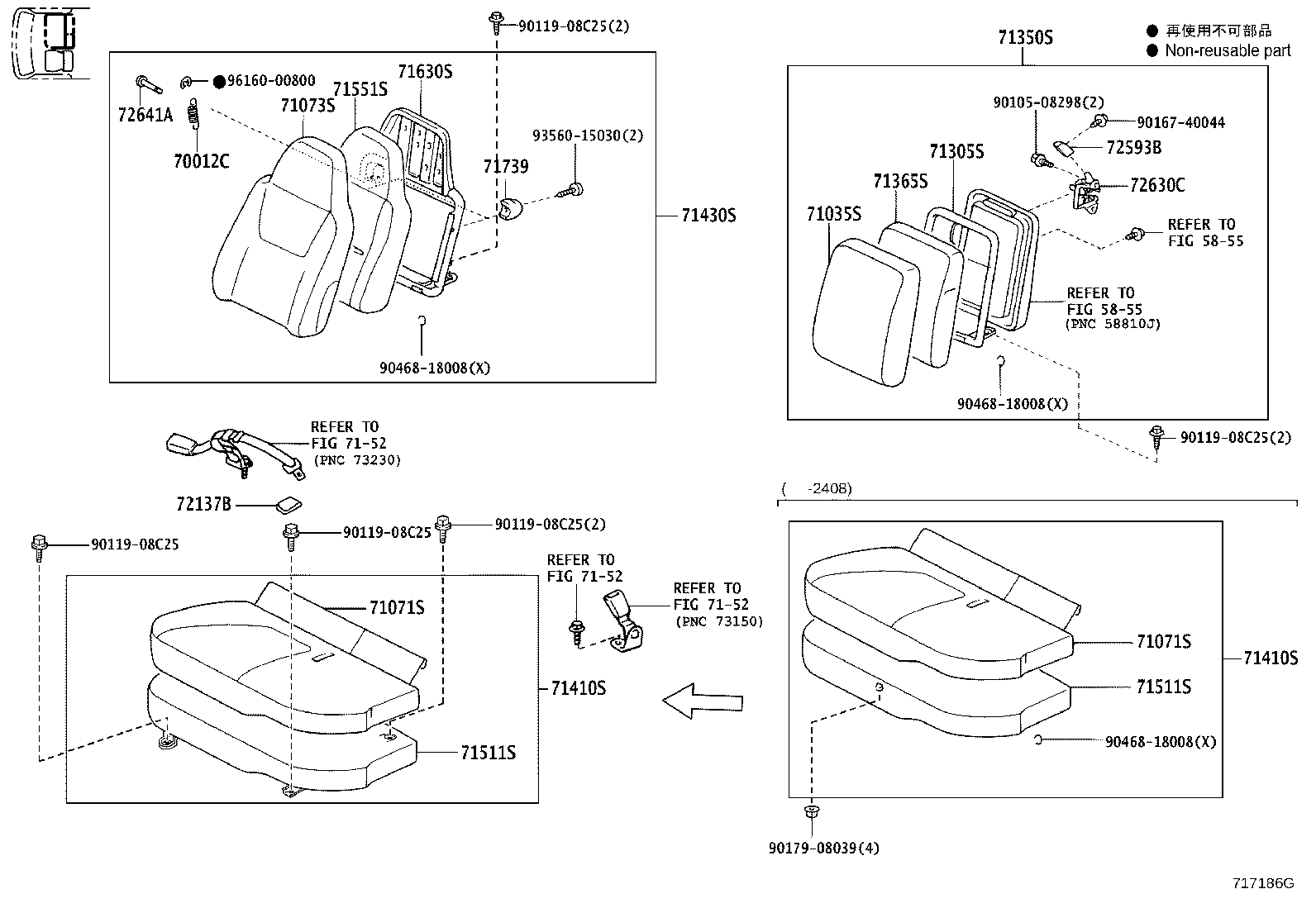

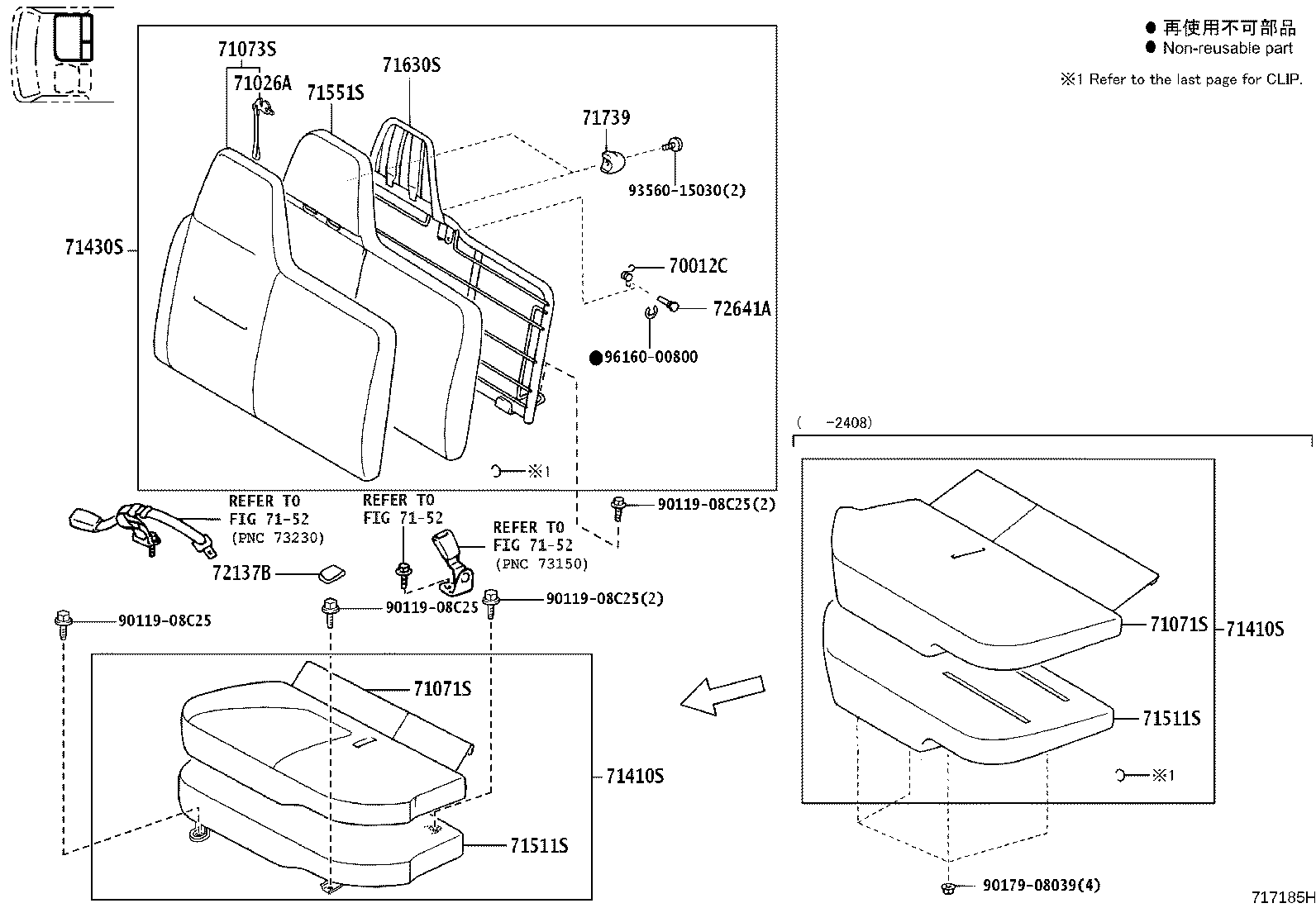

Seat & Seat Track
37 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 70012C | Spring(FOR SEATBACK) |
| 71012S | Frame Sub-assy, Front Seat Cushion, LH |
| 71026A | Support, Front Seatback, LH |
| 71035S | Cover, Front Seatback, Center |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71305S | Frame Sub-assy, Center Seatback |
| 71311B | Bush (FOR FRONT SEAT HINGE PIN) |
| 71350S | Back Assy, Front Seat, Center |
| 71365S | Pad, Center Seatback |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537A | Protector, Front Seat Cushion |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587 | Protector, Front Seatback Edge |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71739 | Cushion, Seat Support |
| 71812C | Cover, Reclining Adjuster, LH |
| 71832D | Cover, Front Seat Hinge, LH |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72137B | Cover, Seat Track, RH |
| 72138B | Cover, Seat Track, LH |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72301D | Wire Sub-assy, Seat Track Equalizing, LH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72593B | Knob, Reclining Remote Control Lever, RH |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72641A | Pin, Front Seatback Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
