Toyota Dyna
2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General
Supported model
Data version 2020-01
Battery Carrier

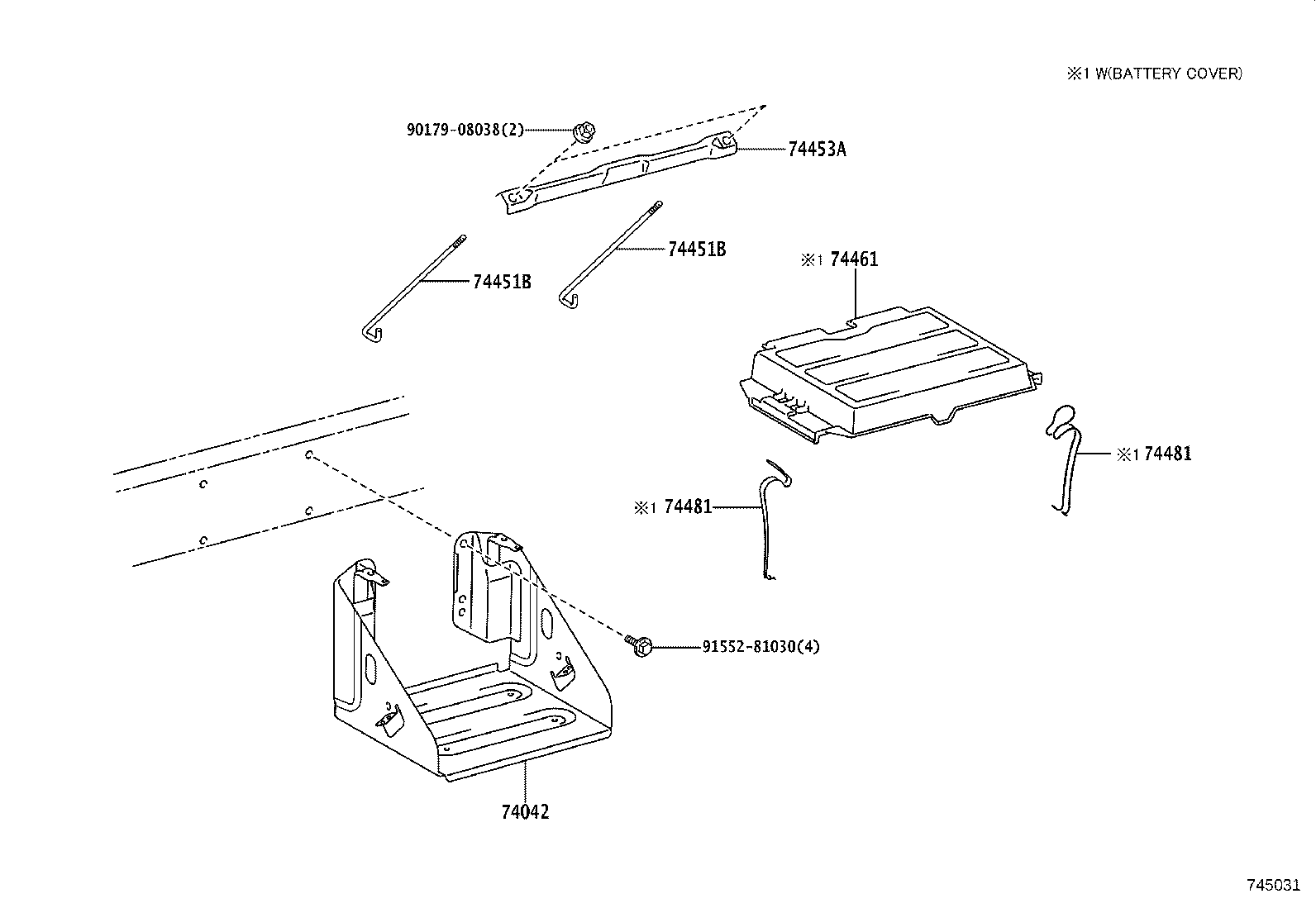

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74042 | Bracket Sub-assy, Battery |
| 74451B | Bolt, Battery Clamp |
| 74452 | Plate, Battery Set |
| 74453A | Bar, Battery Set Plate |
| 74461 | Cover, Battery |
| 74474 | Pad, Battery |
| 74481 | Clamp, Battery Hold Down |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
