Toyota Dyna

2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

15 part groups · 2 illustrations

Illustrations

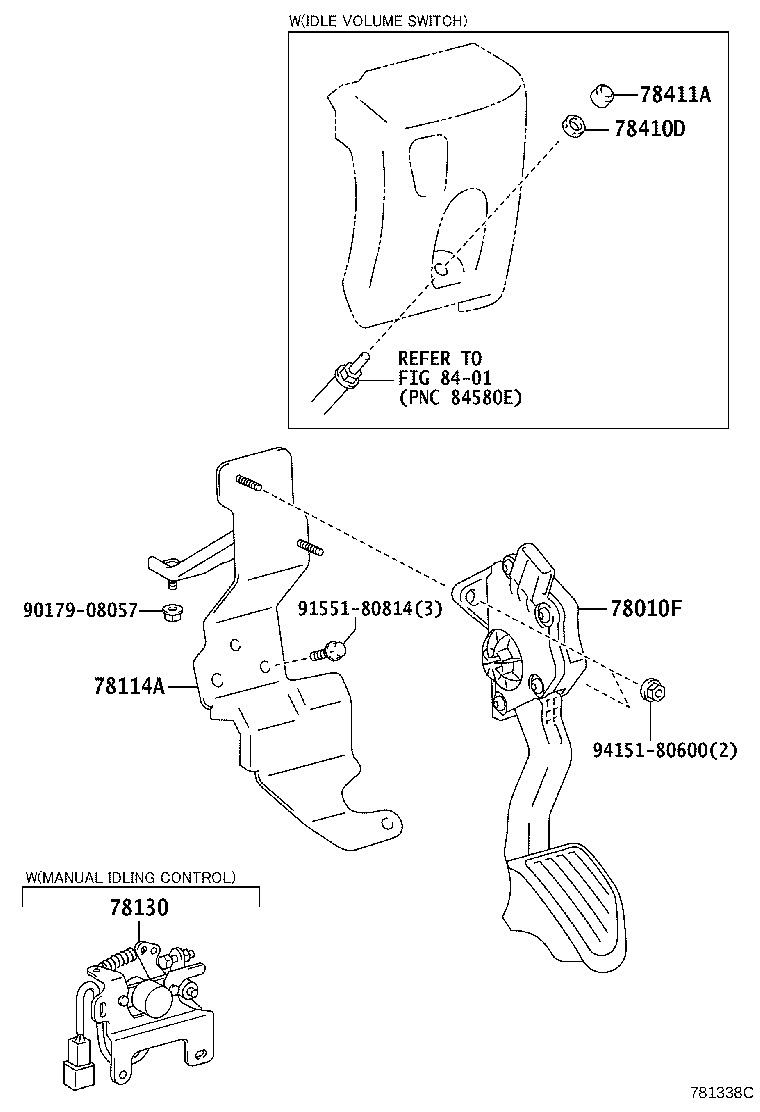

Figure 781343B 781343B 2011-07 → — Figure 781338C 781338C 2016-05 → —

Part groups

PNCDescription
78010F Pedal Assy, Accelerator
78100 Link Assy, Accelerator
78111 Pedal, Accelerator
78114A Bracket, Accelerator Pedal Support
78130 Bellcrank Assy, Accelerator
78150C Wire Assy, Accelerator Flexible
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78184C Bracket, Accelerator Control Cable
78184E Bracket, Accelerator Control Cable
78189 Bolt, Accelerator Pedal Stopper
78190 Cable Assy, Accel Control W/Throttle
78410D Nut, Throttle
78411A Knob, Throttle Control Cable
78481 Clamp, Throttle Wire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
