Toyota Dyna
2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General
Supported model
Data version 2020-01

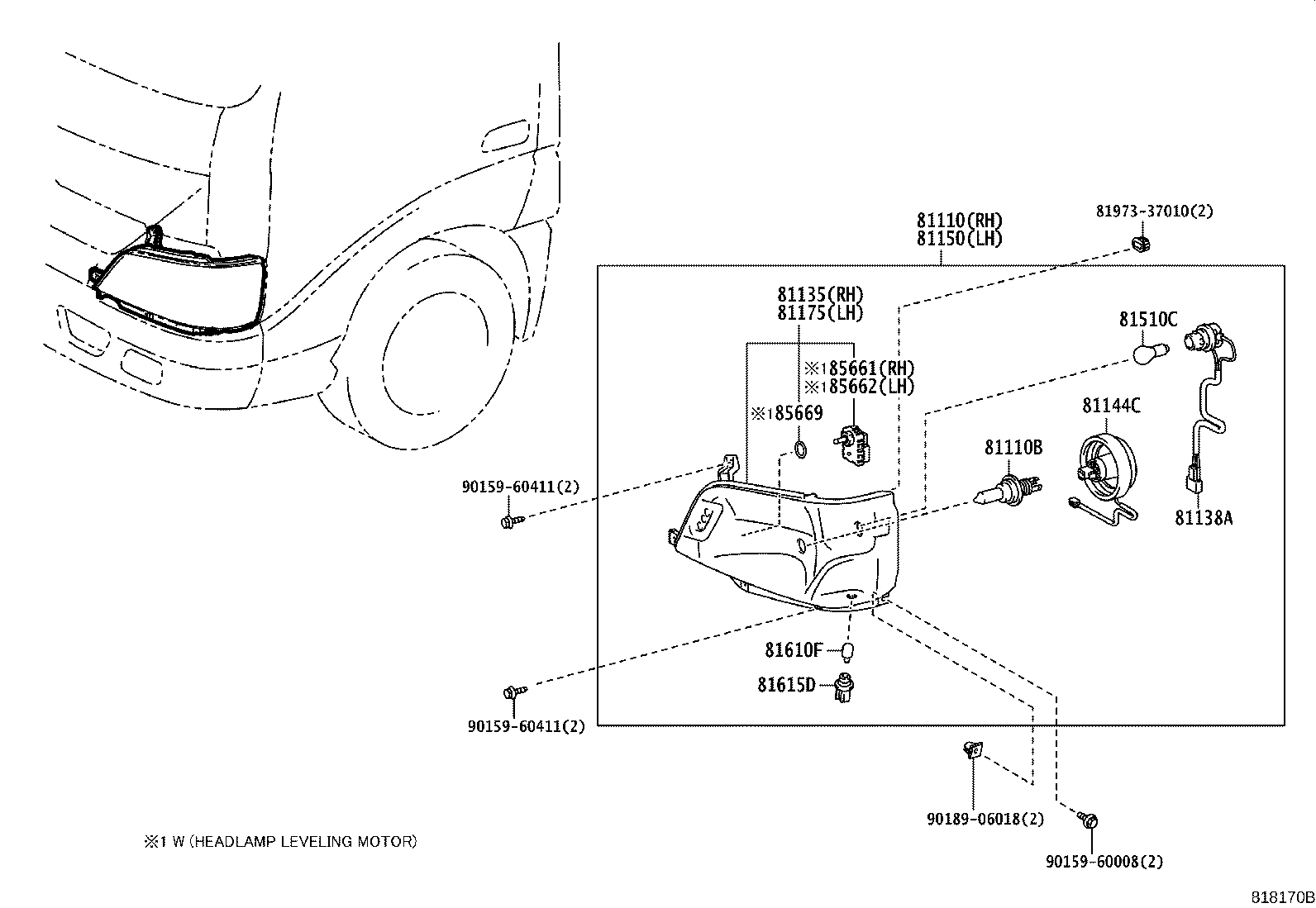

Headlamp
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81135 | Unit Assy, Headlamp, RH |
| 81138A | Socket & Wire, Headlamp |
| 81144C | Cover, Headlamp Socket |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81193A | Protector, Headlamp, RH |
| 81194A | Protector, Headlamp, LH |
| 81196 | Retainer, Headlamp |
| 81197 | Bracket, Headlamp, Lower RH |
| 81198 | Bracket, Headlamp, Lwr LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85669 | Packing, Headlamp Leveling Motor Base |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
