Toyota Dyna

2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

7 part groups · 3 illustrations

Illustrations

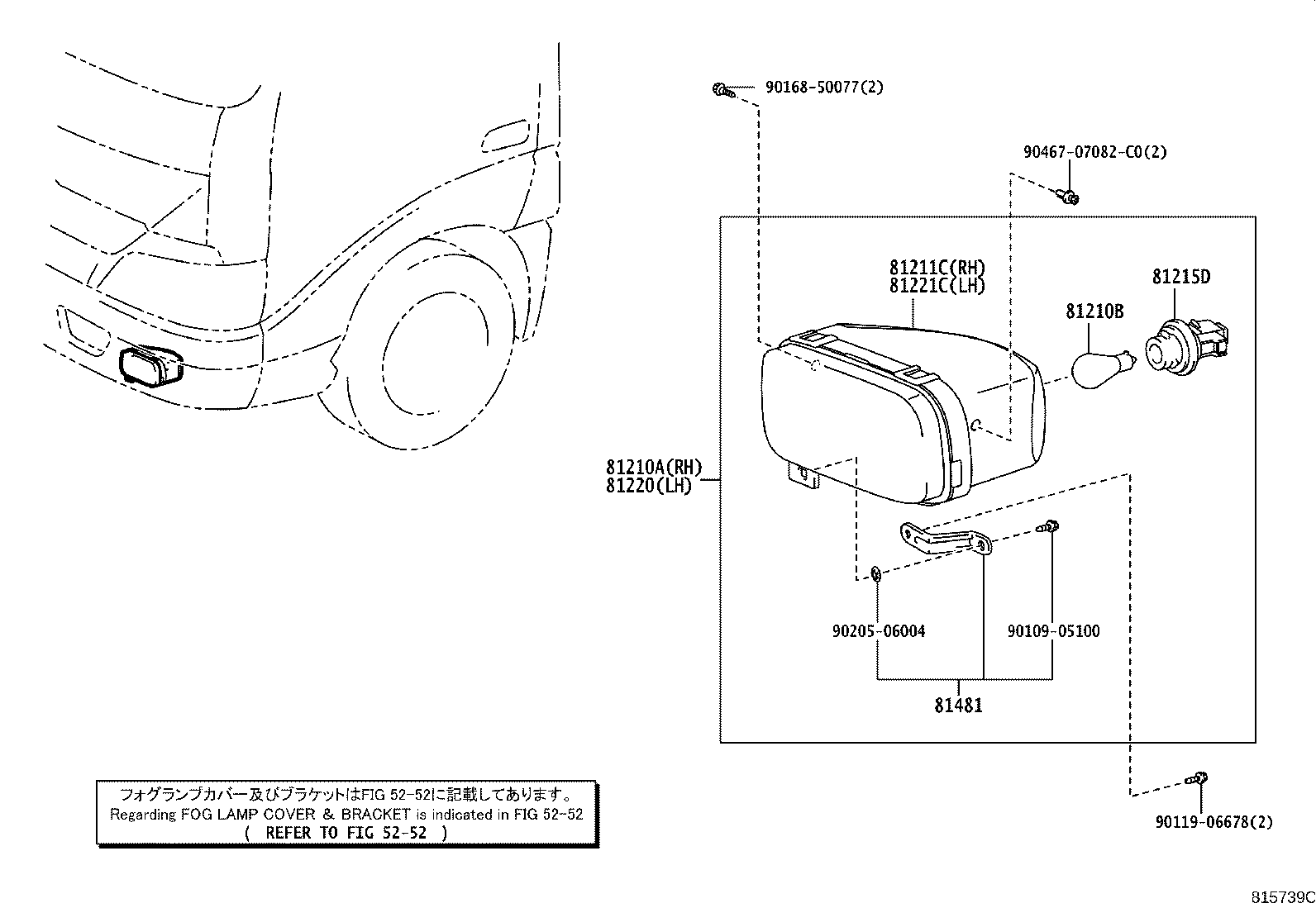

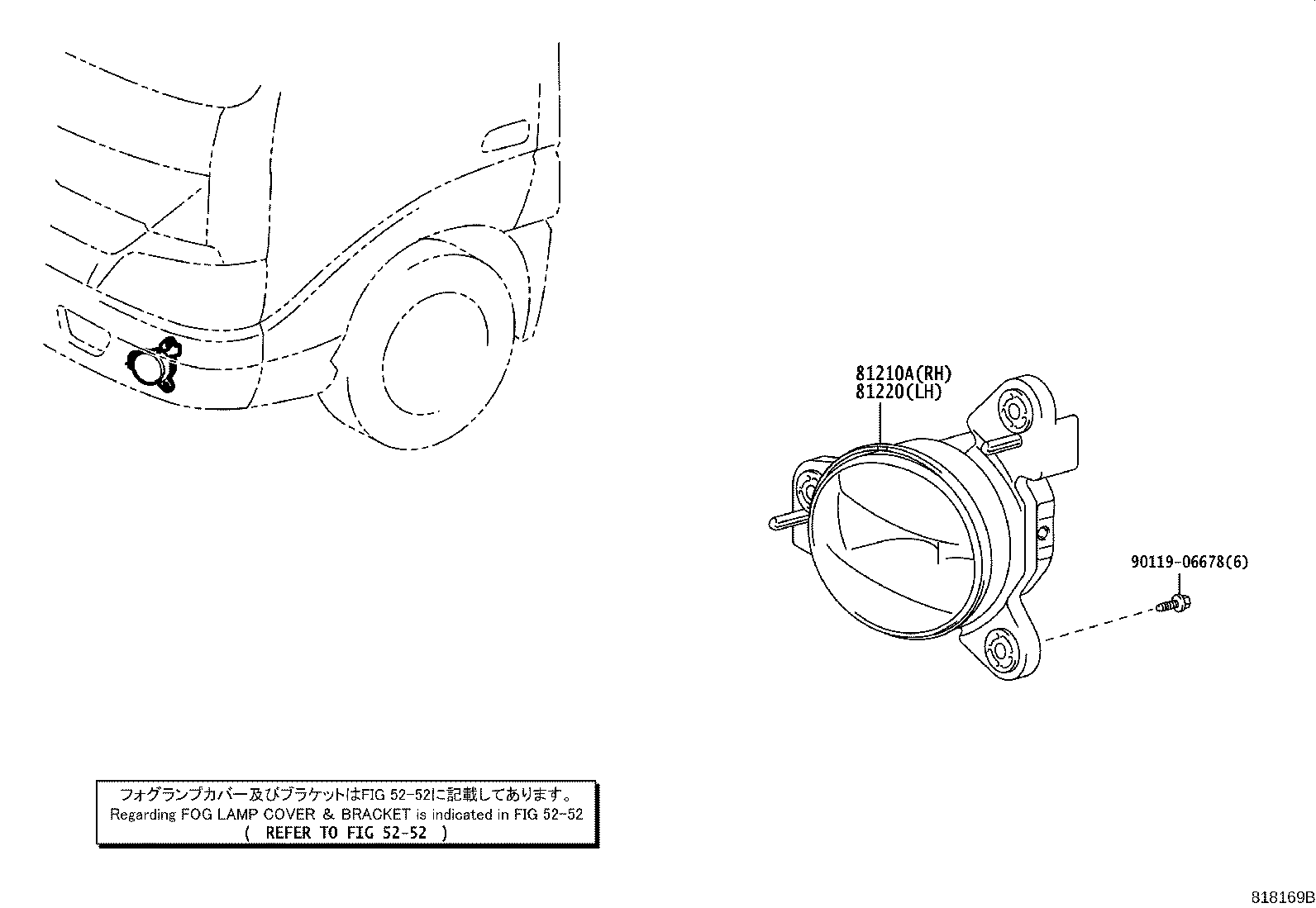

Figure 815738C 815738C 2011-07 → — Figure 815739C 815739C 2011-07 → — Figure 818169B 818169B 2017-06 → —

Part groups

PNCDescription
81210A Lamp Assy, Fog, RH
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81215D Fog Lamp Socket Plug Assy
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81481 Bracket, Fog Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
