Toyota Dyna

2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

34 part groups · 9 illustrations

Illustrations

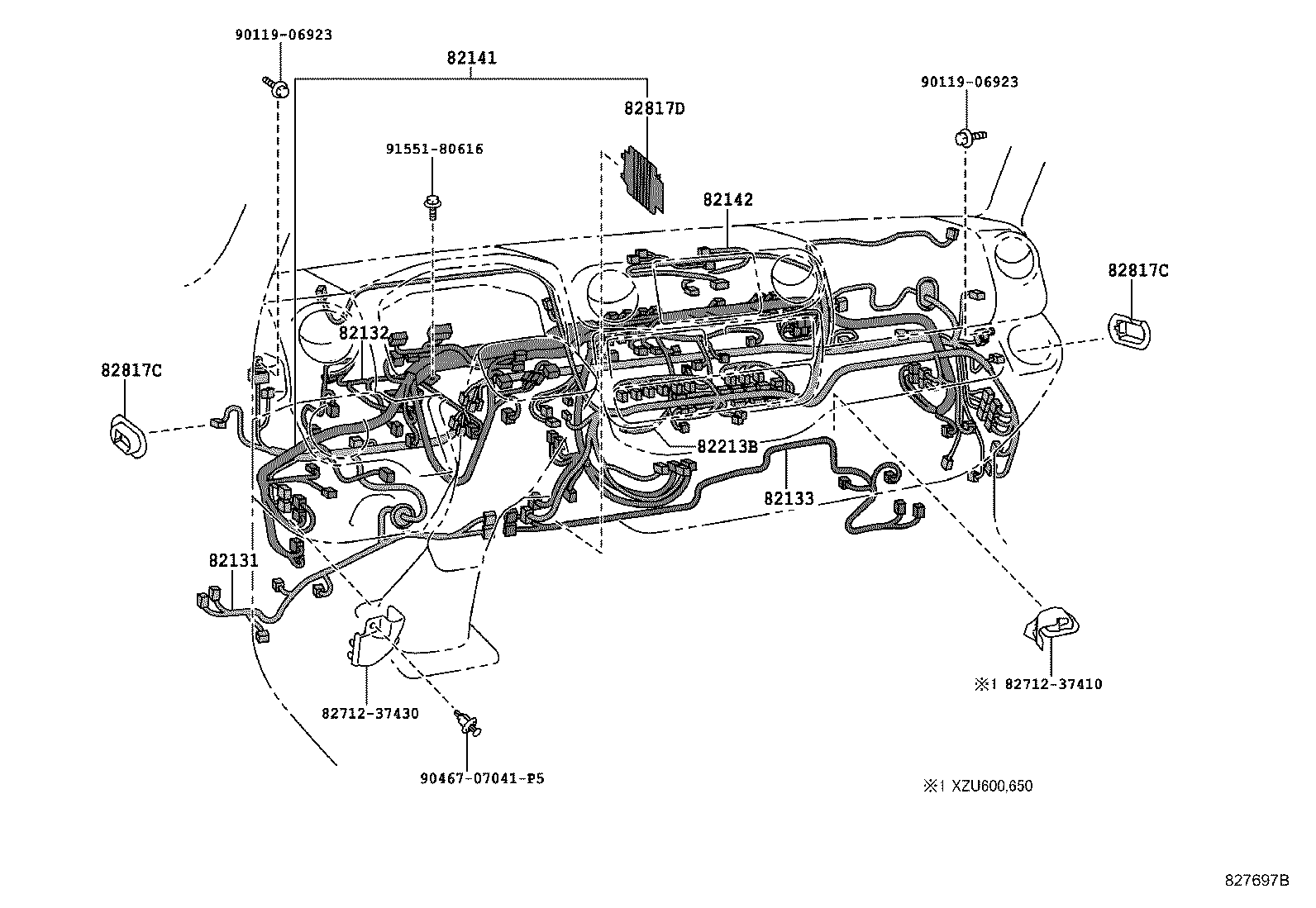

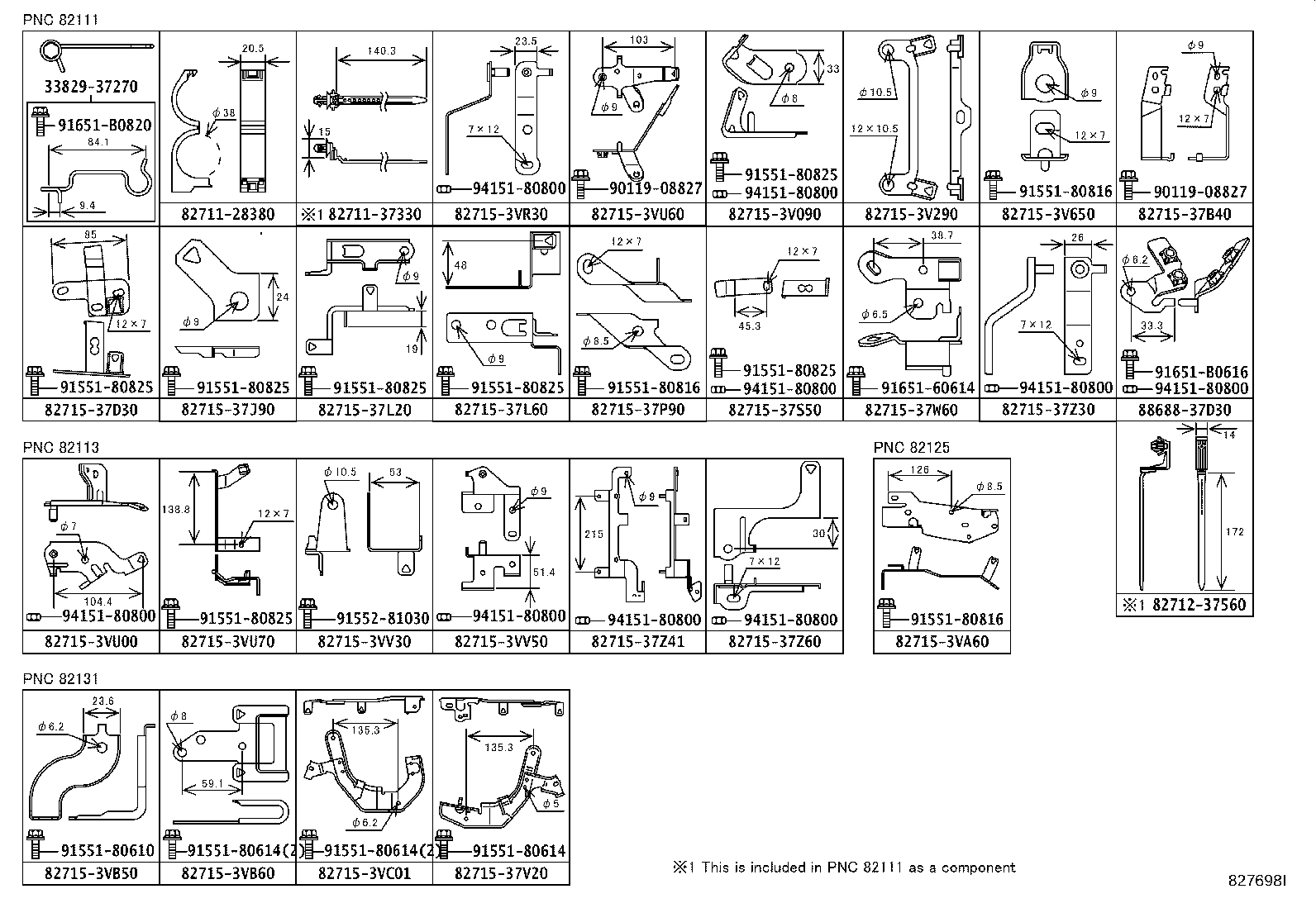

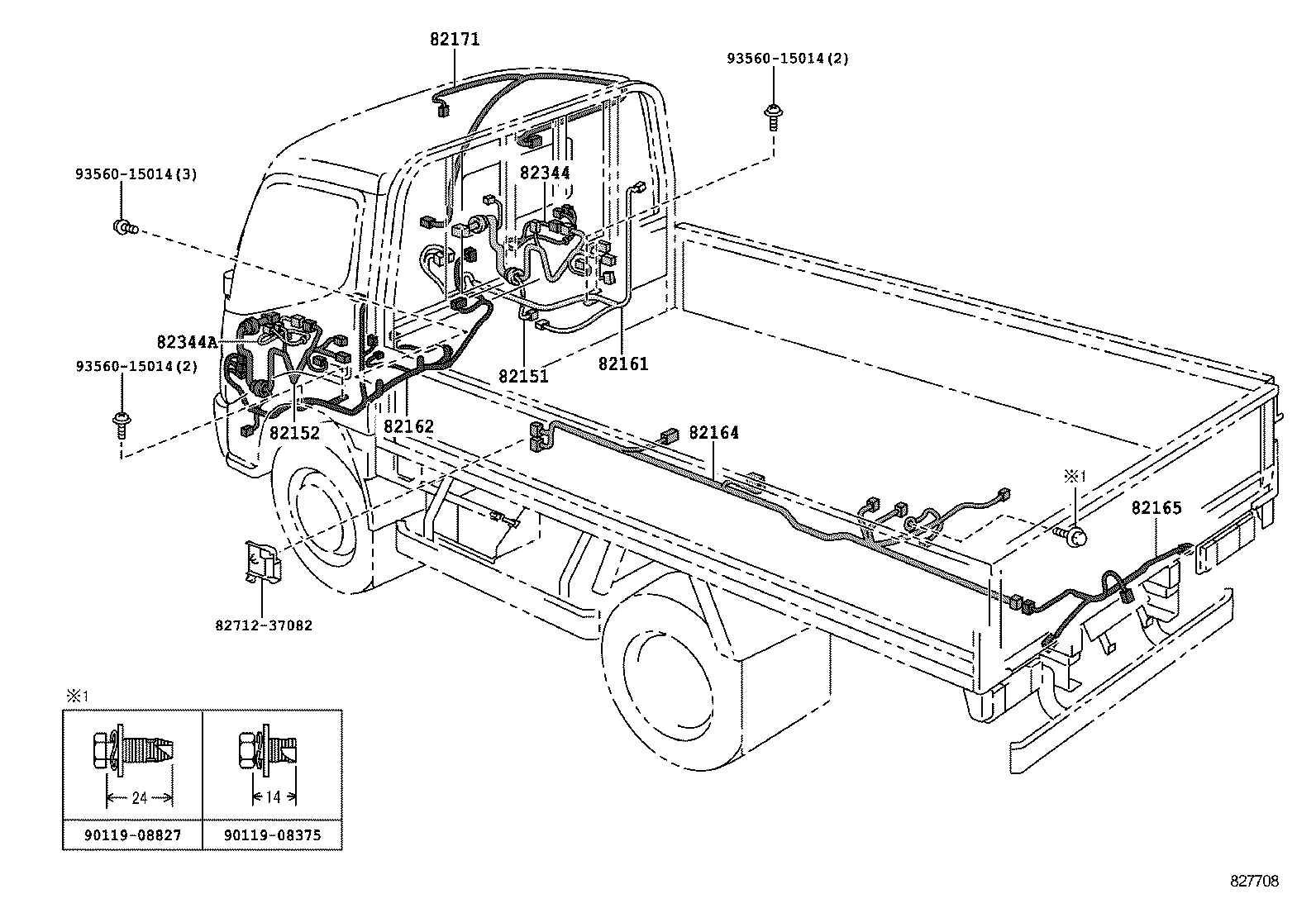

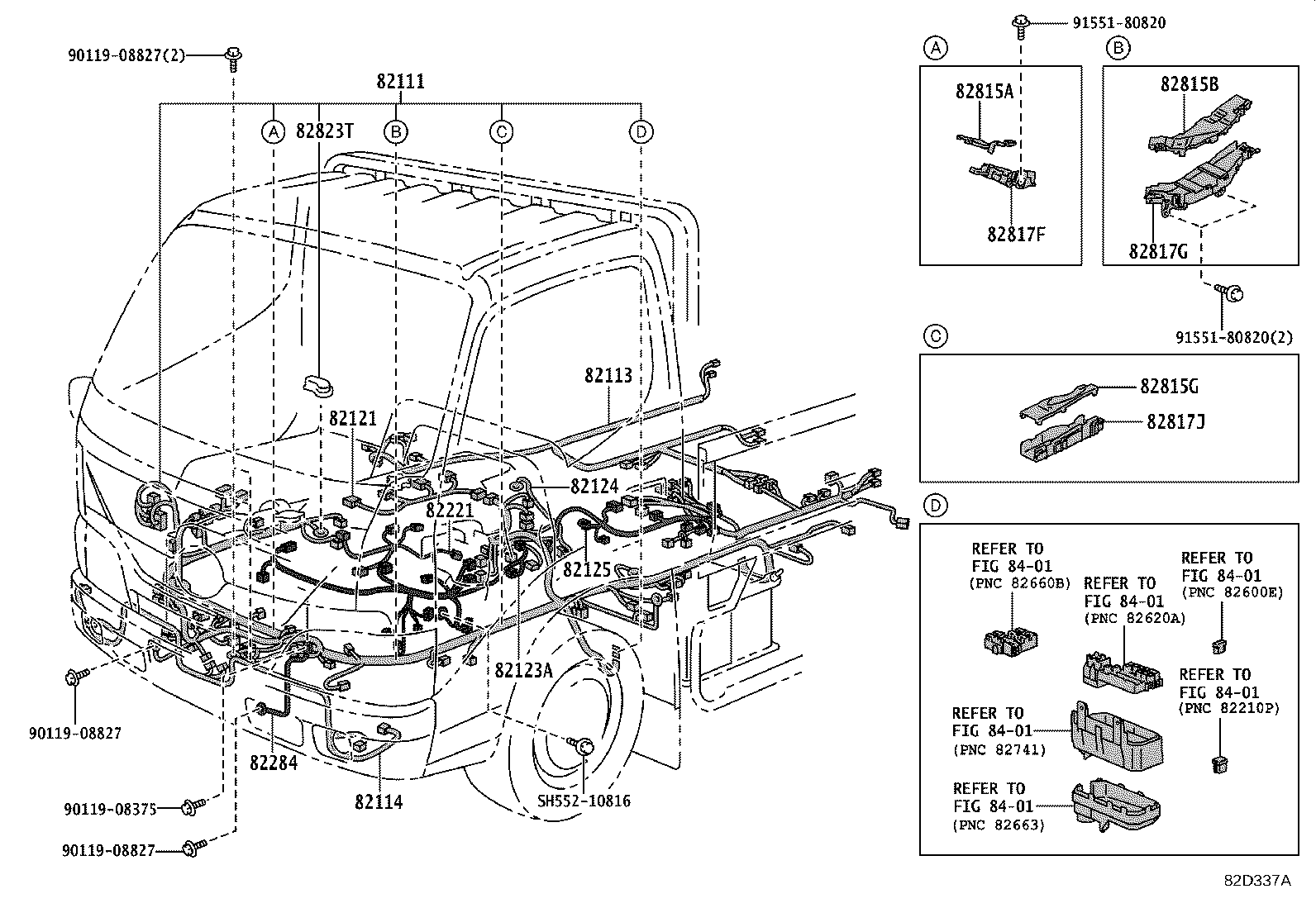

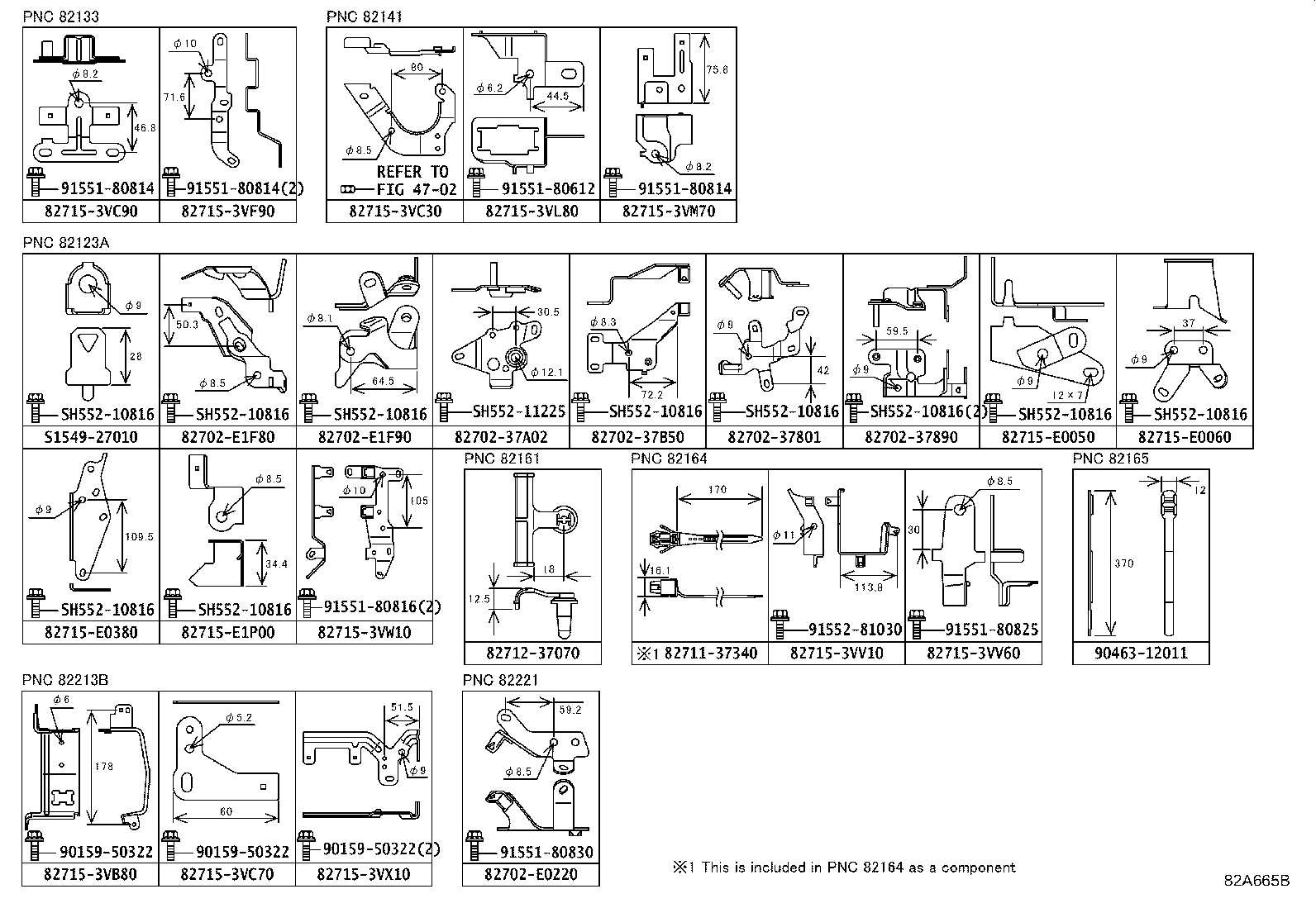

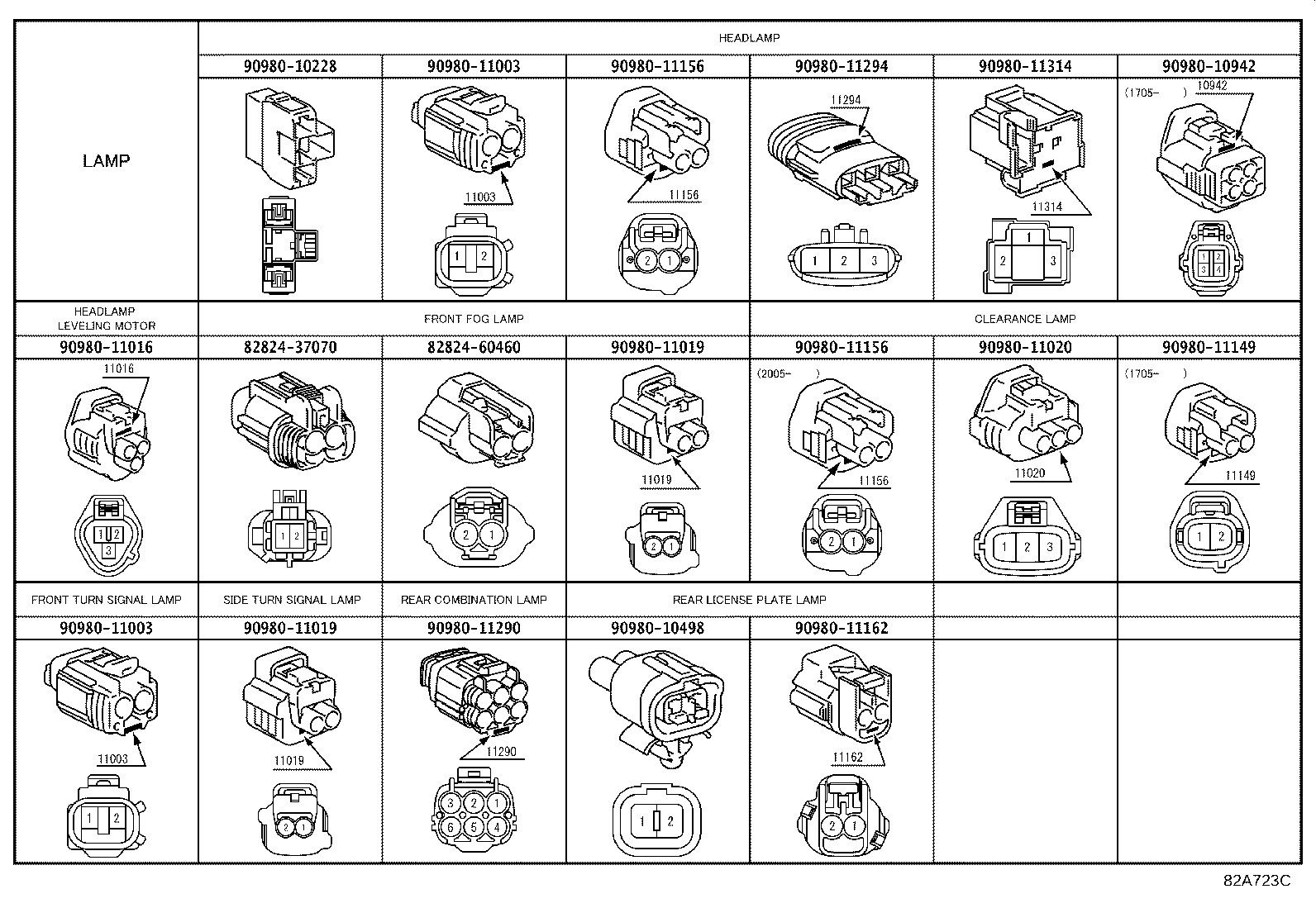

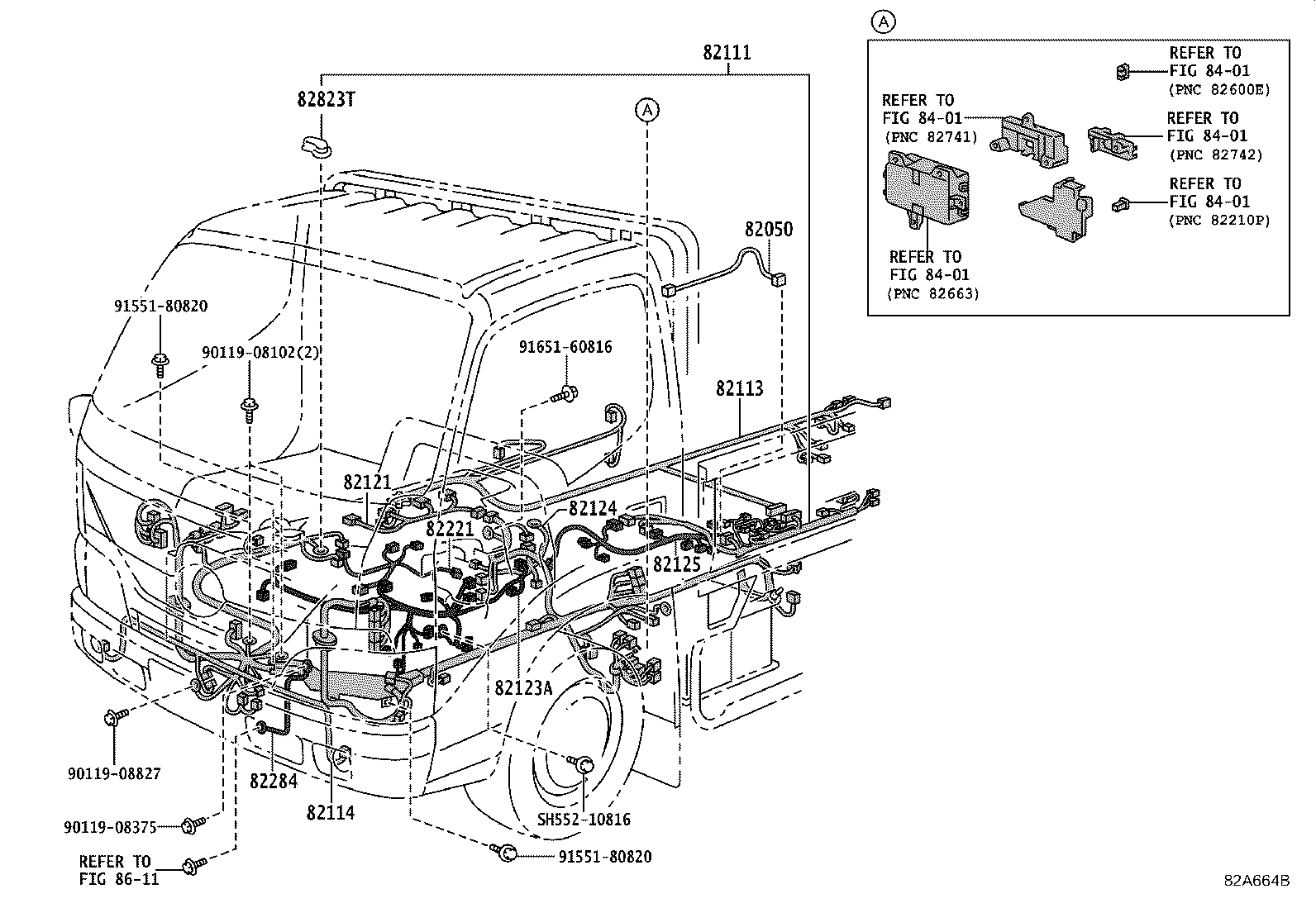

Figure 827696F 827696F 2011-07 → — Figure 82A664B 82A664B 2016-05 → — Figure 82D337A 82D337A 2019-11 → — Figure 827697B 827697B 2011-07 → — Figure 827708 827708 2011-07 → — Figure 827698I 827698I 2011-07 → — Figure 82A665B 82A665B 2011-07 → — Figure 82A723C 82A723C 2011-07 → — Figure 82E758 82E758 2011-07 → —

Part groups

PNCDescription
82050 Wire Assy, Engine
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82123A Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82213B Wire, Heater
82221 Wire, Oil Pressure Switch
82284 Wire, Earth
82344 Wire, Mirror, RH
82344A Wire, Mirror, LH
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
