Toyota Dyna

2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

79 part groups · 19 illustrations

Illustrations

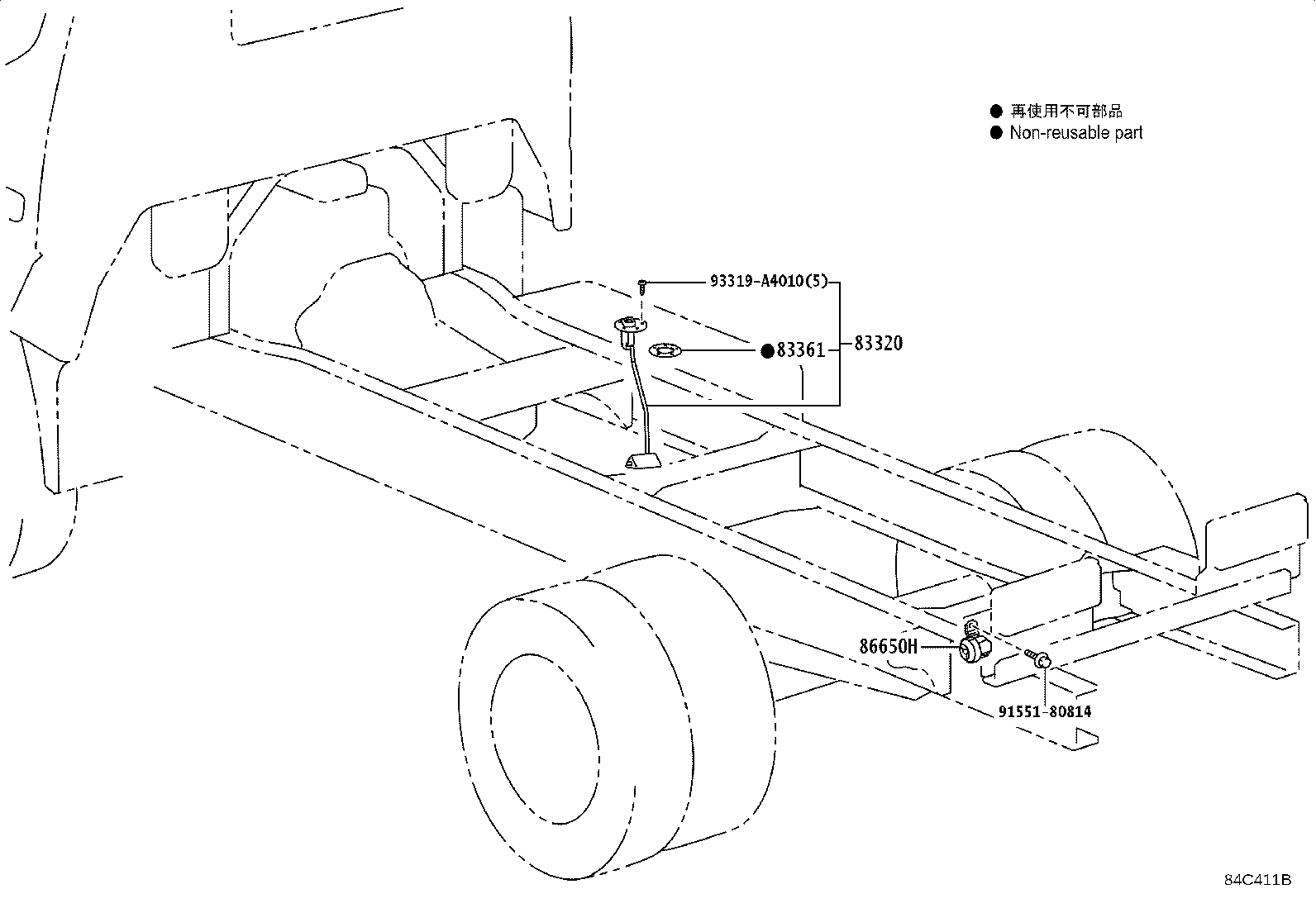

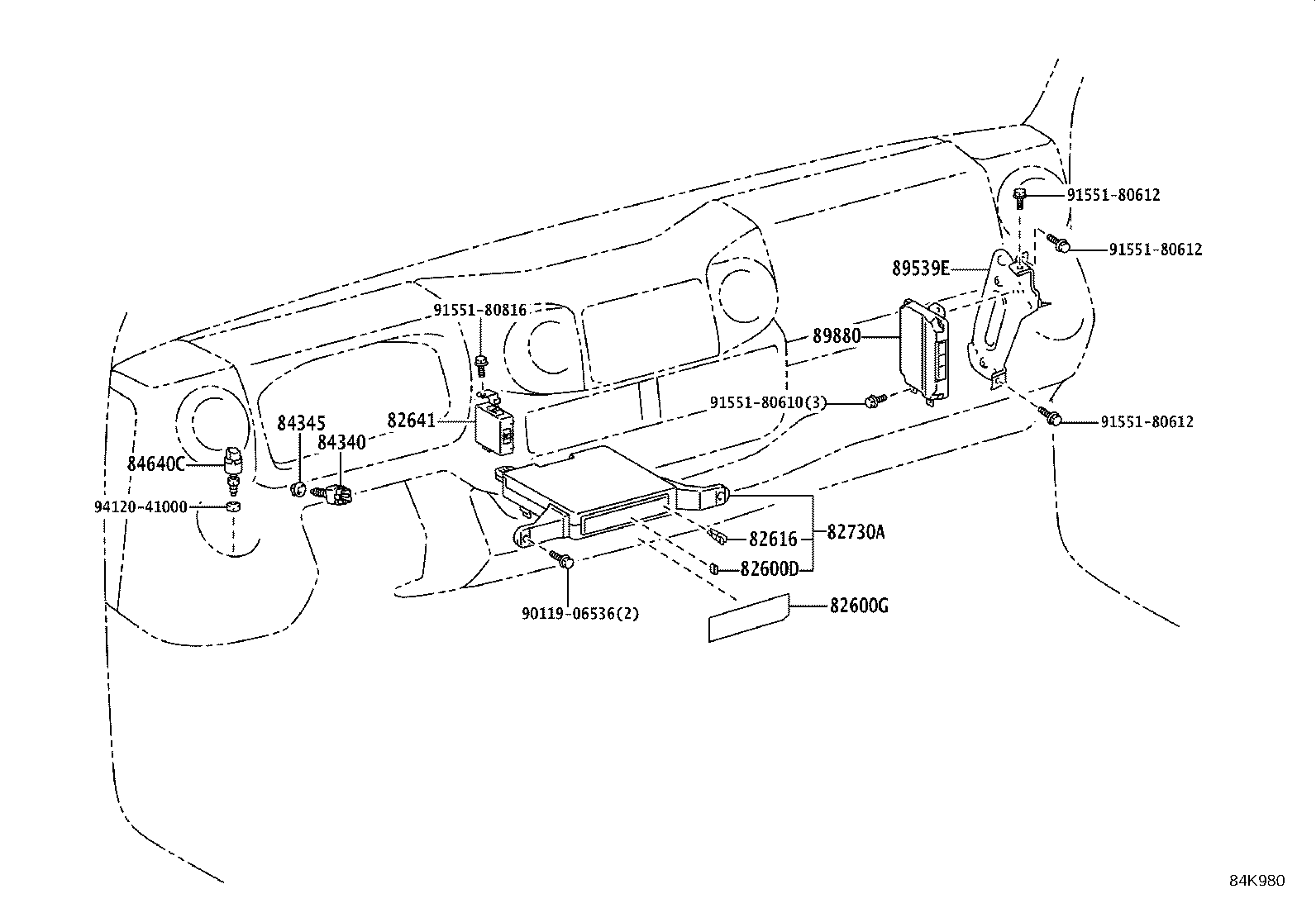

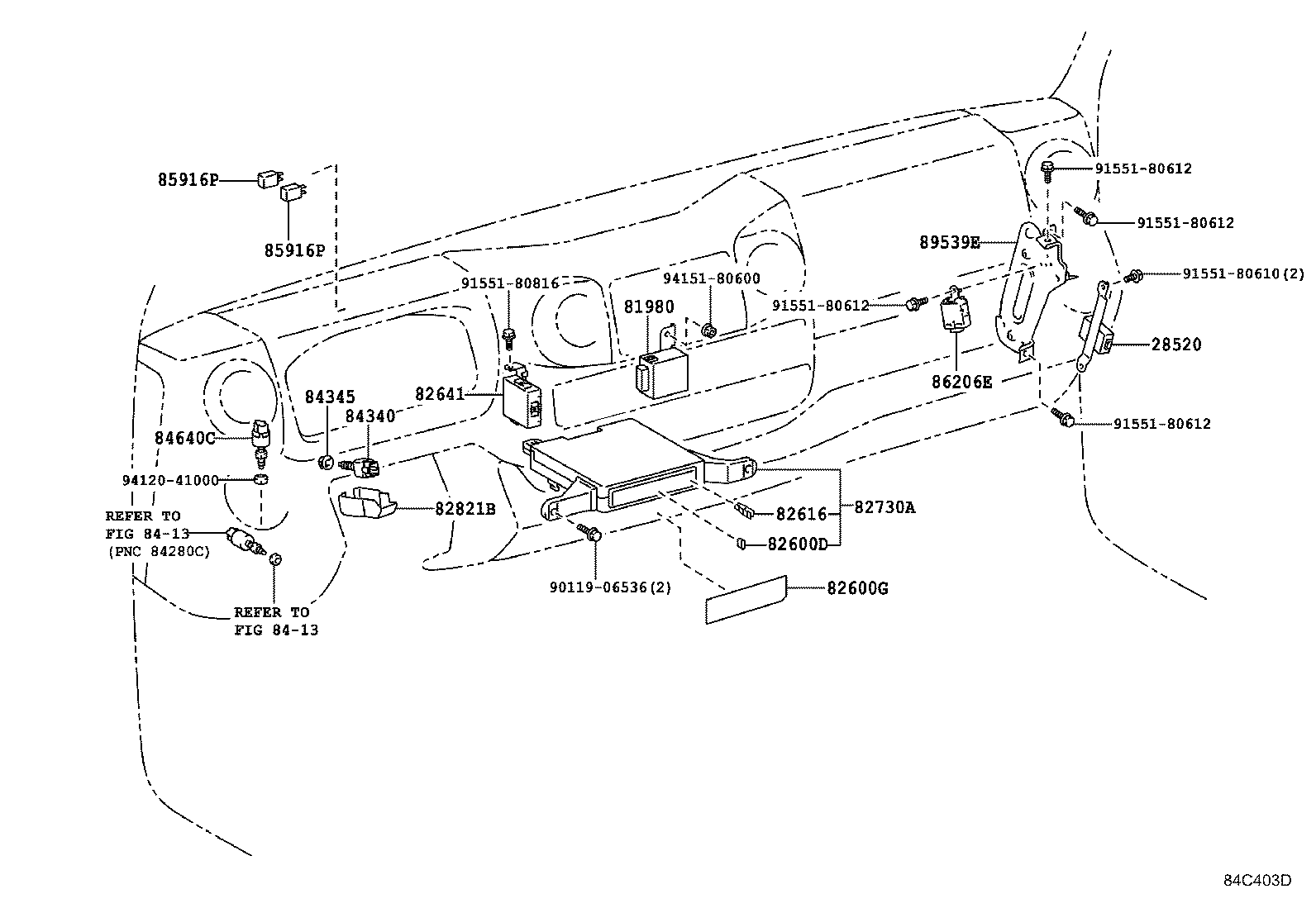

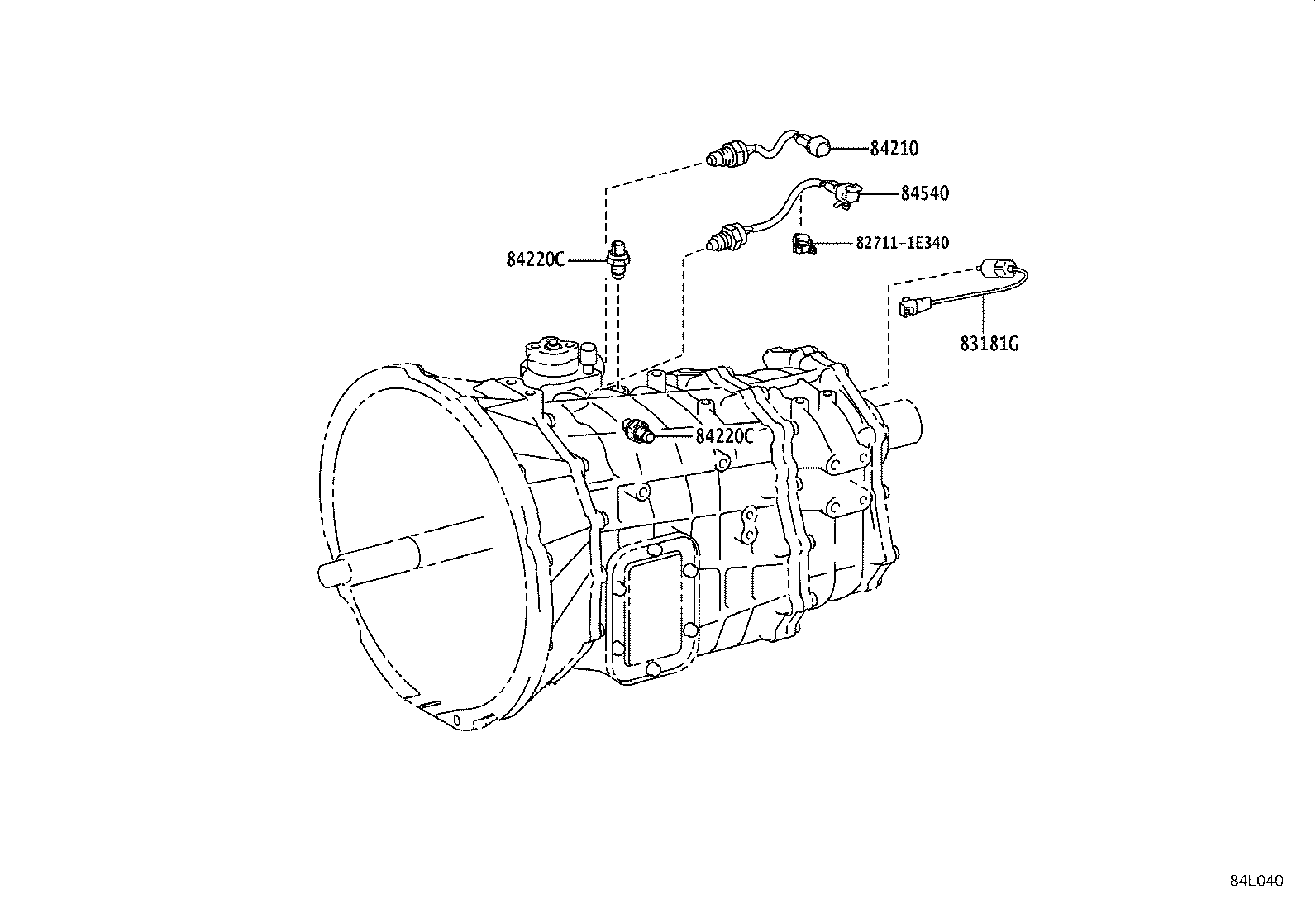

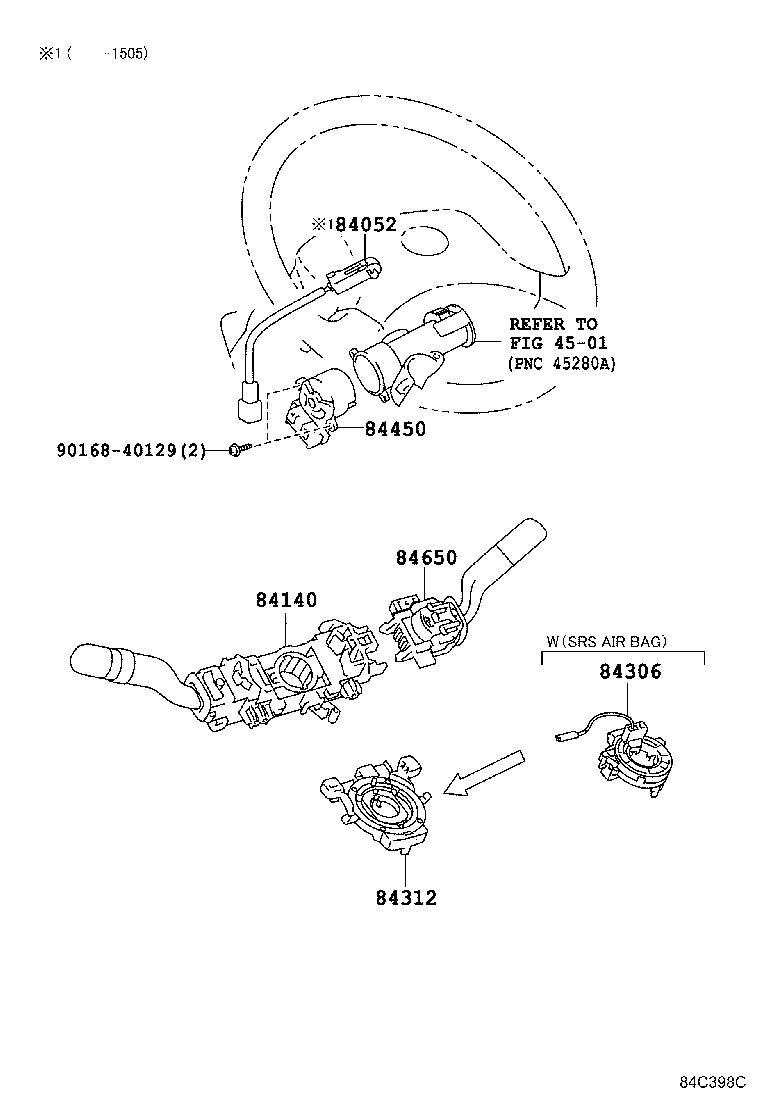

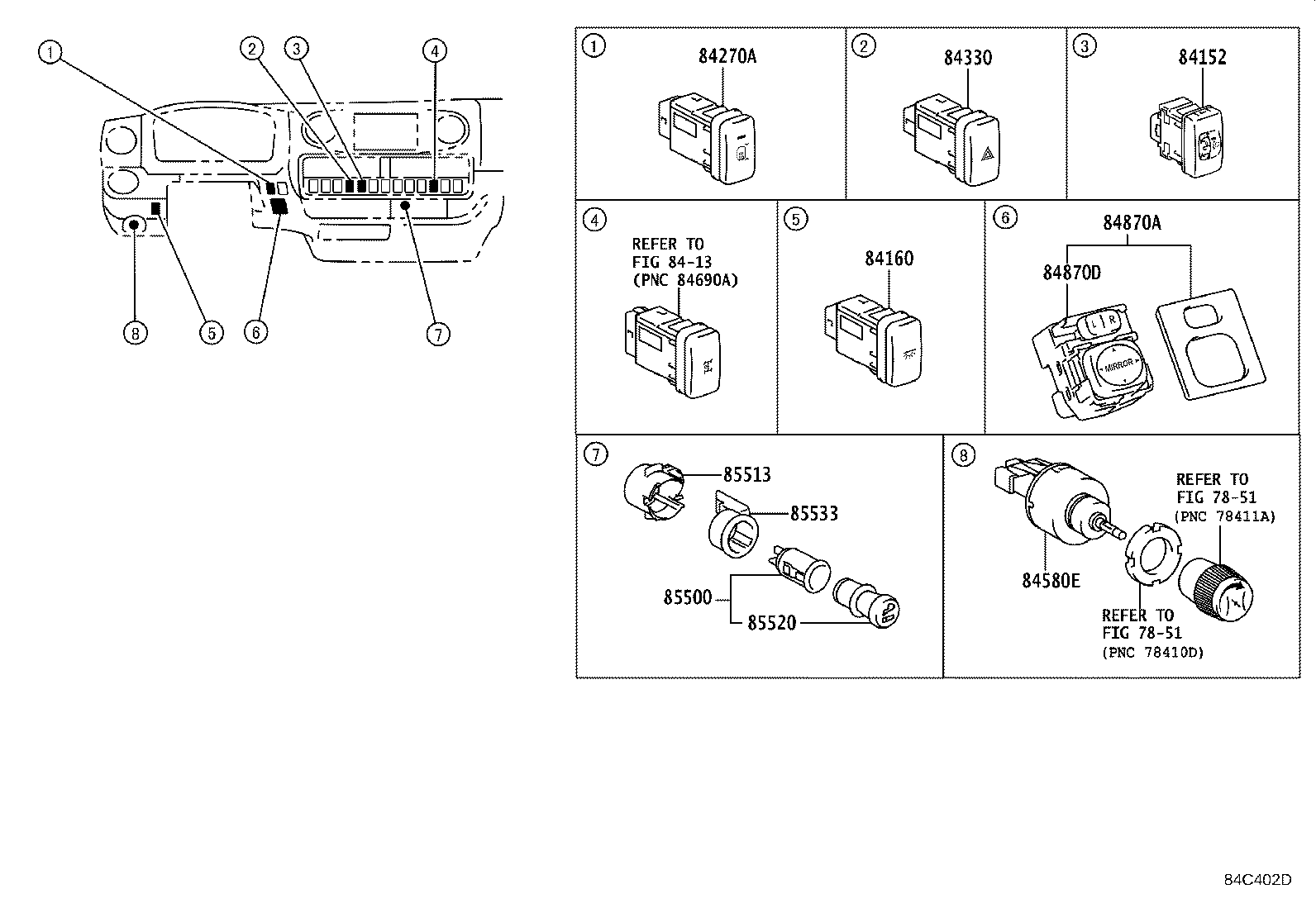

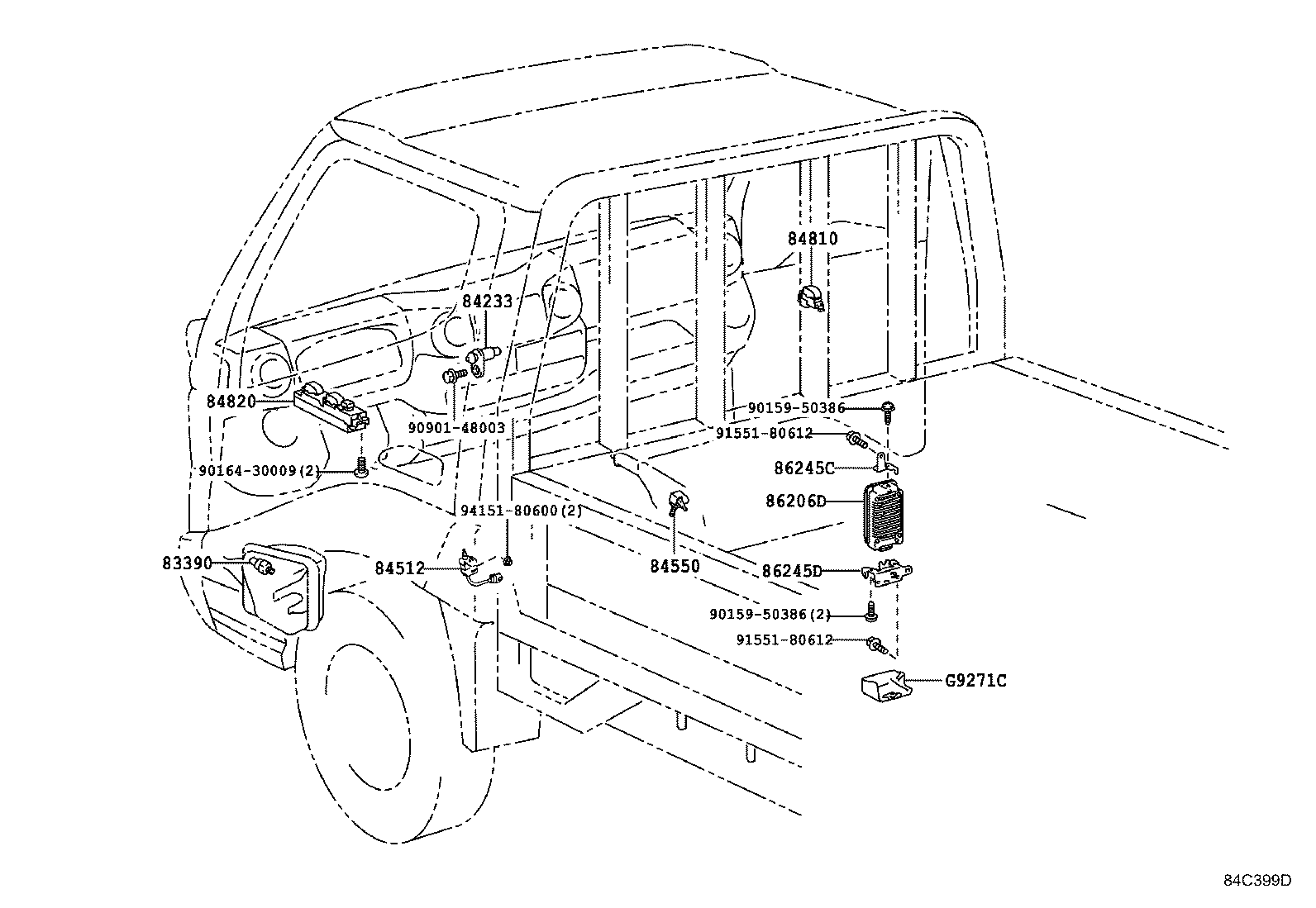

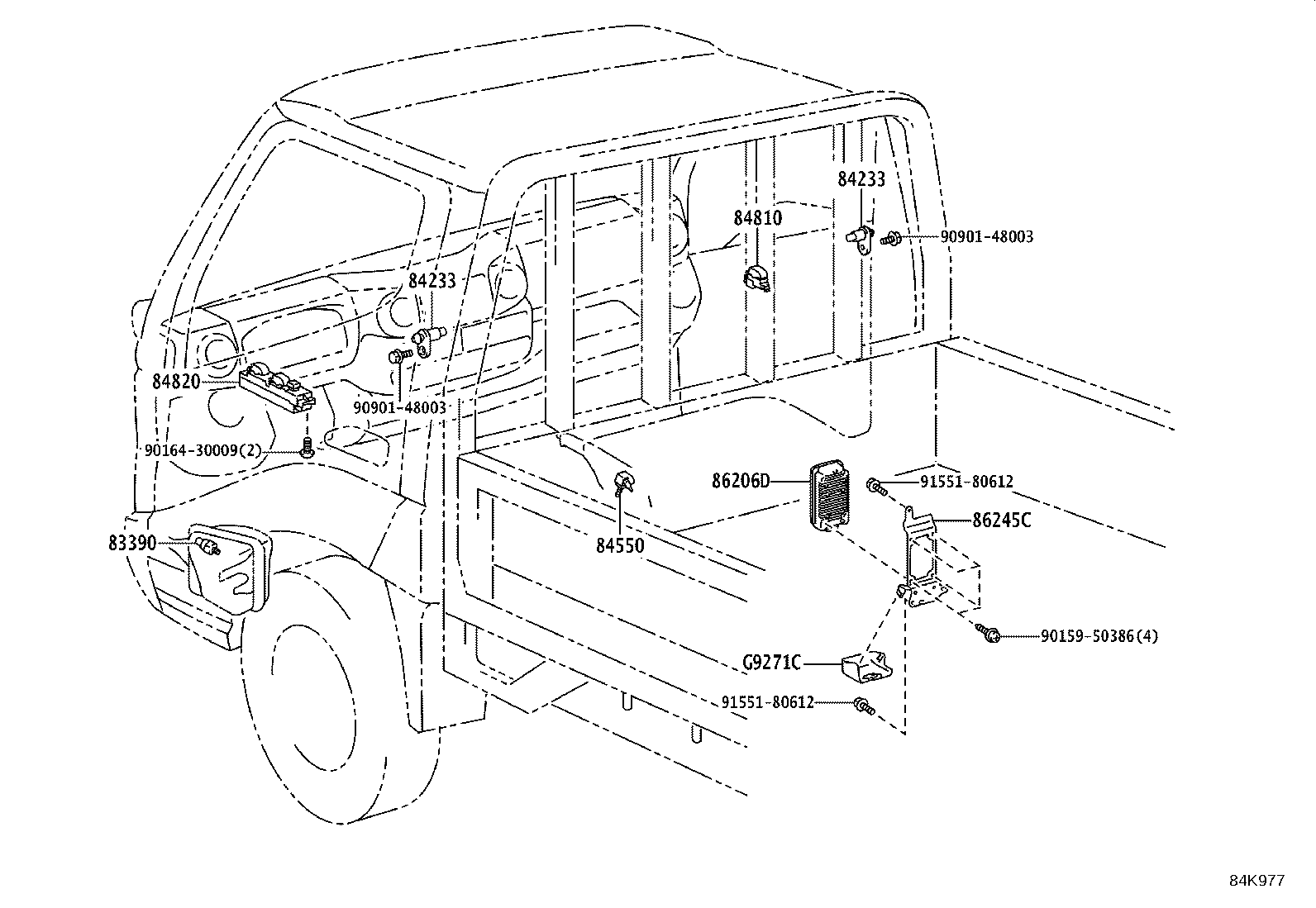

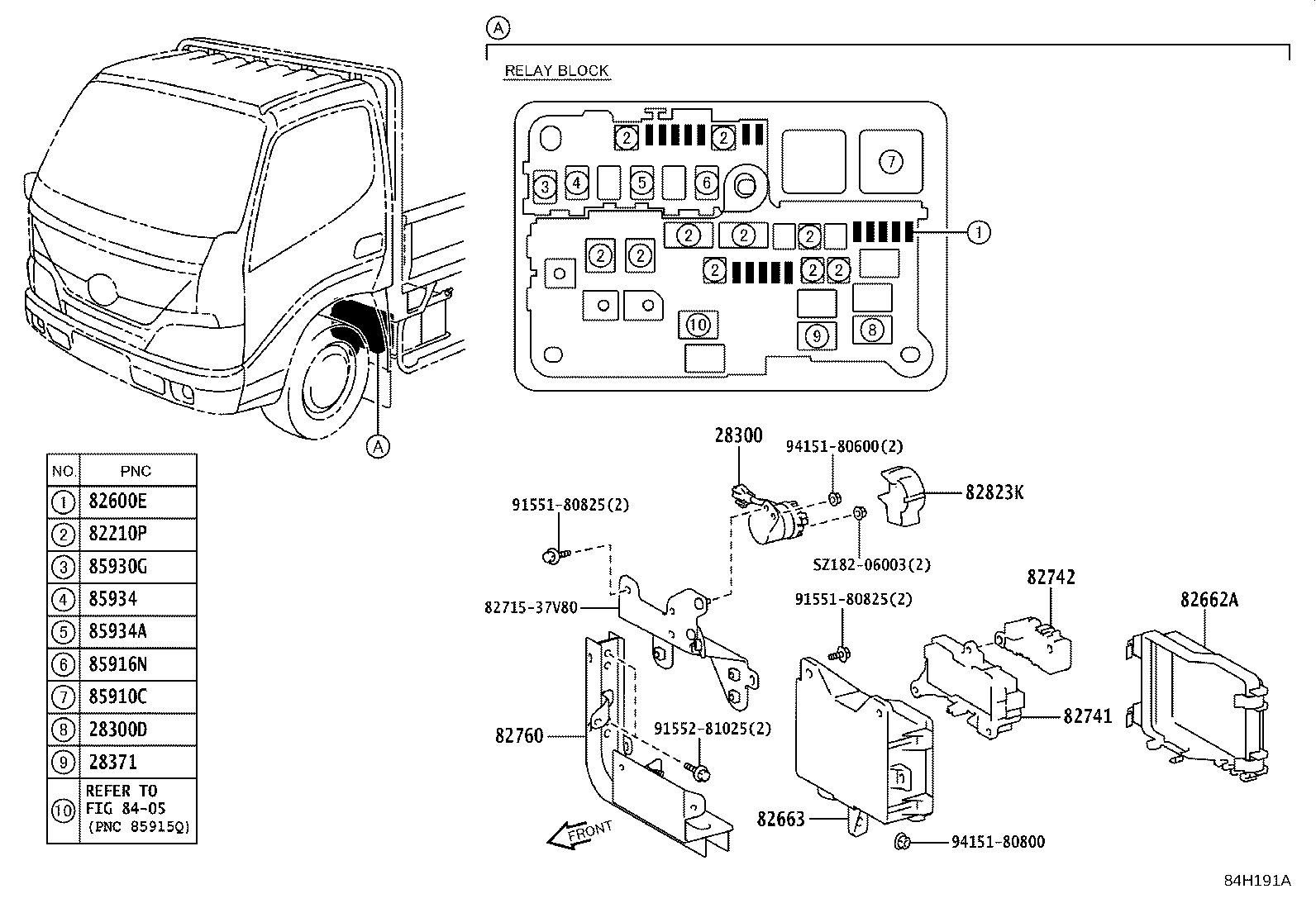

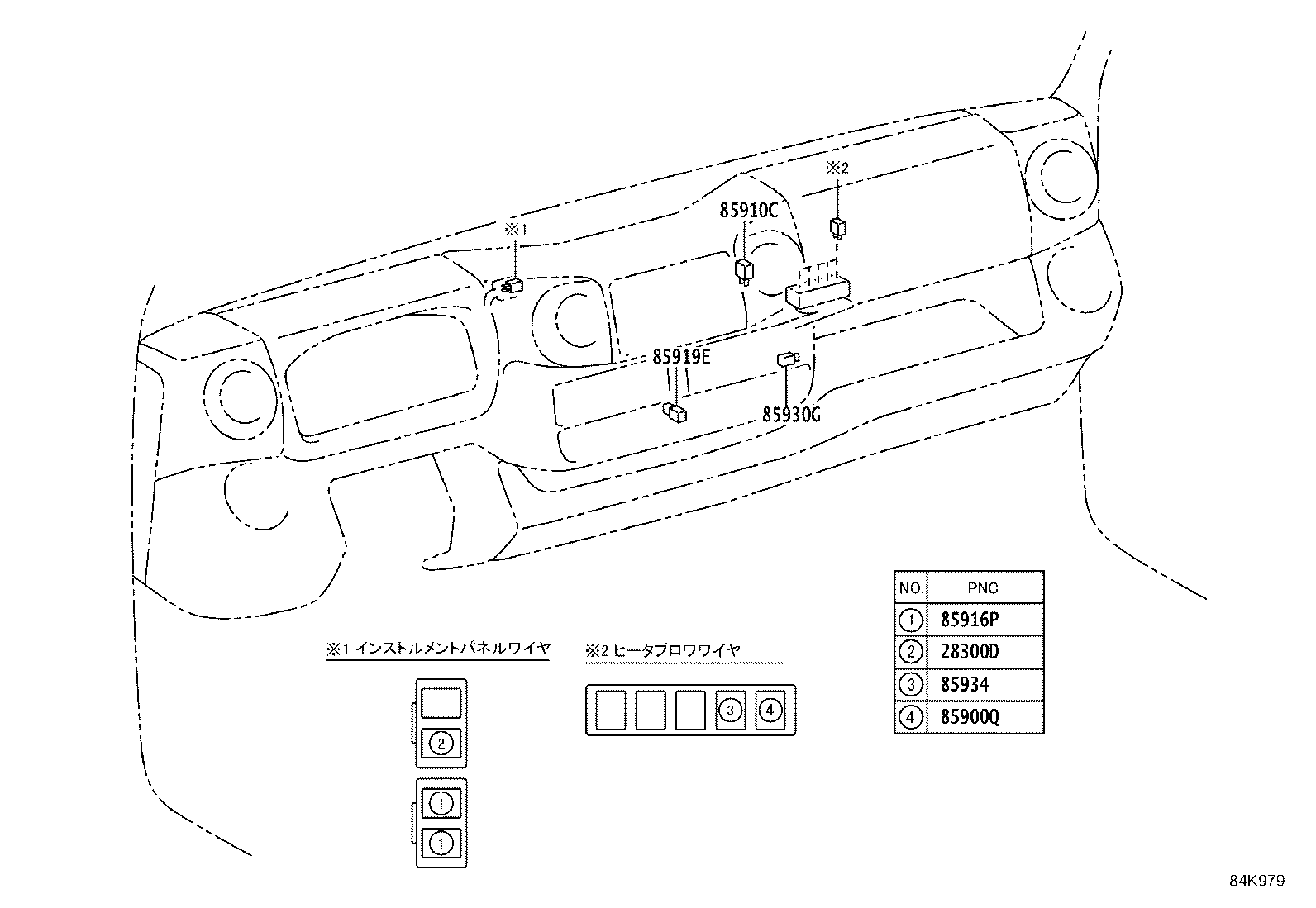

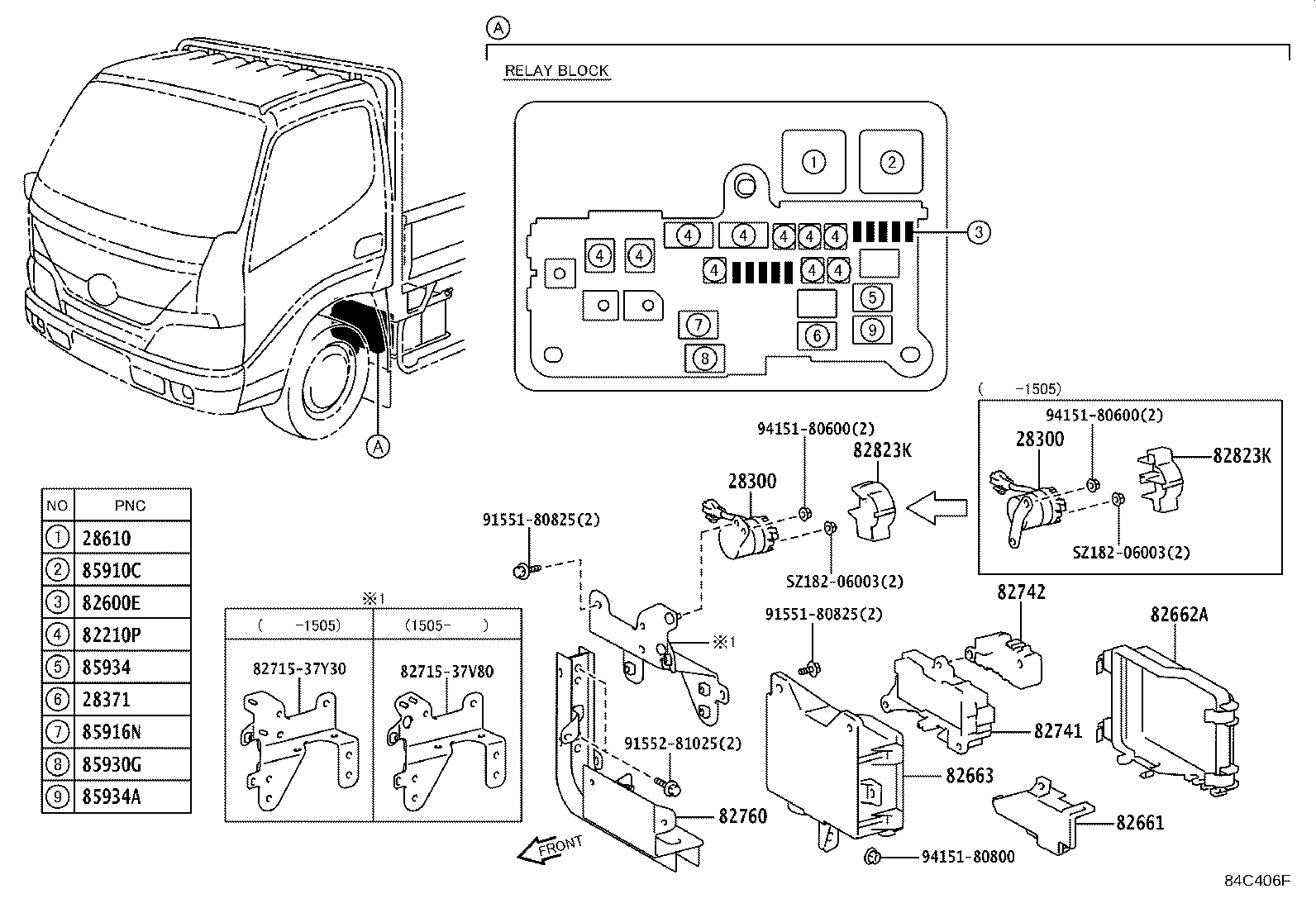

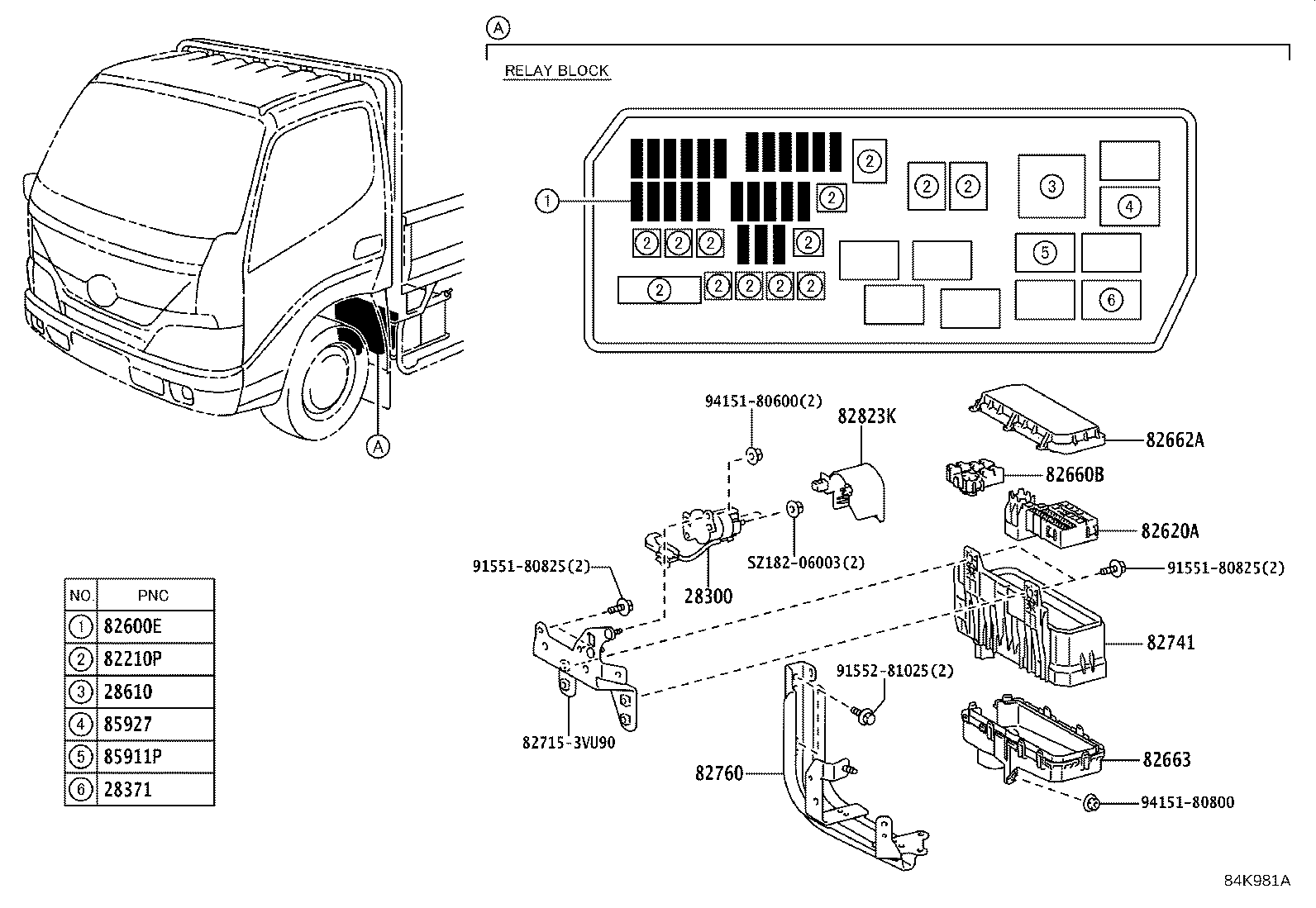

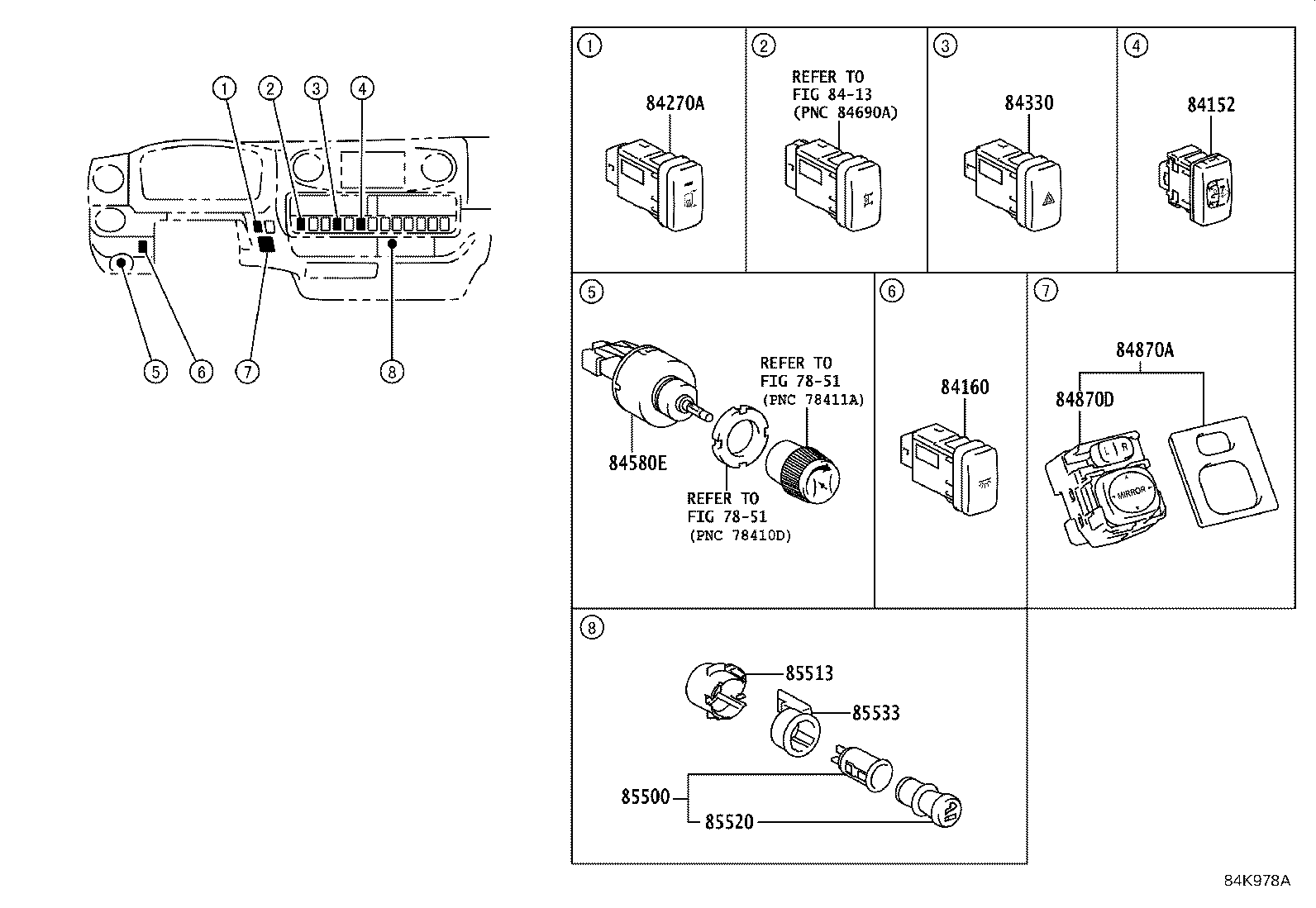

Figure 84C404A 84C404A 2011-07 → — Figure 84H189A 84H189A 2016-05 → — Figure 84K982A 84K982A 2019-11 → — Figure 84C408A 84C408A 2011-07 → — Figure 84L040 84L040 2019-11 → — Figure 84C406F 84C406F 2011-07 → — Figure 84H191A 84H191A 2016-05 → — Figure 84K981A 84K981A 2019-11 → — Figure 84C403D 84C403D 2011-07 → — Figure 84K980 84K980 2019-11 → — Figure 84K979 84K979 2019-11 → — Figure 84C402D 84C402D 2011-07 → — Figure 84K978A 84K978A 2019-11 → — Figure 84C398C 84C398C 2011-07 → — Figure 84C398C 84C398C 2019-11 → — Figure 84C399D 84C399D 2011-07 → — Figure 84K977 84K977 2019-11 → — Figure 84C411B 84C411B 2011-07 → — Figure 84C411B 84C411B 2019-11 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28300D Relay, Starter Cut
28371 Relay, Ignition, NO.1
28520 Timer Assy, Preheating
28610 Relay Assy, Intake Heater OR Glow Plug
81980 Flasher Assy, Turn Signal
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600G Plate, Caution(FOR FUSE)
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82641 Relay, Integration NO.1
82660B Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82730A Block Assy, Driver Side Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82760 Bracket Assy, Relay Block
82821B Cover, Connector
82823K Cap, Terminal
83180B Detector Assy, Revolution
83181G Sensor, Speedometer
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83390 Switch Assy, Vacuum Warning
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84160 Switch Assy, Room Lamp
84210 Switch Assy, Back-up Lamp
84220C Switch Assy, Transmission Position Indicator
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84270A Switch Assy, Mirror Heater
84306 Cable Sub-assy, Spiral
84312 Plate, Horn Contact
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84512 Switch, Tilt Cab Control
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84580E Switch Assy, Throttle Position
84640C Switch Assy, Exhaust Retarder
84650 Switch Assy, Windshield Wiper
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84870D Switch Assy, Outer Mirror, NO.2
85500 Lighter Assy, Cigarette
85513 Cover, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85533 Lens, Cigarette Lighter Indicator
85900Q Relay, Tail
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85911P Relay, Actuator Power
85916N Relay, Taillamp
85916P Relay, Headlamp
85919E Relay, Stop Lamp
85927 Relay, Cooling Fan
85930G Relay, Acc
85934 Relay, Magnet-clutch
85934A Relay Condenser Fan
86206D Converter Sub-assy, Voltage
86206E Converter Sub-assy, Voltage
86245C Bracket, Voltage Converter
86245D Bracket, Voltage Converter, NO.2
86650H Buzzer Assy, Back
89420M Sensor Assy, Air Pressure
89422A Sensor, Water Temperature
89458D Sensor, Fuel Pressure
89539E Bracket, Computer
89880 Computer Assy, Electric Vehicle Control
G9271C Cover, Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
