Toyota Dyna
2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General
Supported model
Data version 2020-01
Electronic Controled Diesel (ECD)

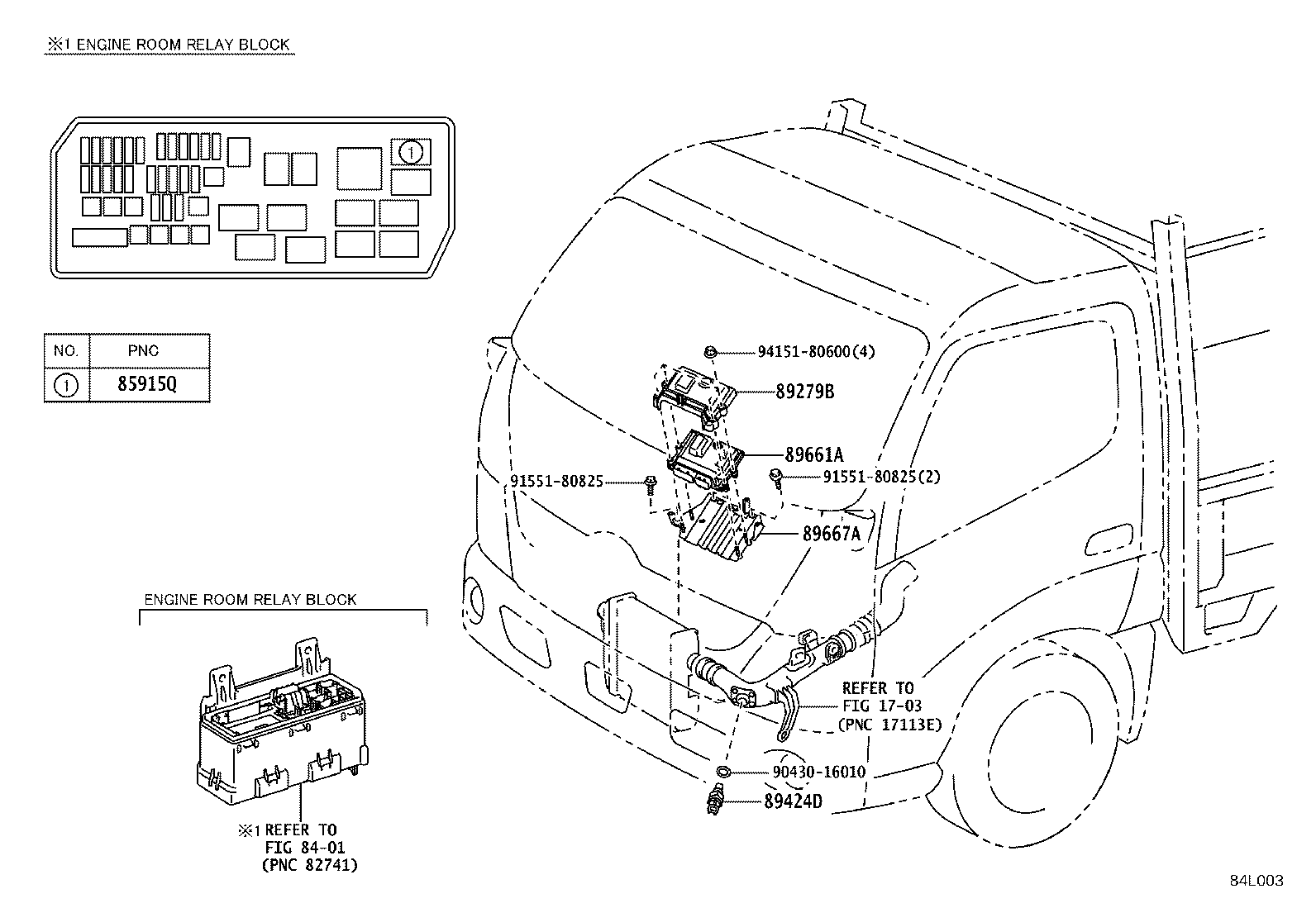

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85915Q | Relay, Computer (FOR DIESEL) |
| 89279B | Cover, Diesel Engine Control Computor |
| 89421E | Sensor, Vacuum |
| 89424D | Sensor, Inlet Air Temperature |
| 89661A | Computer, Engine Control |
| 89667A | Bracket, Engine Control Computer, NO.1 |
| 89668A | Bracket, Engine Control Computer, NO.2 |
| 89870A | Driver Assy, Injector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
