Toyota Dyna
2011-07 → present · chassis WU600,650,XZU600,650 · catalogue 751290 · General
Supported model
Data version 2020-01

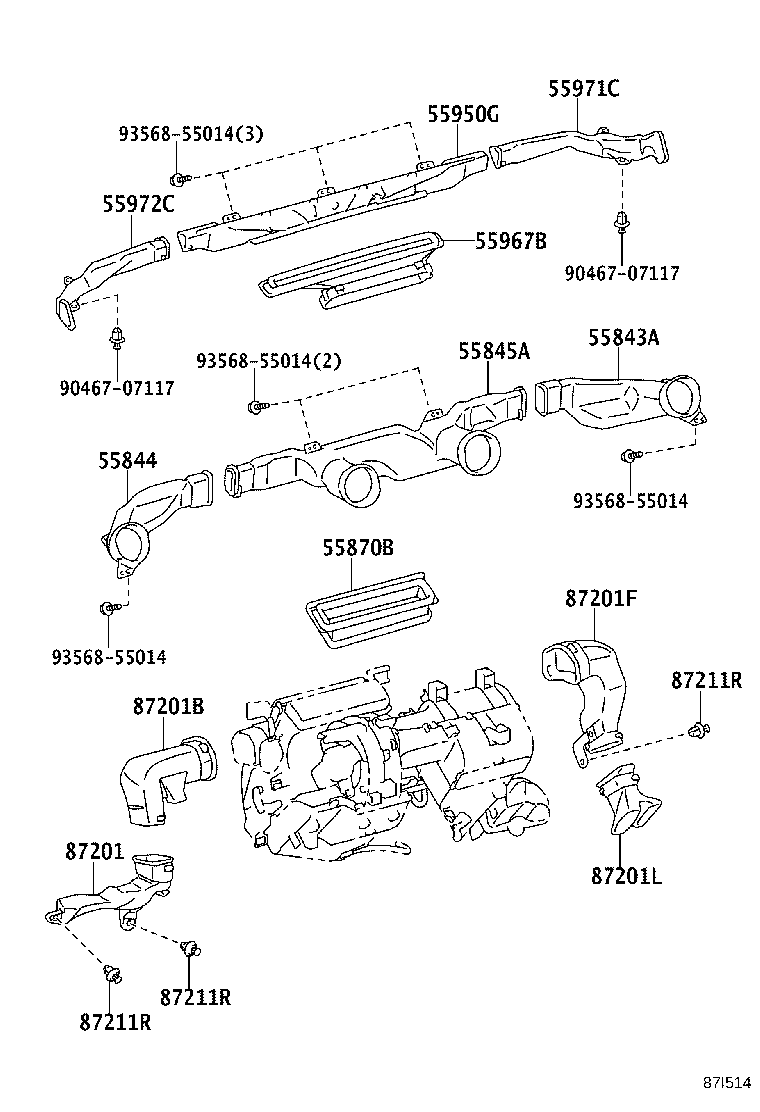

Heating & Air Conditioning - Control & Air Duct
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55519R | Plate, Heater Control Name |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55870B | Duct Assy, Heater TO Register |
| 55900A | Control & Accessory Assy, Heater |
| 55905A | Knob, Heater Control |
| 55905B | Knob, Heater Control, NO.2 |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55937 | Knob, Heater Control Lever |
| 55950G | Nozzle Assy, Defroster |
| 55967B | Nozzle, Defroster, Lower |
| 55971C | Duct, Side Defroster Nozzle, NO.1 |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |
| 84661A | Knob, Cooler Control Switch |
| 84732H | Switch, Heater Blower |
| 84732K | Bulb, Heater Blower Switch |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201B | Duct Sub-assy, Air, NO.2 |
| 87201F | Duct Sub-assy, Air, NO.3 |
| 87201L | Duct Sub-assy, Air, NO.4 |
| 87211R | Clip, Air Duct |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
