Toyota Dyna 200

1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751340 · General

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

41 part groups · 10 illustrations

Illustrations

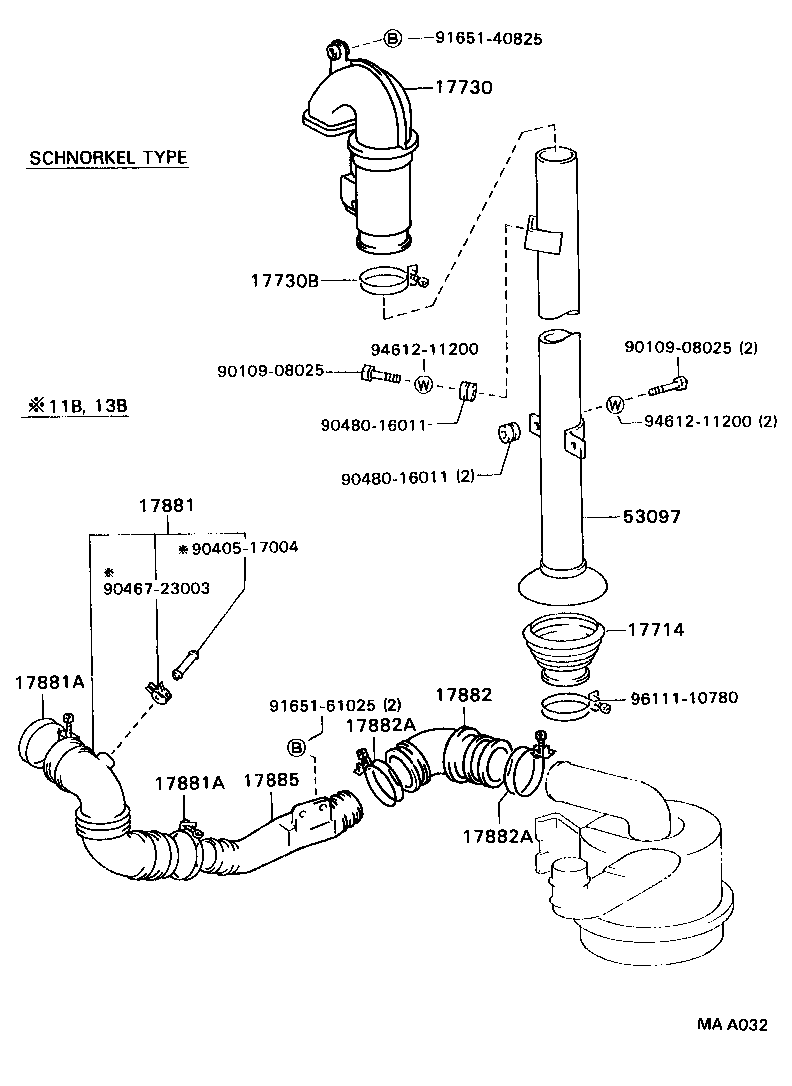

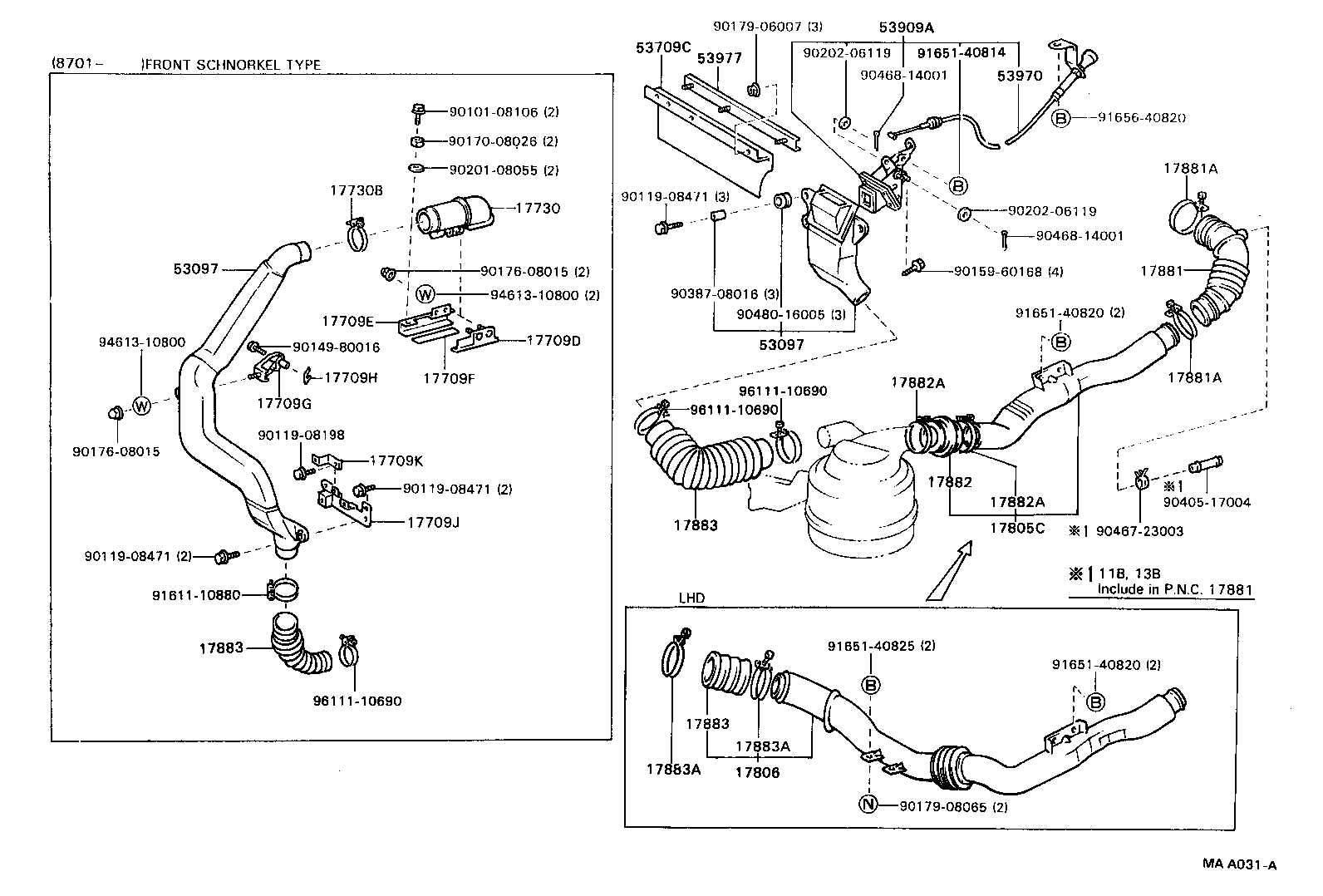

Figure MAA024 MAA024 1987-08 → — Figure MAA025 MAA025 1987-08 → — Figure MAA026 MAA026 1987-08 → — Figure MAA027 MAA027 1987-08 → — Figure MAA036 MAA036 1987-08 → — Figure MAA037 MAA037 1987-08 → — Figure MAA031A MAA031A 1987-08 → — Figure MAA032 MAA032 1987-08 → — Figure MAA034 MAA034 1987-08 → — Figure MAA033B MAA033B 1987-08 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17701 Case Sub-assy, Air Cleaner
17708 Baffle Sub-assy, Air Cleaner
17709D Bracket, Air Cleaner Inlet, NO.1
17709E Bracket, Air Cleaner Inlet, NO.2
17709F Pad, Air Cleaner Inlet, NO.2
17709G Bracket Sub-assy, Air Cleaner Inlet Pipe
17709H Pad, Air Cleaner Inlet, NO.1
17709J Bracket, Air Cleaner Inlet, NO.3
17709K Bracket, Air Cleaner Inlet, NO.4
17714 Rubber Seal, Air Intake
17730 Precleaner Assy, Air W/Hose
17730B Clamp, Hose(FOR PRECLEANER HOSE)
17744 Cup, Precleaner
17771 Bracket, Air Cleaner Inlet Duct
17788 Gage, Air Cleaner Oil Level
17801 Element Sub-assy, Air Cleaner Filter
17805C Pipe Sub-assy, Air Cleaner, NO.1
17806 Pipe Sub-assy, Air Cleaner, NO.2
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17885 Pipe, Air Cleaner
53067 Bracket Sub-assy, Air Cleaner Inlet
53097 Inlet Sub-assy
53299B Duct, Cool Air Intake
53709C Cover Sub-assy, Air Cleaner Inlet
53766A Bracket, Air Cleaner Inlet Pipe
53787B Bracket, Air Cleaner Inlet, NO.5
53788 Bracket, Air Cleaner Inlet, NO.6
53909A Bracket Sub-assy, Air Cleaner Shutter, NO.1
53955 Duct, Cool Air Intake
53970 Cable Assy, Air Cleaner Inlet Shutter Control
53977 Plate, Air Cleaner Inlet Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
