Toyota Dyna 200

1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751340 · General

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

3 part groups · 3 illustrations

Illustrations

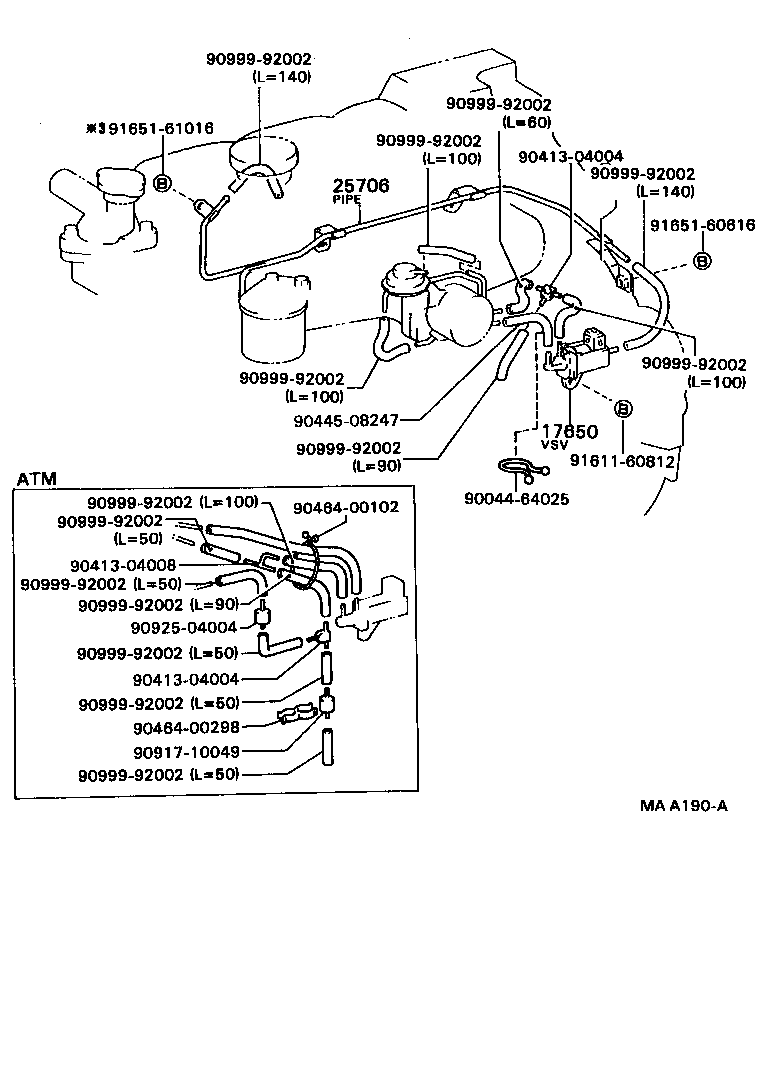

Figure MA9504B MA9504B 1987-08 → — Figure MAA189A MAA189A 1987-08 → — Figure MAA190A MAA190A 1987-08 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
