Toyota Dyna 200
1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751340 · General
Discontinued model
Data version 1988-08

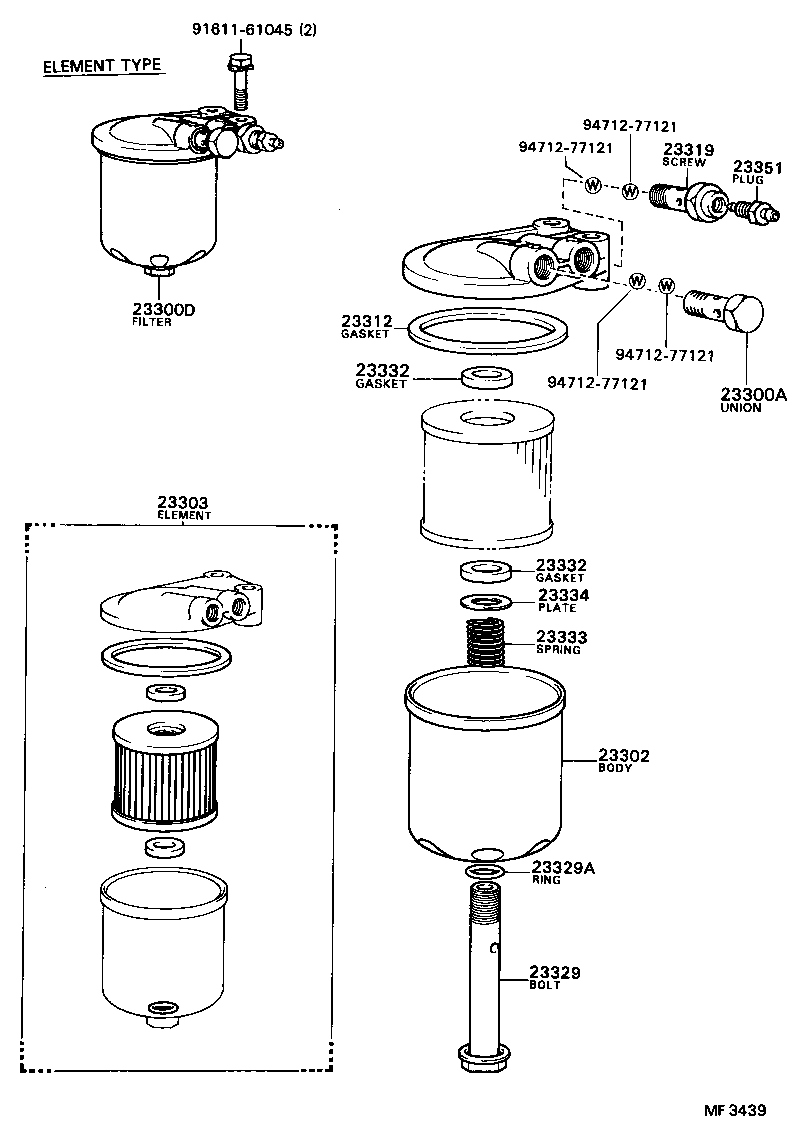

Fuel Filter
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 23300A | Union, Nipple(FOR FUEL FILTER INLET) |
| 23300D | Filter Assy, Fuel(FOR DIESEL) |
| 23301 | Body Sub-assy, Fuel Filter |
| 23303 | Element Sub-assy, Fuel Filter |
| 23312 | Gasket, Filter Bowl |
| 23319 | Screw, Fuel Pipe Follow |
| 23338 | Gasket(FOR WARNING SWITCH) |
| 23351 | Plug, Air Vent |
| 23353 | Ring, O(FOR AIR VENT PLUG) |
| 23930 | Sedimenter Assy, Fuel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
