Toyota Dyna 200
1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751340 · General
Discontinued model
Data version 1988-08

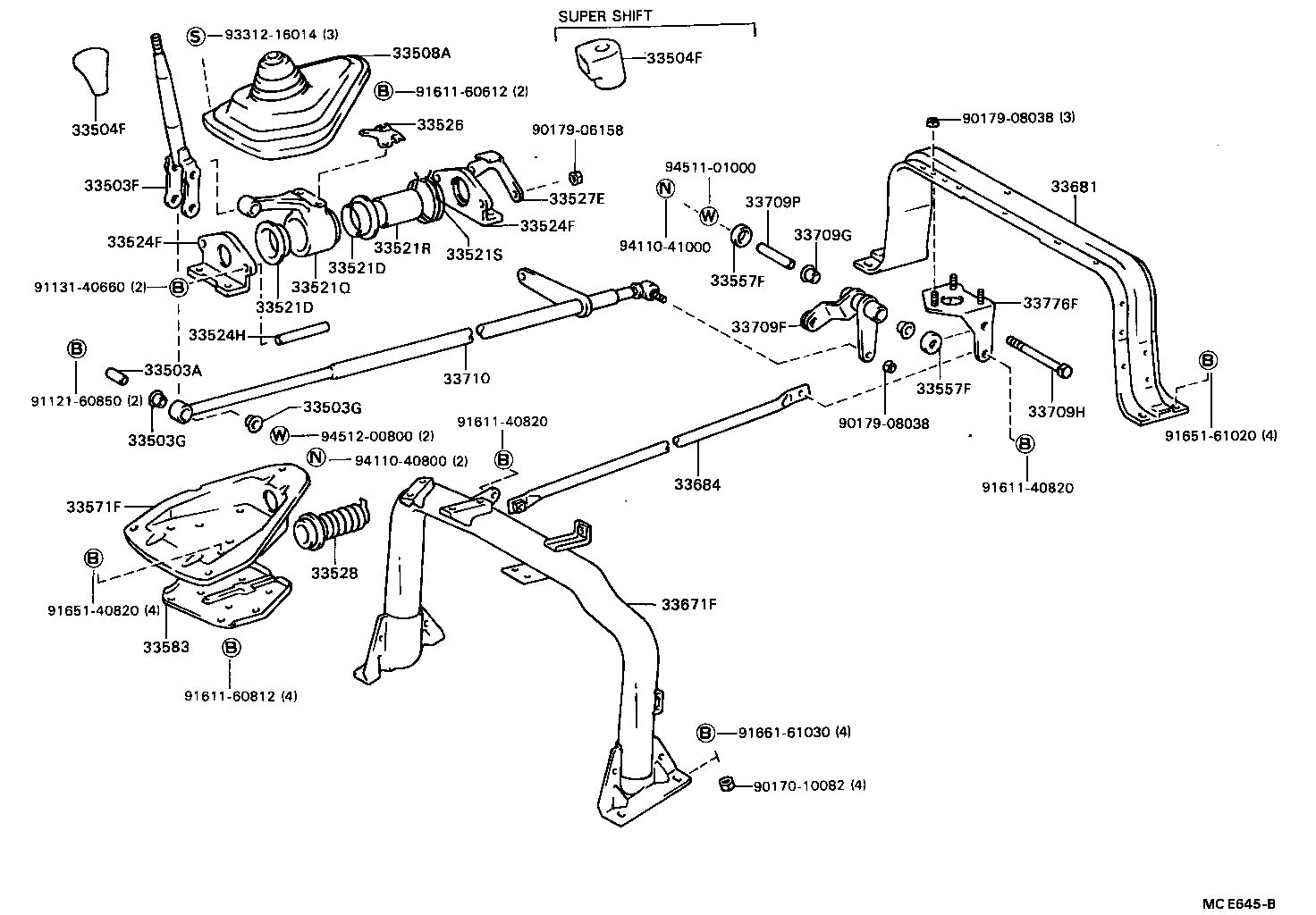

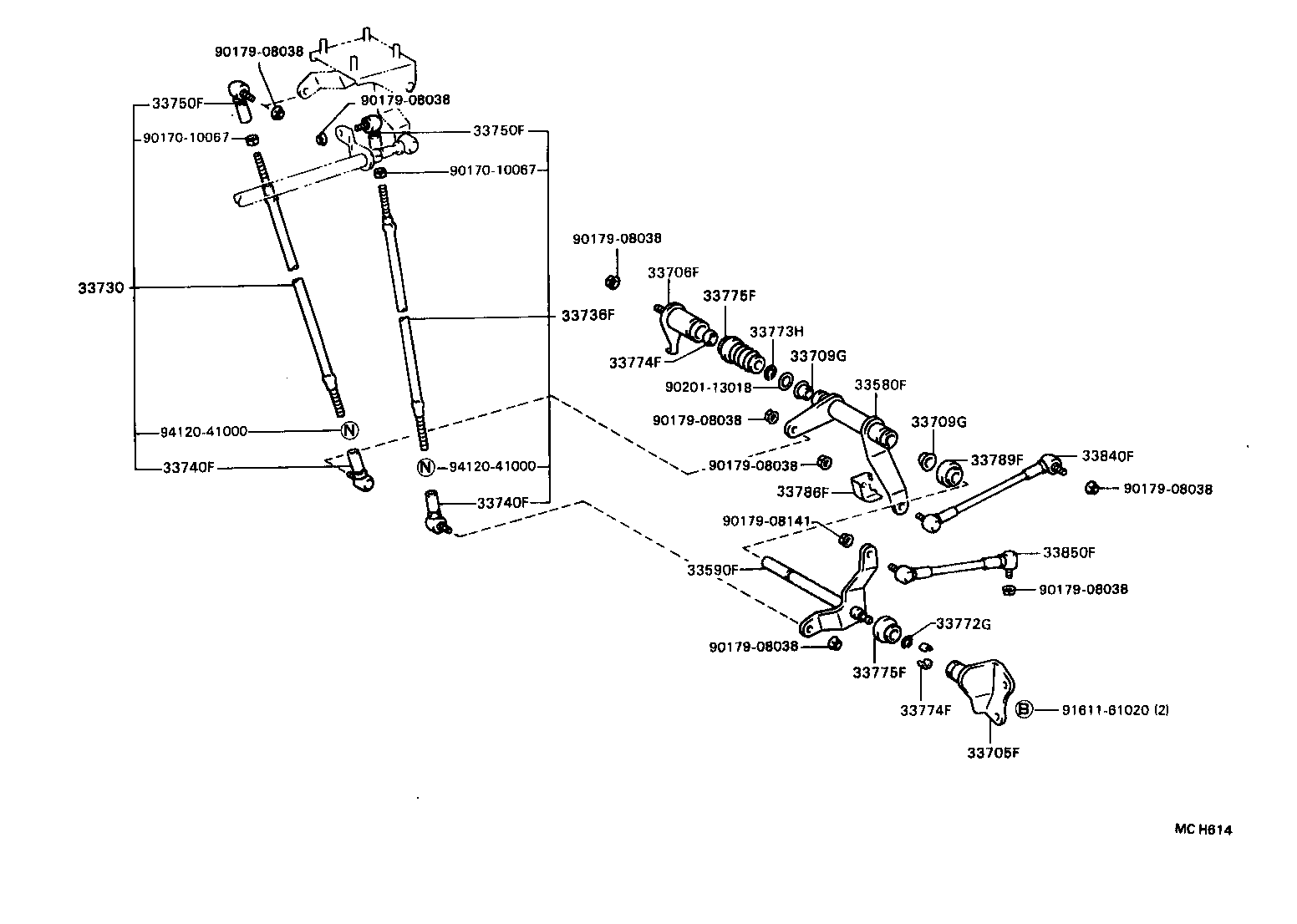

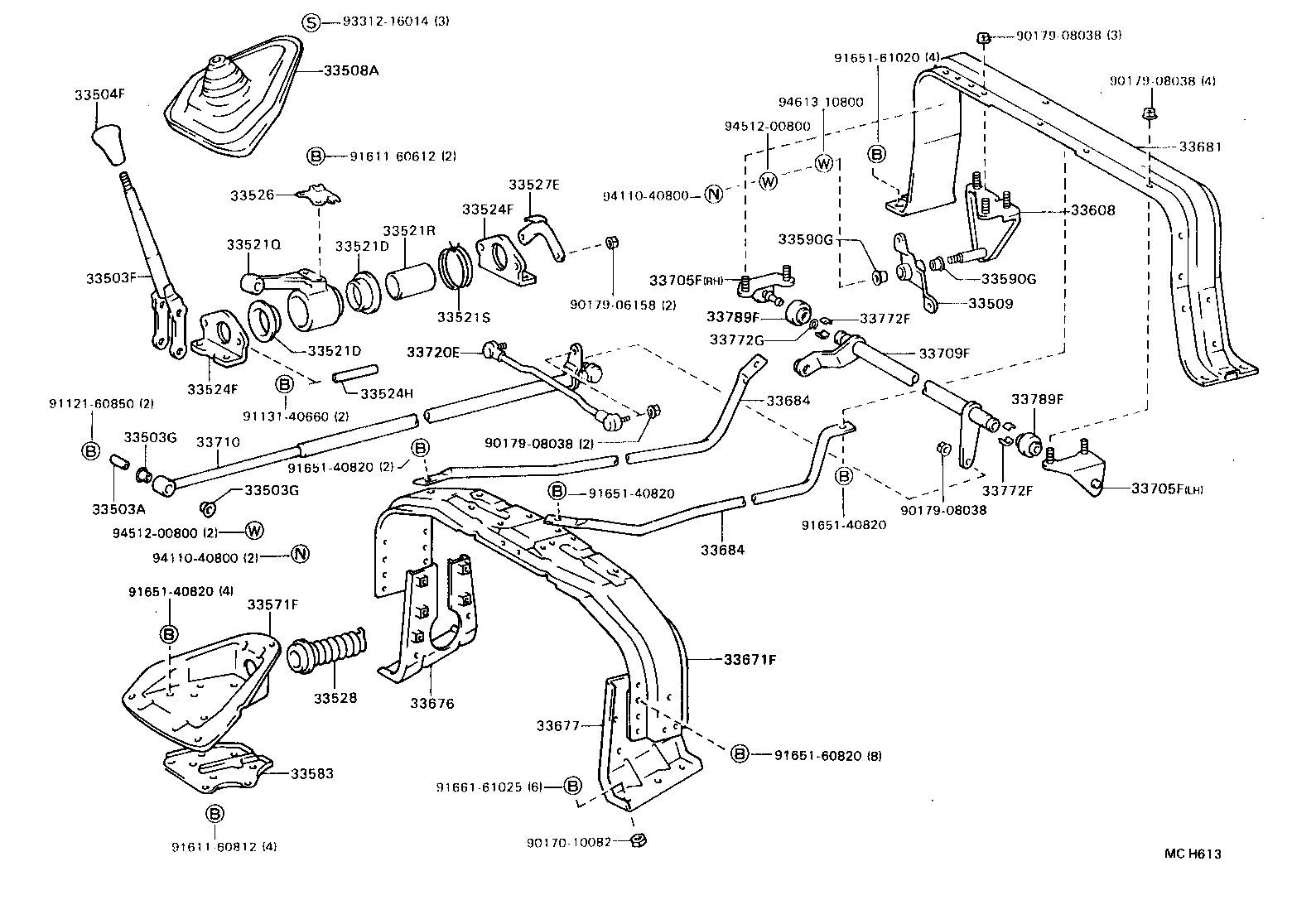

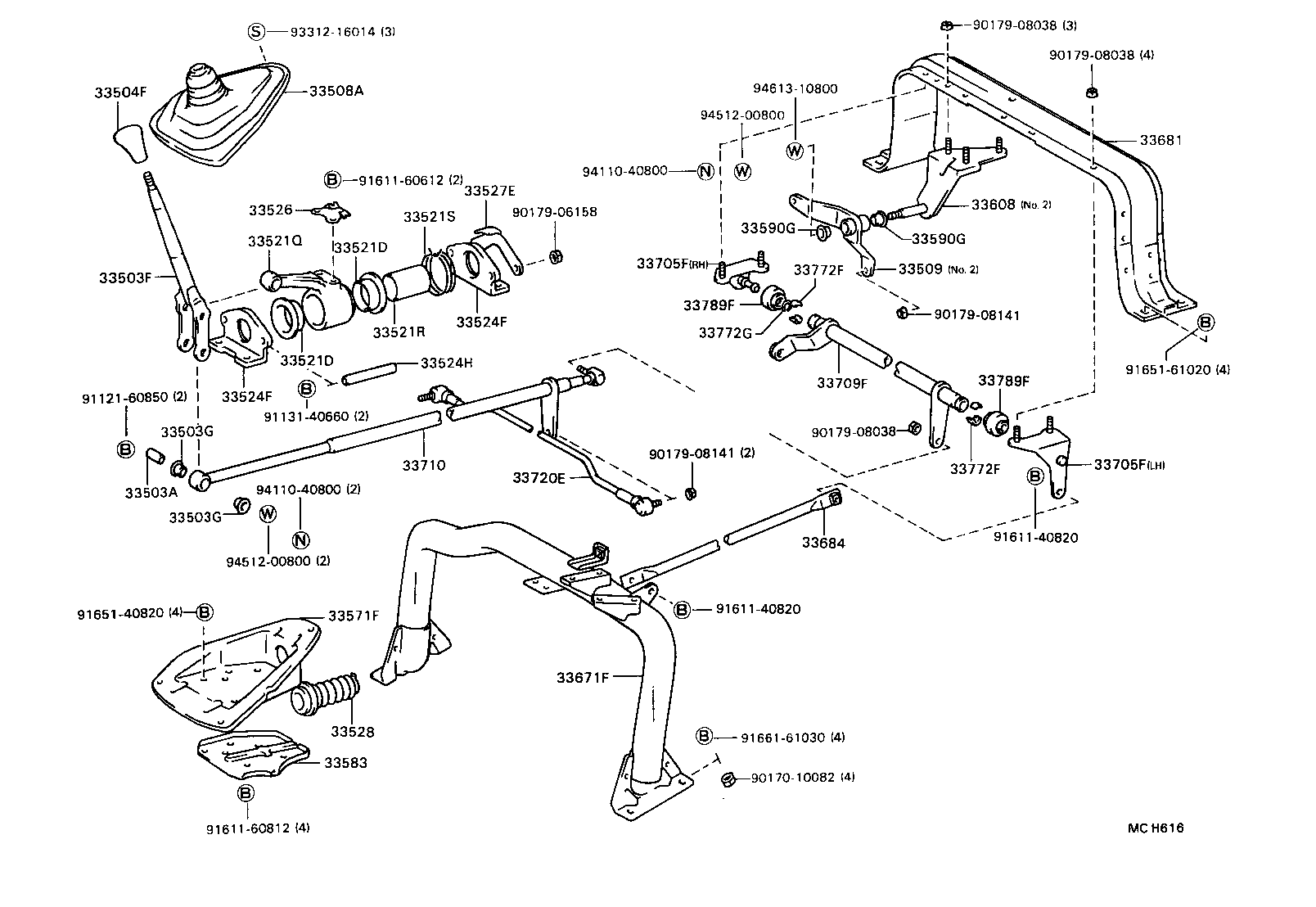

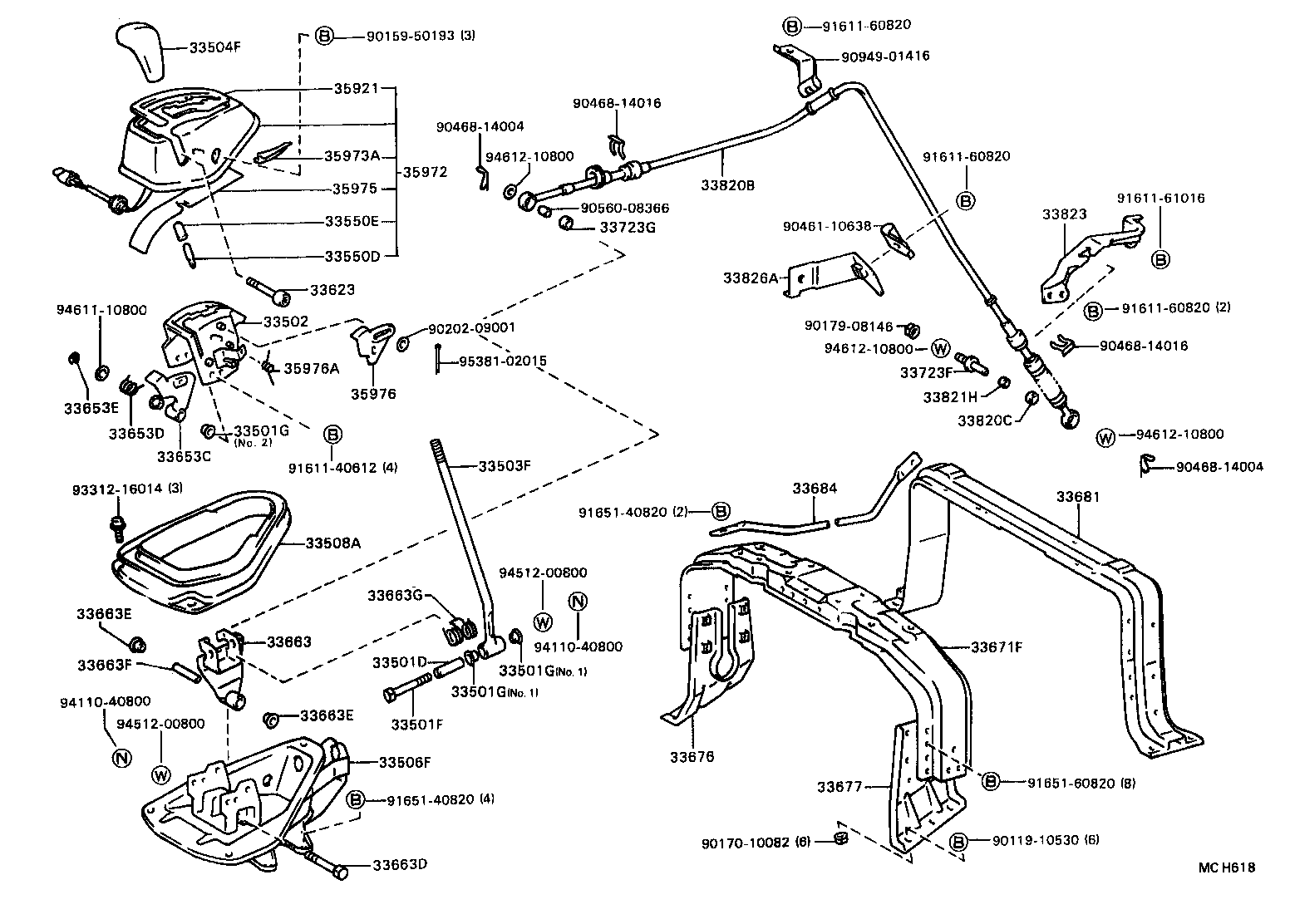

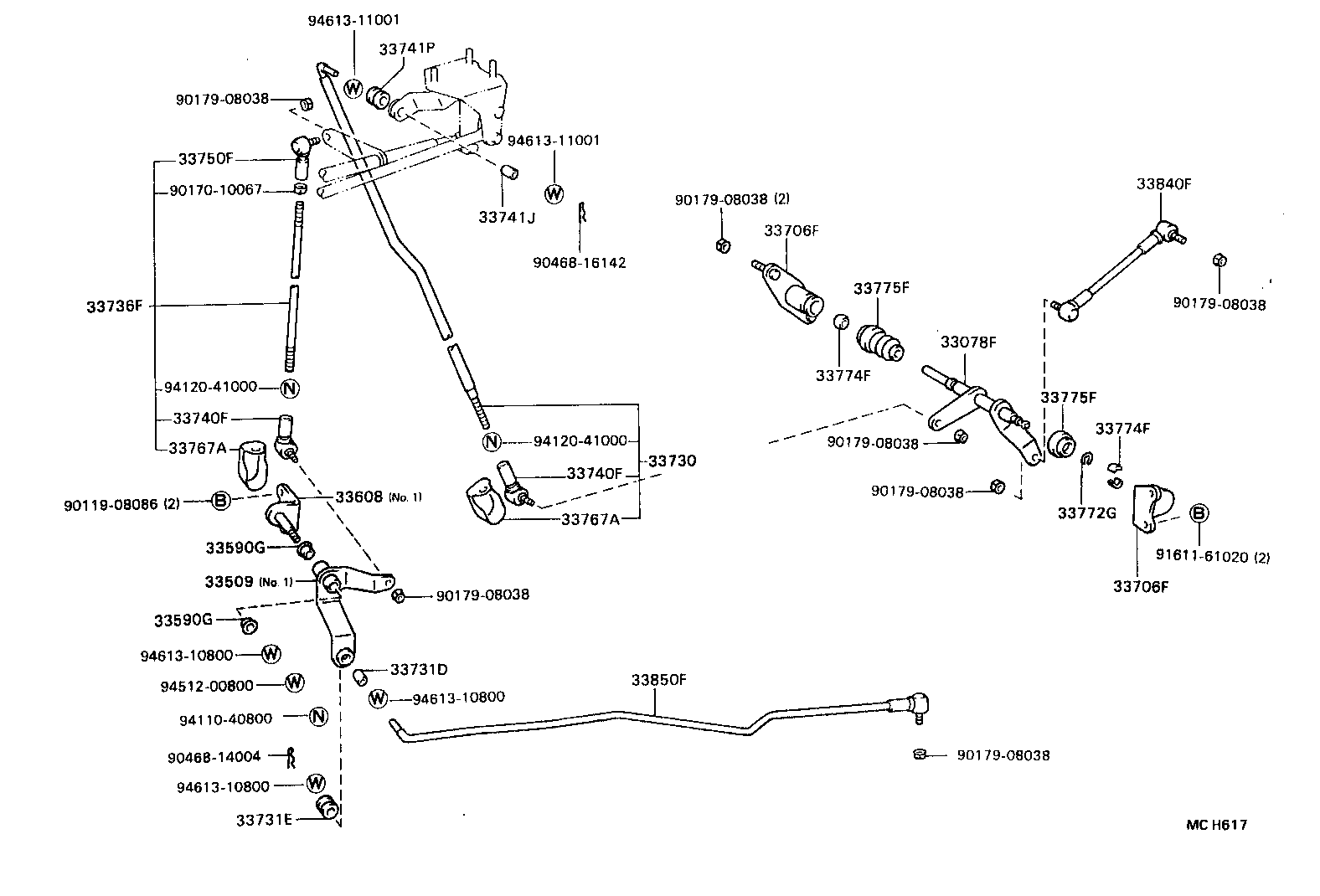

Shift Lever & Retainer
84 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 33078F | Shaft Sub-assy, Cross, NO.2(FOR FLOOR SHIFT) |
| 33501D | Collar (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33501F | Shaft Sub-assy, Control (FOR FLOOR SHIFT) |
| 33501G | Bush (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33502 | Plate Sub-assy, Shift Lever |
| 33503A | Collar(FOR SHIFT LEVER) |
| 33503F | Lever Sub-assy, Shift(FOR FLOOR SHIFT) |
| 33503G | Bush(FOR SHIFT LEVER) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33506F | Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT) |
| 33508A | Boot Sub-assy, Dust (FOR FLOOR 3HIFT) |
| 33509 | Crank Sub-assy, Selecting Bell, NO.1 |
| 33521D | Bush (FOR SHIFT LEVER HOUSING) |
| 33521Q | Housing, Shift Lever (FOR FLOOR SHIFT) |
| 33521R | Collar (FOR SHIFT LEVER HOUSING) |
| 33521S | Spring (FOR SHIFT LEVER HOUSING) |
| 33524F | Bracket, Control Lever Housing Support (FOR FLOOR SHIFT) |
| 33524H | Coller (FOR CONTROL LEVER HOUSING SUPPORT BRACKET) |
| 33526 | Plate, Shift Lever Support, NO.1 |
| 33527E | Plate, Shift Lever Support, NO.2 |
| 33528 | Cover, Control Shaft |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33557F | Cover, Control Bellcrank Dust (FOR FLOOR SHIFT) |
| 33571F | Bracket, Control Shaft, Lower NO.2 |
| 33580F | Bellcrank Assy, Shifting (FOR FLOOR SHIFT) |
| 33583 | Bracket, Control Shaft, Lower NO.2 |
| 33590F | Crank Assy, Selecting Bell (FOR FLOOR SHIFT) |
| 33590G | Bush (FOR SELECTING BELL CRANK) |
| 33608 | Support Sub-assy, Selecting Bellcrank |
| 33623 | Button, Shift Lever Knob |
| 33653C | Guide, Shift Lever Wire |
| 33653D | Spring, Torsion (FOR FLOOR SHIFT LEVER GUIDE) |
| 33653E | Ring, E (FOR FLOOR SHIFT LEVER GUIDE) |
| 33663 | Lever, Control |
| 33663D | Bolt (FOR FLOOR SHIFT CONTROL LEVER) |
| 33663E | Bush (FOR FLOOR SHIFT CONTROL LEVER) |
| 33663F | Collar (FOR FLOOR SHIFT CONTROL LEVER) |
| 33663G | Spring, Torsion (FOR FLOOR SHIFT CONTROL LEVER) |
| 33671F | Support, Control Rod, NO.1 |
| 33676 | Support, Control Rod Member, RH (FOR FLOOR SHIFT) |
| 33677 | Support, Control Rod Member, LH (FOR FLOOR SHIFT) |
| 33681 | Member, Control Rod, Rear |
| 33684 | Rod, Control Member Brace |
| 33705F | Support Sub-assy, Cross Shaft, NO.1 (FOR FLOOR SHIFT) |
| 33706F | Support Sub-assy, Cross Shaft, NO.2 (FOR FLOOR SHIFT) |
| 33709F | Shaft Sub-assy, Cross, NO.1 (FOR FLOOR SHIFT) |
| 33709G | Bush (For Cross Shaft, NO.1 |
| 33709H | Bolt, Hexagon (FOR CROSS SHAFT) |
| 33709P | Collar (FOR CROSS SHAFT) |
| 33710 | Rod Assy, Gear Shifting, NO.1 |
| 33720E | Rod Assy, Gear Selecting |
| 33723F | Swivel, Connecting Rod (FOR FLOOR SHIFT) |
| 33723G | Bush (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33730 | Rod Assy, Gear Shifting, NO.2 (FOR FLOOR SHIFT) |
| 33731D | Bush (FOR GEAR SELECTING ROD) |
| 33731E | Grommet (FOR GEAR SELECTING ROD) |
| 33736F | Rod, Gear Selecting, NO.2(FOR FLOOR SHIFT) |
| 33740F | End Assy, Connecting Rod, NO.1(FOR FLOOR SHIFT) |
| 33741J | Bush, NO.2 (FOR SHIFTING OR SELECTING ROD) |
| 33741P | Grommet, NO.2 (FOR SHIFTING OR SELECTING ROD) |
| 33750F | End, Connecting Rod, NO.2 (FOR FLOOR SHIFT) |
| 33772F | Bush, Cross Shaft Support, NO.1 (FOR FLOOR SHIFT) |
| 33772G | Ring, Snap (FOR CROSS SAFT SUPPORT BUSH) |
| 33773E | Support, Cross Shaft, NO.1 |
| 33773H | Ring, Snap (FOR CROSS SHAFT SUPPORT SNAP) |
| 33774F | Bush, Cross Shaft Support, NO.2 (FOR FLOOR SHIFT) |
| 33775F | Cover, Cross Shaft Dust, NO.1 (FOR FLOOR SHIFT) |
| 33776F | Bracket, Cross Shaft, NO.1 (FOR FLOOR SHIFT) |
| 33786F | Insulator, Cross Shaft Lever Heat, NO.2 (FOR FLOOR SHIFT) |
| 33789F | Cover, Cross Shaft Dust, NO.1(FOR FLOOR SHIFT) |
| 33820B | Cable Assy, Transmission Control |
| 33820C | Bush (FOR TRANSMISSION CONTROL CABLE) |
| 33821H | Collar (FOR TRANSMISSION CONTROL CABLE) |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 33826A | Bracket, Transmission Control Cable, NO.2 |
| 33840F | Rod Assy, Gear Shifting, NO.3 |
| 33850F | Rod Assy, Gear Selecting, NO.3 |
| 35921 | Plate, Control Position Indicator |
| 35972 | Cover, Position Indicator Housing |
| 35973A | Attachment, Position Indicator Housing Cover |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976 | Cover, Slide, NO.2 (FOR POSITION INDICATOR) |
| 35976A | Spring, Torsion (FOR POSITION INDICATER SLIDE COVER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
