Toyota Dyna 200
1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751340 · General
Discontinued model
Data version 1988-08

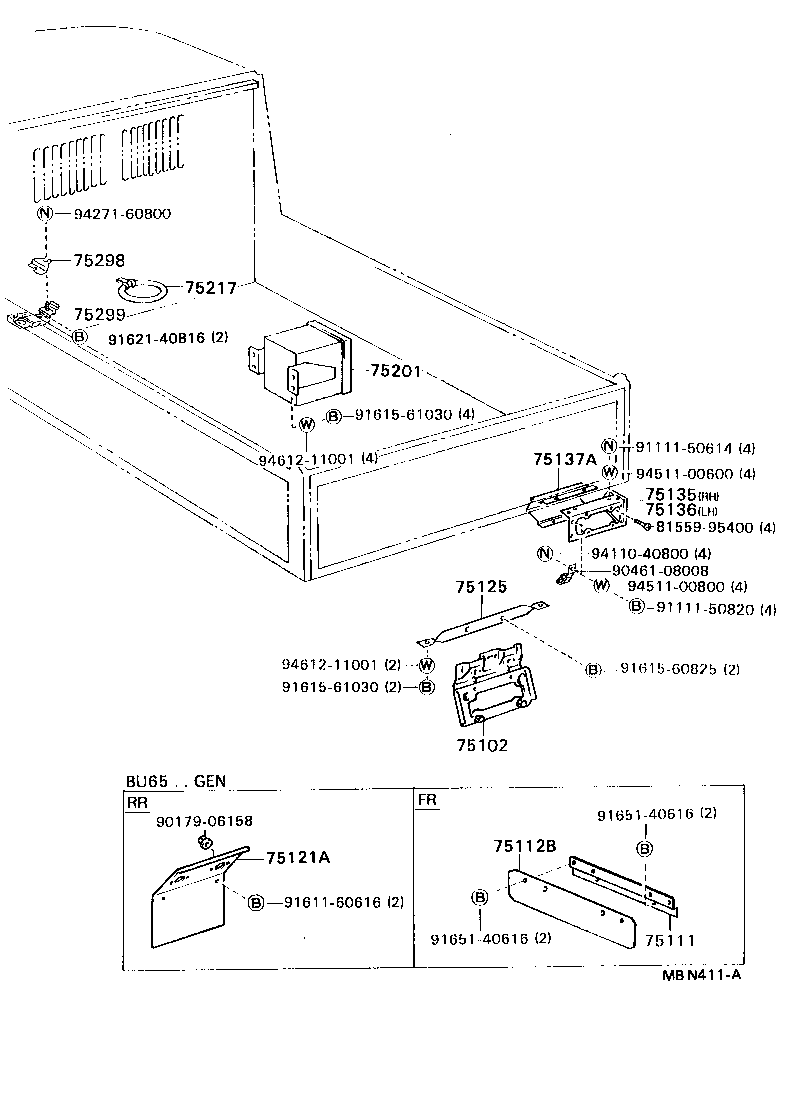

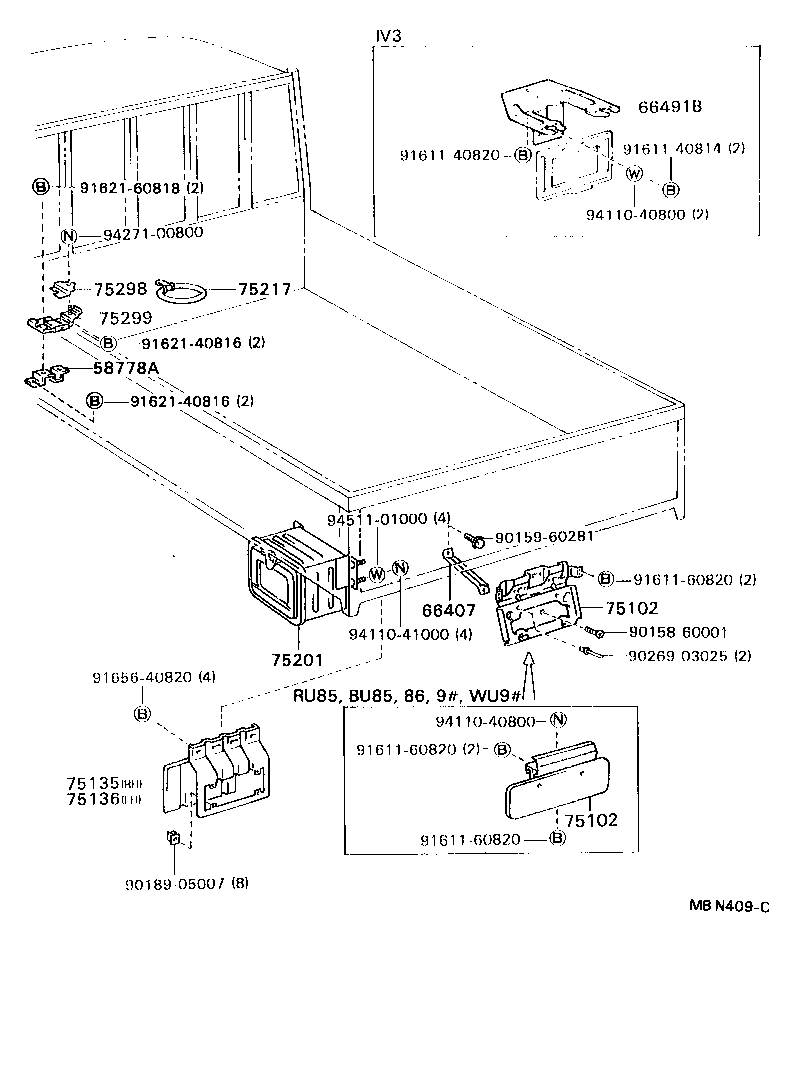

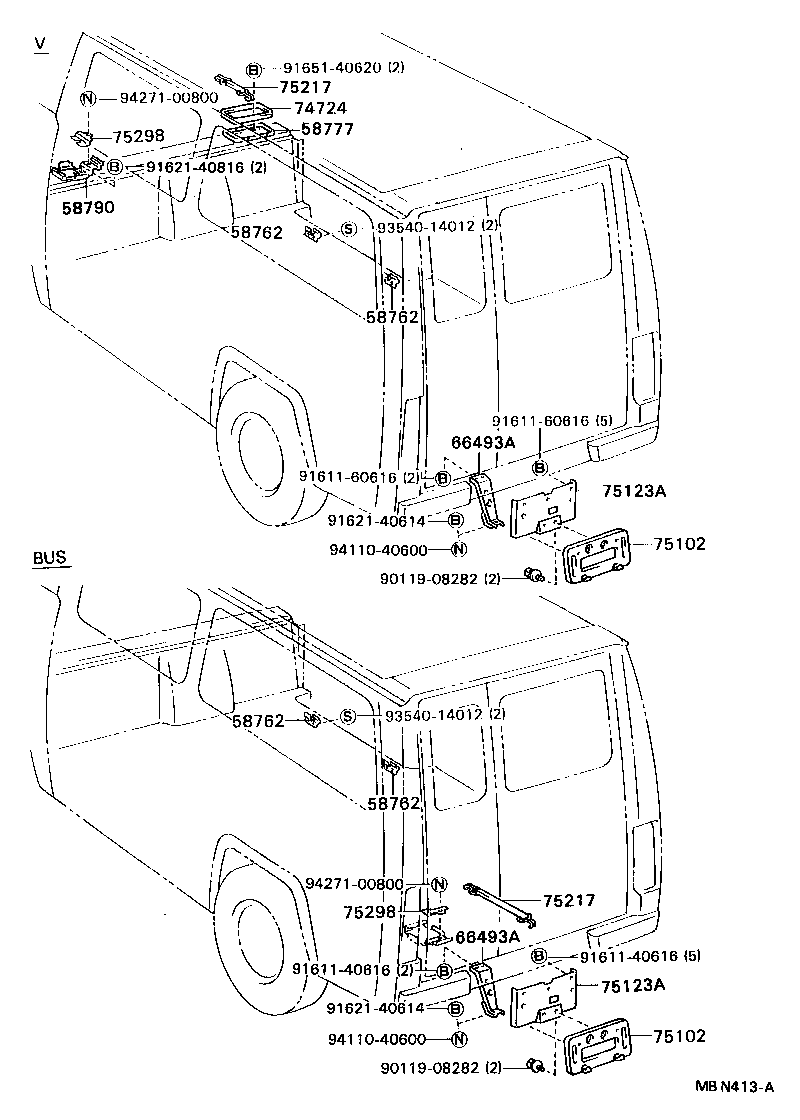

Tool Box & License Plate Bracket
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58762 | Holder, Starting Handle |
| 58777 | Platform, Tool Bag Rest |
| 58790 | Carrier Assy, Jack |
| 66407 | Stay Sub-assy, License Plate Bracket |
| 66490 | Hanger Assy, License Plate Bracket |
| 66491B | Hanger, License Plate Bracket |
| 66492A | Bracket, License Hanger |
| 66493A | Stay, License Plate |
| 74724 | Trim, Tool Back Platform |
| 75102 | Bracket Sub-assy, Rear License Plate |
| 75111 | Bracket, Front License Plate |
| 75112B | Plate, Front Licence |
| 75121A | Bracket, Rear License Plate |
| 75123A | Bracket Rear Licence Plate |
| 75125 | Stay, Rear Licence Plate |
| 75135 | Bracket, Combination Rear Lamp, RH |
| 75136 | Bracket, Combination Rear Lamp, LH |
| 75137A | Cover Combination |
| 75201 | Box Sub-assy, Tool W/Stay |
| 75217 | Band, Tool Bag |
| 75298 | Plate, Jack Holder |
| 75299 | Base, Jack Holder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
