Toyota Dyna 200

1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751340 · General

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

17 part groups · 8 illustrations

Illustrations

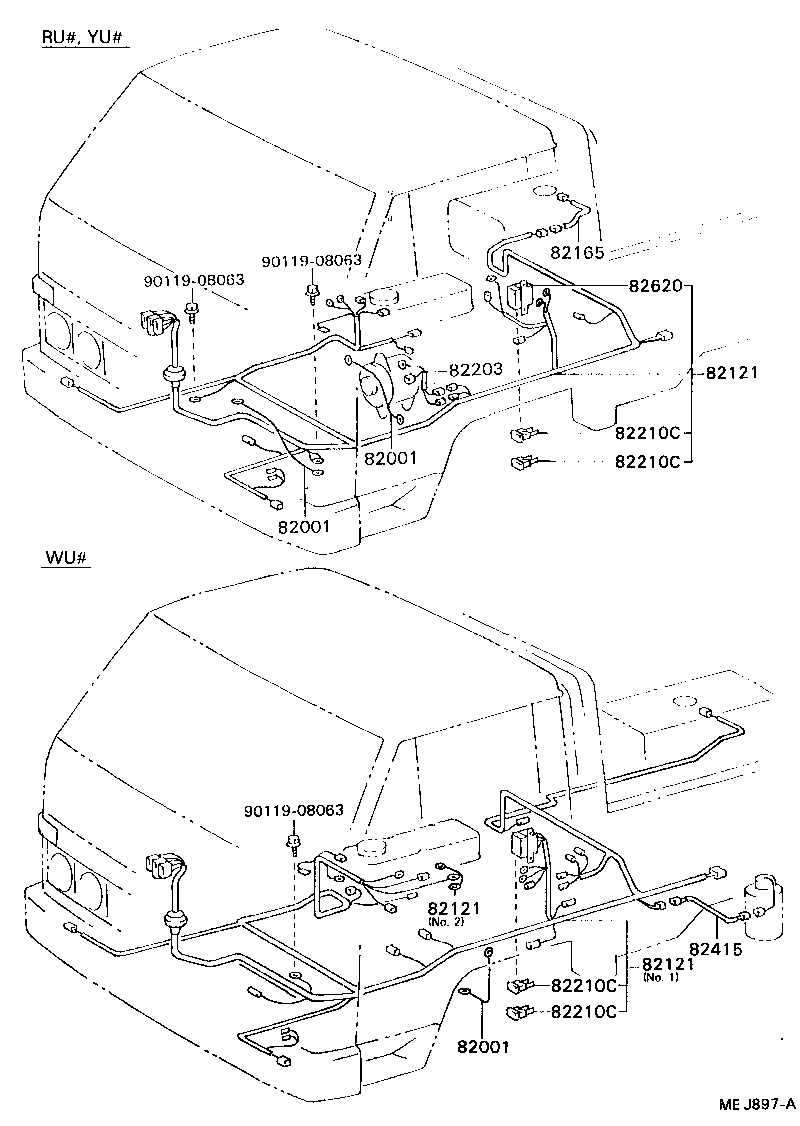

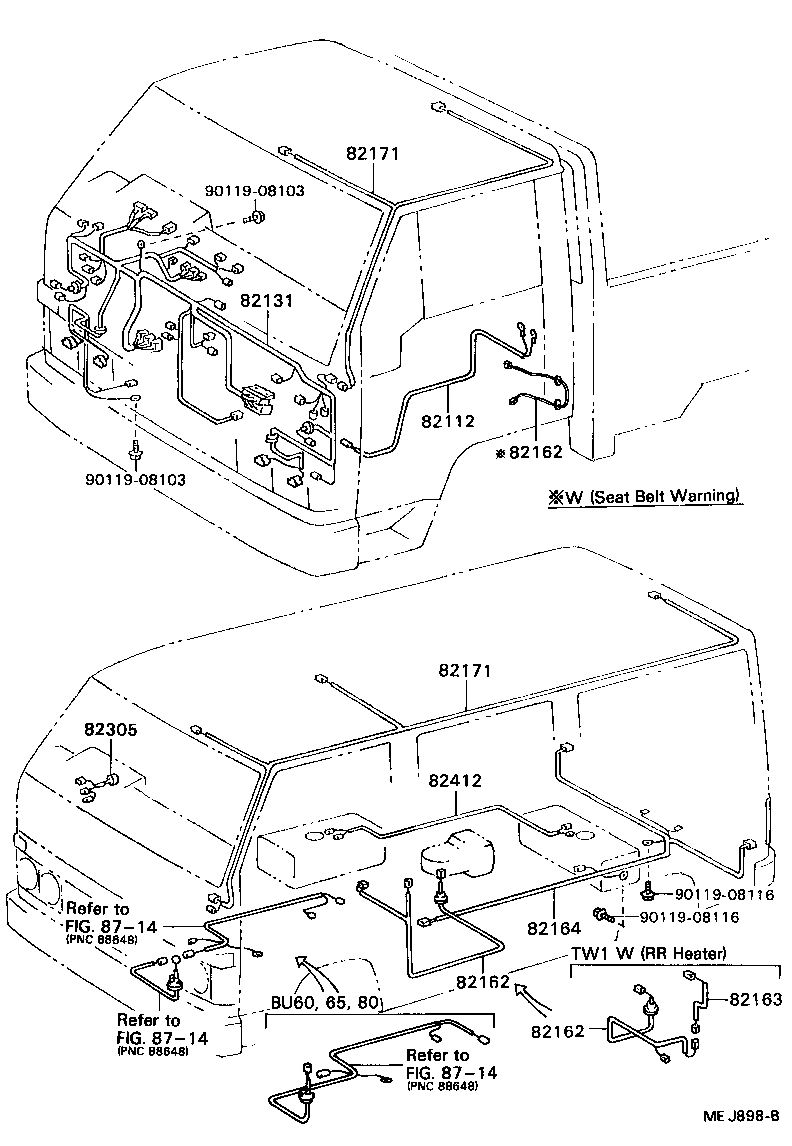

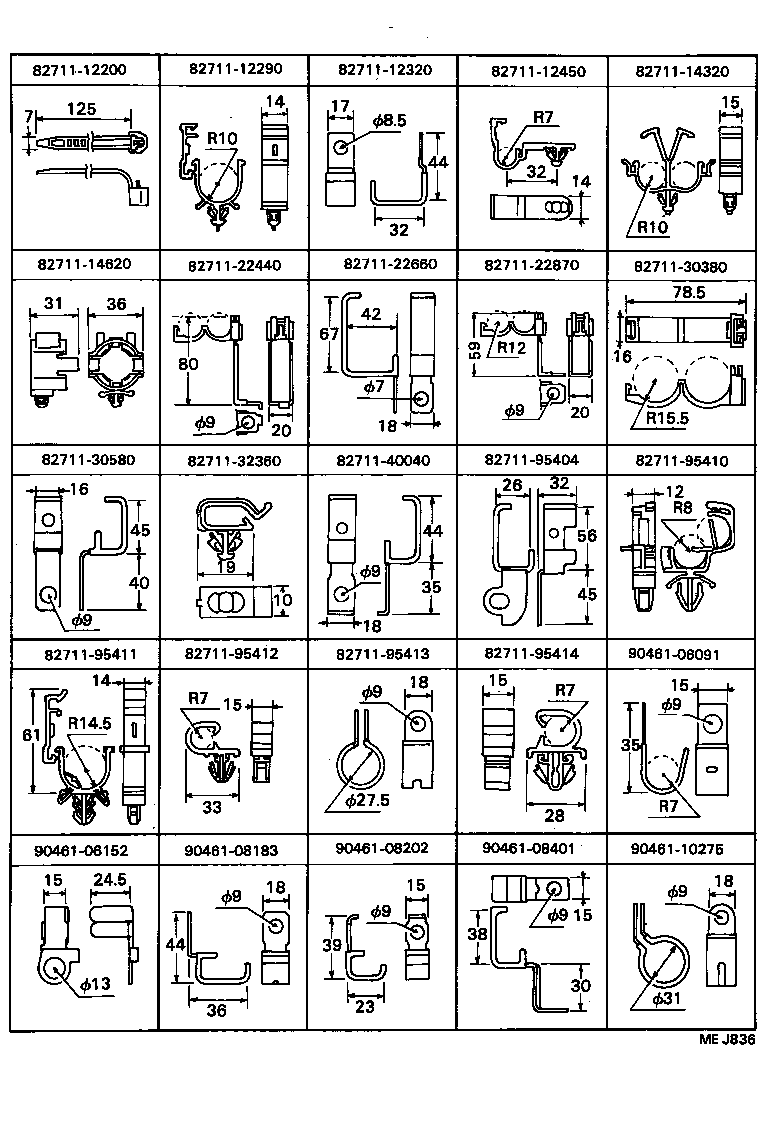

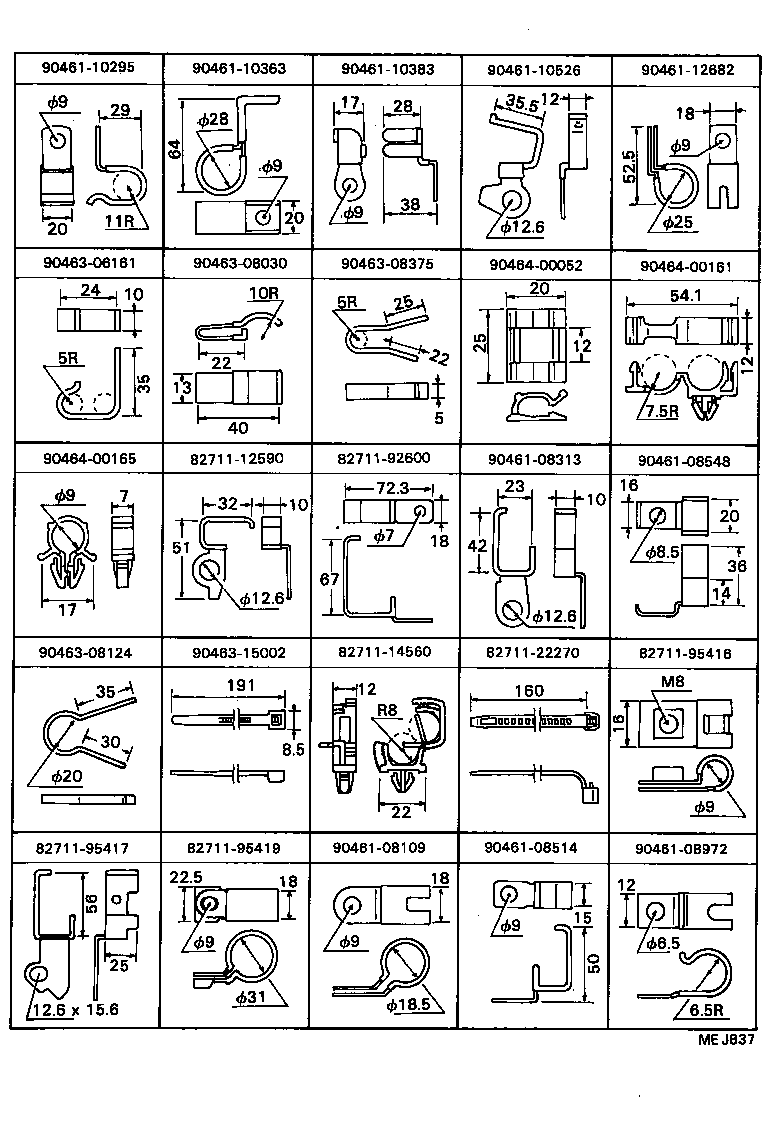

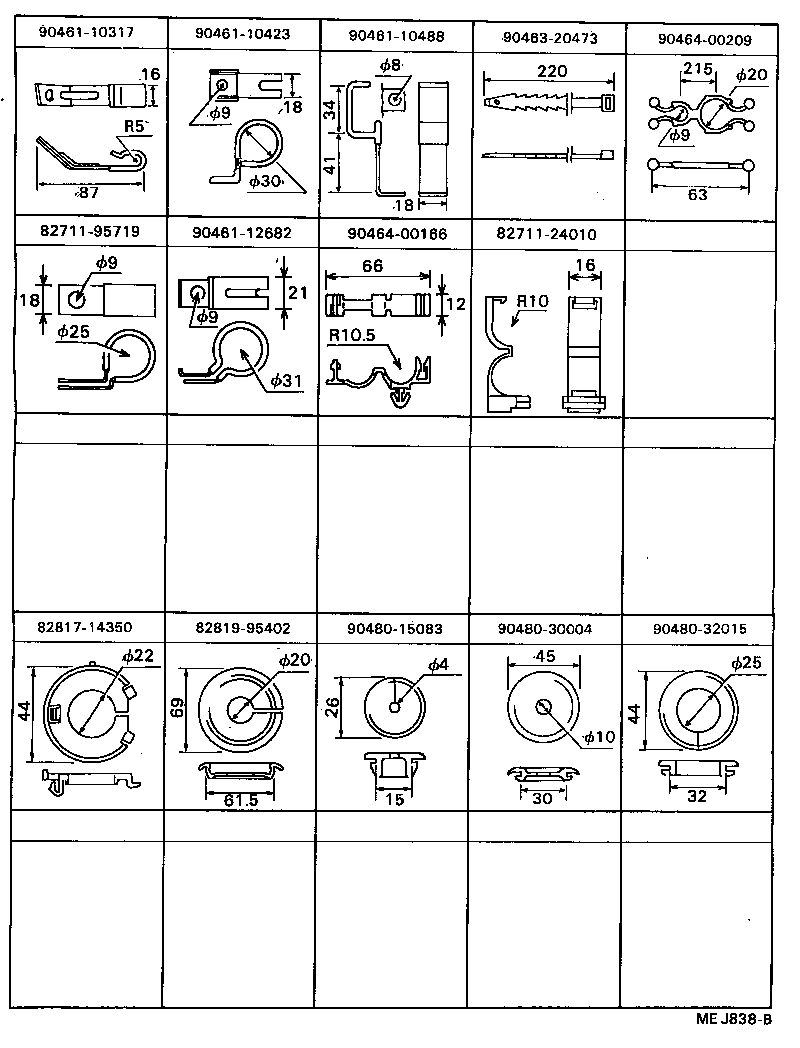

Figure MEJ896A MEJ896A 1987-08 → — Figure MEJ897A MEJ897A 1987-08 → — Figure MEJ898B MEJ898B 1987-08 → — Figure MEH717 MEH717 1987-08 → — Figure MEJ899 MEJ899 1987-08 → — Figure MEJ836 MEJ836 1987-08 → — Figure MEJ837 MEJ837 1987-08 → — Figure MEJ838B MEJ838B 1987-08 → —

Part groups

PNCDescription
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82131 Wire, Cowl
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82210C Fusible Link
82214A Wire, Lamp
82345 Diode
82412 Wire, Fuel Gage
82415 Wire, Fuel Pump
82431 Wire, Work Lamp Feed, NO.1
82620 Block Assy, Fusible Link
82671 Block, Junction
82672 Cover, Junktion Block
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
