Toyota Dyna 200
1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751340 · General
Discontinued model
Data version 1988-08

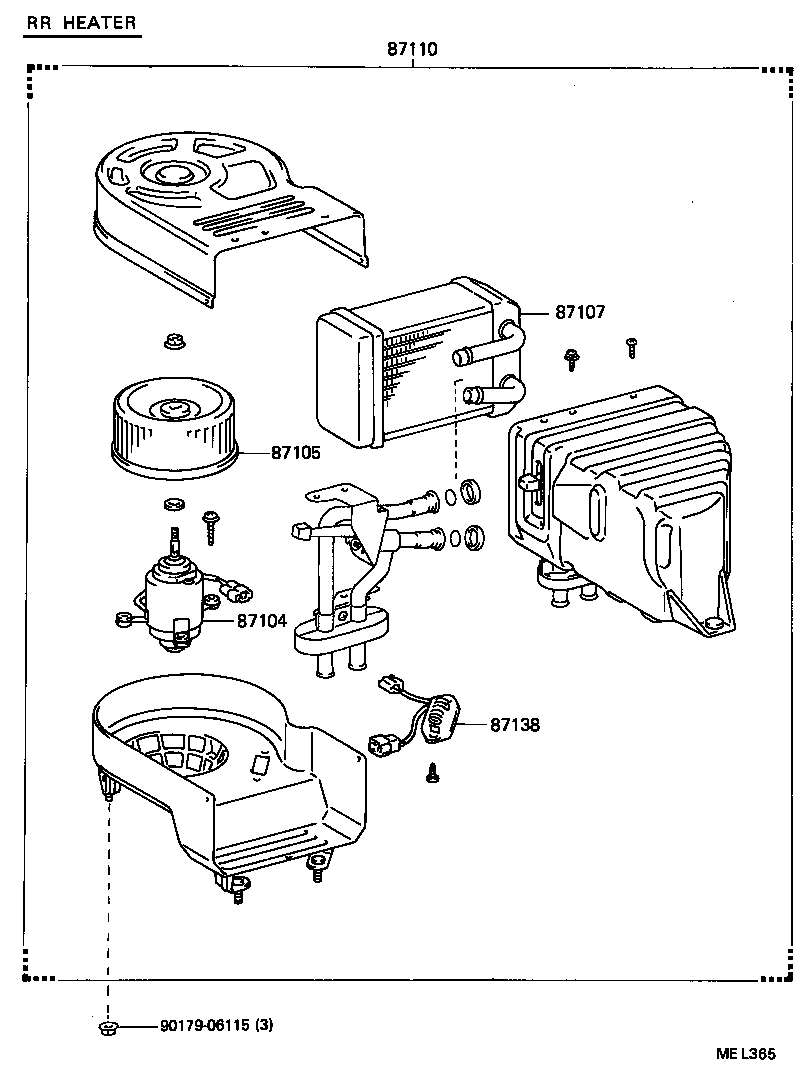

Heating & Air Conditioning - Heater Unit & Blower
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87104 | Motor Sub-assy, Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87110 | Heater Assy |
| 87138 | Resistor, Heater Blower |
| 88910 | Ventilator Assy, Boost |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
