Toyota Dyna 200
1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751340 · General
Discontinued model
Data version 1988-08
Heating & Air Conditioning - Water Piping
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

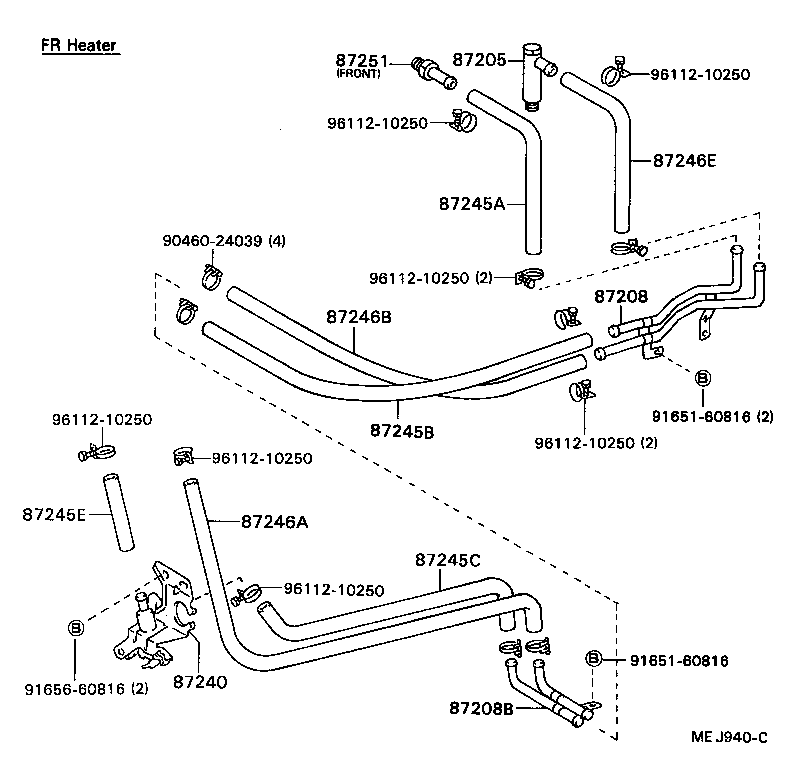

| 87205 | Joint OR Union, Front Heater Hose Through OR Inlet Valve |
| 87208 | Pipe Sub-assy, Heater Water |
| 87208B | Pipe Sub-assy, Heater Water, B |
| 87240 | Valve Assy, Heater Water |
| 87245A | Hose, Heater Water, Inlet A |
| 87245B | Hose, Heater Water, Inlet B |
| 87245C | Hose, Heater Water ,Inlet C |
| 87245E | Hose, Heater Water, Inlet E |
| 87246A | Hose, Heater Water, Outlet A |
| 87246B | Hose, Heater Water, Outlet B |
| 87246E | Hose, Heater Water, Outlet E |

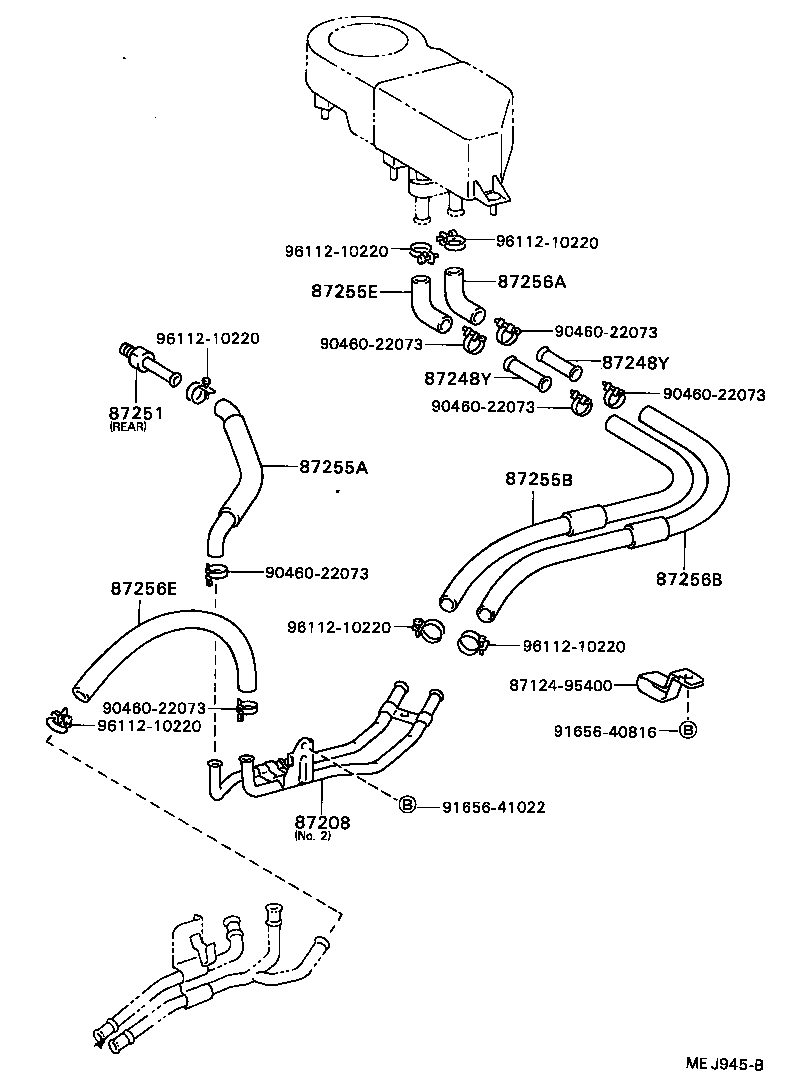

| 87248Y | Pipe, Heater Water, NO.2 |
| 87251 | Joint OR Union, Water Hose Through |

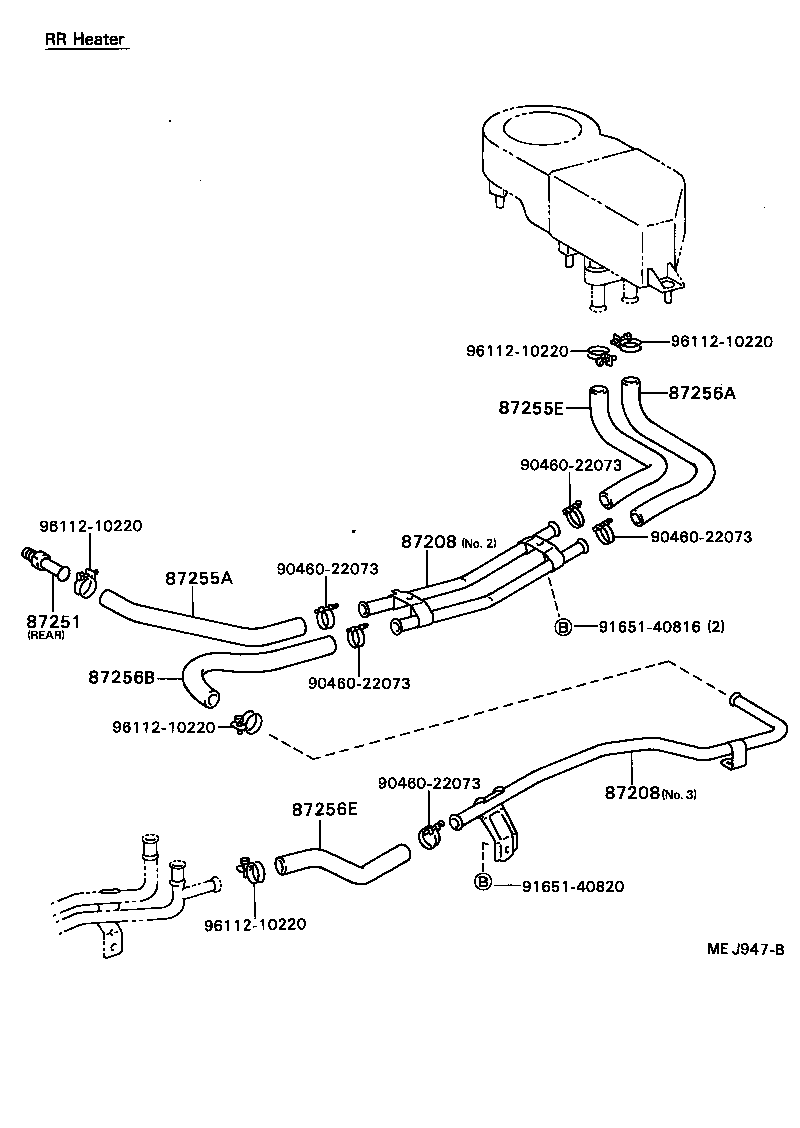

| 87255A | Hose, Rear Heater Water Inlet, A(FROM ENGINE) |
| 87255B | Hose, Rear Heater Water Inlet, B |
| 87255E | Hose, Rear Heater Water Inlet, E(TO HEATER UNIT) |
| 87256A | Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT) |
| 87256B | Hose, Rear Heater Water Outlet, B |
| 87256E | Hose, Rear Heater Water Outlet, E (TO ENGINE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
