Toyota Dyna 200

1988-08 → 1997-03 · chassis BU6#,70,8#,9# · catalogue 751350 · General

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

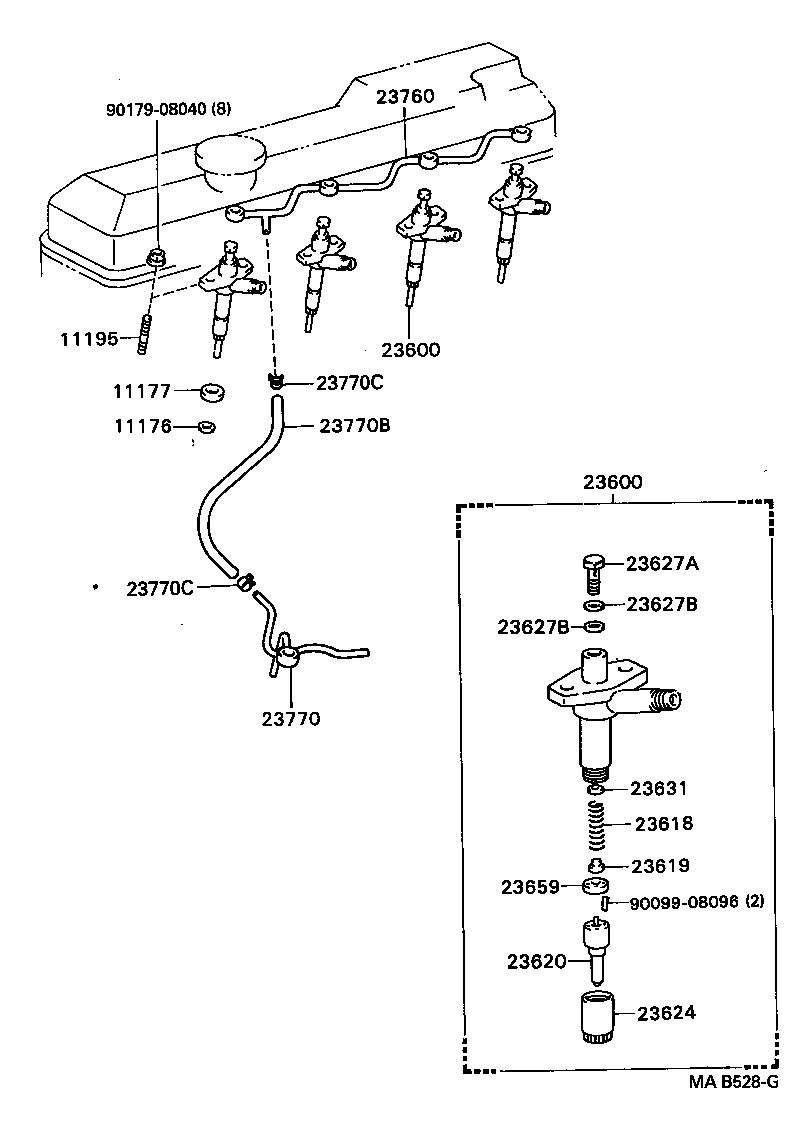

Exploded illustration MAB528G 23760 — PIPE ASSY, NOZZLE LEAKAGE (2 parts) 9017908040 — not listed in this catalogue 11195 — BOLT, NOZZLE SET, STUD (1 parts) 23600 — HOLDER & NOZZLE SET, NOZZLE (4 parts) 23770C — CLAMP OR CLIP(FOR FUEL HOSE SET) (2 parts) 11177 — GASKET, INJECTION NOZZLE SEAT (2 parts) 23770B — HOSE, FUEL (3 parts) 11176 — SEAT, INJECTION NOZZLE (2 parts) 23600 — HOLDER & NOZZLE SET, NOZZLE (4 parts) 23627A — SCREW, FOLLOW(FOR NOZZLE) (1 parts) 23770C — CLAMP OR CLIP(FOR FUEL HOSE SET) (2 parts) 23627B — WASHER, COPPER PLATE(FOR NOZZLE) (1 parts) 23627B — WASHER, COPPER PLATE(FOR NOZZLE) (1 parts) 23770 — PIPE ASSY, NOZZLE LEAKAGE, NO.2 (5 parts) 23631 — WASHER(FOR NOZZLE HOLDER PRESSURE SPRING) (54 parts) 23618 — SPRING, NOZZLE HOLDER PRESSURE (2 parts) 23619 — PIN, NOZZLE HOLDER PRESSURE (2 parts) 23659 — PACKING, TIP(FOR NOZZLE) (1 parts) 9009908096 — not listed in this catalogue 23620 — NOZZLE ASSY (4 parts) 23624 — NUT, NOZZLE RETAINING (2 parts)
MAB528G · 19 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
88 parts on this figure
Part number Description Fitment Price
11176 — Seat, Injection Nozzle
11176-56010 Seat, Injection Nozzle
1988-08 → 1995-05 ended
B BU60,70,83 —
11176-56030 Seat, Injection Nozzle
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
11177 — Gasket, Injection Nozzle Seat
11177-56010 Gasket, Injection Nozzle Seat
1988-08 → 1995-05 ended
B BU60,70,83 —
90430-17003 Gasket, Injection Nozzle Seat
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
11195 — Bolt, Nozzle Set, Stud
90116-08271 Bolt, Nozzle Set, Stud
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23600 — Holder & Nozzle Set, Nozzle
23600-56020 Holder & Nozzle Set, Nozzle
1988-08 → 1995-05 ended
B BU60,70,83 —
23600-56040 Holder & Nozzle Set, Nozzle
1988-08 → 1995-05 ended
11B BU61,65,84 —
23600-58030 Holder & Nozzle Set, Nozzle
1988-08 → 1997-03 ended
14B BU66,67,87,88,9# —
23600-58040 Holder & Nozzle Set, Nozzle
1990-04 → 1993-05 ended
14BT BU91,96 —
23618 — Spring, Nozzle Holder Pressure
23618-56010 Spring, Nozzle Holder Pressure
1988-08 → 1995-05 ended
B BU60,70,83 —
23618-58030 Spring, Nozzle Holder Pressure
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23619 — Pin, Nozzle Holder Pressure
23619-46010 Pin, Nozzle Holder Pressure
1988-08 → 1995-05 ended
B BU60,70,83 —
23619-58030 Pin, Nozzle Holder Pressure
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23620 — Nozzle Assy
23620-56020 Nozzle Assy
1988-08 → 1995-05 ended
B BU60,70,83 —
23620-56040 Nozzle Assy
1988-08 → 1995-05 ended
11B BU61,65,84 —
23620-58030 Nozzle Assy
1988-08 → 1997-03 ended
14B BU66,67,87,88,9# —
23620-58040 Nozzle Assy
1990-04 → 1993-05 ended
14BT BU91,96 —
23624 — Nut, Nozzle Retaining
23624-54020 Nut, Nozzle Retaining
1988-08 → 1995-05 ended
B BU60,70,83 —
23624-58010 Nut, Nozzle Retaining
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23627A — Screw, Follow(FOR NOZZLE)
23625-58230 Screw, Follow(FOR NOZZLE)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23627B — Washer, Copper Plate(FOR NOZZLE)
90201-08106 Washer, Copper Plate(FOR NOZZLE)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23631 — Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
23631-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23631-58010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23631-58011 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23631-58012 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23631-58013 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23631-58014 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23631-58015 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23631-58016 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23631-58017 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23631-58018 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23631-58019 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23632-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23632-58010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23632-58011 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23632-58012 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23632-58013 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23632-58014 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23632-58015 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23632-58016 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23632-58017 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23632-58018 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23632-58019 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23633-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23633-58010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23633-58011 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23633-58012 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23633-58013 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23633-58014 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23633-58015 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23633-58016 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23633-58017 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23633-58018 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23633-58019 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23634-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23634-58010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23634-58011 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23634-58012 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23634-58013 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23635-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23636-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23637-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23638-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23639-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23641-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23642-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23643-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23644-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23645-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23646-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23647-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23648-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23649-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23651-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23652-46010 note Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
1988-08 → 1995-05 ended
B BU60,70,83 —
23659 — Packing, Tip(FOR NOZZLE)
23659-58030 Packing, Tip(FOR NOZZLE)
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23760 — Pipe Assy, Nozzle Leakage
23760-56040 Pipe Assy, Nozzle Leakage
1988-08 → 1995-05 ended
B BU60,70,83 —
23760-56060 Pipe Assy, Nozzle Leakage
1988-08 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
23770 — Pipe Assy, Nozzle Leakage, NO.2
23770-56090 Pipe Assy, Nozzle Leakage, NO.2
1988-08 → 1997-03 ended
14B BU91,96;B,11B,14B BU6#,70,8#,94 ARL,GEN,GHD —
23770-56100 note Pipe Assy, Nozzle Leakage, NO.2
1988-08 → 1993-01 ended
11B BU65 GEN CBU;B,11B,14B +3 —
23770-56100 Pipe Assy, Nozzle Leakage, NO.2
1988-08 → 1995-05 ended
11B BU84 SA —
23770-56100 note Pipe Assy, Nozzle Leakage, NO.2
1993-01 → 1997-03 ended
11B 60,70,83,84,88,9# BU65 GEN,GHD +10 —
23770-58030 Pipe Assy, Nozzle Leakage, NO.2
1990-04 → 1993-05 ended
14BT BU91,96 —
23770B — Hose, Fuel
90447-11027 Hose, Fuel
1988-08 → 1989-05 ended
11B BU61,65,84 —
90447-11027 Hose, Fuel
1989-05 → 1997-03 ended
11B,14B# BU61,65,66,67,84,87,88,9# —
95333-04020 note Hose, Fuel
1988-08 → 1995-05 ended
B BU60,70,83 —
23770C — Clamp OR Clip(FOR FUEL HOSE SET)
96132-30400 Clamp OR Clip(FOR FUEL HOSE SET)
1988-08 → 1993-02 ended
B,11B,14B# BU6#,70,8#,9# —
96132-41000 Clamp OR Clip(FOR FUEL HOSE SET)
1993-02 → 1997-03 ended
B,11B,14B# BU6#,70,8#,9# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
