Toyota Dyna 200

1988-08 → 1997-03 · chassis BU6#,70,8#,9# · catalogue 751350 · General

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

31 part groups · 3 illustrations

Illustrations

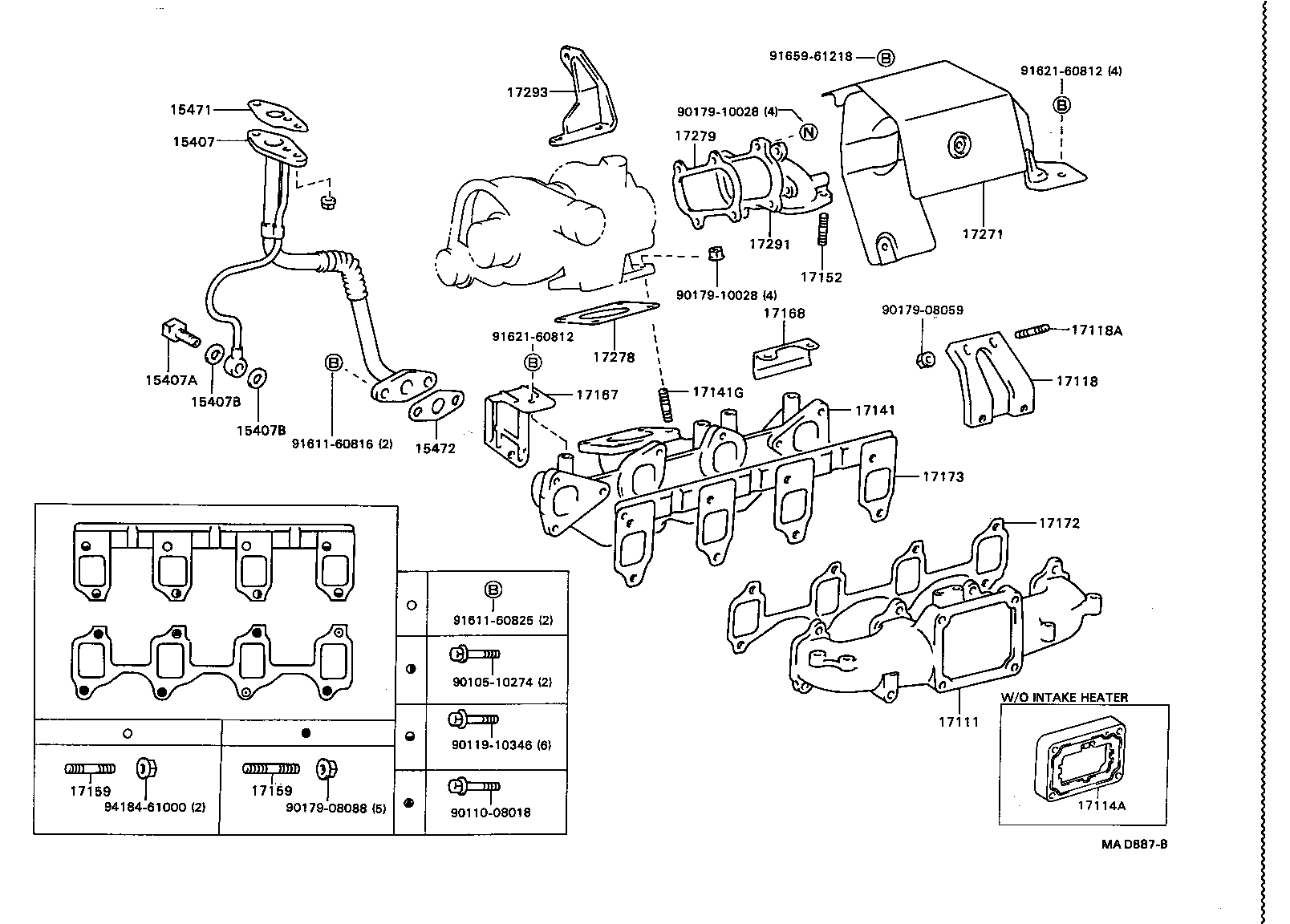

Figure MAG136B MAG136B 1988-08 → — Figure MAD887B MAD887B 1990-04 → 1993-05 Figure MA7739D MA7739D 1990-04 → 1993-05

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
17021A Bolt, Stud(FOR BEARING HOUSING)
17021B Bolt, Stud
17025A Bolt, Stud(FOR TURBINE HOUSING)
17111 Manifold, Intake
17114A Flange, Intake
17118 Stay, Manifold
17118A Bolt, Stud(FOR MANIFOLD STAY)
17141 Manifold, Exhaust
17141G Bolt, Stud(FOR TURBOCHARGER)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17201 Turbocharger Sub-assy
17224B Plug, Taper Screw
17271 Insulator, Turbo, NO.1
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17291 Elbow, Turbine Outlet
17293 Stay, Turbocharger
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
19829 Gasket, Intake Heater
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
