Toyota Dyna 200
1988-08 → 1997-03 · chassis BU6#,70,8#,9# · catalogue 751350 · General
Discontinued model
Data version 1997-10

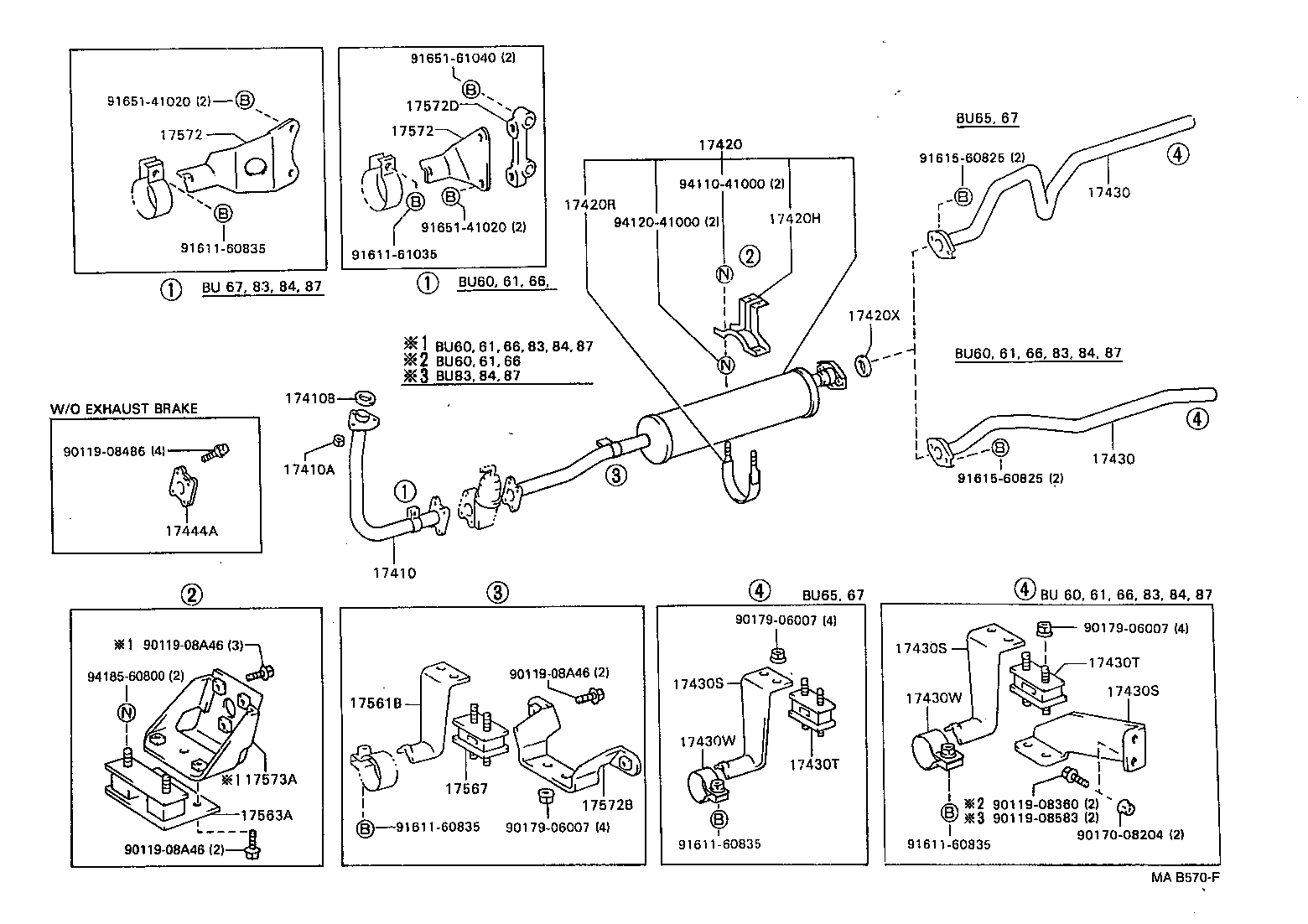

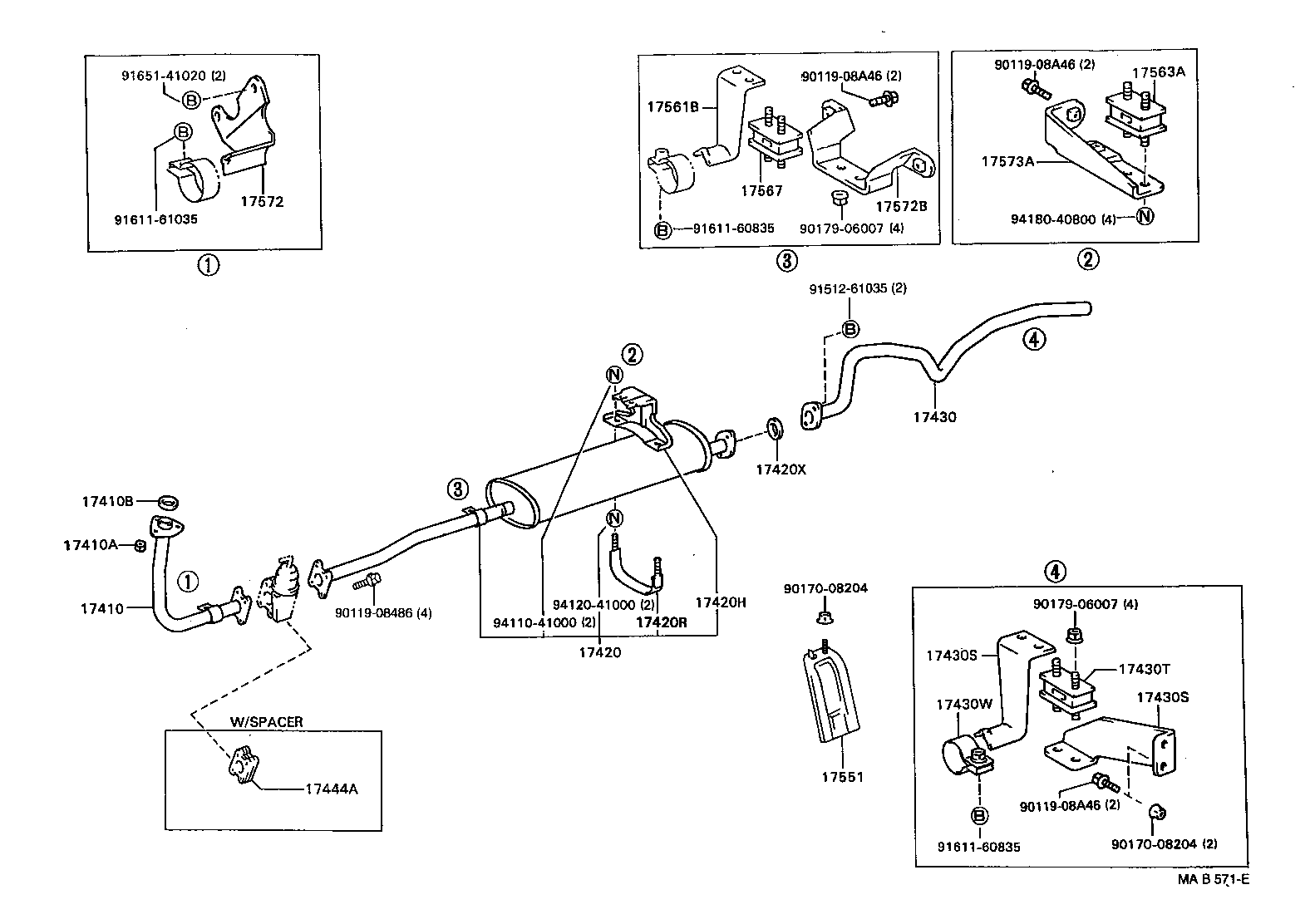

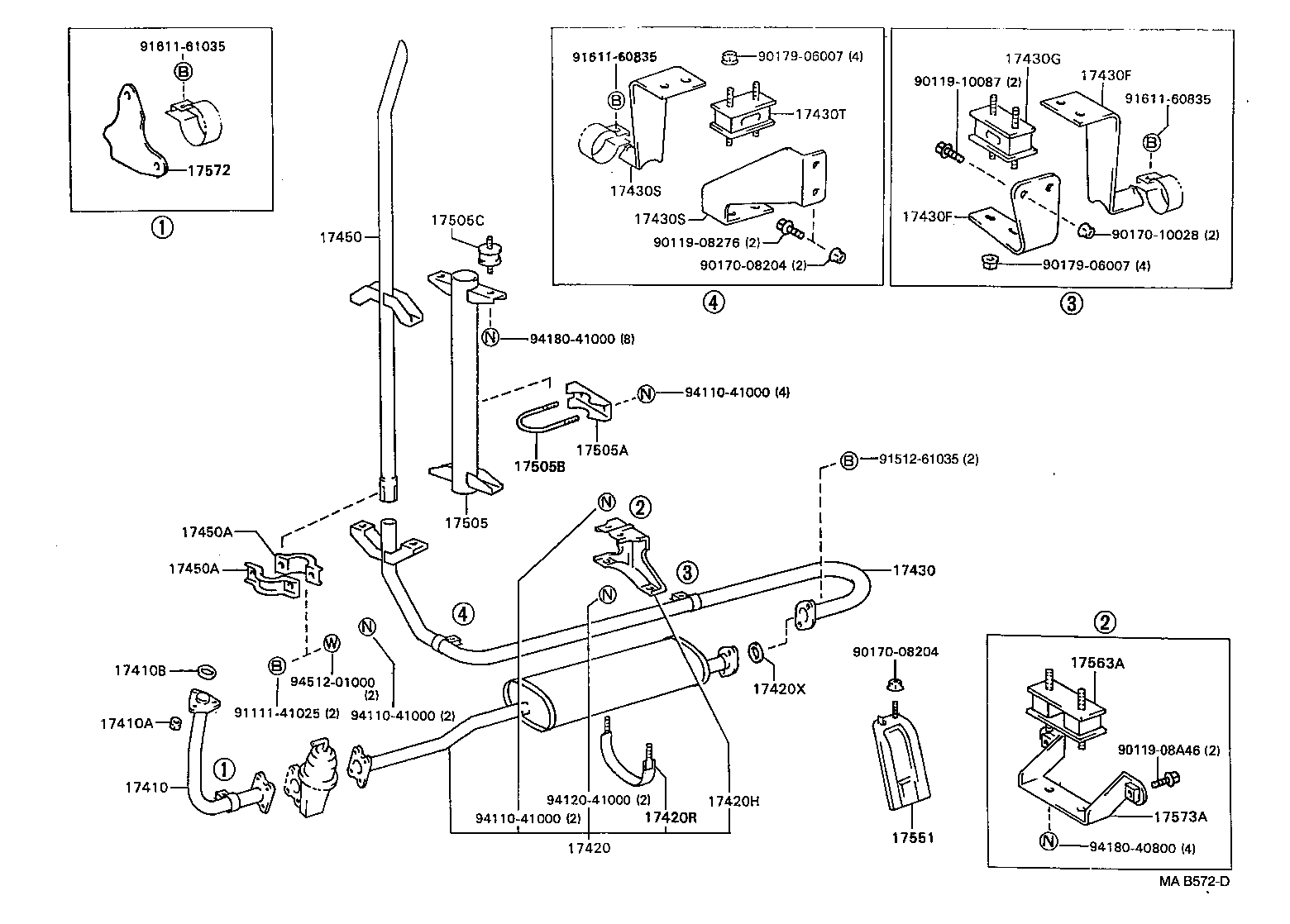

Exhaust Pipe
28 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420H | Clamp NO.1, Exhaust Pipe Center, Center |
| 17420R | Clamp NO.2, Exhaust Pipe Center, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430F | Bracket, Exhaust Tailpipe(FOR CENTER) |
| 17430G | Cushion, Exhaust Tailpipe(FOR CENTER) |
| 17430S | Bracket, Exhaust Tailpipe (FOR REAR) |
| 17430T | Cushion, Exhaust Tailpipe (FOR REAR) |
| 17430W | Clamp NO.2, Exhaust Tailpipe (FOR REAR) |
| 17444A | Spacer, Exhaust Front Pipe |
| 17450 | Pipe Assy, Exhaust, NO.5 |
| 17450A | Clamp, Exhaust Pipe, NO.5 |
| 17505 | Insulator Sub-assy, Exhaust Pipe Heat NO.1 |
| 17505A | Clamp, Exhaust Pipe(FOR HEAT INSULATOR) |
| 17505B | Bolt, U(FOR HEAT INSULATOR CLAMP) |
| 17505C | Cushion, Exhaust Pipe(FOR HEAT INSULATOR) |
| 17551 | Insulator, Exhaust Pipe Heat, NO.1 |
| 17561B | Support, Exhaust Pipe, NO.1 |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17567 | Cushion, Exhaust Pipe Support |
| 17572 | Bracket, Exhaust Pipe NO.1 Support |
| 17572B | Bracket, Exhaust Pipe Support, NO.2 |
| 17572D | Bracket, Exhaust Pipe Support, NO.1 |
| 17573A | Bracket, Exhaust Pipe Support, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
