Toyota Dyna 200

1988-08 → 1997-03 · chassis BU6#,70,8#,9# · catalogue 751350 · General

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

5 part groups · 2 illustrations

Illustrations

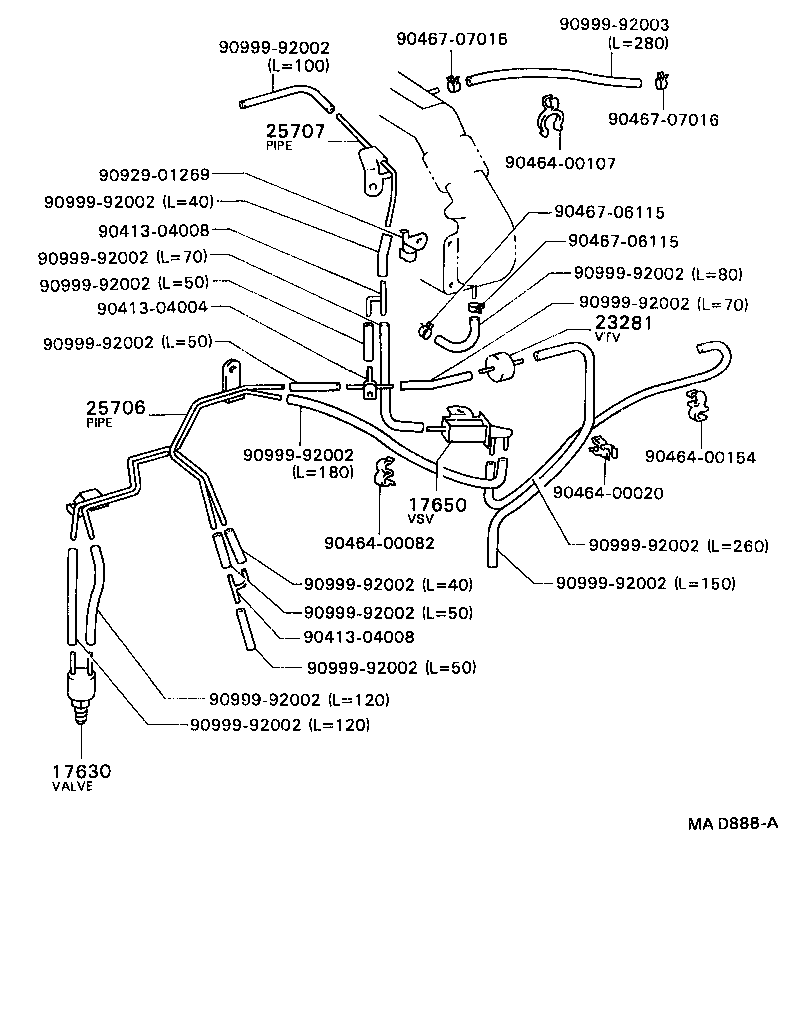

Figure MA9504B MA9504B 1988-08 → — Figure MAD888A MAD888A 1990-04 → 1993-05

Part groups

PNCDescription
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23281 Valve, Vacuum Transmitting, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
