Toyota Dyna 200
1988-08 → 1997-03 · chassis BU6#,70,8#,9# · catalogue 751350 · General
Discontinued model
Data version 1997-10

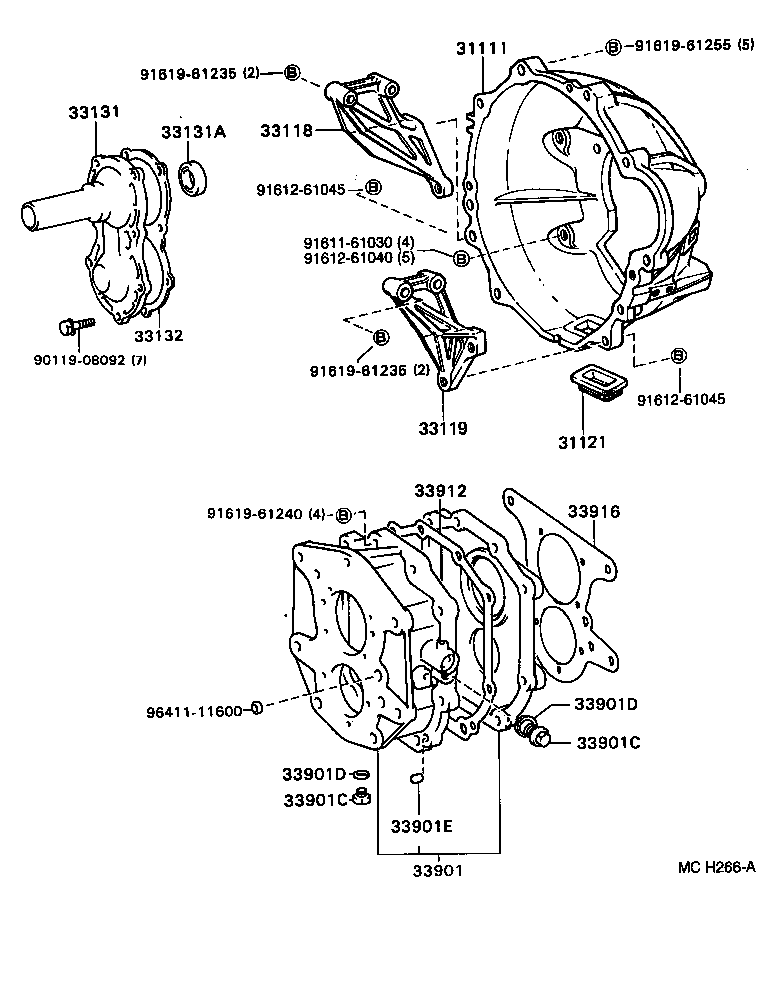

Clutch Housing & Transmission Case (MTM)
33 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 31111 | Housing, Clutch |
| 31121 | Cover, Clutch Housing, NO.1 |
| 31121B | Cover, Clutch Housing, NO.3 |
| 31123 | Cover, Clutch Housing, NO.2 |
| 33101 | Case Sub-assy, Manual Transmission |
| 33104 | Plug Sub-assy, Drain(MTM) |
| 33104A | Gasket, Drain Plug(MTM) |
| 33111 | Case, Manual Transmission |
| 33111A | Plug, Manual Transmission Case |
| 33111C | Plug(FOR TRANSMISSION CASE) |
| 33111J | Pin, Straight(FOR MANUAL TRANSMISSION CASE) |
| 33111U | Pin, Ring(FOR MANUAL TRANSMISSION CASE) |
| 33111X | Gasket, Transmission Case Plug |
| 33118 | Plate, Stiffener, RH(MTM) |
| 33119 | Plate, Stiffener, LH(MTM) |
| 33124C | Pipe, Oil Receiver, NO.1(MTM) |
| 33125B | Receiver, Manual Transmission Case |
| 33131 | Retainer, Bearing, Front(MTM) |
| 33131A | Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER) |
| 33132 | Gasket, Front Bearing Retainer(MTM) |
| 33141A | Seal, Oil(FOR TRANSMISSION REAR BEARING RETAINER) |
| 33141F | Housing, Extension(MTM) |
| 33142 | Gasket, Extension Housing(MTM) |
| 33151 | Retainer, Output Shaft Rear Bearing(MTM) |
| 33161 | Cover, Manual Transmission Power Take-off |
| 33162 | Gasket, Manual Transmission Power Take-off Cover |
| 33449B | Magnet, Transmission |
| 33901 | Case Sub-assy, Adapter |
| 33901C | Plug(FOR ADAPTER CASE) |
| 33901D | Gasket(FOR ADAPTER CASE PLUG) |
| 33901E | Pin, Straight(FOR ADAPTER CASE) |
| 33912 | Gasket, Front Case |
| 33916 | Gasket, Rear Case |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
