Toyota Dyna 200
1988-08 → 1997-03 · chassis BU6#,70,8#,9# · catalogue 751350 · General
Discontinued model
Data version 1997-10

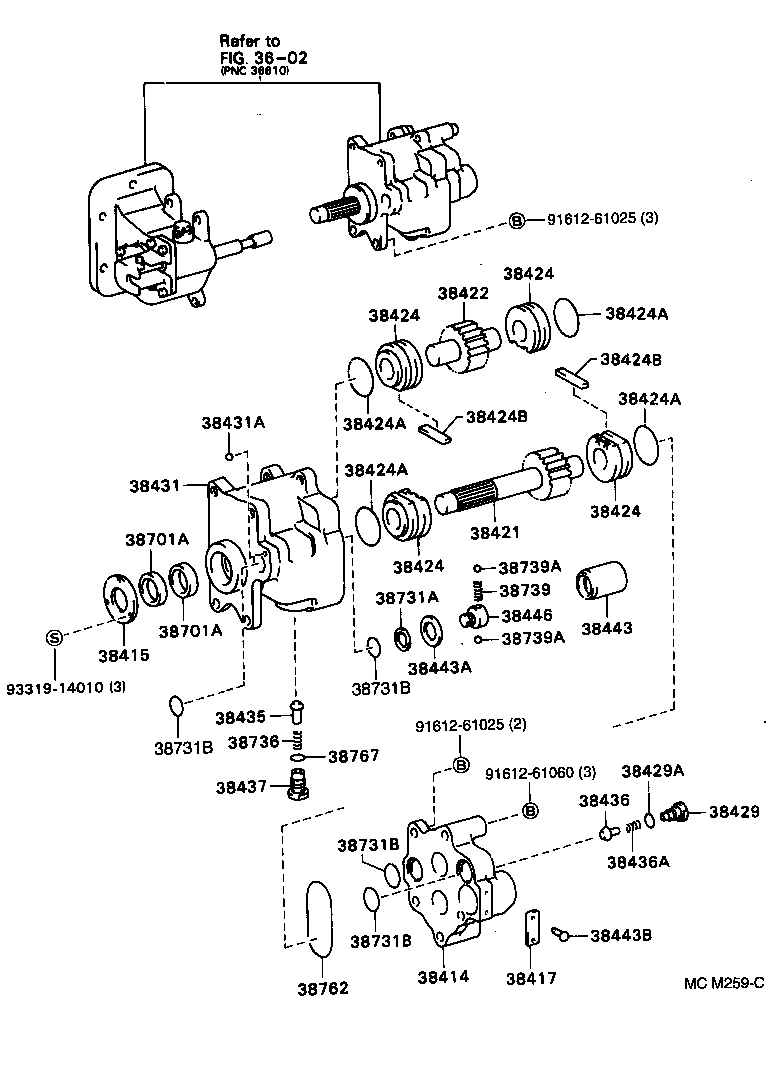

Power Take-off Oil Pump
42 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 38414 | Cover, Power Oil Pump |
| 38415 | Cover, Power Oil Pump Seal |
| 38417 | Plate, Power Oil Pump Name |
| 38421 | Gear, Power Oil Pump Drive |
| 38422 | Gear, Power Oil Pump Follow |
| 38424 | Bush, Power Oil Pump Inner |
| 38424A | Ring, O (FOR POWER OIL PUMP) |
| 38424B | Key, Straight (FOR POWER OIL PUMP) |
| 38429 | Plug, Power Control Check Valve NO.2 |
| 38429A | Ring, O (POWER CONTROL CHECK VALVE NO.2 PLUG) |
| 38430D | Valve Assy, Power Control |
| 38430E | Plug (FOR POWER CONTROL VALVE) |
| 38430F | Bolt, Serration (FOR OIL PUMP SHAFT) |
| 38431 | Body, Power Control Valve |
| 38431A | Ball (FOR POWER CONTROL VALVE) |
| 38435 | Valve, Power Control Check, NO.1 |
| 38436 | Valve, Power Control Check, NO.2 |
| 38436A | Spring, Compression (FOR POWER CONTROL CHECK NO.2 VALVE) |
| 38437 | Plug, Power Control Check Valve |
| 38438 | Cover, Valve Control Plunger |
| 38443 | Sleeve, Power Control Valve Plunger |
| 38443A | Washer, Plate (FOR POWER CONTROL VALVE PLUNGER SLEEVE) |
| 38443B | Rivet, Round (FOR POWER CONTROL VALVE PLUNGER SLEEVE) |
| 38446 | Stopper, Power Control Detention Spring |
| 38448 | Holder, Power Control Plunger Cover |
| 38449 | Gasket, Power Control Plunger Cover |
| 38701 | Body Sub-assy, Oil Pump |
| 38701A | Seal, Oil (FOR OIL PUMP BODY) |
| 38731A | Ring, O (FOR PLUNGER NO.1) |
| 38731B | Ring, O (FOR PLUNGER NO.2) |
| 38734 | Cover, Plunger |
| 38736 | Spring, Check Valve |
| 38739 | Spring, Plunger Neutral Indicating Ball |
| 38739A | Ball, Plunger Neutral Indicating |
| 38745 | Seal, Oil (FOR PUMP CONTROL VALVE PLUNGER) |
| 38761 | Ring, O (FOR OIL PUMP INNER BUSH) |
| 38762 | Ring, O (FOR OIL PUMP INNER BUSH) |
| 38767 | Ring, O (FOR CHECK VALVE SPRING) |
| 38905C | Arm Sub-assy, Power Take-off Control, NO.1 |
| 38905D | Bush (FOR POWER TAKE-OFF CONTROL ARM) |
| 38907F | Stay Sub-assy, Power Take-off Control |
| 38920C | Spacer (FOR POWER TAKE-OFF CONTROL LEVER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
