Toyota Dyna 200

1988-08 → 1997-03 · chassis BU6#,70,8#,9# · catalogue 751350 · General

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

25 part groups · 3 illustrations

Illustrations

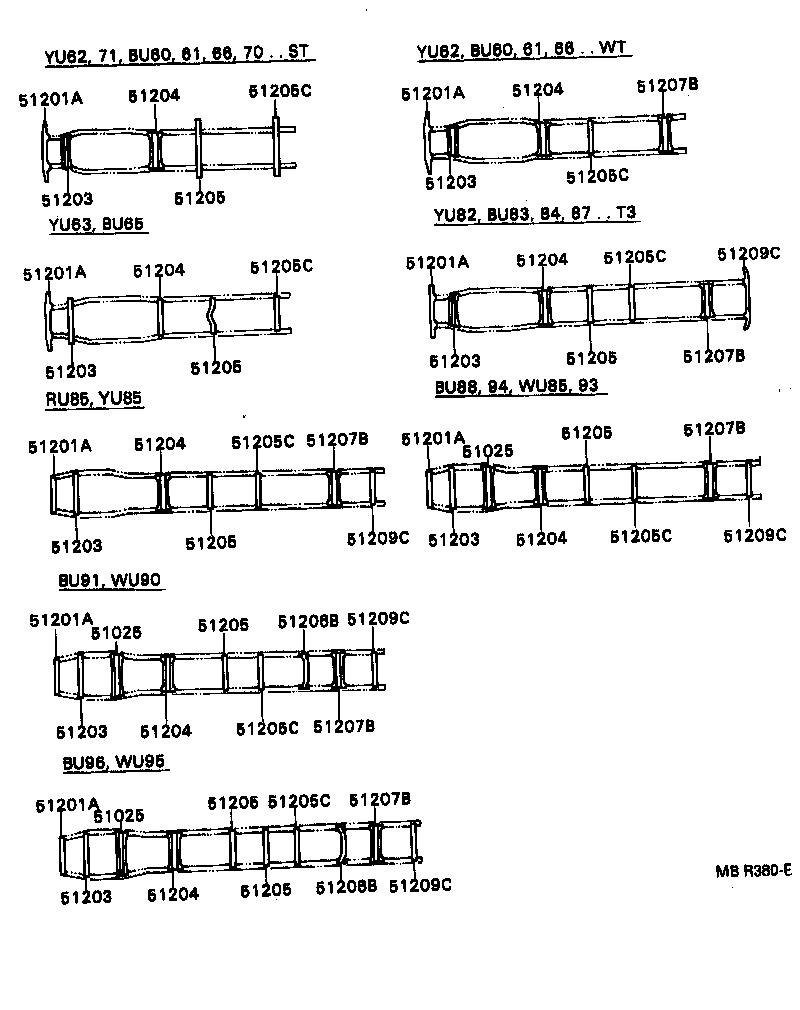

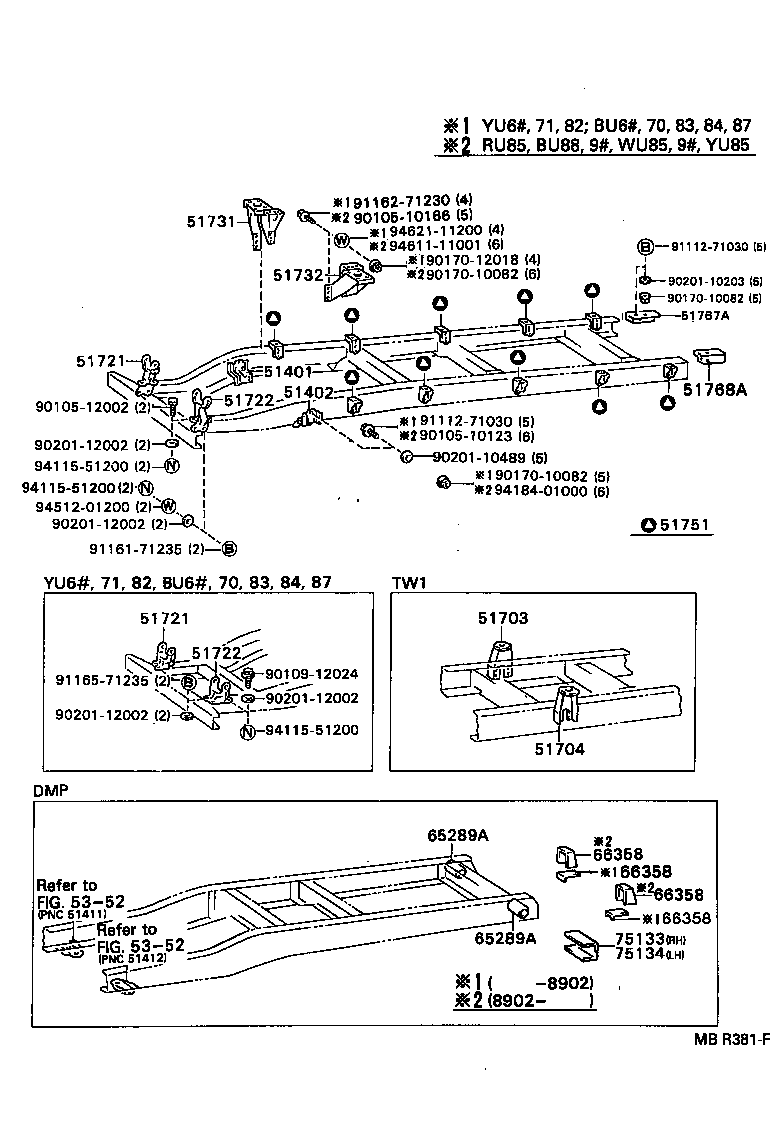

Figure MBR379B MBR379B 1988-08 → — Figure MBR380E MBR380E 1988-08 → — Figure MBR381F MBR381F 1988-08 → —

Part groups

PNCDescription
51025 Member Sub-assy, Engine Front Mounting
51100F Frame Sub-assy
51201A Crossmember Sub-assy, Frame, Front
51203 Crossmember Sub-assy, Frame, NO.2
51204 Crossmember Sub-assy, Frame, NO.3
51205 Crossmember Sub-assy, Frame, NO.4
51205C Crossmember Sub-assy, Frame, NO.5
51206B Crossmember Sub-assy, Frame, NO.6
51207B Crossmember Sub-assy, Frame, NO.7
51209C Crossmember Sub-assy, Frame, Rear
51401 Bracket Sub-assy, Engine Front Mounting, RH
51402 Bracket Sub-assy, Engine Front Mounting, LH
51703 Bracket Sub-assy, Cab Mounting, NO.2, RH
51704 Bracket Sub-assy, Cab Mounting, NO.2 LH
51721 Bracket, Cab Front Mounting, RH
51722 Bracket, Cab Front Mounting, LH
51731 Bracket, Cab Rear Mounting, RH
51732 Bracket, Cab Rear Mounting, LH
51751 Bracket, Body Support, NO.1
51767A Bracket, Frame Body Mounting, NO.8 RH
51768A Bracket, Frame Body Mounting, NO.8 LH
65289A Support, Vessel Hinge
66358 Plate, Frame End
75133 Base, Combination Rear Lamp Bracket, RH
75134 Base, Combination Rear Lamp Bracket, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
