Toyota Dyna 200
1988-08 → 1997-03 · chassis BU6#,70,8#,9# · catalogue 751350 · General
Discontinued model
Data version 1997-10

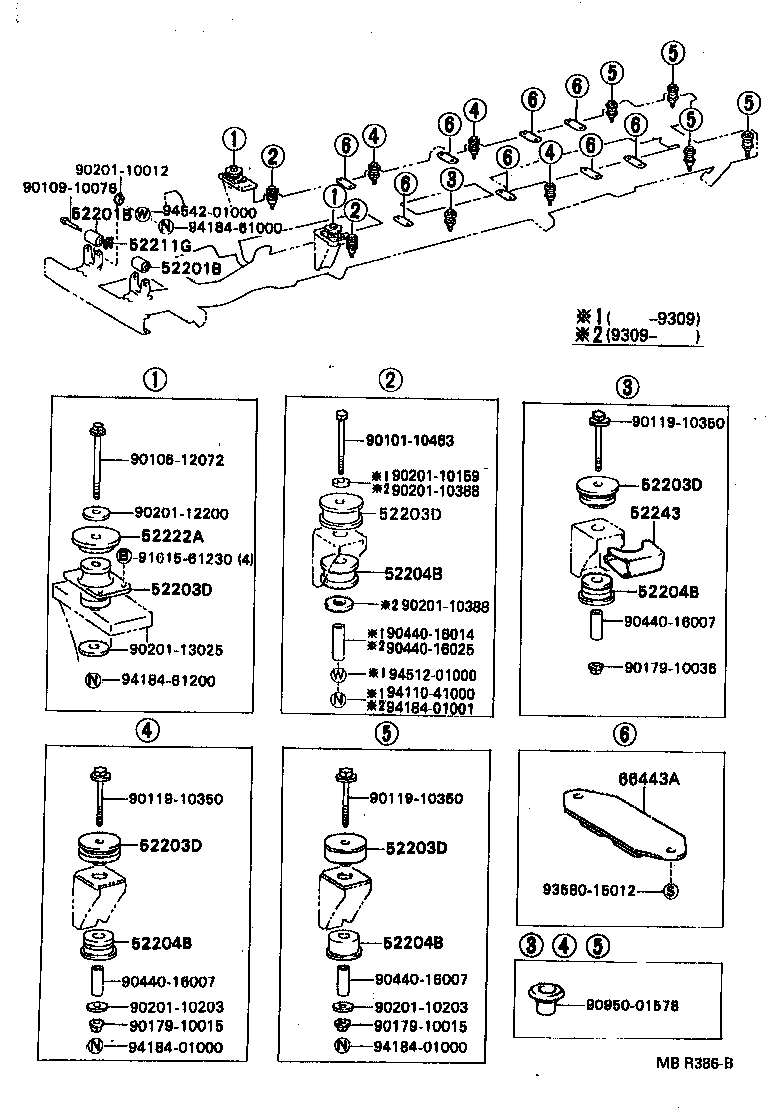

Cab Mounting & Body Mounting
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52201B | Cushion Sub-assy, Cab Front Mounting |
| 52203D | Cushion Sub-assy, Cab Mounting, NO.2 Upper |
| 52204B | Cushion Sub-assy, Cab Mounting, NO.2 Lower |
| 52211G | Spacer, Cab Front Mounting |
| 52222A | Spacer, Cab Rear Mounting, Upper |
| 52243 | Support, Cab Mounting Cushion |
| 52306A | Bracket Sub-assy, Cab Mounting Hook, NO.1 |
| 52307A | Bracket Sub-assy, Cab Mounting Hook, NO.2 |
| 52367 | Hook, Cab Rear Mounting |
| 53825B | Bracket, Rear Lock Handle Rod |
| 54907 | Pipe Sub-assy, Tilt Cab Lock Connecting |
| 54930 | Bracket Assy, Tilt Cab Coil Spring, Lower |
| 54938 | Plate, Tilt Cab Coil Spring Support |
| 54940 | Stay Assy, Tilt Cab |
| 54960 | Spring Assy, Tilt Cab Coil |
| 54970 | Latch Assy, Tilt Cab Stopper |
| 54980 | Lock Assy, Tilt Cab Mounting, RH |
| 54990 | Lock Assy, Tilt Cab Mounting, LH |
| 58954 | Cover, Rear Lock Handle Grip |
| 58959 | Rod, Rear Lock, Handle Latch |
| 66443A | Cushion, Rear Floor Spacer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
