Toyota Dyna 200
1988-08 → 1997-03 · chassis BU6#,70,8#,9# · catalogue 751350 · General
Discontinued model
Data version 1997-10

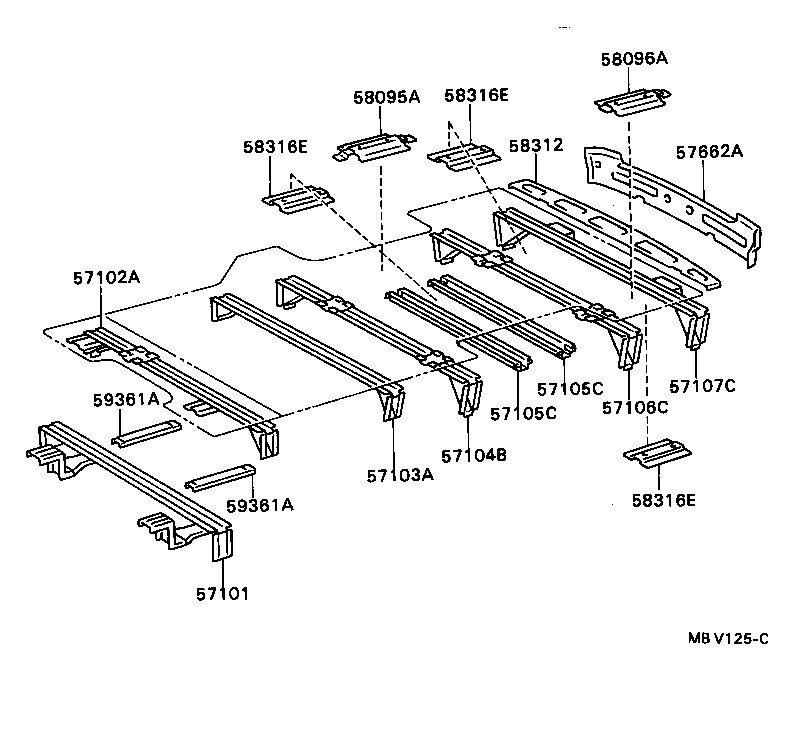

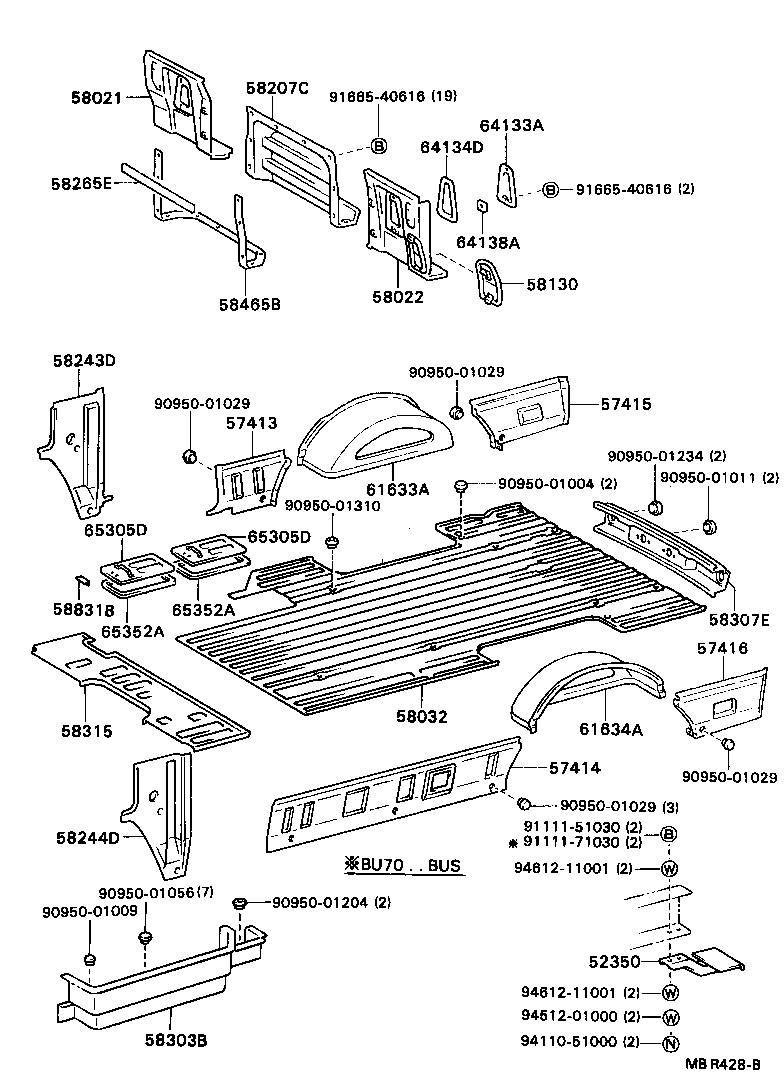

Rear Floor Panel & Rear Floor Member
59 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51707 | Step Sub-assy, RH |
| 51708 | Step Sub-assy, LH |
| 51791A | Panel, Step, Rear RH |
| 51792A | Panel, Step, Rear LH |
| 52350 | Step Assy, Rear Bumper |
| 57101 | Member Sub-assy, Front Side, RH |
| 57102A | Crossmenber Sub-assy, Floor, NO.2 |
| 57103A | Crossmenber Sub-assy, Floor, NO.3 |
| 57104B | Crossmember Sub-assy, Floor, NO.4 |
| 57105C | Crossmember Sub-assy, Floor, NO.5 |
| 57106C | Crossmember Sub-assy, Floor, NO.6 |
| 57107C | Crossmenber Sub-assy, Floor, NO.7 |
| 57413 | Rail, Floor Side, Center RH |
| 57414 | Rail, Floor Side, Center LH |
| 57415 | Rail, Floor Side, Rear RH |
| 57416 | Rail, Floor Side, Rear LH |
| 57662A | Member, Rear Floor Rear Cross, Inner |
| 58021 | Panel Sub-assy, Header |
| 58022 | Panel Sub-assy, Header, LH |
| 58032 | Panel Sub-assy, Header |
| 58095A | Retainer Sub-assy, Rear Seat, NO.3 Rear RH |
| 58096A | Retainer Sub-assy, Rear Seat, NO.3 Rear LH |
| 58106 | Bracket Sub-assy, Brake Tube Connector, NO.2 |
| 58107A | Bracket Sub-assy, Clamp Set, NO.1 |
| 58130 | Cover Assy, Reserve Tank Service Hole |
| 58207C | Cover Sub-assy, Transmission Service Hole |
| 58243D | Panel, Floor Side, Rear RH |
| 58244D | Panel, Floor Side, Rear LH |
| 58265E | Packing, Transmission Cover, C |
| 58303B | Step Sub-assy, Rear Floor, RH |
| 58307E | Member Sub-assy, Rear Floor Rear Cross, Outer |
| 58311 | Pan, Rear Floor |
| 58312 | Panel, Rear Body Floor, NO.1 |
| 58313 | Panel, Rear Floor Side, RH |
| 58313E | Extension, Rear Floor Side Panel, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58314E | Extension, Rear Floor Side Panel, LH |
| 58315 | Extension, Rear Floor Panel |
| 58316E | Retainer, Rear Seat Set |
| 58323A | Brace, Center TO Rear Mounting, RH |
| 58324A | Brace, Center TO Rear Mounting, LH |
| 58328C | Bracket, Jack Rest |
| 58351B | Reinforcement, Rear Floor Panel, RH |
| 58352B | Reinforcement, Rear Floor Panel, LH |
| 58465B | Packing, Transmission Service Hole Cover |
| 58831B | Stopper, Battery Hole Cover Spring |
| 59361A | Retainer, Rear Seat, NO.1 |
| 61633A | Panel, Quarter Wheel House, Inner RH |
| 61634A | Panel, Quarter Wheel House, Inner LH |
| 64025 | Bracket Sub-assy, Rear Mounting, RH |
| 64026A | Bracket Sub-assy, Rear Mounting, LH |
| 64102A | Bracket Sub-assy, Jack Handle Support |
| 64133A | Cover, Header Panel |
| 64134D | Packing, Header Panel Cover |
| 64138A | Seal, Header Panel Cover |
| 64181 | Reinforcement Sub-assy, Rear Seat Belt Anchor |
| 64191A | Bracket, Rear Seat Belt Anchorage, RH |
| 65305D | Cover Sub-assy, Battery Hole |
| 65352A | Packing, Battery Hole Cover, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
