Toyota Dyna 200
1988-08 → 1997-03 · chassis BU6#,70,8#,9# · catalogue 751350 · General
Discontinued model
Data version 1997-10

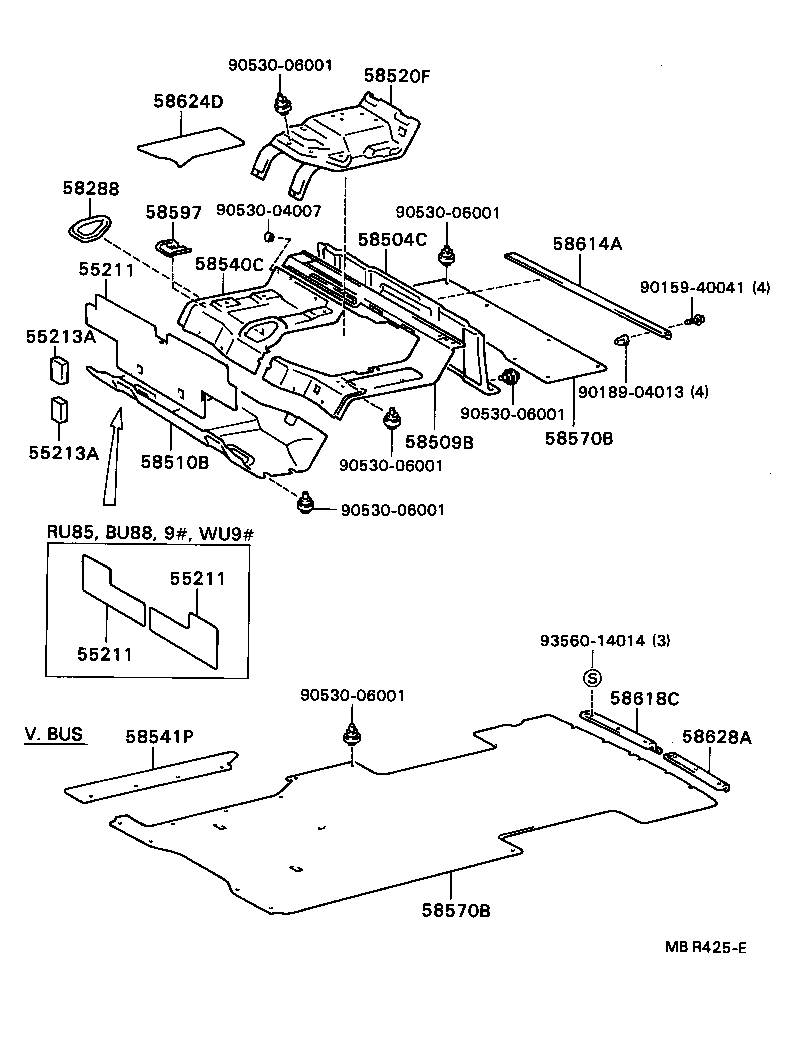

Floor Mat & Silencer Pad
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55211 | Silencer, Front Panel |
| 55213A | Pad, Dash Panel Silencer |
| 58288 | Seal, Shift Lever Boot |
| 58504C | Mat Sub-assy, Header |
| 58509B | Mat Sub-assy, Seat Floor |
| 58510B | Mat, Front Floor, Front |
| 58520F | Mat Assy, Engine Cover |
| 58540C | Mat Assy, Floor, Rear |
| 58541P | Mat, Step, RH |
| 58570B | Mat Assy, Rear Floor |
| 58597 | Plate, Seat Track Set |
| 58614A | Plate, Mat Set, NO.4 |
| 58618C | Plate, Rear Floor |
| 58624D | Pad, Center Floor Silencer |
| 58628A | Plate, Rear Floor |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
