Toyota Dyna 200
1988-08 → 1997-03 · chassis BU6#,70,8#,9# · catalogue 751350 · General
Discontinued model
Data version 1997-10

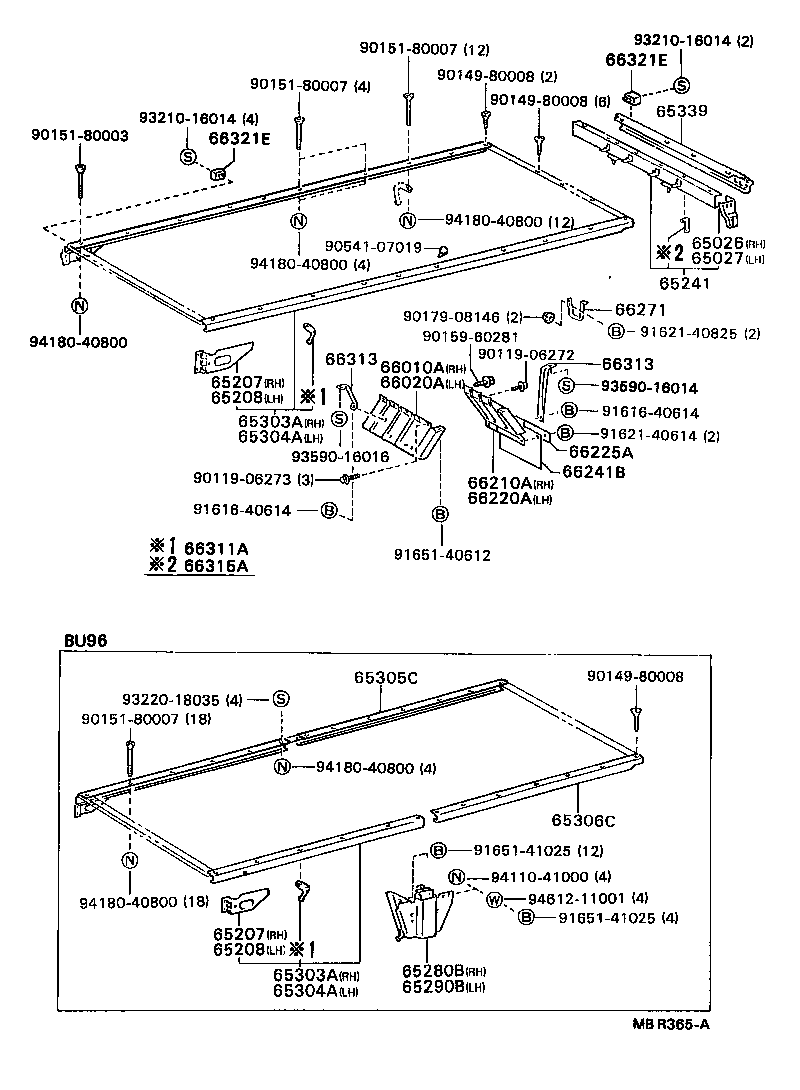

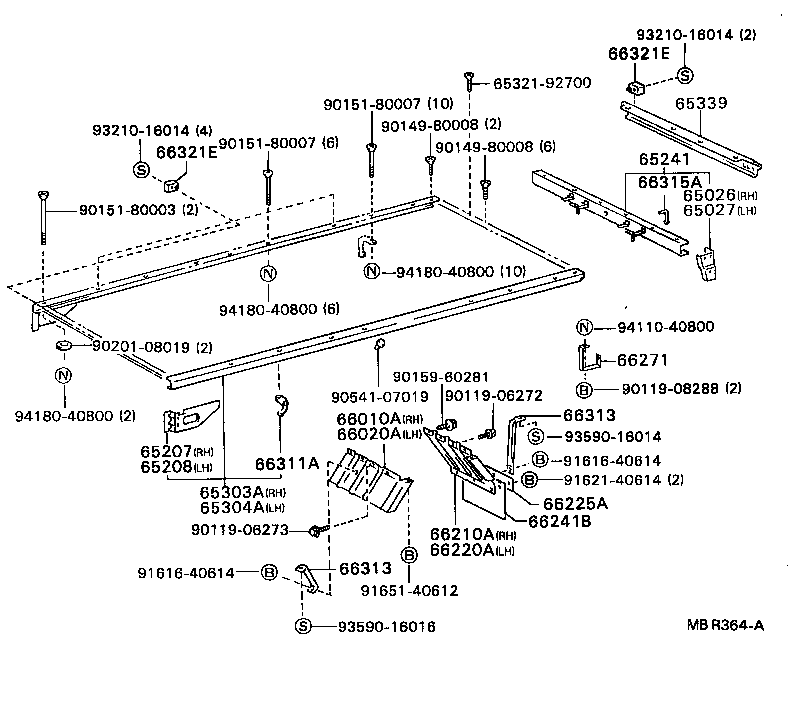

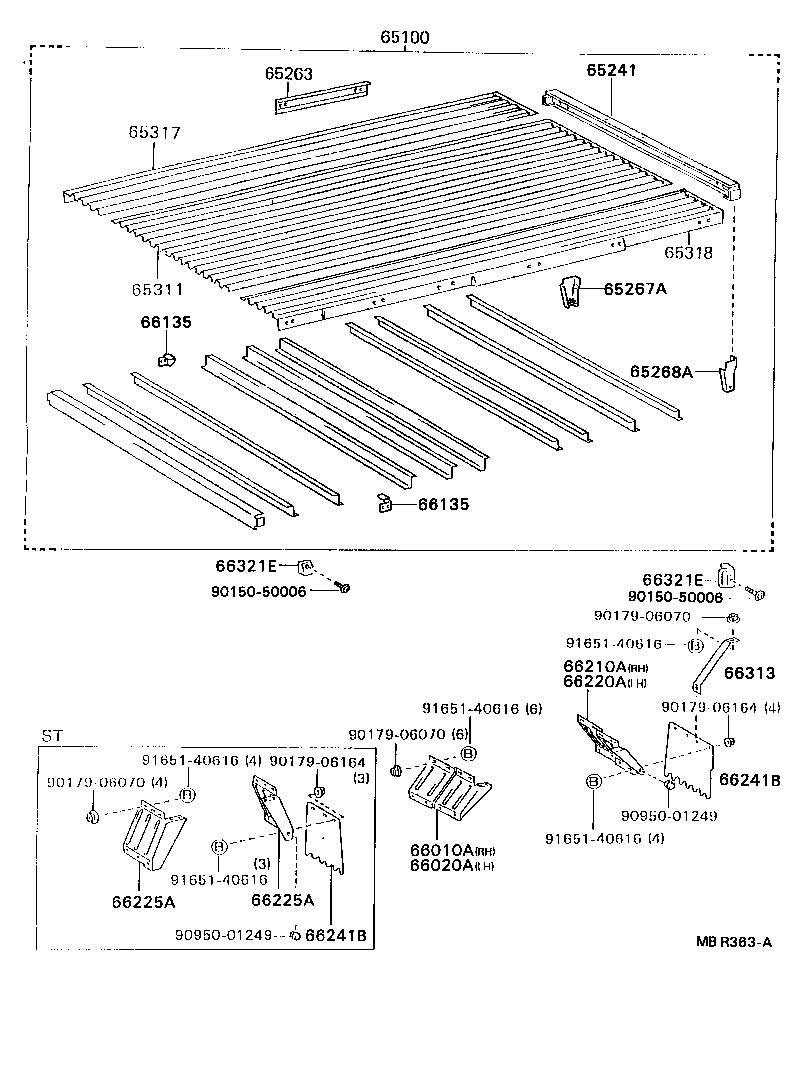

Rear Body Floor & Fender
37 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 53883C | Mudguard, Fender, RH |
| 53884A | Mudguard, Fender, LH |
| 61601A | Fender Sub-assy, Rear, RH |
| 61602A | Fender Sub-assy, Rear, LH |
| 65026 | Bracket Sub-assy, Gate Rubber Bumper, RH |
| 65027 | Bracket Sub-assy, Gate Rubber Bumper, LH |
| 65100 | Floor Assy, Rear Body |
| 65207 | Bracket Sub-assy, Guard Frame, RH |
| 65208 | Bracket Sub-assy, Guard Frame, LH |
| 65241 | Sill, Rear Cross |
| 65263 | Reinforcement, Floor Side Frame |
| 65267A | Bracket, Gate Rubber Bumper, RH |
| 65268A | Bracket, Gate Rubber Bumper, LH |
| 65280B | Bracket Assy, Center Post, RH |
| 65290B | Bracket Assy, Center Post, LH |
| 65303A | Frame Sub-assy, Floor Side, RH |
| 65304A | Frame Sub-assy, Floor Side, LH |
| 65305C | Frame Sub-assy, Floor Side, Rear RH |
| 65306C | Frame Sub-assy, Floor Side, Rear LH |
| 65311 | Panel, Floor, Center |
| 65317 | Panel, Floor Side, RH |
| 65318 | Panel, Floor Side, LH |
| 65339 | Frame, Floor, Rear |
| 66010A | Fender Assy, Rear NO.2 RH |
| 66020A | Fender Assy, Rear NO.2 LH |
| 66135 | Gusset, Gate Hinge, RH |
| 66181 | Bracket, Tail Gate Stopper |
| 66210A | Fender Assy, Rear NO.1 RH |
| 66220A | Fender Assy, Rear NO.1 LH |
| 66225A | Support, Baffle Rubber |
| 66241B | Baffle, Rubber |
| 66242A | Plate, Baffle Rubber |
| 66271 | Step, Rear Body |
| 66311A | Hook, Rope, NO.1 |
| 66313 | Support, Rear Fender |
| 66315A | Hook, Rope |
| 66321E | Bumper, Gate Rubber |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
