Toyota Dyna 200
1988-08 → 1997-03 · chassis BU6#,70,8#,9# · catalogue 751350 · General
Discontinued model
Data version 1997-10

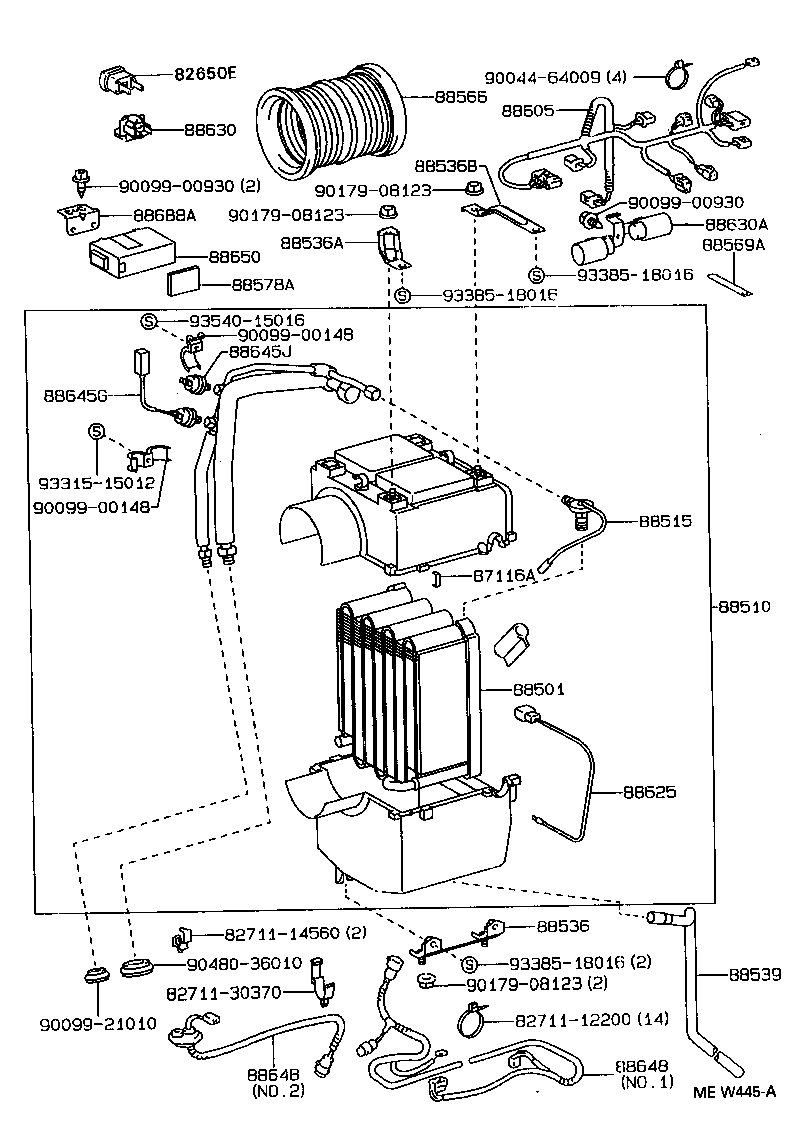

Heating & Air Conditioning - Cooler Unit
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 82650E | Breaker Assy, Wiring Circuit |
| 87116A | Spring, Holding (FOR COOLER UNIT CASE) |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88510 | Unit Assy, Cooler |
| 88515 | Valve, Cooler Expansion |
| 88536 | Bracket, Cooling Unit, NO.1 |
| 88536A | Bracket, Cooling Unit, NO.2 |
| 88536B | Bracket, Cooling Unit, NO.3 |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88566 | Duct, Cooler Air, NO.1 |
| 88568B | Filter, Air |
| 88569A | Clamp, NO.1(FOR COOLER WIRING HARNESS) |
| 88578A | Packing, Cooler Stabilizer Amplifier |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88630 | Relay Assy, Cooler |
| 88630A | Relay Assy, Cooler |
| 88645G | Switch, Pressure |
| 88645J | Switch, Pressure, NO.2 |
| 88648 | Wiring, Cooler, NO.1 |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88688A | Bracket, Cooler Stabilizer Amplifier |
| 88723A | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
