Toyota Dyna 200

1988-08 → 1997-03 · chassis BU6#,70,8#,9# · catalogue 751350 · General

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

25 part groups · 4 illustrations

Illustrations

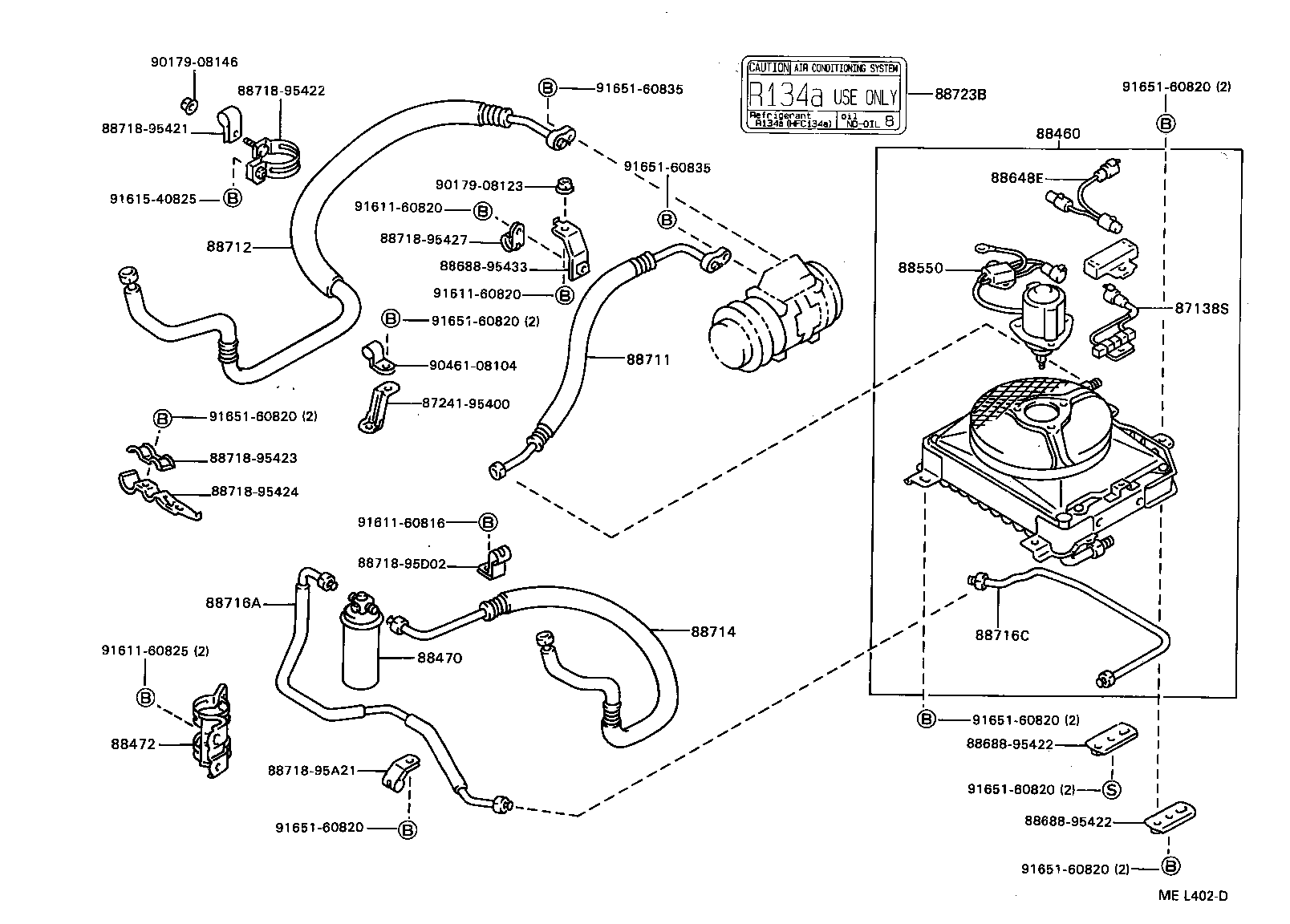

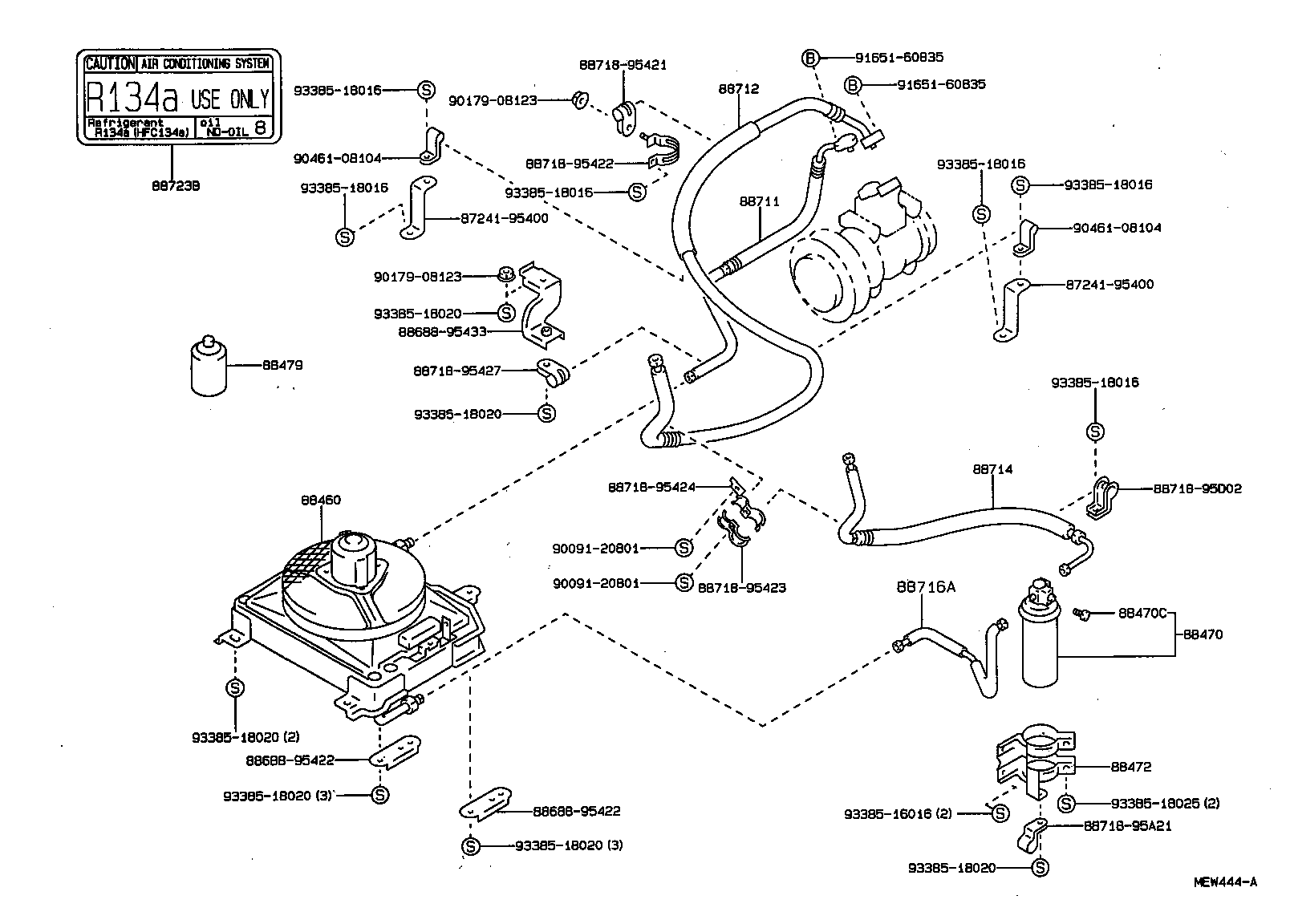

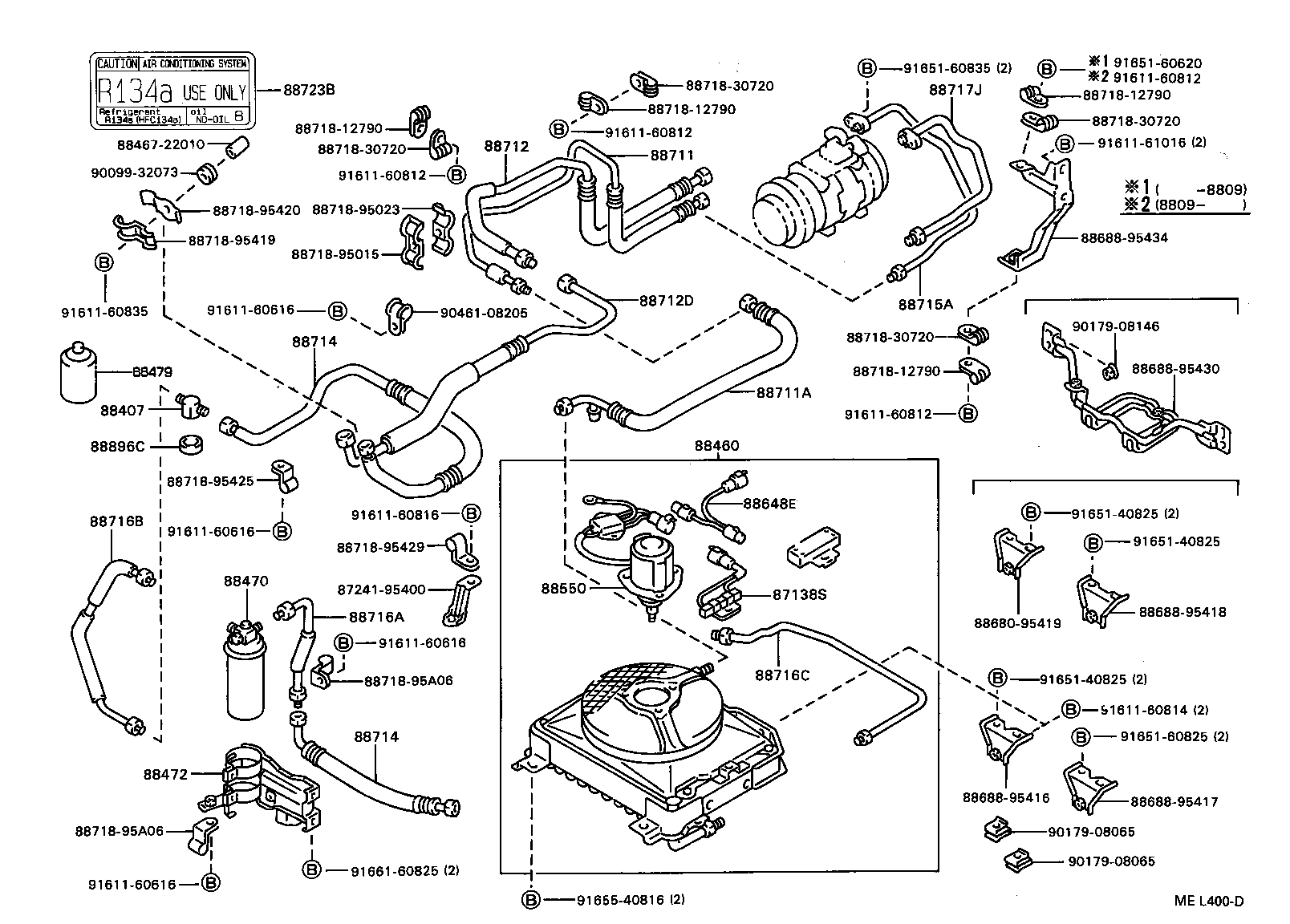

Figure MEL399E MEL399E 1988-08 → — Figure MEL400D MEL400D 1988-08 → — Figure MEW444A MEW444A 1988-08 → — Figure MEL402D MEL402D 1988-08 → —

Part groups

PNCDescription
87138S Resistor, Blower
88407 Glass Sub-assy, Sight
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88470 Receiver & Dryer Assy, Cooler
88470C Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88648E Wiring, Cooler
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88712 Hose, Cooler Refrigerant Suction, NO.1
88712D Hose, Suction
88713 Hose, Cooler Refrigerant Suction, NO.2
88714 Hose, Cooler Refrigerant Liquid, NO.1
88714A Hose, Cooler Refrigerant Liquid, NO.2
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717J Pipe, Cooler Refrigerant Suction, J
88723B Label, Cooler Service Caution
88896C Cover, Cooler Refrigerant Pipe, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
