Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · General

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Drive Shaft

21 part groups · 4 illustrations

Illustrations

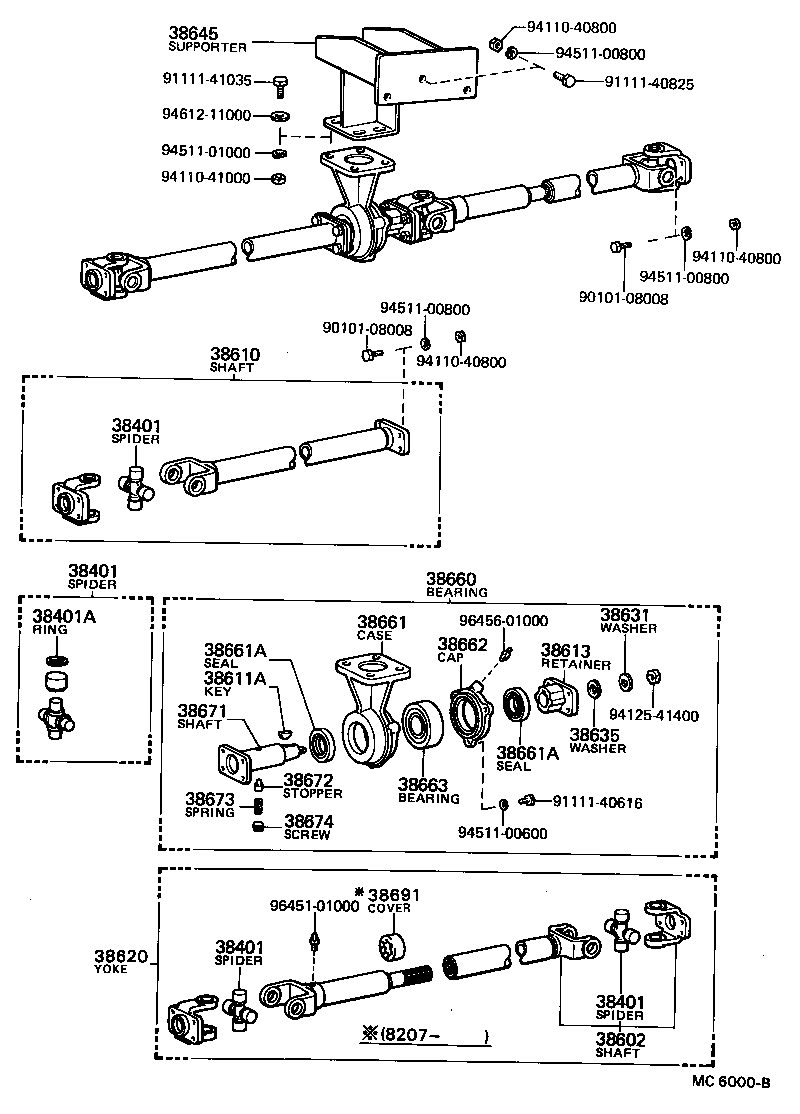

Figure MC5250B MC5250B 1978-03 → 1978-06 Figure MC5250B MC5250B 1978-06 → 1984-08 Figure MC5250B MC5250B 1983-04 → 1984-08 Figure MC6000B MC6000B 1978-06 → 1984-08

Part groups

PNCDescription
38401 Spider, Universal Joint (FOR OIL PUMP)
38401A Ring, Universal Joint Needle
38600 Shaft Assy, Oil Pump Drive
38602 Shaft Sub-assy, Pump Drive, Rear
38610 Shaft Assy, Pump Drive, Front
38611A Key, Woodruff (FOR PUMP DRIVE SHAFT FLANGE)
38613 Retainer, Pump Drive Shaft Joint
38620 Yoke Assy, Pump Drive
38631 Washer, Lock (FOR CENTER BEARING SHAFT)
38635 Washer, Plate (FOR CENTER BEARING SHAFT)
38645 Supporter, Center Bearing
38660 Bearing Assy, Center
38661 Case, Center Bearing
38661A Seal, Oil, Center Bearing Case
38662 Cap, Center Bearing
38663 Bearing, Radial Ball (FOR CENTER BEARING)
38671 Shaft, Center Bearing (FOR PUMP DRIVE SHAFT)
38672 Stopper, Radial Ball Bearing
38673 Spring, Radial Ball Bearing Stopper
38674 Screw, Stopper Set
38691 Cover, Drive Shaft Seal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
