Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · General

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

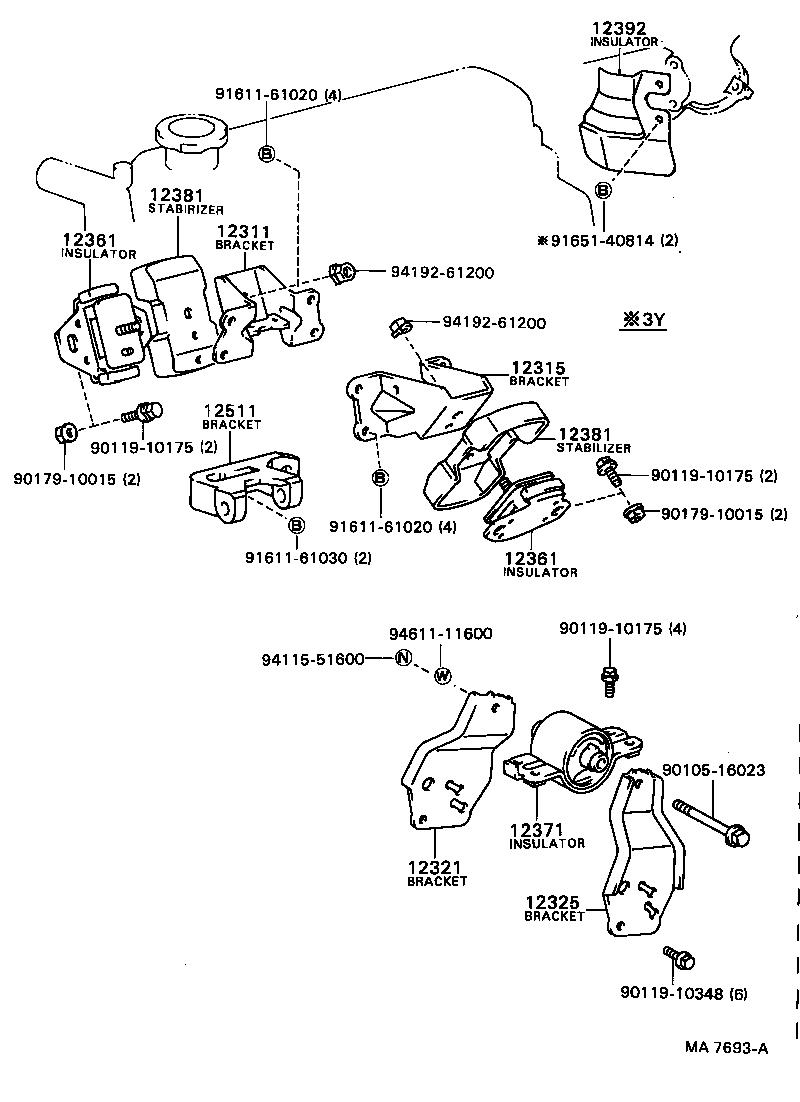

Exploded illustration MA7693A 12392 — INSULATOR, ENGINE MOUNTING HEAT, FRONT LH (2 parts) 9161161020 — not listed in this catalogue 12381 — STABILIZER, ENGINE MOUNTING (1 parts) 12311 — BRACKET, ENGINE MOUNTING, FRONT NO.1 RH (3 parts) 12361 — INSULATOR, ENGINE MOUNTING, FRONT (3 parts) 9165140814 — not listed in this catalogue 9419261200 — not listed in this catalogue 9419261200 — not listed in this catalogue 12315 — BRACKET, ENGINE MOUNTING, FRONT NO.1 LH (3 parts) 12511 — BRACKET, ALTERNATOR, NO.1 (3 parts) 12381 — STABILIZER, ENGINE MOUNTING (1 parts) 9011910175 — not listed in this catalogue 9011910175 — not listed in this catalogue 9017910015 — not listed in this catalogue 9017910015 — not listed in this catalogue 9161161020 — not listed in this catalogue 9161161030 — not listed in this catalogue 12361 — INSULATOR, ENGINE MOUNTING, FRONT (3 parts) 9011910175 — not listed in this catalogue 9461111600 — not listed in this catalogue 9411551600 — not listed in this catalogue 9010516023 — not listed in this catalogue 12371 — INSULATOR, ENGINE MOUNTING, REAR NO.1 (10 parts) 12321 — BRACKET, ENGINE MOUNTING, REAR, NO.1 (9 parts) 12325 — BRACKET, ENGINE MOUNTING, NO.3 (5 parts) 9011910348 — not listed in this catalogue
MA7693A · 11 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
39 parts on this figure
Part number Description Fitment Price
12311 — Bracket, Engine Mounting, Front NO.1 RH
12301-35141 Bracket, Engine Mounting, Front NO.1 RH
1984-09 → 1987-08 ended
22R RU75,85 —
12311-71010 Bracket, Engine Mounting, Front NO.1 RH
1984-09 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
12311-78020 Bracket, Engine Mounting, Front NO.1 RH
1984-09 → 1987-08 ended
1W WU9# —
12315 — Bracket, Engine Mounting, Front NO.1 LH
12302-35070 Bracket, Engine Mounting, Front NO.1 LH
1984-09 → 1987-08 ended
22R RU75,85 —
12311-78020 Bracket, Engine Mounting, Front NO.1 LH
1984-09 → 1987-08 ended
1W WU9# —
12315-71010 Bracket, Engine Mounting, Front NO.1 LH
1984-09 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
12321 — Bracket, Engine Mounting, Rear, NO.1
12321-56050 Bracket, Engine Mounting, Rear, NO.1
1984-09 → 1985-08 ended
3Y,4Y YU6#,70,80 —
12321-56080 Bracket, Engine Mounting, Rear, NO.1
1985-08 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
12321-58020 note Bracket, Engine Mounting, Rear, NO.1
1984-09 → 1985-08 ended
22R RU75,85 —
12321-58040 Bracket, Engine Mounting, Rear, NO.1
1984-09 → 1985-08 ended
1W WU9# —
12321-58050 Bracket, Engine Mounting, Rear, NO.1
1985-08 → 1987-08 ended
1W WU9# GEN —
12321-58050 note Bracket, Engine Mounting, Rear, NO.1
1985-08 → 1987-08 ended
22R RU75,85 —
12321-78010 Bracket, Engine Mounting, Rear, NO.1
1985-08 → 1987-08 ended
1W WU9# ARL,SA —
12325-58020 note Bracket, Engine Mounting, Rear, NO.1
1984-09 → 1985-08 ended
22R RU75,85 —
12325-58050 note Bracket, Engine Mounting, Rear, NO.1
1985-08 → 1987-08 ended
22R RU75,85 —
12325 — Bracket, Engine Mounting, NO.3
12325-56040 Bracket, Engine Mounting, NO.3
1984-09 → 1985-08 ended
3Y,4Y YU6#,70,80 —
12325-56070 Bracket, Engine Mounting, NO.3
1985-08 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
12325-58040 Bracket, Engine Mounting, NO.3
1984-09 → 1985-08 ended
1W WU9# —
12325-58050 Bracket, Engine Mounting, NO.3
1985-08 → 1987-08 ended
1W WU9# GEN —
12325-78010 Bracket, Engine Mounting, NO.3
1985-08 → 1987-08 ended
1W WU9# ARL,SA —
12361 — Insulator, Engine Mounting, Front
12361-35040 note Insulator, Engine Mounting, Front
1984-09 → 1984-11 ended
3Y,4Y YU6#,70,80 —
12361-35050 note Insulator, Engine Mounting, Front
1984-09 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
12361-58040 Insulator, Engine Mounting, Front
1984-09 → 1987-08 ended
1W WU9# —
12371 — Insulator, Engine Mounting, Rear NO.1
12371-56040 Insulator, Engine Mounting, Rear NO.1
1984-09 → 1985-06 ended
1W WU9# —
12371-56040 Insulator, Engine Mounting, Rear NO.1
1984-09 → 1985-06 ended
22R RU75,85 —
12371-56040 Insulator, Engine Mounting, Rear NO.1
1984-09 → 1985-06 ended
3Y,4Y YU6#,70,80 —
12371-56040 Insulator, Engine Mounting, Rear NO.1
1985-06 → 1985-08 ended
22R RU75,85 —
12371-56040 Insulator, Engine Mounting, Rear NO.1
1985-06 → 1985-08 ended
1W WU9# ARL,GEN —
12371-56040 Insulator, Engine Mounting, Rear NO.1
1985-06 → 1985-08 ended
3Y,4Y YU6#,70,80 —
12371-56041 Insulator, Engine Mounting, Rear NO.1
1985-08 → 1987-08 ended
22R RU75,85 —
12371-56041 Insulator, Engine Mounting, Rear NO.1
1985-08 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
12371-56041 Insulator, Engine Mounting, Rear NO.1
1985-08 → 1987-08 ended
1W WU9# ARL,GEN —
12371-56050 Insulator, Engine Mounting, Rear NO.1
1985-06 → 1987-08 ended
1W WU9# SA —
12381 — Stabilizer, Engine Mounting
12381-73010 Stabilizer, Engine Mounting
1984-09 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
12392 — Insulator, Engine Mounting Heat, Front LH
12391-72010 Insulator, Engine Mounting Heat, Front LH
1984-09 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
12392-35010 Insulator, Engine Mounting Heat, Front LH
1984-09 → 1987-08 ended
22R RU75,85 —
12511 — Bracket, Alternator, NO.1
12511-35010 Bracket, Alternator, NO.1
1984-09 → 1987-08 ended
22R RU75,85 —
12511-71010 Bracket, Alternator, NO.1
1984-09 → 1987-08 ended
3Y,4Y YU6#,7#,8# —
12511-78010 Bracket, Alternator, NO.1
1984-09 → 1987-08 ended
1W WU9# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
